SW6-2011过程设备强度计算软件用户手册

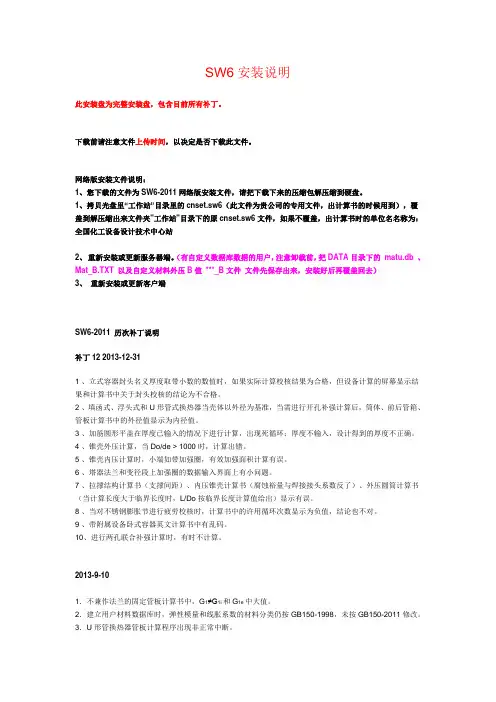

SW6安装说明此安装盘为完整安装盘，包含目前所有补丁。

下载前请注意文件上传时间，以决定是否下载此文件。

网络版安装文件说明：1、您下载的文件为SW6-2011网络版安装文件，请把下载下来的压缩包解压缩到硬盘。

1、拷贝光盘里“工作站”目录里的cnset.sw6（此文件为贵公司的专用文件，出计算书的时候用到），覆盖到解压缩出来文件夹"工作站"目录下的原cnset.sw6文件，如果不覆盖，出计算书时的单位名名称为：全国化工设备设计技术中心站2、重新安装或更新服务器端。

（有自定义数据库数据的用户，注意卸载前，把DATA目录下的matu.db 、Mat_B.TXT 以及自定义材料外压B值***_B文件文件先保存出来，安装好后再覆盖回去）3、重新安装或更新客户端SW6-2011 历次补丁说明补丁12 2013-12-311 、立式容器封头名义厚度取带小数的数值时，如果实际计算校核结果为合格，但设备计算的屏幕显示结果和计算书中关于封头校核的结论为不合格。

2 、填函式、浮头式和U形管式换热器当壳体以外径为基准，当需进行开孔补强计算后，筒体、前后管箱、管板计算书中的外径值显示为内径值。

3 、加筋圆形平盖在厚度已输入的情况下进行计算，出现死循环；厚度不输入，设计得到的厚度不正确。

4 、锥壳外压计算，当Do/de > 1000时，计算出错。

5 、锥壳内压计算时，小端如带加强圈，有效加强面积计算有误。

6 、塔器法兰和变径段上加强圈的数据输入界面上有小问题。

7 、拉撑结构计算书（支撑间距）、内压锥壳计算书（腐蚀裕量与焊接接头系数反了）、外压圆筒计算书（当计算长度大于临界长度时，L/Do按临界长度计算值给出）显示有误。

8 、当对不锈钢膨胀节进行疲劳校核时，计算书中的许用循环次数显示为负值，结论也不对。

9 、带附属设备卧式容器英文计算书中有乱码。

10、进行两孔联合补强计算时，有时不计算。

2013-9-101．不兼作法兰的固定管板计算书中，G1≠G1i和G1e中大值。

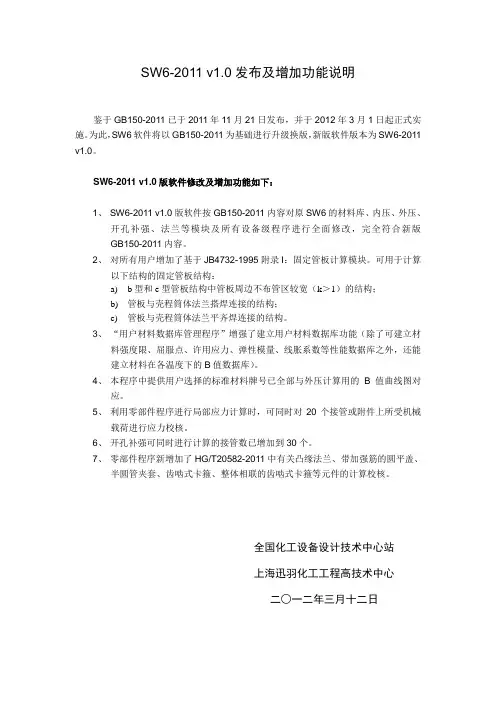

SW6-2011 v1.0发布及增加功能说明
鉴于GB150-2011已于2011年11月21日发布，并于2012年3月1日起正式实施。

为此，SW6软件将以GB150-2011为基础进行升级换版，新版软件版本为SW6-2011 v1.0。

SW6-2011 v1.0版软件修改及增加功能如下：
1、 SW6-2011 v1.0版软件按GB150-2011内容对原SW6的材料库、内压、外压、
开孔补强、法兰等模块及所有设备级程序进行全面修改，完全符合新版
GB150-2011内容。

2、对所有用户增加了基于JB4732-1995附录I：固定管板计算模块。

可用于计算
以下结构的固定管板结构：
a)b型和e型管板结构中管板周边不布管区较宽（k＞1）的结构；
b)管板与壳程筒体法兰搭焊连接的结构；
c)管板与壳程筒体法兰平齐焊连接的结构。

3、“用户材料数据库管理程序”增强了建立用户材料数据库功能（除了可建立材
料强度限、屈服点、许用应力、弹性模量、线胀系数等性能数据库之外，还能
建立材料在各温度下的B值数据库）。

4、本程序中提供用户选择的标准材料牌号已全部与外压计算用的B值曲线图对
应。

5、利用零部件程序进行局部应力计算时，可同时对20个接管或附件上所受机械
载荷进行应力校核。

6、开孔补强可同时进行计算的接管数已增加到30个。

7、零部件程序新增加了HG/T20582-2011中有关凸缘法兰、带加强筋的圆平盖、
半圆管夹套、齿啮式卡箍、整体相联的齿啮式卡箍等元件的计算校核。

全国化工设备设计技术中心站
上海迅羽化工工程高技术中心
二○一二年三月十二日。

钢制卧式容器计算单位中航一集团航空动力控制系统研究所计算条件简图设计压力p 3.14 MPa设计温度t-30 ℃筒体材料名称16MnDR封头材料名称16MnDR封头型式椭圆形筒体内直径 Di 4200 mm筒体长度L 8400 mm筒体名义厚度δn 45mm 支座垫板名义厚度δrn mm 筒体厚度附加量C 3.3mm 腐蚀裕量C1 3 mm 筒体焊接接头系数Φ1封头名义厚度δhn45mm 封头厚度附加量 C h 3.3mm 鞍座材料名称鞍座宽度 b mm 鞍座包角θ°支座形心至封头切线距离A mm 鞍座高度H mm 地震烈度度内压圆筒校核 计算单位中航一集团航空动力控制系统研究所计算所依据的标准GB 150.3-2011计算条件筒体简图计算压力 P c 3.14 MPa设计温度 t -30.00 ︒ C 内径 D i 4200.00mm 材料16MnDR ( 板材 ) 试验温度许用应力 [σ]170.00 MPa 设计温度许用应力 [σ]t170.00 MPa 试验温度下屈服点 σs 285.00 MPa 钢板负偏差 C 1 0.30 mm 腐蚀裕量 C 2 3.00 mm 焊接接头系数 φ1.00厚度及重量计算计算厚度 δ = P D P c it c 2[]σφ- = 39.15mm 有效厚度 δe =δn - C 1- C 2= 41.70 mm 名义厚度 δn = 45.00 mm 重量39570.95Kg压力试验时应力校核压力试验类型 液压试验试验压力值 P T = 1.25P [][]σσt = 3.9250 (或由用户输入)MPa 压力试验允许通过 的应力水平 [σ]T [σ]T ≤ 0.90 σs = 256.50MPa试验压力下 圆筒的应力 σT = p D T i e e .().+δδφ2 = 199.62 MPa校核条件 σT ≤ [σ]T 校核结果合格压力及应力计算最大允许工作压力 [P w ]= 2δσφδe t i e []()D += 3.34253MPa 设计温度下计算应力 σt= P D c i e e()+δδ2= 159.70 MPa [σ]tφ 170.00 MPa校核条件 [σ]tφ ≥σt结论 合格左封头计算计算单位 中航一集团航空动力控制系统研究所计算所依据的标准GB 150.3-2011 计算条件椭圆封头简图计算压力 P c 3.14 MPa设计温度 t -30.00 ︒ C 内径 D i 4200.00 mm 曲面深度 h i 1050.00mm 材料16MnDR (板材) 设计温度许用应力 [σ]t170.00 MPa 试验温度许用应力 [σ] 170.00 MPa 钢板负偏差 C 1 0.30 mm 腐蚀裕量 C 2 3.00 mm焊接接头系数 φ 1.00压力试验时应力校核压力试验类型 液压试验 试验压力值P T = 1.25P ct][][σσ= 3.9250 (或由用户输入)MPa 压力试验允许通过的应力[σ]t [σ]T ≤ 0.90 σs = 256.50MPa 试验压力下封头的应力σT = φδδ.2)5.0.(e e i T KD p += 198.64 MPa校核条件 σT ≤ [σ]T 校核结果合格厚度及重量计算形状系数K = ⎥⎥⎦⎤⎢⎢⎣⎡⎪⎪⎭⎫ ⎝⎛+2i i 2261h D = 1.0000计算厚度 δh = KP D P c it c 205[].σφ- = 38.97mm 有效厚度 δeh =δnh - C 1- C 2= 41.70 mm 最小厚度 δmin = 6.30 mm 名义厚度 δnh = 45.00 mm 结论 满足最小厚度要求 重量6937.06Kg压 力 计 算最大允许工作压力 [P w ]= 205[].σφδδt ei e KD += 3.35904MPa结论 合格右封头计算计算单位 中航一集团航空动力控制系统研究所计算所依据的标准GB 150.3-2011 计算条件椭圆封头简图计算压力 P c 3.14 MPa设计温度 t -30.00 ︒ C 内径 D i 4200.00 mm 曲面深度 h i 1050.00mm 材料16MnDR (板材) 设计温度许用应力 [σ]t170.00 MPa 试验温度许用应力 [σ] 170.00 MPa 钢板负偏差 C 1 0.30 mm 腐蚀裕量 C 2 3.00 mm焊接接头系数 φ 1.00压力试验时应力校核压力试验类型 液压试验 试验压力值P T = 1.25P ct][][σσ= 3.9250 (或由用户输入)MPa 压力试验允许通过的应力[σ]t [σ]T ≤ 0.90 σs = 256.50MPa 试验压力下封头的应力σT = φδδ.2)5.0.(e e i T KD p += 198.64 MPa校核条件 σT ≤ [σ]T 校核结果合格厚度及重量计算形状系数K = ⎥⎥⎦⎤⎢⎢⎣⎡⎪⎪⎭⎫ ⎝⎛+2i i 2261h D = 1.0000计算厚度 δh = KP D P c it c 205[].σφ- = 38.97mm 有效厚度 δeh =δnh - C 1- C 2= 41.70 mm 最小厚度 δmin = 6.30 mm 名义厚度 δnh = 45.00 mm 结论 满足最小厚度要求 重量6937.06Kg压 力 计 算最大允许工作压力 [P w ]= 205[].σφδδt ei e KD += 3.35904MPa结论 合格。

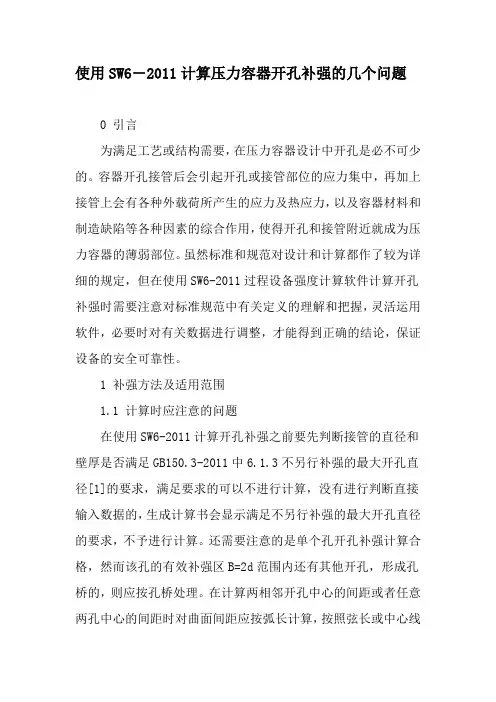

使用SW6―2011计算压力容器开孔补强的几个问题0 引言为满足工艺或结构需要，在压力容器设计中开孔是必不可少的。

容器开孔接管后会引起开孔或接管部位的应力集中，再加上接管上会有各种外载荷所产生的应力及热应力，以及容器材料和制造缺陷等各种因素的综合作用，使得开孔和接管附近就成为压力容器的薄弱部位。

虽然标准和规范对设计和计算都作了较为详细的规定，但在使用SW6-2011过程设备强度计算软件计算开孔补强时需要注意对标准规范中有关定义的理解和把握，灵活运用软件，必要时对有关数据进行调整，才能得到正确的结论，保证设备的安全可靠性。

1 补强方法及适用范围1.1 计算时应注意的问题在使用SW6-2011计算开孔补强之前要先判断接管的直径和壁厚是否满足GB150.3-2011中6.1.3不另行补强的最大开孔直径[1]的要求，满足要求的可以不进行计算，没有进行判断直接输入数据的，生成计算书会显示满足不另行补强的最大开孔直径的要求，不予进行计算。

还需要注意的是单个孔开孔补强计算合格，然而该孔的有效补强区B=2d范围内还有其他开孔，形成孔桥的，则应按孔桥处理。

在计算两相邻开孔中心的间距或者任意两孔中心的间距时对曲面间距应按弧长计算，按照弦长或中心线垂直距离计算是不正确的。

1.2 补强计算方法及适用范围的理解SW6-2011补强计算方法给出四种：等面积补强法、另一补强方法、分析方法和压力面积法。

计算软件中的等面积补强法是指单个开孔的等面积法，联合补强法是指多个开孔的等面积法。

等面积法是开孔补强计算方法中最广泛应用的计算方法，该法是以补偿开孔局部截面的一次拉伸强度作为补强准则的，是以无限大平板上开有小圆孔时孔边的应力集中作为理论基础的，即仅考虑容器壳体中存在的拉伸薄膜应力，对开孔边缘的二次应力的安定性问题是通过限制开孔形状，长短径之比和开孔范围（开孔率）间接考虑的[2]，使用该法应考虑开孔是否满足GB150.3-2011中6.1.1的规定。

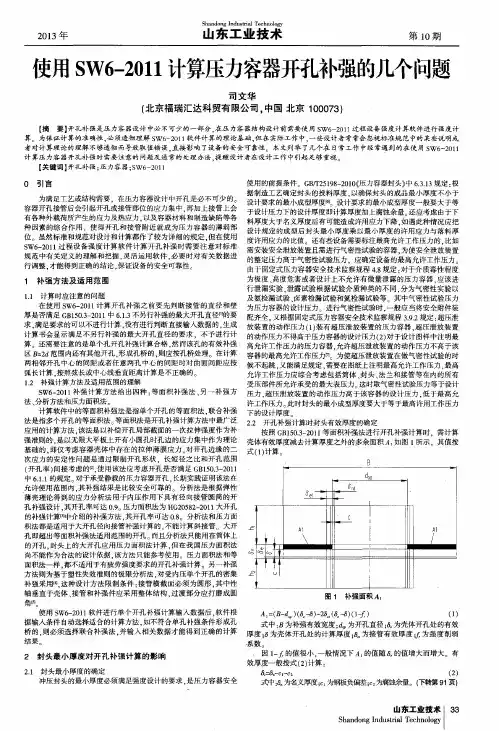

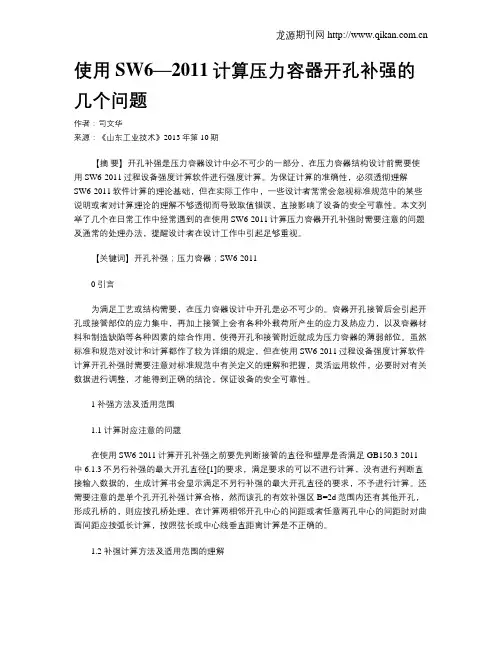

使用SW6—2011计算压力容器开孔补强的几个问题作者：司文华来源：《山东工业技术》2013年第10期【摘要】开孔补强是压力容器设计中必不可少的一部分，在压力容器结构设计前需要使用SW6-2011过程设备强度计算软件进行强度计算。

为保证计算的准确性，必须透彻理解SW6-2011软件计算的理论基础，但在实际工作中，一些设计者常常会忽视标准规范中的某些说明或者对计算理论的理解不够透彻而导致取值错误，直接影响了设备的安全可靠性。

本文列举了几个在日常工作中经常遇到的在使用SW6-2011计算压力容器开孔补强时需要注意的问题及通常的处理办法，提醒设计者在设计工作中引起足够重视。

【关键词】开孔补强；压力容器；SW6-20110 引言为满足工艺或结构需要，在压力容器设计中开孔是必不可少的。

容器开孔接管后会引起开孔或接管部位的应力集中，再加上接管上会有各种外载荷所产生的应力及热应力，以及容器材料和制造缺陷等各种因素的综合作用，使得开孔和接管附近就成为压力容器的薄弱部位。

虽然标准和规范对设计和计算都作了较为详细的规定，但在使用SW6-2011过程设备强度计算软件计算开孔补强时需要注意对标准规范中有关定义的理解和把握，灵活运用软件，必要时对有关数据进行调整，才能得到正确的结论，保证设备的安全可靠性。

1 补强方法及适用范围1.1 计算时应注意的问题在使用SW6-2011计算开孔补强之前要先判断接管的直径和壁厚是否满足GB150.3-2011中6.1.3不另行补强的最大开孔直径[1]的要求，满足要求的可以不进行计算，没有进行判断直接输入数据的，生成计算书会显示满足不另行补强的最大开孔直径的要求，不予进行计算。

还需要注意的是单个孔开孔补强计算合格，然而该孔的有效补强区B=2d范围内还有其他开孔，形成孔桥的，则应按孔桥处理。

在计算两相邻开孔中心的间距或者任意两孔中心的间距时对曲面间距应按弧长计算，按照弦长或中心线垂直距离计算是不正确的。
