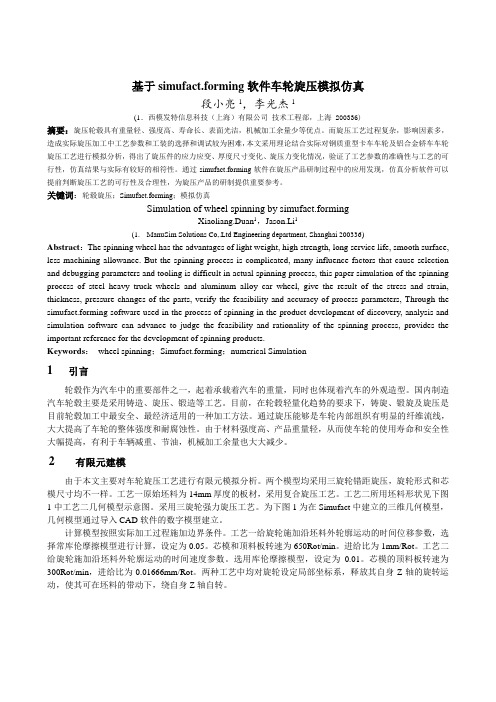

基于simufact.forming软件车轮旋压模拟仿真段小亮1，李光杰1(1．西模发特信息科技（上海）有限公司技术工程部，上海 200336)摘要：旋压轮毂具有重量轻、强度高、寿命长、表面光洁，机械加工余量少等优点。

而旋压工艺过程复杂，影响因素多，造成实际旋压加工中工艺参数和工装的选择和调试较为困难，本文采用理论结合实际对钢质重型卡车车轮及铝合金轿车车轮旋压工艺进行模拟分析，得出了旋压件的应力应变、厚度尺寸变化、旋压力变化情况，验证了工艺参数的准确性与工艺的可行性，仿真结果与实际有较好的相符性。

通过simufact.forming软件在旋压产品研制过程中的应用发现，仿真分析软件可以提前判断旋压工艺的可行性及合理性，为旋压产品的研制提供重要参考。

关键词：轮毂旋压；Simufact.forming；模拟仿真Simulation of wheel spinning by simufact.formingXiaoliang.Duan1，Jason.Li1(1.ManuSim Solutions Co,.Ltd Engineering department, Shanghai 200336)Abstract：The spinning wheel has the advantages of light weight, high strength, long service life, smooth surface, less machining allowance. But the spinning process is complicated, many influence factors that cause selection and debugging parameters and tooling is difficult in actual spinning process, this paper simulation of the spinning process of steel heavy truck wheels and aluminum alloy car wheel, give the result of the stress and strain, thickness, pressure changes of the parts, verify the feasibility and accuracy of process parameters, Through the simufact.forming software used in the process of spinning in the product development of discovery, analysis and simulation software can advance to judge the feasibility and rationality of the spinning process, provides the important reference for the development of spinning products.Keywords：wheel spinning；Simufact.forming；numerical Simulation1引言轮毂作为汽车中的重要部件之一，起着承载着汽车的重量，同时也体现着汽车的外观造型。

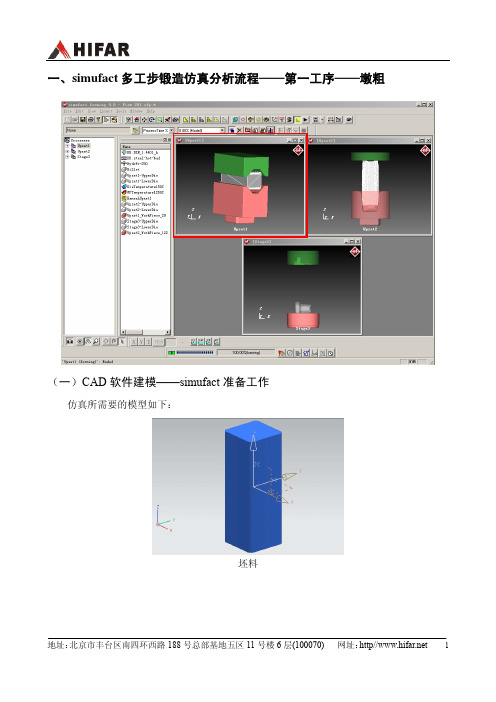

一、simufact多工步锻造仿真分析流程——第一工序——墩粗（一）CAD软件建模——simufact准备工作仿真所需要的模型如下：坯料上模下模（二）simufact墩粗工艺仿真流程在Simufact 中整个锻件的锻造过程按下述求解步骤进行：1)生成开式模锻的分析项目2)导入工件及模具几何模型3)工件及模具位置定义4)定义工件及模具材料5)定义模具运动方式6)定义模具和工件的热参数7)定义摩擦系数8)工件网格划分9)工艺分析条件设置10)分析11)分析结果后处理具体分析过程如下：1）生成开式模锻的分析项目a)点击桌面sfForming 9.0快捷方式启动simufact软件，或者Windows开始菜单中击simufact forming 9.0。

(Windows 开始菜单simufact forming 9.0启动方式) b)选择并按下File→New Project菜单。

c)弹出分析项目向导对话框，按下图进行设置：d)设置完成后，按下“OK”按钮，生成开式模锻工艺仿真分析项目，整个sfForming窗体如下图所示：e)设定单位，点击菜单栏tools-option。

2）导入工件及模具几何模型a)在simufact界面的目标存放区域点击鼠标右键，弹出菜单，选择并按下“Model→Fromfile”菜单。

b)弹出对话框，选择用于墩粗工艺仿真的stl格式模型文件，在导入模型时注意选择合适的单位（m/cm/mm/ft/in）。

3）工件及模具位置定义a)将目标存放区域刚刚导入的上模Upper拖到对应的Process——“UpperDie”（上模）分支上，如下图所示：b)将目标存放区域导入的下模lower拖到对应的Process——“LowerDie”（下模）分支上，如下图所示：c)将目标存放区域导入的工件模型Preform拖到对应的Process——“WorkPiece”（工件）分支上，如下图所示：d)导入模型后，simufact界面显示如下：e)模型定位将整个模型绕x轴旋转90°，保证z轴为上模的运动方向。

SuperForge2005使用手册内容：参数设置，试验分析，结果分析编制：王 毅部门：工程部时间：2005.7.28～2005.8.10目录一、计算机配置及相关参数设置和结果简介-----------------------------11.计算机配置情况：-----------------------------------------------12.软件主要参数设置说明-------------------------------------------13.软件运行结果的说明---------------------------------------------2二、SUPERFORGE2005操作步骤详解------------------------------------31.生成STL模型文件------------------------------------------------32.在S UPER F ORGE环境下设置各参数-------------------------------------53.参数调入设计树-------------------------------------------------84.运行-----------------------------------------------------------95.结果显示-------------------------------------------------------9三、关键参数设置试验及分析----------------------------------------101.STL文件精度的设置--------------------------------------------102.模具类型的设置------------------------------------------------123.网格长度的设置------------------------------------------------144.摩擦系数的设置------------------------------------------------165.水压机速度设置------------------------------------------------186.材料的定义----------------------------------------------------20四、结果显示与分析------------------------------------------------221.接触应力（C ONTACT P RESSURE）-------------------------------------222.其他结果说明--------------------------------------------------25 结论--------------------------------------------------------------27一、计算机配置及相关参数设置和结果简介SuperForge2005试用过程是在2004使用的一定经验之上进行的，对于我司的产品的一些参数，大体上已经有一定的积累，记录如下：1. 计算机配置情况：CPU：奔腾D520（64位2.66主频）内存：2G显卡：ATI X700主板：Intel 915G硬盘：120G(SATA)2. 软件主要参数设置说明按照我司产品的整个制作过程，对软件运行的整体参数按步骤作如下设置：①模具的类型选择：Backward Extrusion (或者closed die)②输入模具及锻件文件为STL格式（具体制作过程见附录）Model->From fileSTL文件在制作时会因为误差和角度的不同，在本文中，若不作特殊说明则：“粗”是指误差为0.0557mm，角度为30°的STL文件；“良”是指误差为0.0215mm，角度为10°的STL文件；“精”是指误差为0.0023mm，角度为0.5°的STL文件。

CAE联盟论坛精品讲座系列
SimuFact.Forming 多工步连续分析设置详解
主讲人 阿毅CAE联盟论坛—总版主
背景介绍：
目前进行锻压、挤压分析的4大主流的商用软件：Deform、Simufact.Forming（原MSC.SuperForge）、Forge、Qform中，都可以进行2D/3D分析，但是如果是多工步分析，Deform只能进行手动切换，就是算完第一步然后人工手动再调入第二步的模型，以此类推，如果是计算很慢，那么晚上没有人值班时，不得不停止计算，浪费了很多计算资源；Simufact.Forming在这一点上很好，有一个StageControl功能，可以非常方便的对多工步进行连续分析，在分析过程中，不再需要人工对模型进行处理，遇到大型计算时，能够有效利用晚上的时间，进行连续分析，非常实用；下面对其过程进行详细说明；
1．首先设置第一个分析工步（此处不再详细解释，与普通的单工步设置一致），设置完毕后；在Processes上点右键（Insert Process）增加分析工步，直至设置完毕，如有5步：
再设置第二步时，Worpiece只设置材料和温度条件；
2．所有的分析设置完毕后，在Processes上点右键，增加一个StageControl（Instert StageControl）功能；
然后拖动设置好的5个分析工步至StageControl下，如下图所示：
默认情况下，STEP1计算完毕后，会自动的将Workpiect工件自动的设置到STEP2中，如果还需要DIE，请在step2以下工步上点右键，选择所需要的模具
所有设置完毕后，在Stage Control上点右键，进行多工步计算；。

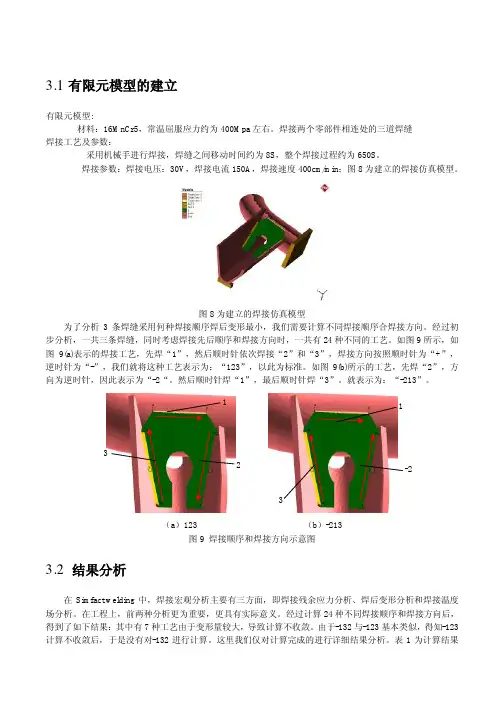

锻造仿真软件simufact.forming公司介绍先进和便捷的⾦属成形仿真系统 ——simufactSimufact软件介绍内容usimufact发展历程u⾦属塑性成形模拟技术 u usimufact功能介绍软件应⽤实例⼀、产品发展历程Simufact Engineering Gmbhu u u u u u usimufact是世界知名的CAE公司，总部位于德国成⽴于1995年，软件开发团队不断发展与壮⼤ 1995年成为MSC和MARC公司的商业合作伙伴致⼒于⾦属成形和制造⼯艺仿真不断加强与⼤学和⾏业组织的合作⽬前已成为四个国际⾦属加⼯协会的会员超过10年的软件开发、销售、培训以及客户⽀持经验Balve Marburg FuldaHamburgKasselSimufact 发展历程Release nubering:1.02.03.04.05.06.07.08.01996MARC/ Autoforge 1.21998 1999 2000 2001 2002 2003MSC.SuperForm 2002 MSC.SuperForm 2003 MSC.SuperForm 20042005 2006 2007simufact.forming Release 8.0MARC/ Autoforge 2.2 MSC/ Autoforge 2.3 MSC/ Autoforge 3.1MSC.Manufacturing 2005Superforge x.y Superforge u.vMSC.SuperForge 2004 MSC.SuperForge 2003MSC.SuperForge 2002MARC/ MSC MARC/ MSC Merger Mergerrenaming renaming Autoforge AutoforgeMSC.Manufacturing MSC.Manufacturinglicense license combining combining产品核⼼技术Simulating Manufacturingreal integrated solution of … MSC.SuperForm MSC.Marc MSC.SuperForge MSC.Dytran产品模块l l l l l l l l⾦属成形⼯艺模拟环境机械连接⼯艺仿真模块焊接⼯艺仿真模块材料数据库模拟结果分析⼯模具载荷分析⽹格划分模块机构运动模块⾦属成形模拟是simufact的最主要模块 (锻造、轧制、拉拔、挤压、冲压)Simufact 软件适⽤的领域u⾦属成形⼯艺分析包括锻造、轧制、旋压、挤压、拉拔、剪切等体积成形⼯艺和板料成形⼯艺，同时也可以进⾏变形和传热的耦合分析，例如热成形或温成形⼯艺、以及材料的加热和冷却过程。

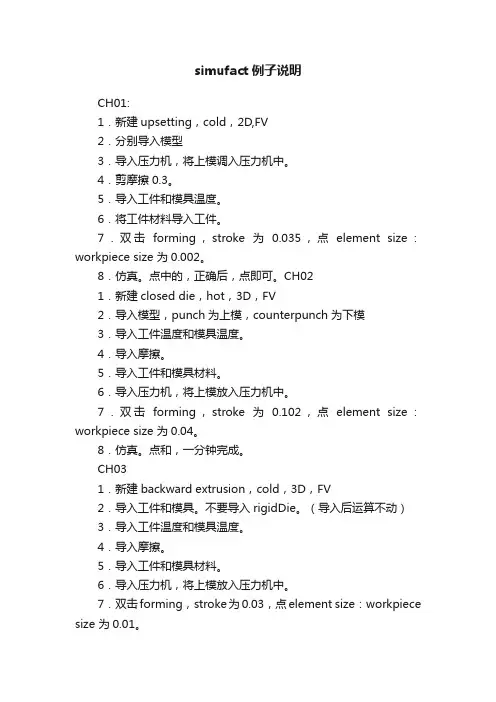

simufact例子说明CH01:1．新建upsetting，cold，2D,FV2．分别导入模型3．导入压力机，将上模调入压力机中。
