D-Link交换机管理设置快速配置手册(运营商行业)

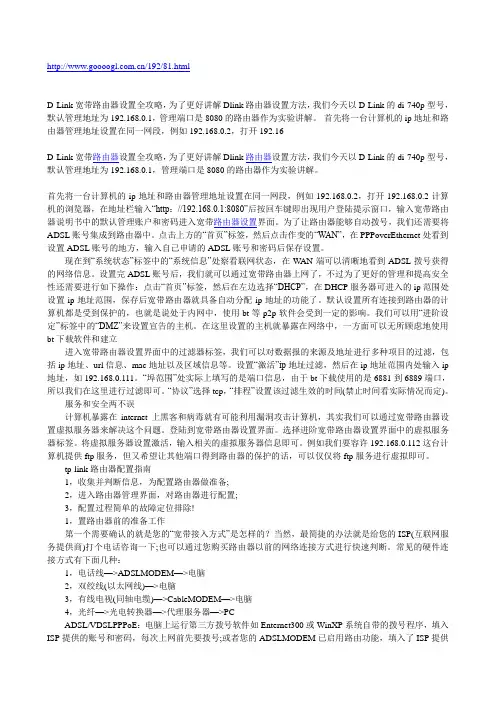

/192/81.htmlD-Link宽带路由器设置全攻略，为了更好讲解Dlink路由器设置方法，我们今天以D-Link的di-740p型号，默认管理地址为192.168.0.1，管理端口是8080的路由器作为实验讲解。

首先将一台计算机的ip地址和路由器管理地址设置在同一网段，例如192.168.0.2，打开192.16-D-Link宽带路由器设置全攻略，为了更好讲解Dlink路由器设置方法，我们今天以D-Link的di-740p型号，默认管理地址为192.168.0.1，管理端口是8080的路由器作为实验讲解。

首先将一台计算机的ip地址和路由器管理地址设置在同一网段，例如192.168.0.2，打开192.168.0.2计算机的浏览器，在地址栏输入“http：//192.168.0.1:8080”后按回车键即出现用户登陆提示窗口，输入宽带路由器说明书中的默认管理账户和密码进入宽带路由器设置界面。

为了让路由器能够自动拨号，我们还需要将ADSL账号集成到路由器中。

点击上方的“首页”标签，然后点击作变的“W AN”，在PPPoverEthernet处看到设置ADSL账号的地方，输入自己申请的ADSL账号和密码后保存设置。

现在到“系统状态”标签中的“系统信息”处察看联网状态，在W AN端可以清晰地看到ADSL拨号获得的网络信息。

设置完ADSL账号后，我们就可以通过宽带路由器上网了，不过为了更好的管理和提高安全性还需要进行如下操作：点击“首页”标签，然后在左边选择“DHCP”，在DHCP服务器可进入的ip范围处设置ip地址范围，保存后宽带路由器就具备自动分配ip地址的功能了。

默认设置所有连接到路由器的计算机都是受到保护的，也就是说处于内网中，使用bt等p2p软件会受到一定的影响。

我们可以用“进阶设定”标签中的“DMZ”来设置宣告的主机。

在这里设置的主机就暴露在网络中，一方面可以无所顾虑地使用bt下载软件和建立进入宽带路由器设置界面中的过滤器标签，我们可以对数据报的来源及地址进行多种项目的过滤，包括ip地址、url信息、mac地址以及区域信息等。

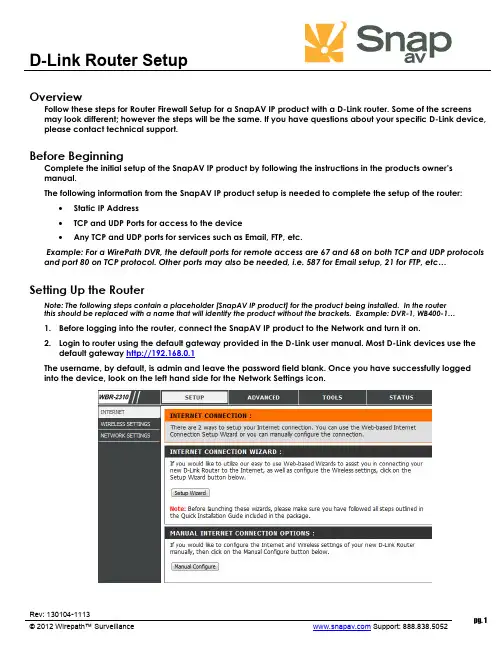

D-Link Router SetupRev: 130104-1113pg. 1© 2012 Wirepath™ Surveillance Support: 888.838.5052 OverviewFollow these steps for Router Firewall Setup for a SnapAV IP product with a D-Link router. Some of the screens may look different; however the steps will be the same. If you have questions about your specific D-Link device, please contact technical support.Before BeginningComplete the initial setup of the SnapAV IP product by following the instructions in the products owner’s manual.The following information from the SnapAV IP product setup is needed to complete the setup of the router:∙Static IP Address ∙TCP and UDP Ports for access to the device ∙ Any TCP and UDP ports for services such as Email, FTP, etc.Example: For a WirePath DVR, the default ports for remote access are 67 and 68 on both TCP and UDP protocols and port 80 on TCP protocol. Other ports may also be needed, i.e. 587 for Email setup, 21 for FTP, etc… Setting Up the RouterNote: The following steps contain a placeholder [SnapAV IP product] for the product being installed. In the router this should be replaced with a name that will identify the product without the brackets. Example: DVR-1, WB400-1…1. Before logging into the router, connect the SnapAV IP product to the Network and turn it on.2. Login to router using the default gateway provided in the D-Link user manual. Most D-Link devices use thedefault gateway http://192.168.0.1The username, by default, is admin and leave the password field blank. Once you have successfully logged into the device, look on the left hand side for the Network Settings icon.D-Link Router Setup3.In the DHCP Server Settings sections at the bottom of the screen check the Enable DHCP server radio button.Below that, in the Add DHCP Reservation section select your SnapAV IP product from the drop down menu next to computer name. Make sure to write down the IP address of the SnapAV IP product for step5.4.Once the SnapAV IP product has been set for DHCP Reservation, look for the Advanced icon at the top ofthe screen. Click the Port Forwarding icon one the left hand side.5.Once you click the Port Forwarding icon you should be in the Port Forwarding rules section. For Name enter[SnapAV IP product] and a descriptor for the port’s function(example: D VR control port) Traffic Type should be TCP,UDP, or TCP/UDP. The starting and ending port will be the same number if a single number range is being configured, or the start and end of the range of numbers if a range is being configured. The IP address is the IP address for the SnapAV IP product that you noted from step 2.6.Repeat step 5 for additional ports. Be sure to click “Apply” or “Save” at the bottom of the Port Forwardingpage before leaving that section of the router setup.7.Save all settings and be sure to reboot both the router and the SnapAV device after you finish to be sure allchanges take effect.Contacting Technical SupportPhone: (866) 838-5052Email: **********************pg. 2D-Link Router Setuppg. 3 © © 2012 Wirepath™ Surveillance Support: 888.838.5052。

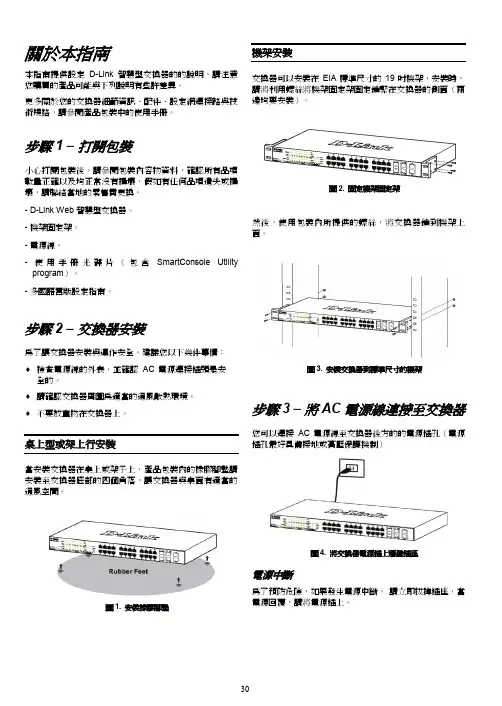

關於本指南本指南提供設定D-Link 智慧型交換器的的說明，請注意您購買的產品可能與下列說明有些許差異。

更多關於您的交換器細節資訊、配件、設定網連接路與技術規格，請參閱產品包裝中的使用手冊。

步驟 1 – 打開包裝小心打開包裝後，請參閱包裝內容物資料，確認所有品項數量正確以及均正常沒有損壞，假如有任何品項遺失或損壞，請聯絡當地的零售商更換。

- D-Link Web 智慧型交換器。

- 機架固定架。

- 電源線。

- 使用手冊光碟片（包含SmartConsole Utility program）。

- 多國語言版設定指南。

步驟2 – 交換器安裝為了讓交換器安裝與運作安全，建議您以下幾件事情：♦檢查電源線的外表，並確認AC電源連接插頭是安全的。

♦請確認交換器周圍為適當的通風散熱環境。

♦不要放重物在交換器上。

桌上型或架上行安裝當安裝交換器在桌上或架子上，產品包裝內的橡膠腳墊請安裝至交換器底部的四個角落，讓交換器與桌面有適當的通風空間。

圖 1. 安裝橡膠腳墊機架安裝交換器可以安裝在EIA標準尺寸的19吋機架，安裝時，請將利用螺絲將機架固定架固定鎖緊在交換器的側面（兩邊均要安裝）。

圖 2. 固定機架固定架然後，使用包裝內所提供的螺絲，將交換器鎖到機架上面。

圖 3. 安裝交換器到標準尺寸的機架步驟3 – 將AC電源線連接至交換器您可以連接AC電源線至交換器後方的的電源插孔（電源插孔最好具備接地或高壓保護機制）圖 4. 將交換器電源插上牆壁插座電源中斷為了預防危險，如果發生電源中斷，請立即拔掉插座，當電源回覆，請將電源插上。

管理設定D-Link Web 智慧型交換器使用Web-based Management Utility，可以經由設備上的任何網路連接埠管理，或可以透過任何電腦使用SmartConsole Utility進行管理。

假如您僅想要管理一部D-Link Web 智慧型交換器，Web-Based Management Utility將會是比較好的選擇，每部交換器會取得自己的IP 位址，可以讓Web-Based Management Utility或SNMP網路管理者或電腦在相同的IP網段進行通訊溝通之用。

D-Link交换机设备安全性功能配置手册友讯网络D-Link2012年4月目录1、风暴抑制 (2)1）广播抑制 (2)2）组播抑制 (4)3）未知单播抑制 (5)2、Safe Guide配置 (8)1）配置需求 (8)2）配置过程 (8)3）测试验证 (9)3、MAC地址绑定配置 (10)1）配置需求 (10)2）配置思路 (10)3）验证测试 (11)4、IP+MAC+PORT绑定 (12)1）组网需求 (12)2）组网图 (12)3）配置步骤 (12)5、DHCP_Snooping (17)1）功能介绍 (17)2）功能作用 (17)3）配置范例 (18)6、端口隔离配置 (21)1）配置要求 (21)2）配置实例 (21)1、风暴抑制风暴抑制是防止交换机的端口被局域网中的广播、组播或者一个物理端口上的单播风暴所破坏。

当流量在局域网中泛洪，建立的过多的流量将占用过多的带宽，并导致网络拥塞。

风暴抑制用于对进入的流量进行控制，从上面我们可以看出控制的对象可以是单播、广播和组播流量。

我们通过事先定义一个门限值（threshold），当某种流量超出了门限值，将对该流量进行控制，使其降到门限值一下，一旦流量超出门限值，所有的进入交换机的流量（无论是单播、组播还是广播）都会被丢弃！风暴抑制在交换机上默认是关闭。

D-link的交换机具有抑制广播、组播、单播三种风暴的能力，下面以DGS-3120-24TC为例，介绍如何对风暴抑制进行设置。

1）广播抑制1、进入交换机的配置界面。

2、输入以下命令：config traffic control 1:1-1:10 broadcast enable：在交换机第一个端口至第十个端口开启广播抑制。

threshold 128000 action shutdown :当交换机作用端口接收到超过每秒128000个数据包时，关闭该端口。

每秒通过的数据包数值可以自行设置，范围在0—255000之间。

UPD-LINK SWITCH通用配置手册0、设置管理员帐户#create account admin/user<username> admin/user是用户类型Enter a case-sensitive new password:***Enter the new password again for confirmation:***Success.#delete account <username>#show account1、配置交换机默认IP地址和所属VLANconfig ipif System ipaddress 192.168.0.2/24 vlan V302、配置SNMPcreate snmp community test view CommunityView read_onlycreate snmp community testw view CommunityView read_writeshow snmp community3、配置VLAN#create vlan v30 tag 30 其中，v30是VLAN Name ，30是VLAN ID (VID)#config vlan v30 add untagged 1:23-1:24 PORT 23、24添加到vlan v30中，并打上untagged标记#config vlan v30 advertisement enable4、端口配置语法：config ports [<portlist | all> [speed [auto | 10_half | 10_full | 100_half | 100_full | 1000_full {[master | slave]} ] | flow_control [enable | disable] | learning [enable | disable] state [enable | disable] description <desc 32> | clear]例：#config ports 23-24 speed 100_half learning enable state enable flow_control enable5、配置链路聚合组语法：#create link_aggregation group_id <value 1-32> {type [lacp | static]}#config link_aggregation group_id <value 1-32> {master_port <port> | ports <portlist> | state [enable |disable]例：#config link_aggregation group_id 1 master_port 1:5 ports 1:5-1:7, 1:96、端口镜像enable mirrorconfig mirror port <port> [add/delete] source ports <portlist> [rx/tx/both]<port>监控端口；source ports 被监控端口7、软件升级download firmware 10.90.90.92 升级firmwareupload configuration 172.18.192.90 <filename> 上传配置到TFTP服务器download configuration 172.18.192.90 <filename> 从TFTP服务器下载配置8、Ip Interface的配置语法：creat ipif <ipif name > <network address > <vlan name > state enable例：creat ipif test 192.168.1.1/24 vlan100 state enableconfig ipif System ipaddress 10.48.74.122/8 vlan v309、MAC绑定到交换机端口（手动添加MAC，这些MAC的终端可以使用此端口）Used to create a static entry to the unicast MAC address forwarding table (database)1、语法：create fdb <vlan_name 32> <macaddr> [port <port>] 建立静态fdb条目例：create fdb default 00-00-00-00-01-02 port 2:52、语法：config ports learning disable 关掉端口学习功能10、MAC锁定到交换机端口（设定使用端口的终端-MAC的数量，并锁定当前连接的终端-MAC为许可用户）语法：config port_security ports [<portlist>| all ] {admin_state [enable | disable] | max_learning_addr <max_lock_no 0-64> | lock_address_mode [Permanent | DeleteOnTimeout | DeleteOnReset]}例：config port_security ports 1:16 admin_state enable max_learning_addr 10 lock_address_mode DeleteOnReset11、traffic_segmentation（同一VLAN内端口隔离功能）语法：config traffic_segmentation [<portlist>| all] forward_list [null | all | <portlist>]例：config traffic_segmentation 1:1 forward_list 1:1-1:10 （Port1可以和Port1-10通讯，和Port 11-24隔离）12、带宽控制语法：config bandwidth_control [<portlist> | all] {rx_rate [no_limit | <value 1-999>] | tx_rate [no_limit | <value 1-999>]} 单位为Mbps13、创建IP interface语法：create ipif <ipif_name 12> ipaddress <network_address> vlan <vlan_name 32> state [enable | disable]例：create ipif p1 ipaddress 10.1.1.1 Trinity state enable14、设置静态路由语法：create iproute <network_address> <ipaddr> {<metric 1-65535>} {[primary | backup]}<network_address> . IP address and netmask of the IP interface that is the destination of the route.<ipaddr> . The gateway IP address for the next hop router.语法：create iproute default <ipaddr> {<metric 1-65535>}15、ACL访问控制列表1、创建access_profileDXS-3350SR:4#create access_profile ip destination_ip_mask 255.255.255.255 profile_id 12、建立access条目DXS-3350SR:4#config access_profile profile_id 1 add access_id 1 ip destination_ip 172.18.192.246 port 1:16 deny16、IP-MAC BindingThe IP-MAC Binding commands in the Command Line Interface (CLI) are listed (along with the appropriate parameters) in the following table.Commandcreate address_binding ip_mac ipaddress <ipaddr> mac_address <macaddr>config address_binding ip_mac ipaddress <ipaddr> mac_address <macaddr>config address_binding ip_mac ports [<portlist> | all] state [enable | disable]showeg:enable address_binding acl_mode Enable IP-MAC Port Binding ACL Modecreate address_binding ip_mac ipaddress 192.168.0.10 mac_address 00-15-F2-A9-0B-C2 ports 1 mode acl ⎝ To set up a IP-MAC Port Binding Rule config address_binding ip_mac ports 1-10 state enable ⎝ Enable active portshow address_binding ip_macshow address_binding ports17、策略路由create access_profile profile_id 1 ip source_ip_mask 255.255.255.0config access_profile profile_id 1 add access_id 1 ip source_ip 4.4.4.4 port 1create policy_route name 1config policy_route name 1 acl profile_id 1 access_id 1 nexthop 2.2.2.2 state enable18、DHCP Servercreate dhcp pool testconfig dhcp pool network_addr test 192.168.0.0/24config dhcp pool dns_server_address test 61.139.2.69 0.0.0.0 0.0.0.0config dhcp pool netbios_node_type test broadcastconfig dhcp pool default_router test 192.168.0.1 0.0.0.0 0.0.0.0config dhcp pool lease test 1 1 1config dhcp ping_packets 5config dhcp ping_timeout 500enable dhcp_server19、修改交换机名称config command_prompt <name>20、线缆检测diag_cable ports <portlist>21、三层组播协议enable igmp_snoopingconfig igmp_snooping all state enableconfig igmp all state enableenable DVMRPconfig DVMRP all state enable22、开启DHCP Server Screening功能config filter dhcp_server add permit server_ip 10.10.10.1 client_mac 00-90-27-e0-67-27 port 1:1-1:24 config filter dhcp_server ports <端口> state enable23、开启DHCP中继功能enable dhcp_relayconfig dhcp_relay add ipif <三层接口名称> <DHCP服务器的IP>24、保存配置文件upload cfg_toTFTP <TFTP IP地址> dest_file c:\cfg\DGS-3420.cf。

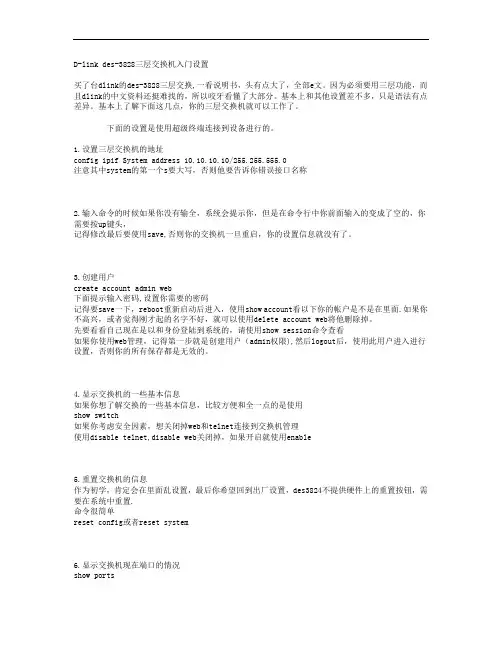

D-link des-3828三层交换机入门设置买了台dlink的des-3828三层交换,一看说明书，头有点大了，全部e文。

因为必须要用三层功能，而且dlink的中文资料还挺难找的，所以咬牙看懂了大部分。

基本上和其他设置差不多，只是语法有点差异。

基本上了解下面这几点，你的三层交换机就可以工作了。

下面的设置是使用超级终端连接到设备进行的。

1.设置三层交换机的地址config ipif System address 10.10.10.10/255.255.555.0注意其中system的第一个s要大写，否则他要告诉你错误接口名称2.输入命令的时候如果你没有输全，系统会提示你，但是在命令行中你前面输入的变成了空的，你需要按up键头，记得修改最后要使用save,否则你的交换机一旦重启，你的设置信息就没有了。

3.创建用户create account admin web下面提示输入密码,设置你需要的密码记得要save一下，reboot重新启动后进入，使用show account看以下你的帐户是不是在里面.如果你不高兴，或者觉得刚才起的名字不好，就可以使用delete account web将他删除掉。

先要看看自己现在是以和身份登陆到系统的，请使用show session命令查看如果你使用web管理，记得第一步就是创建用户（admin权限),然后logout后，使用此用户进入进行设置，否则你的所有保存都是无效的。

4.显示交换机的一些基本信息如果你想了解交换的一些基本信息，比较方便和全一点的是使用show switch如果你考虑安全因素，想关闭掉web和telnet连接到交换机管理使用disable telnet,disable web关闭掉，如果开启就使用enable5.重置交换机的信息作为初学，肯定会在里面乱设置，最后你希望回到出厂设置，des3824不提供硬件上的重置按钮，需要在系统中重置.命令很简单reset config或者reset system6.显示交换机现在端口的情况show ports下面进行到交换机二层及三层属性设置7.创建vlan在这前，你需要对你的网络结构有清晰的思路，比如我的两个网段,192.168.0.*,192.168.2.*,mask 都是255.255.255.0所以先使用以下命令创建vlancreate vlan vlan1 tag 11create vlan vlan2 tag 12注意tag 1已经被系统默认的default vlan用掉了，所以你不能再使用它了。

D-Link 交换机设备管理设置快速配置手册友讯网络D-Link2012年10月目录1、Console管理模式 (2)2、Telnet模式 (5)3、WEB界面管理 (8)D-Link交换机支持3种管理配置方法，分别是Console管理（命令行CLI方式）、Telnet配置（命令行CLI方式）和WEB界面（菜单图形方式）配置。

1、Console管理模式使用交换机配置线连接交换机Console口和调试PC串口，使用Windows操作系统自带的【超级终端】仿真软件对交换机进行配置管理。

首先在“开始”——“程序”——“附件”——“通讯”中打开“超级终端”。

新建连接，输入名称，选择正确的连接端口。

设置端口属性，首先点击“还原默认值”，然后选择“每秒位数(B)”为“9600”：点击“确定”后即可打开交换机Console口配置模式，初始用户名/密码为空，按回车即可。

2、Telnet模式在远程调试交换机设备时，无法使用Console口进行连接，此时可以使用Telnet方式，通过网络远程管理设备。

首先确定交换机的IP 地址，初始默认值为空，无IP，可以通过Console来配置，包括交换机设备当前IP地址、Telnet是否开启等信息。

配置交换机IP打开“命令提示符”界面首先通过ping命令测试管理PC与交换机网络是否连通。

确定网络连通后，使用Telnet命令进行远程调试。

例如！配置只允许192.168.0.0/255.255.0.0这个网段的地址通过telnet访问交换机Dlink(config)#login-access-list telnet 192.168.0.1 0.0.255.2553、WEB界面管理部分用户对命令行CLI方式配置交换机方式比较陌生，可以使用WEB界面来配置交换机。

首先确认交换机IP地址和网络连通性，并确定WEB管理是否开启（具体参照Telnet管理部分）。

如果WEB管理未开启，可通过Console或者Telnet方式下执行enable web命令开启。

D-Link DES-1026G24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet SwitchManualVersion 3.00January 2, 2008Table of ContentsContents (3)1. Package2. Introduction (3)3. Installation (8)Specifications (11)4. TechnicalContents1. PackageOne DES-1026G 24-Port 10/100Mbps + 2-Port10/100/1000Mbps Gigabit Ethernet SwitchOne AC power cordFour rubber feet to be used for shock cushioningScrews and two mounting bracketsManualIf any of the above items are missing, please contact your reseller. 2. IntroductionCongratulations on your purchase of the DES-1026G 24-Port10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet, and 10Mbps Ethernet network capabilities into one cost-effective solution. This manual discusses how to install your DES-1026G 24-Port10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch.In this manual, the term “Switch” (first letter upper case) refers to your DES-1026G 24-Port 10/100Mbps + 2-Port 10/100/1000Mbps Gigabit Ethernet Switch, and “switch” (first letter lower case) refers to other Ethernet switches.This chapter describes the features of the Switch and some background information about Ethernet/ Fast Ethernet/ Gigabit Ethernet switching technology.Fast Ethernet TechnologyEthernet, along with its speedier counterpart Fast Ethernet, is the most popular networking standard in use today. 100BaseT Fast Ethernet is anextension of the 10BaseT Ethernet standard, designed to raise the data transmission capacity of 10BaseT from 10Mbits/sec to 100Mbits/sec. An important technology incorporated by 100BaseT is its use of the Carrier Sense Multiple Access with Collision Detection (CSMA/CD) protocol - which is the same protocol that 10BaseT uses - because of its ability to work with several different types of cable, including basic twisted-pair wiring. Both of these features play an important role in network considerations, and they make 100BaseT an attractive migration path for those networks based on 10BaseT. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel training.Switching TechnologySwitching is a cost-effective way of increasing the total network capacity available to users on a LAN. If an Ethernet network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision, installing a switch to an network can preserve much or all of the existing network's cabling and workstation interface card infrastructure while still greatly enhancing the throughput for users. A switch is a viable solution even if demanding applications, such as multimedia production and video conferencing, are on the horizon. The most promising techniques, as well as the best return on investment, could well consist of installing the right mixture of Ethernet switches.A switch increases capacity and decreases network loading by dividing a local area network into different LAN segments. Dividing a LAN into multiple segments is one of the most common ways of increasing available bandwidth. If segmented correctly, most network traffic will remain within a single segment, enjoying the full-line speed bandwidth of that segment.Switches provide full-line speed and dedicated bandwidth for all connections. This is in contrast to the hubs, which use the traditional shared networking topology, where the connected nodes contend for the same network bandwidth. When two switching nodes are communicating, they are connected with a dedicated channel between them, so there is no contention for network bandwidth with other nodes. As a result, the switch reduces considerably the likelihood of traffic congestion.For Fast Ethernet networks, a switch is an effective way of eliminating the problem of chaining hubs beyond the “two-repeater limit.” A switch can be used to split parts of the network into different collision domains, making it possible to expand your Fast Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks. Switches supporting both traditional 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging between existing 10Mbps networks and new 100Mbps networks.Switching LAN technology is a marked improvement over the previous generation of network hubs and bridges, which were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost of a router, the setup and maintenance required make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems. Features and Benefits(24) 10/100BASE-TX Fast Ethernet ports + (2) 1000BASE-TGigabit Ethernet portsAuto MDI/MDI-X support on each portFull/half duplex transfer mode for 10/100Mbps Fast Ethernet transmissionFull duplex transfer mode for Gigabit Ethernet transmission Wire-speed reception and transmissionStore-and-Forward switching methodIntegrated address Look-Up Engine, supports 8K MAC addressesSupports 320KBytes RAM for data bufferingExtensive front-panel diagnostic LEDsIEEE 802.3x flow control for full-duplexBack pressure flow control for half-duplexStandard 19” Rack-mount sizeLEDsLED stands for L ight-E mitting D iode .The front panel LEDs provides instant status feedback and simplifies monitoring and troubleshooting tasks.LED indicators of the SwitchPOWER OnWhen the Power LED light is on, the Switch is receiving power. Off When the Power LED light is off , the power cord isimproperly connected.Ports 1-24 Status LEDsLINK/ACT OnWhen the LED light is on, the respective port is connected to the 10/100Mbps Ethernet network. Blinking When the LED light is blinking, the port is transmitting or receivingdata on the 10/100Mbps Ethernet network.Off No link.100MbpsOnWhen the LED light is on, the respective port is connected to a 100Mbps Ethernet network. Off When the LED light is off, the respective port is connectedto a 10Mbps Ethernet network, or no link.Ports 25 & 26 Status LEDsLINK/ACTOnWhen the LED lights on, the respective port is connected toBlinking When the LED is blinking, the respective port istransferring or receiving data on a 10/100/1000MbpsEthernet network.link.OffNo1000MbpsOn When the LED lights on, the respective port is connected toa Gigabit Ethernet network.Off The respective port is connected to a 10/100Mbps Ethernetnetwork, or no link.100MbpsOn When the LED lights on, the respective port is connected toa 100Mbps Fast Ethernet network.Off When the LED light is off, the respective port is connectedto a 10Mbps or Gigabit Ethernet network or there is nolink.ConnectionsFront Panel10/100 Base-TX Twisted-Pair Ports└──────┘ └───┘LED Indicators 1000 Base-TTwisted-Pair Ports 10/100BASE-TX Twisted-Pair Ports (Port1~24) These ports support network speeds of either 10Mbps or100Mbps, and can operate in half- and full- duplex transfermodes. These ports also support automatic MDI/MDI-Xcrossover detection, giving true “plug and play” capability. Justplug the network cable directly into the hub; you can use eitherstraight-through or crossover cable.1000BASE-T Twisted Pair Ports (Port 25~26)The DES-1026G is equipped with two Gigabit twisted pair portsthat are auto negotiable 10/100/1000Mbps and also support autoMDI/MDIX crossover detection. These two ports can operate inhalf- and full- duplex modes.Rear PanelAC Power ConnectorThis is a three-pronged connector that supports the power cord.Plug in the female connector of the provided power cord into thisconnector, and the male into a power outlet. Supported inputvoltages range from 100~240V AC at 50~60Hz.3. InstallationThe site where you place the DES-1026G may greatly affect its performance. When installing, take the following into your consideration: Install the DES-1026G in a fairly cool and dry place. See Technical Specifications for the acceptable temperature andhumidity operating ranges.Install the DES-1026G in a site free from strong electromagnetic field generators (such as motors), vibration, dust, and directexposure to sunlight.Leave at least 10cm (about 4 inches) of space at the front and rear of the hub for ventilation.Install the DES-1026G on a sturdy, level surface that can support its weight, or in an EIA standard-size equipment rack.When installing the Switch on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion thehub and protects the hub case from scratching.Attach the adhesive rubber pads to the bottomRack MountingThe DES-1026G can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipments. Attach the mounting brackets to both sides of the Switch (one at each side), and secure them with the provided screws.Use the screws provided. Then, use screws provided with the equipment rack tomount the Switch in the rack.Mount the Switch in the rackConnecting Network CableThe DES-1026G supports 10/100/1000Mbps Gigabit Ethernet. It runs full/half duplex transfer mode for 10/100Mbps and full duplex transfer mode for 1000Mbps. Each port on the DES-1026G supports Auto-MDI/MDI-X. Auto-MDI/MDI-X is a feature that eliminates the need for worrying about using either a standard or crossover cable—you can use either one—and allows any port to be an uplink port.AC PowerThe DES-1026G can be used with AC power supply 100~240V AC,50~60 Hz. The power switch is located at the rear of the unit adjacent to the AC power connector. The switch’s power supply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected.4. Technical Specifications GeneralStandards IEEE 802.3 10BASE-T EthernetIEEE 802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit EthernetProtocol CSMA/CDData Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)Topology StarNetwork Cables 10BASET: 2-pair UTP/STP Cat. 3,4,5; up to 100m100BASE-TX: 2-pair UTP/STP Cat. 5; up to 100m1000BASE-T: 4-pair UTP/STP Cat. 5; up to 100m (Cat. 5E is recommended)Number of Ports 24 ×10/100BASE-TX Auto-MDIX STP ports 2 × 1000BASE-T Auto-MDIX STP portsPhysical and EnvironmentalAC inputs 100 to 240V AC, 50/60 Hz internal universal power supply PowerConsumption9.8 watts. (max.)Temperature Operating: 0°~40°C, Storage: -10°~70°CHumidity Operating: 10%~90%, Storage: 5%~90%Dimensions 440× 140× 44 mm (W × H × D)Emissions FCC Class A, CE Mark Class A,VCCI Class ASafety CUL,LVDPerformanceTransmitsMethodStore-and-forwardRAM Buffer 320MBytes per deviceFiltering Address+Table8K entries per devicePacket Filtering/ Forwarding Rate 10Mbps Ethernet: 14,880/pps100Mbps Fast Ethernet: 148,800/pps 1000Mbps Gigabit Ethernet: 1488,000/ppsMAC AddressLearning Automatic update11。

D-Link 交换机设备系统设置快速配置手册友讯网络D-Link2012年4月目录1、管理用户及密码配置 (2)1）创建admin 用户dlink (2)2）创建普通用户test (2)2、端口状态及速率配置 (2)1）查看17号端口状态 (2)2）查看所有端口状态 (3)3）设置17号端口速率 (5)3、管理IP地址配置 (6)4、默认网关配置 (6)5、系统版本查看 (6)6、固件升级 (8)7、备份和恢复配置 (8)8、恢复出厂设置 (9)1、管理用户及密码配置1）创建admin 用户dlinkDES-3800:admin#create account admin dlink Command: create account admin dlink提示输入密码：Enter a case-sensitive new password:*****Enter the new password again for confirmation:***** Success.2）创建普通用户testDES-3800:admin#create account user test Command: create account user test提示输入用户密码Enter a case-sensitive new password:****Enter the new password again for confirmation:**** Success.2、端口状态及速率配置1）查看17号端口状态DES-3800:admin#show ports 17Command: show ports 17Port Port Settings Connection AddressState Speed/Duplex/FlowCtrl Speed/Duplex/FlowCtrl Learning------ -------- --------------------- --------------------- --------17 Enabled Auto/Disabled Link Down Enabled2）查看所有端口状态Command: show portsPort Port Settings Connection AddressState Speed/Duplex/FlowCtrl Speed/Duplex/FlowCtrl Learning------ -------- --------------------- --------------------- --------1 Enabled Auto/Disabled Link Down Enabled2 Enabled Auto/Disabled Link Down Enabled3 Enabled Auto/Disabled Link Down4 Enabled Auto/Disabled Link Down Enabled5 Enabled Auto/Disabled Link Down Enabled6 Enabled Auto/Disabled Link Down Enabled7 Enabled Auto/Disabled Link Down Enabled8 Enabled Auto/Disabled Link Down Enabled9 Enabled Auto/Disabled Link Down Enabled10 Enabled Auto/Disabled Link Down Enabled11 Enabled Auto/Disabled Link Down Enabled12 Enabled Auto/Disabled Link Down Enabled13 Enabled Auto/Disabled Link Down Enabled14 Enabled Auto/Disabled Link Down15 Enabled Auto/Disabled Link Down Enabled16 Enabled Auto/Disabled Link Down Enabled17 Enabled Auto/Disabled Link Down Enabled18 Enabled Auto/Disabled Link Down Enabled19 Enabled Auto/Disabled Link Down Enabled20 Enabled Auto/Disabled Link Down Enabled翻页按空格键，退出按Q键3）设置17号端口速率DES-3800:admin#config ports 17 speedCommand: config ports 17 speed根据提示可以选择的端口速率有以下几种，可以选择的填写。

UPD-LINK SWITCH通用配置手册0、设置管理员帐户#create account admin/user<username> admin/user是用户类型Enter a case-sensitive new password:***Enter the new password again for confirmation:***Success.#delete account <username>#show account1、配置交换机默认IP地址和所属VLANconfig ipif System ipaddress 192.168.0.2/24 vlan V302、配置SNMPcreate snmp community test view CommunityView read_onlycreate snmp community testw view CommunityView read_writeshow snmp community3、配置VLAN#create vlan v30 tag 30 其中，v30是VLAN Name ，30是VLAN ID (VID)#config vlan v30 add untagged 1:23-1:24 PORT 23、24添加到vlan v30中，并打上untagged标记#config vlan v30 advertisement enable4、端口配置语法：config ports [<portlist | all> [speed [auto | 10_half | 10_full | 100_half | 100_full | 1000_full {[master | slave]} ] | flow_control [enable | disable] | learning [enable | disable] state [enable | disable] description <desc 32> | clear]例：#config ports 23-24 speed 100_half learning enable state enable flow_control enable5、配置链路聚合组语法：#create link_aggregation group_id <value 1-32> {type [lacp | static]}#config link_aggregation group_id <value 1-32> {master_port <port> | ports <portlist> | state [enable |disable]例：#config link_aggregation group_id 1 master_port 1:5 ports 1:5-1:7, 1:96、端口镜像enable mirrorconfig mirror port <port> [add/delete] source ports <portlist> [rx/tx/both]<port>监控端口；source ports 被监控端口7、软件升级download firmware 10.90.90.92 升级firmwareupload configuration 172.18.192.90 <filename> 上传配置到TFTP服务器download configuration 172.18.192.90 <filename> 从TFTP服务器下载配置8、Ip Interface的配置语法：creat ipif <ipif name > <network address > <vlan name > state enable例：creat ipif test 192.168.1.1/24 vlan100 state enableconfig ipif System ipaddress 10.48.74.122/8 vlan v309、MAC绑定到交换机端口（手动添加MAC，这些MAC的终端可以使用此端口）Used to create a static entry to the unicast MAC address forwarding table (database)1、语法：create fdb <vlan_name 32> <macaddr> [port <port>] 建立静态fdb条目例：create fdb default 00-00-00-00-01-02 port 2:52、语法：config ports learning disable 关掉端口学习功能10、MAC锁定到交换机端口（设定使用端口的终端-MAC的数量，并锁定当前连接的终端-MAC为许可用户）语法：config port_security ports [<portlist>| all ] {admin_state [enable | disable] | max_learning_addr <max_lock_no 0-64> | lock_address_mode [Permanent | DeleteOnTimeout | DeleteOnReset]}例：config port_security ports 1:16 admin_state enable max_learning_addr 10 lock_address_mode DeleteOnReset11、traffic_segmentation（同一VLAN内端口隔离功能）语法：config traffic_segmentation [<portlist>| all] forward_list [null | all | <portlist>]例：config traffic_segmentation 1:1 forward_list 1:1-1:10 （Port1可以和Port1-10通讯，和Port 11-24隔离）12、带宽控制语法：config bandwidth_control [<portlist> | all] {rx_rate [no_limit | <value 1-999>] | tx_rate [no_limit | <value 1-999>]} 单位为Mbps13、创建IP interface语法：create ipif <ipif_name 12> ipaddress <network_address> vlan <vlan_name 32> state [enable | disable]例：create ipif p1 ipaddress 10.1.1.1 Trinity state enable14、设置静态路由语法：create iproute <network_address> <ipaddr> {<metric 1-65535>} {[primary | backup]}<network_address> . IP address and netmask of the IP interface that is the destination of the route.<ipaddr> . The gateway IP address for the next hop router.语法：create iproute default <ipaddr> {<metric 1-65535>}15、ACL访问控制列表1、创建access_profileDXS-3350SR:4#create access_profile ip destination_ip_mask 255.255.255.255 profile_id 12、建立access条目DXS-3350SR:4#config access_profile profile_id 1 add access_id 1 ip destination_ip 172.18.192.246 port 1:16 deny16、IP-MAC BindingThe IP-MAC Binding commands in the Command Line Interface (CLI) are listed (along with the appropriate parameters) in the following table.Commandcreate address_binding ip_mac ipaddress <ipaddr> mac_address <macaddr>config address_binding ip_mac ipaddress <ipaddr> mac_address <macaddr>config address_binding ip_mac ports [<portlist> | all] state [enable | disable]showeg:enable address_binding acl_mode Enable IP-MAC Port Binding ACL Modecreate address_binding ip_mac ipaddress 192.168.0.10 mac_address 00-15-F2-A9-0B-C2 ports 1 mode acl ⎝ To set up a IP-MAC Port Binding Rule config address_binding ip_mac ports 1-10 state enable ⎝ Enable active portshow address_binding ip_macshow address_binding ports17、策略路由create access_profile profile_id 1 ip source_ip_mask 255.255.255.0config access_profile profile_id 1 add access_id 1 ip source_ip 4.4.4.4 port 1create policy_route name 1config policy_route name 1 acl profile_id 1 access_id 1 nexthop 2.2.2.2 state enable18、DHCP Servercreate dhcp pool testconfig dhcp pool network_addr test 192.168.0.0/24config dhcp pool dns_server_address test 61.139.2.69 0.0.0.0 0.0.0.0config dhcp pool netbios_node_type test broadcastconfig dhcp pool default_router test 192.168.0.1 0.0.0.0 0.0.0.0config dhcp pool lease test 1 1 1config dhcp ping_packets 5config dhcp ping_timeout 500enable dhcp_server19、修改交换机名称config command_prompt <name>20、线缆检测diag_cable ports <portlist>21、三层组播协议enable igmp_snoopingconfig igmp_snooping all state enableconfig igmp all state enableenable DVMRPconfig DVMRP all state enable22、开启DHCP Server Screening功能config filter dhcp_server add permit server_ip 10.10.10.1 client_mac 00-90-27-e0-67-27 port 1:1-1:24 config filter dhcp_server ports <端口> state enable23、开启DHCP中继功能enable dhcp_relayconfig dhcp_relay add ipif <三层接口名称> <DHCP服务器的IP>24、保存配置文件upload cfg_toTFTP <TFTP IP地址> dest_file c:\cfg\DGS-3420.cf。

端口带宽限速bandwidth-control该命令用来进行端口限速，对端口收或发的报文的总速率进行限制，此命令的no形式用来取消端口限速的配置。

bandwidth-control { ingress | egress } target-rate //注意：ingress翻译本意为入口，实际就是端口上传速率，反之egress翻译本意为出口,实际就是端口下载速率！no bandwidth-control { ingress | egress }【参数说明】target-rate：对端口发送报文限制的总速率，取值范围为64～1024000，单位为Kbps【命令模式】端口配置模式【使用指南】使用本命令用来进行端口限速，对端口接收或发送报文的总速率进行限制。

【举例】！下面的命令对快速以太网端口1 下载限速为4Mbps、上传限速2Mbps 的操作：第一步：进入全局配置模式：zengjun#configure terminal第二步：进入以太网端口1zengjun(config)#interface ethernet 0/0/1第三步：对以太网端口1 进行上传限速1Mbps 的操作zengjun(config-if-ethernet-0/0/1)#bandwidth-control ingress 1024第四步：对以太网端口1 进行下载限速4Mbps 的操作zengjun(config-if-ethernet-0/0/1)#bandwidth-control egress 4096show bandwidth-control interface该命令用来显示所有端口的带宽控制【使用指南】使用本命令用来显示所有端口的带宽控制情况。

【举例】zengjun#show bandwidth-control interfacePort Egress bandwidth control Ingress bandwidth controle0/0/1 4096K 1024Ke0/0/2 disable disablee0/0/3 disable disablee0/0/4 disable disable e0/0/5 disable disable e0/0/6 disable disable e0/0/7 disable disable e0/0/8 disable disable e0/0/9 disable disable e0/0/10 disable disable e0/0/11 disable disable e0/0/12 disable disable e0/0/13 disable disable e0/0/14 disable disable e0/0/15 disable disable e0/0/16 disable disable e0/1/1 disable disable e0/1/2 disable disableTotal entries: 18.实操配置以一台DLink交换机分别承载二个以上不同类网络的操作配置1.组网需求：使用一台Dlink交换机分别承载BOSS内网、CMNET外网，为杜绝两网直接混用存在的安全隐患和网络广播风暴，以划分二个不同vlan进行隔离，隔保网络安全。

D-Link 交换机设备二层功能快速配置手册友讯网络D-Link2012年4月目录1、生成树协议 (2)1）生成树概述 (2)2）组网图示： (2)3）CLI配置步骤： (3)2、多生成树MSTP (4)1）组网示意图： (5)2）CLI配置步骤： (5)3、VLAN功能配置 (8)1）基于端口的VLAN配置 (8)2）管理VLAN配置 (10)3）VLAN标记（VLAN Trunk）配置 (10)4）最大VLAN数量和可配置范围检验 (11)5）VLAN状态查看 (12)4、端口镜像配置 (15)1）配置镜像 (15)2）开启端口镜像功能 (15)3）查看端口镜像配置信息 (16)4）删除端口镜像配置 (16)5）关闭端口镜像功能 (16)5、环路检测配置 (18)1）基于端口的LBD (18)2）基于VLAN的LBD (21)6、组播IGMP Snooping配置 (24)1）查看igmp_snooping状态 (24)2）交换机全局启用/关闭igmp_snooping功能 (24)3）启用/关闭某个vlan的igmp_snooping状态 (25)4）配置实例： (25)7、端口带宽控制配置 (26)8、堆叠配置 (27)1）虚拟堆叠（SIM）配置及适用机型 (27)2）按机型描述物理堆叠配置及堆叠方法说明 (36)1、生成树协议1）生成树概述（1）标准生成树STP标准生成树（STP）协议可以在保持物理连接成环的情况下有效的消除网络中的环路，并实现网络链路冗余备份功能。

（2）快速生成树RSTP快速生成树协议（RSTP），该协议基于STP协议，但是对原有协议做了更加细致的修改和补充。

主要改进三点：–首先，STP并没有细致区分端口状态和端口角色。

网络协议的优劣往往取决于协议是否对各种情况加以细致区分。

–其次，STP算法是被动的算法，对网络是否已经达到收敛没有一种反馈机制。

–再次，STP的算法要求在稳定拓扑里，根桥主动发出BPDU而其他交换机进行中继，这样整个STP网络。

D-LINK网络交换机的CLI的配置说明书D-LINK网络交换机的CLI的配置说明书Show 命令可以查看交换机的各项的配置（交换机无法查看整体的当前和保存的配置信息）Create 命令可以创建交换的信息Config 命令可以对这些参数进行配置Delete命令可以删除所配制的参数Reboot 命令对交换机进行重新启动Save 命令保存交换机的配置信息的修改Reset 命令清空配置信息reset system 不仅清空运行时配置，还将把曾经保存过的配置全部清空,reset config仅清空运行时配置.Create account [admin|user]<username> 创建admin或user 级别的用户，回车输入两次密码创建输入为空密码Create account <username> 修改已创建的username用户，回车输入旧密码，在输入两次新密码Show account 可以看到你所创建的用户Show switch 可以查看交换机的信息Show iproute 查看路由表Show vlan 查看VLAN条目[enable|disable] telnet 23 此命令开启|删除telnet功能enable mac_notification 默认是关闭MAC地址通告的show ipif 查看交换机的配置接口信息config ipif System ipaddress 10.1.1.1/8修改System接口的IP地址注意接口名System的大小写备份/恢复配置download configuration 192.168.0.157 c:/xuekang/setting.txt 从192.168.0.157上下载配置文件upload configuration 192.168.0.157 c:/xuekang/setting.txt 到192.168.0.157上上穿配置文件端口镜像的设定config mirror port 1:5 [add|delete] sourece port 1:1-1:5 把1-5断口加到5端口上做镜像(默认关闭)链路聚合配置create link_aggregation group_id 1 创建一个聚合组1config link_aggregation group_id 1 master_port 5 ports 5-7,9创建MAC地址的绑定create arpentry 192.168.0.157 00-56-b5-45-B5-4H 为主机绑定IPdelete arpentry 192.168.0.157 删除IP的绑定show arpentry 查看某些主机的绑定CLI SWITCH LAYER3 VLAN 设定（以下Command 請注意大小寫）config vlan default delete 1-24 ->将default Vlan 移除,否則Port 在不带tag 的狀況下，将無法继续以下的Vlan 設定。
