本文部分内容来自网络整理,本司不为其真实性负责,如有异议或侵权请及时联系,本司将立即删除!== 本文为word格式,下载后可方便编辑和修改! ==华为操作指导书篇一:LTE华为后台操作指导书RNC机房操作指导总结一. TD-LTE组网简介整个TD-LTE系统由3部分组成,核心网(EPC),接入网(eNodeB),用户设备(UE).EPC又分为三部分:MME 负责信令处理部分,S-GW 负责本地网络用户数据处理部分 P-GW 负责用户数据包与其他网络的处理。
接入网也称E-UTRAN,由eNodeB构成。
eNodeB与EPC之间的接口称为S1接口,eNodeB之间的接口称为X2接口,eNodeB与UE之间的接口称为Uu接口。
二. LTE网管客户端安装1、 LTE网管系统目前有两套,一套为M201X系统,另一套为新版OMC920系统,两套系统主要功能基本相同,但后者将TDS系统统一整合进来;2、 LTE网管的安装:系统的安装:M201X网管系统的安装,首先在IE地址栏中,输入IP地址http://10.211.176.80/cau/,然后下载安装,OMC920网管系统,则要输入IP地址http://10.212.96.45/cau/,然后下载安装;3、 OMC920系统网管安装成功后,需要将附件hosts文件复制到C:\WINDOWS\system32\drivers\etc目录下,替换系统自带的hosts文件,否则登录时会出现异常,M201X系统没有此类问题;后面操作因M201X与OMC920类似,故仅以OMC920网管系统为例说明;三. LTE网管客户端登录登陆网管OMC920客户端。
打开客户端后,显示的是“用户登陆”,需要填写,用户名,密码,当多个OMC920客户端登陆时,需点击服务器下拉菜单,增加网元信息。
成功登录后进入OMC920网管系统首页,内容包括各类维护操作的菜单栏、工具栏和一些快捷工具图示等;OMC维护系统包括MML命令、结果查询、监控和维护等主要功能,后面对这些具体功能进行详细介绍;四. LTE常用的操作4.1 eNodeB MML常用命令在网络规划和优化工作中,对单个eNodeB进行远端操作维护的情况较少,一般都可以在M201X下对eNodeB进行相关的操作。
设备调测手册华为培训1. 简介本手册旨在帮助华为设备调试员工进行设备调试工作。
通过本手册,您将学习到设备调试的基本原理、调试流程、常见问题及解决方法等内容。
2. 设备调试原理设备调试是一项关键的工作,它主要通过连接设备和相关工具,对设备进行配置、测试和验证,以确保设备能够正常工作。
在进行设备调试时,需要掌握以下原理:2.1 连接原理设备调试需要通过连接设备和调试工具来进行。
常用的连接方式包括串口连接、网口连接和USB连接等。
不同的设备和调试工具使用不同的连接方式,需要根据具体情况进行配置和连接。
2.2 配置原理在进行设备调试之前,需要对设备的配置进行了解和设置。
配置内容包括设备的IP地址、子网掩码、网关、DNS等。
通过正确的配置,可以使设备能够连接到网络,进行联网测试和验证。
2.3 测试原理设备调试的一个重要环节是测试,通过对设备进行各种测试,可以验证设备的功能和性能。
常见的测试内容包括网络连接测试、数据传输测试、性能测试等。
通过测试,可以及时发现设备存在的问题,并进行相应的调整和修复。
3. 设备调试流程设备调试的流程可以分为以下几个步骤:1.准备工作:收集设备和调试工具的相关信息,包括设备型号、调试工具型号、调试软件版本等。
2.连接设备:根据设备和调试工具的连接方式,进行相应的连接操作。
确保设备和调试工具之间的连接正常稳定。
3.配置设备:通过调试工具对设备的配置进行设置。
根据实际情况,设置设备的IP地址、子网掩码、网关、DNS等参数。
4.进行测试:按照设备调试计划进行各项测试工作。
包括网络连接测试、数据传输测试、性能测试等。
记录测试结果并进行分析。
5.问题解决:出现问题时,根据问题的描述和测试结果,进行问题定位和分析。
采取相应的解决方法,修复设备问题。
6.测试验证:在问题解决之后,进行再次测试验证。
确保设备问题已被解决,设备能够正常工作。
4. 常见问题及解决方法在设备调试过程中,常常会遇到一些问题。

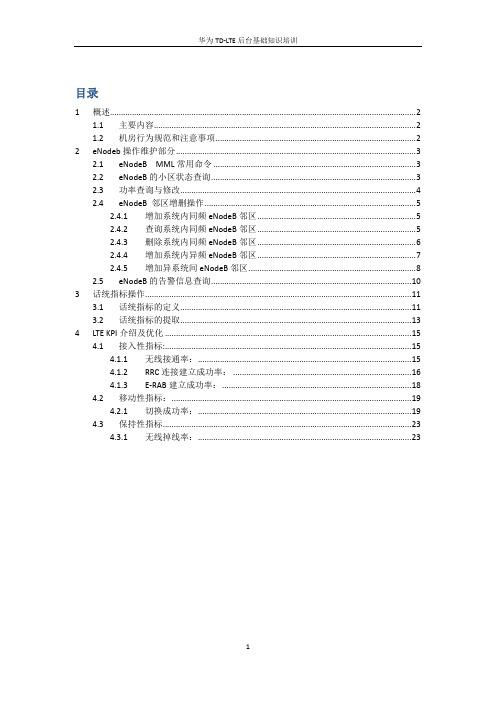

目录1概述 (2)1.1主要内容 (2)1.2机房行为规范和注意事项 (2)2eNodeb操作维护部分 (3)2.1eNodeB MML常用命令 (3)2.2eNodeB的小区状态查询 (3)2.3功率查询与修改 (4)2.4eNodeB 邻区增删操作 (5)2.4.1增加系统内同频eNodeB邻区 (5)2.4.2查询系统内同频eNodeB邻区 (5)2.4.3删除系统内同频eNodeB邻区 (6)2.4.4增加系统内异频eNodeB邻区 (7)2.4.5增加异系统间eNodeB邻区 (8)2.5eNodeB的告警信息查询 (10)3话统指标操作 (11)3.1话统指标的定义 (11)3.2话统指标的提取 (13)4LTE KPI介绍及优化 (15)4.1接入性指标: (15)4.1.1无线接通率: (15)4.1.2RRC连接建立成功率: (16)4.1.3E-RAB建立成功率: (18)4.2移动性指标: (19)4.2.1切换成功率: (19)4.3保持性指标 (23)4.3.1无线掉线率: (23)1 概述1.1 主要内容本文是针对网规网优人员,在LTE网络优化时,在机房进行相关的配合工作。
对涉及到的OMC、eNodeB相关的操作进行了说明.并根据网规人员操作的重要顺序对章节进行了编排.本文分为以下几部分,每部分对最常用的功能做了详细的介绍.1) 机房行为规范介绍了网规网优人员在机房工作时,需要遵守机房的相关规定和注意事项.2) eNodeB操作维护部分介绍了对于单个eNodeB的模拟负载加载和去加载、eNodeB的MML命令等、eNodeB的告警信息的查询以及告警数据的提取。
3) 话统指标操作及简单分析介绍了话统指标的定义和话统指标的提取方法和操作步骤以及简单分析。
1.2 机房行为规范和注意事项网规网优人员在机房工作时,需要遵守机房的相关规定,注意事项如下:1) 在机房工作时,上下班时间以及进出机房,遵守机房的相关管理规定;2) 一般不得在机房内饮食、饮水,水杯一般不能带到机房;3) 在机房操作时,不同的操作维护客户端,可能使用不同的用户名和密码,一般由机房管理人员进行管理和分配,使用时需要遵守机房的相关的管理规定;4) 在机房操作时,除了网规网优必须的操作外,切记不能随便操作相关的设备,例如复位单板,修改系统的参数等;5) 机房人员有责任保证操作平台的可用性.例如保证磁盘空间大小足够用,跟踪的数据文件要及时发送给网优人员,并及时删除客户端上的跟踪数据文件,否则客户端上将有很多的数据文件,占用磁盘空间;6) 由于机房操作平台安全性要求非常高,一般不得用任何存储介质在操作平台上直接拷贝文件。
易兴通电子有限公司手机测试培训操作指南一、手机软件与升级管理二、手机RF(BT/FT/CIT)系统测试操作指南三、手机包装测试操作指引四、条码标签打印操作介绍五、生产&出货IMEI/MEID 号管理规定手机软件与升级管理1. 软件管理:1.1:软件管理是指对公司各机型的软件更新进行记录,及时将最新软件导入生产中及将旧软件进行归档以便日后查阅.1.2:软件接收:文控室负责(或测试工程师)接收提取客户提供各类软件及相关技术文档,同步发给相应部门。
并复制到公司指定服务器上保存并注明。
1.3:软件ECN 发行:工程文员或文控室收到客户软件,在项目经理或测试工程师指导下把相关软件ECN 电子档、纸档或邮件方式发行到各部门,同时将软件发行,各部按ECN 操作执行。
1.4:软件对照表更新:测试工程师收到文控发行软件,根据客户类型将客户软件对照表转换更新易兴通内部软件对照表发布相关使用部门,文控负责将最新软件对照表打印受控发行到各产线MMI 工位、品质检验人员、升级测试房,并将旧软件对照表收回存档。
1.5:软件执行:测试工程将收到的软件复制到下载PC 上,将下载软件平台工具调试好,准备量产下载。
1.6:软件功能确认:由工程师抽5PCS 对下载好软件机器进行功能全检,如功能都OK 软件将正式实行,工程、质量共同确认升级下载首件,如发现软件有Bug 将反馈给相关负责部门,直到问题有解决方案为此,否则不能正式上线。
2. 软件升级管理:升级硬件&软件准备:PC 加多口USB 接口、下载线、下载夹具、各机型升级工具、软件、操作说明注意事项。
2.1:软件归档量产操作:软件确认正确及功能确认OK 后将记录在‘软件对照表’中,记录软件的机型;版次;软件发行日期等信息,如特殊操作(易丰客户软硬三大件匹配关系应用,相关使用部门严格按照软件对照表匹配发料;易丰条码打印要求出货SN 号设计软件硬件代码,备料单严格按照实际软硬件匹配关系备料。
3.3.4 GPRS 通讯此功能仅适用于GPRS 机型。
配置完成后,请至 注册并扫描本手册背面右下方“小固云窗”二维码下载APP。
注意:1.机器使用接近一年,如果数据不再更新,则可能是流量费用完,请及时联系本公司续费。
2.安装后请查看信号强度(屏幕显示栏),如果信号强度低于40%请更换逆变器安装位置,确保信号强度高于40%。
4 操作说明具体操作请参考《完整版用户手册》。
(完整版用户手册下载方法本手册结尾)4.1 提示与免责声明“中国标准”安规:逆变器正常工作电压范围:0.85Un-1.2Un,逆变器正常工作频率范围:47.5-50.5Hz,逆变器的启机/重连频率范围:49.5~50.2Hz;“中国标准较高压”安规:逆变器正常工作电压范围:0.5Un-1.2Un;“中国标准最高压”逆变器正常工作电压范围:0.5Un-1.27Un;“中国电站”逆变器正常工作电压范围:0.9Un-1.1Un。
若显示屏显示“电网电压偏高”或者发电时绿灯每间隔5秒灭1秒,则表示并网电压偏高。
若并网点电压接近或高于264Vac,在征得当地电力运营商许可后,根据并网点的电压情况,选择“中国标准较高压”或“中国标准最高压”。
注:电网电压过高可能影响到并网侧家用电器的正常使用和使用寿命,因选择“中国标准较高压”或“中国标准最高压”并网导致的相关影响和后果与我司无关。
4.2 WIFI 模块重启和恢复出厂设置有LCD 屏机型在基本设置菜单中选择通信设置,按 键进入,选择WIFI 复位,长按 键3s,会重启逆变器的WIFI 模块,当逆变器无法连接到路由器或者监控服务器时可尝试此功能。
在基本设置菜单中选择通信语言设置,按 键进入,选择WIFI 重置,长按 键3s,会将逆变器的WIFI 模块恢复为出厂设置,当无法连接到WIFI 模块时可使用此功能,一旦WIFI 模块恢复为出厂设置,则必须再次正确配置WIFI 模块,注意:该功能仅适用于WIFI 机型。
内部资料,注意保密华为移动产品展厅培训教材展厅技术部编辑华为技术华为技术有限公司2005前言本课程通过对华为移动产品发展历程、产品结构、功能、性能、产品卖点、典型应用实例、与竞争对手的比较以及产品发展趋势的讲解,辅以学员自己的讲解演练和展厅讲解实习,使学员不仅掌握华为移动产品主要特点、技术优势、典型应用等知识,而且掌握基本的宣讲技能和技巧。
学完本课程后,学员能够达到:●了解华为移动产品研发、市场应用情况●掌握华为移动产品基本结构、功能和特性●掌握我司移动产品机会点和推广策略●掌握基本宣讲技巧●能够对一般专业性的市场客人和各类非市场客人进行公司产品讲解,为今后的市场营销工作打下良好基础。
目录第一章 WCDMA第一节华为WCDMA概述1.1 Huawei WCDMA introductionHuawei has been investing heavily in 3G and currently there are over 4000 engineers engaged in the R&D of 3G system with global 3G R&D institutes in Shenzhen, Shanghai and Beijing of China and Sweden, India and the United States. Huawei has already successfully deployed its commercial UMTS total solution. In fact, more and more operators are now placing their 3G confidence in Huawei.Huawei is one of the few vendors that have achieved commercial applications (10 commercial networks and over 30 trial networks). Commercial contracts include those with Sunday in Hong Kong, Etisalat in UAE, Emtel in Mauritius, TM in Malaysia and Telfort in the Netherlands.Hong Kong is one of the world's most competitive mobile markets. With high performance, mature product and quick response to customer’s requirement, Huawei was selected by SUNDAY from five global equipment vendors (others are Siemens, Alcatel, Nortel and ZTE).Etisalat, one of the world’s top 500 companies, provides telecommunication services to the United Arab Emirates and is one of the leading service providers in the Middle East Region. On Dec. 24, 2003, Huawei helped Etisalat launch UMTS services in UAE, enabling Etisalat to become the first company in the Middle East and the Arab World to introduce UMTS network.Telekom Malaysia(TM) is the biggest telecom operator in Malaysia and holds a very high position in the telecom market of Asia Pacific. In September of 2004, after strict trial network test and competition among Ericsson, Nokia, Siemens, Alcatel, and Huawei, Huawei won the commercial contract from TM to cover the booming area of Malaysia. In this commercial network, Huawei RAN inter-works with Nokia CN, and proved its excellent interoperability.In Dec.8, 2004, Telfort, Netherlands selected Huawei as their partner on 3G and takes Huawei as the sole UMTS supplier. Huawei will help Telfort to build a nationwide and high-quality UMTS network in Netherlands with a coverage of the whole country including all the main cities like Amsterdam, Rotterdam, Hague, etc. Huawei will deliver a turnkey solution, giving Telfort full UMTS capabilities, interworking with its existing GSM and EDGE platforms and readiness for HSDPA. With Huawei innovative distributed UMTS solutions, Telfort can achieve 30% Opex and Capex saving. Just like the CEO of Telfort said “Huawei's technological and innovative skills are really impressive…We are confident that Huawei will help us to develop innovative and cost effective data solutions for our customers and look forward to a prosperous relationship with them."Here are some key points of this case:1. Huawei will provide an end-to-end solution based on R4 architecture for Telfort.2. Network covers 99% population of the Netherlands3. Replace the existing GSM/GPRS core network with a unified 2G/3G core network4. Distributed Coverage Solution can greatly reduce OPEX and CAPEX, with 30%TCO (Total Cost of Ownership) Saving5. Huawei will deliver a turnkey project1.2 Activities in UMTS industrya) Doing trails and tests with Vodafone, Telefonica, NTT DoCoMo, China Mobile, ChinaTelecom, China NetCom;b) Complete Inter-Operability Test (IOT) with the mainstream equipment vendors:Ericsson, Nokia, Motorola, Nortel, Siemens-NEC, Alcatel;c) Complete IOT for single/dual –mode handsets: Nokia 6650, Motorola A830, NECPeony, NEC C606, Sony-Ericsson Z1010, Qualcomm TM5200/6200, SANYO, LG ;d) Major founder for the Common Public Radio Interface, which is aiming to define apublicly available specification for the key internal interface of radio base stations.e) Establishing 3G open Lab for the development and testing of 3G services withSP/CP, researching WIN-WIN business models and cultivating the 3G value chain;f) Huawei respects IPR. Huawei is one of the few vendors who can design 3G coreASIC. We have our own intellectual properties for 3G and have signed IPR cross-license agreement with Ericsson and Nokia.g) In the MTNet test, which is organized by the Chinese Ministry of Information Industry,Huawei has passed all the 326 mandatory test items and 70 of the total 75 optional test items. Huawei has been ranked No. 1 in both 2 phases of the MTNet test.h)Huawei has also been investing heavily on 3G handsets and is planning to launch aseries of them especially the low-cost 3G handsets.1.3 Major events of Huawei UMTSa) 1995, started R&D on CDMA / UMTS technologyb) Aug. 2001, deployed China’s first UMTS pilot network in Shanghaic) Sep. 2002, dialed the world’s first UMTS intelligent call on CAMEL 3d) Jun. 2003, one of the major founders for CPRIe) Jun. 2003, complete long-distance IP video call based on R4f) Sep. 2003, joint force with Infineon to offer UMTS mobile phone platformg) Dec. 2003, sole supplier of commercial UMTS system for Etisalat (UAE)h) Dec. 2003, sole supplier of commercial UMTS system for Sunday (Hong Kong)i) Aug. 2004, complete world’s first and largest softswitch based R4 network for ChinaMobilej) Sep. 2004, RAN supplier of commercial UMTS system for TM (Malaysia)k) Dec. 2004, sole supplier of commercial UMTS system for Telfort (Netherlands)第一节展台展板讲解词2.1 Poster1: Long-term AccumulationThis poster is self-explaining.2.2 Poster2: Telfort ProjectIn Dec.8, 2004, Telfort, Netherlands selected Huawei as their partner on 3G and takes Huawei as the sole UMTS supplier. Huawei will help Telfort to build a nationwide and high-quality UMTS network in Netherlands with a coverage of the whole country including all the main cities like Amsterdam, Rotterdam, Hague, etc. Huawei will deliver a turnkey solution, giving Telfort full UMTS capabilities, interworking with its existing GSM and EDGE platforms and readiness for HSDPA. With Huawei innovative distributed UMTS solutions, Telfort can achieve 30% Opex and Capex saving. Just like the CEO of Telfort said “Huawei's technological and innovative skills are really impressive…We are confident that Huawei will help us to develop innovative and cost effective data solutions for our customers and look forward to a prosperous relationship with them."Here are some key points of this case:1. Huawei will provide an end-to-end solution based on R4 architecture for Telfort.2. Network covers 99% population of the Netherlands3. Replace the existing GSM/GPRS core network with a unified 2G/3G core network4. Distributed Coverage Solution can greatly reduce OPEX and CAPEX, with 30%TCO (Total Cost of Ownership) Saving5. Huawei will deliver a turnkey project2.3 Poster3: 4 commercial networksa) Introduction of Sunday projectHuawei provides SUNDAY entire end-to-end UMTS solution needed for the 3G launch, including UMTS radio access network, core network, 3G mobile intelligent network, data service platform and applications. The core network adopts soft switch architecture which supports 3GPP R99/R4, GSM/GPRS and TD-SCDMA standard.The 3G network will offer video mailbox, video phone, video conference, Portal, PTT, MMS, IN/CAMEL/MNP and WLAN integration, etc. services. Huawei may also supply SUNDAY with commercial UMTS mobile phones later.b) Introduction of Etisalat projectHuawei provides total UMTS solution with capacity of 160,000 subscribers (phase 1), based on 3GPP R4 architecture, including CN and RAN equipment. Coverage area: Whole country including Abu Dhabi, Dubai, Sharjah, Ajman, etc.Services: Video phone, video conference, live TV on mobile phone, high-speed mobile Internet access and rich data services, etc.With Huawei’s solution, Etisalat GSM customers can migrate to 3G service without the need to change their existing numbers or SIM cards. This is also the world’s first commercial network which supports 2G/3G roaming.c) Introduction of TM projectTelekom Malaysia(TM) is the biggest telecom operator in Malaysia and holds a very high position in the telecom market of Asia Pacific. In September of 2004, after strict trial network test and competition among Ericsson, Nokia, Siemens, Alcatel, and Huawei, Huawei won the commercial contract from TM to cover the booming area of Malaysia. In this commercial network, Huawei RAN inter-works with Nokia CN, and proved its excellent interoperability.2.4 Poster4: Introduction of China Mobile T-ProjectHere is the giant network structure for China Mobile. We are building the TMSC network for China Mobile. The project adopted Huawei’s advanced MSC: softswitch MSC, thus demonstrating the reliability of Huawei softswitch MSC. The position of TMSC1 is very important and they deal with all the long distance traffic between provinces. Based on softswitch MSC, CMCC can save much transmission cost in long-distance calls. The project includes 8 pairs of MSC servers and 32 dual homing MGWs, totally 40,000 E1 ports, building in 31 branch offices of CMCC. The project was completed in August, 2004. It survived the peak of the Chinese Lunar New Year in early 2005 and proved to be of best quality and reliability.2.5 Poster5: Introduction of abundant 2G/3G interworking experienceHuawei has rich 2G/3G interworking experience in commercial networks. Huawei provides the first commercial network which supports 2G/3G roaming for Etisalat, UAE.2.6 Poster6: UTRAN with high performanceThis poster is self-explaining, and may also refers to Key Message: 1.1 UTRAN for Better Coverage and Higher Performance.第一节演示业务介绍3.1 Video on demand (VOD)By using 3G handset as the wireless modem, enjoy the VOD service through UMTS network. The streaming data of high-resolution film is transported from 3G handset to laptop PC via USB port, and displayed on the screen of PC.The downlink speed reaches 384Kbps; the VOD will be one of the most excited services of 3G.3.2 Video Phone(VP)By using 2 UMTS handsets with camera to realized the video Call service,allowing customers to see each other on the screen when speaking to them.VP is circuit-switched based 64K service, will be one of the leading 3G service.3.3 UMTS Video conference interworking with NGN (VC)Customers using a 3G handset dial service access number to join video conference meeting of NGN to realize interworking with NGN VC.VC is one kind of 64Kbps service based on circuit - switched domain, can be used to provide mobile office and online monitor service.3.4 Media Streaming ServiceThe UMTS handset connects to the internet directly, plays the streaming data online such as music,movie, etc. Media streaming service is also one of most attractive service. 3.5 Web-surfing via Bluetooth PDA combined with UMTS handsetUsing PDA with Bluetooth function combines with UMTS handset to realize high speed wireless data service, such web surfing, streaming media playing.Bluetooth PDA supplements the limitation of 3G handset data processing capability; realizes personal mobile internet, mobile office, etc., services.3.6 CMB (Cell Multimedia Broadcast) also called simplified MBMSHuawei is the first vendor to provide the end-to-end multimedia broadcast service over UMTS system in the industry. At the same data usage, services based on CMB, which is a simplified MBMS (Multiple Broadcast Multimedia Service), can be only priced at less than 5% of the present charge for media streaming services. CMB supports media streaming (live video, live TV, commercial video chips, etc.) and downloading services. This innovative service doesn’t require any hardware change, only software upgrade is needed.3.7 Uplink 384kbps ServicesBesides 14.4Mbps downlink rate that Huawei HSDPA solution can provide, Huawei also introduces enhanced solution to support 384k in both downlink and uplink, which can support symmetrical services such as high quality video phone, video conference and high speed for upload applications with large traffic, such as ftp and P2P file sharing.第二节展台设备介绍4.1 UTRAN for Better Coverage and Higher Performancea) Huawei delivers complete set of NodeB family, meeting different needs of operators.These include the 12-TRX/6-TRX indoor macro NodeB, the 6-TRX outdoor macro NodeB, the all-in-one Mini NodeB, and the distributed NodeB (Baseband Processing Unit (BBU) and the Remote Radio Unit (RRU));b) Distributed NodeB, which can greatly reduce OPEX and CAPEX, Separatetraditional macro Node B into two parts: BBU and RRU connecting via optical fiber.The interface between RRU and BBU is open, according to CPRI, Huawei is one of the founders of CPRI. For details, please refer to 1.6.c) For the initial deployment of 3G network, the coverage is most concerned byoperators. With Huawei’s optimal coverage solution, the coverage of UMTS can be as good as that of GSM 900MHz system. These technologies include: power combining with TX diversity, high RX sensitivity of -125dBm, RRU and Tower Mounted Amplifier, 4-way RX diversity, AMR Control and DCCC RRM algorithms, etc.d) The efficiency of traditional LPA is 9%, based on FF technology. Huawei developednew PA technology, DP(Digital Pre-Distortion) plus HPA, which enhance the power efficiency to 18%.e) Huawei has also developed enhanced RTT algorithms that can ensure bothcoverage and capacity in the future. These include the Smart Antenna, the Multi-User Detection, etc.f) The bearer capability of Huawei NodeB is very remarkable. It can simultaneouslysupport up to 8 connections of 384Kbps on the downlink and 7 connections of 384Kbps on the uplink within one single sector-carrier.g) Huawei HSDPA can support 15 codes and full rates up to 14.4Mbps, relies on self-designed ASIC chip.4.2 RAN equipments introductiona) BTS3812E: new Indoor Macro NodeB➢ Smallest NodeB to support 12 CELLs in the industry with height of 1.4 meters and width of 0.6 meters➢ Support flexible configuration mode, such as O1, O2, O3, O4, S3×1, S3×2, S3×3, S3×4, S6×1, S6×2➢ Support flexible diversity mode, such as 2 Rx Diversity, 4 Rx Diversity, 2 Tx Diversity, etc➢ Support Remote Electric Tilt (RET) antenna➢ Support High Speed Downlink Packet Access(HSDPA)➢ High Power efficiency: type1: 18% (DPD: Digital PreDistortion);type2: 28% (DPD+Doherty)b) BTS3812A: new outdoor Macro NodeB➢ Compact design with height of 1.7 meters and width of 0.9 meters➢ Support flexible configuration mode, such as O1, O2, O3, O4, S3×1, S3×2, S3×3, S3×4, S6×1, S6×2➢ complies with the IP55 of International Protection Standard➢ Can work normally under the temperature -40 ︒C ~ +50 ︒C (with heat exchanger)➢ Support flexible diversity mode, such as 2 Rx Diversity, 4 Rx Diversity, 2 Tx Diversity, etca) BTS3802C: All-in-One Mini NodeB➢ All-whether, all-in-one design➢ No equipment room needed, less auxiliary facilities➢ Small size and light weight, easy installation➢ T1, E1, STM-1 transmission, support CES and Fractional ATM➢ Support 128 voice channelsb) RRU3801C: Remote Radio Unit➢ Optical fiber transmission, flexible networking➢ Share base-band and clock modules with host NodeB➢ Adaptable to outdoor environmentc) BBU3806: baseband processing unit➢ Distributed NodeB system with RRU➢ Size: 19’inch box,1U➢ Ambient Temp : -5~+50 °C➢ Single box support 3*1 up to 384voice channels/DL, 256 voice channels /UL, Four box support 3*4 up to 1536 voice channels /DL, 1024 voice channels /ULd) BSC6800: Radio Network Controller➢ Based on commercial ATM/IP platform➢ Modular design, smooth expansion and upgrade➢ 40,000 equivalent voice channels, 1,000,000 equivalent voice subscribers➢ Max. 40K Erl/960M/1600 NodeBs/ 4800 cells➢ Powerful service bearing capability, support 8 kinds of AMR voice➢ Support transport sharing between 2G and 3G4.3 Advanced CS Core Networka) Huawei’s Circuit-Switched Core Network is based on the soft-switching architecture,which is the very pith of the next generation network (NGN). It realizes the separation of carrier and control, featuring smooth evolution, convenient O&M, flexible roll-out and control of services.b) Huawei R4 Core Network supports simultaneous access of both UTRAN and GSMBSS, and also has backward compatibility with 3GPP Rel99. So we call it a unified core network solution.c) The MSC Server and MGW feature large capacity, high density and high-scalability.They both have compact configuration of one single rack, supporting 50,000 subscribers to the minimum. Due to the modular design, they can be expanded all the way to their full capacity, i.e. 1.8 million subscribers with 3 racks.d) The Video Inter-working Gateway (VIG) is a very important network element for therealization of mobile video services. It functions as the interpreter for signaling between systems based on different video standards, e.g. H.323 and H.324M, enabling the inter-connection of video services between UMTS and other telecom systems, e.g. NGN, broadband, Internet.a) Huawei adopts enhanced technologies to improve the quality of voice service,including TFO/TrFO, AMR Control, Comfortable Noise Generation, and Loss Packet Compensation.b) Huawei’s CS CN products have been widely deployed in the commercial network ofChina, Thailand and U.A.E. At the same time, Huawei NGN products, which are based on same platform as Huawei UMTS CS CN, have been deployed in Brunei Telecom. China Telecom, China Satellite Telecom. British Telecom, etc.4.4 CN CS equipments introductiona) UMG8900: Media Gateway⏹Unified media gateway for both mobile and fixed system⏹Smooth evolution to R5/R6, reusing existing hardware⏹Support dual homing features, network-level reliability ensured⏹Support E1/T1, SDH/ATM/POS 155M, FE/GE⏹Support H.324M, multiparty session, etcb) MSoftX3000: MSC Server⏹Abundant services: CAMEL 3, LCS, lawful interception, USSD callback, H.324M⏹Large capacity and high density, 1.8 million subs with 3 racks⏹Support dual homing networking, embedded SG functions⏹Support both layered and non-layered network architecture⏹Support simultaneous access of GSM BSS and UTRAN4.5 Versatile PS Core Networka) Huawei PS Core Network supports the simultaneous access of both UTRAN andGPRS BSS. It can support R99/R4/R5 and smooth evolution to R6 is also guaranteed.b) The GGSN embeds the SSP function and can support Pre-Paid Service (PPS).Huawei has provided the GGSN equipment for AIS of Thailand, enabling its prepaid subscribers to enjoy the attractive data services bringing by GPRS.c) The GGSN has the content-detection functionality. As a result, content-basedcharging can be supported by Huawei PS CN. This function gives operator the freedom of choosing different billing strategy and business modes.d) Due to the content-detection capability, another function which is called OnlyOneAPN can be provided. With this function, the end-users do not need to re-select APN by hand when they are changing to other services. The network will do the routing for the end-user. Re-selection of APN will be invisible by end-users. This function brings more convenience to both the end-users and the operators.e) Huawei’s PS CN has been deployed in 24 countries, 35 operators commercialexperiences, in Asia, Africa, Europe, South America.f) Huawei SGSN/GGSN/CG global application serves more than 12,000,000subscribers PS services and occupies more 47% market share in China Mobile.4.6 CN PS equipments introductiona) SGSN9810: Serving GPRS Support Node●Support both UMTS and GPRS●Capacity up to 1.6 million subs, and 800,000 PDP context simultaneously.●Guaranteed QoS: Diffserv QoS, MPLS, etc.●Support E1/T1, ATM STM-1/STM-4, POS STM-1/STM-4, FE/GE●Special functions: CAMEL 3, LCS, Lawful Interception, GTP HardwareForwarding, 2M Signaling, IPSec, etc.a) GGSN9811: Gateway GPRS Support Node●Support both UMTS and GPRS●handle 1,000,000 PDP context (Single sub-rack), 5,000,000 PDP context(Multiple sub-racks) simultaneously●Excellent quality of service based on Internet differentiated service classes.●Support packet security filtering/ACL mechanism●Support ATM STM-1/STM-4, POS STM-1/STM-4, FE/GE4.7 Experienced Radio Network PlanningHuawei has more than 300 professional UMTS Radio network planning (RNP) engineers locating in over 30 technical support centers worldwide. More than 75% of them hold master or higher degrees. Expertise database, simulation model database and case database of network planning & optimization have been set up to facilitate the RNP.Huawei holds more than 150 3G RNP patents and embodies the belief of RNP into ASIC design. Self-designed software has been developed to field test and network planning & optimization. Huawei has the experience of network planning & optimization in hundreds of 3G projects worldwide, including the commercial 3G network radio network planning in UAE , Hong Kong, Malaysia and NetherlandsHuawei RNP team cooperates with professional international RNP companies(such as WFI and Aircom), invites foreign experts from Europe, USA and Korea to join RNP team and provides professional 3G RNP service globally.About IPRHuawei respects IPR. Huawei is one of the few vendors who can also produce 3G core ASIC. We have our own intellectual properties for 3G and have signed IPR cross-license agreement with Ericsson and Nokia.Till today, Huawei has applied for more than 800 patents Covering UMTS key technologies.About CPRIIn May 2003, Ericsson, Huawei, NEC, Nortel Networks and Siemens created an industry cooperation, CPRI (Common Public Radio Interface).CPRI defines the interface between RE (Radio equipment) and REC (radio equipment control) which is a key internal interface in the radio base station. The aim of CPRI is to define a publicly available specification for the key internal interface of radio base stations.As a founder of CPRI, Huawei’s RRU is fully complied with CPRI 1.1 specification, which means operators can have the benefits of cost-effective and high quality from the whole CPRI industry.第二章 CDMA2000第一节展板介绍1.1Global Applications of Huawei CDMA2000Huawei CDMA2000 has been widely applied worldwide in over 50 countries, in Europe, Eastern Europe, CIS region, middle Asia, Asia & pacific, Africa, Middle East, Latin Americaand north America., such as U.S.A., Mexico, Brazil, Portugal, Romania, Russia, Belarus, Turkmenistan, Kirgizstan, Uzbekistan, Georgia, Azerbaijan, Kazakstan, Ukraine, Thailand, Indonesia, India, Pakistan, Vietnam, Brunei, Yemen, Saudi Arab, Egypt, Algeria, Nigeria, Ethiopia, …. The t otal capacity is c.a. 20 million subscribers. Especially, Huawei is the leading vendor of CDMA450 application with 66% market share worldwide, and 43% market share of CDMA-WLL, 5 commercial EV-DO networks and over 15 DO trial networks.In 2004, American operator (NTCH-CA) selected Huawei as the supplier of her CDMA network. And in the 1st phase, Huawei deployed 2 local networks in California and Arizona in 1900MHz, including SMS & MMS equipments. This is the first time that Chinese telecom vendor supplies CDMA system in United States of America. As we know, CDMA technology is originated from U.S.A. and applied in the first instance, they know CDMA very well, so they understand exactly the keys of CDMA. Huawei passed all the tests via series of excellent features and functions, and then got the first CDMA contract in United States of America.On the project of IUSACELL CDMA2000 network in Mexico, the capacity is 200,000 subscribers to cove 2 areas, section 1 and section 8, there are pairs of sates in each section.In section 1 the system is totally new CDMA2000 system, while in section 8 the system mainly comes from Huawei, the small part is from Motorola. In section 8 the system is at 800MHz frequency, while in section 1 the system is 1900MHz frequency, and the networks are 1X + EV-DO mixed configuration in both section. In phase I, the system is deployed with traditional MSC, and in second phase the SoftSwitch will be deployed. This is a turn-key project including infrastructure, transmission equipments, civil engineering, etc.Huawei provided the first CDMA network in Western Europe, it’s the nationwide CDMA450 network in Portugal, which is 1X + DO mixed network to offer 1X and DO services.CAT is a state-owned telecom operator in Thailand, the existing CDMA system was IS-95 technology provided by Lucent and NEC. The technology is outdated and the revenue was uneasy. So CAT carried out this bidding of CDMA2000 system over the whole country. In this bidding, 5 vendors took part in the bid works, in the phase of technology-evaluate, ZTE and Samsung were washed out. At the end, Huawei is the only vendor for CAT CDMA2000 network. In this network, Huawei will supply 1600 BTS to cover 51 provinces of total 76 provinces in 2 years, including 2.23 million subscribers. And all the BTS is 1X + EV-DO configuration.India is the hottest CDMA market in the world now, the population in India is over 1 billion. And it’s the No.1 CDMA market, so the competition in India is very active. In 2003, through a long time active competition, Huawei got the CDMA contract from MTNL, the capacity is 800,000 subscribers, coverage of Delhi and Mumbai, including OTAF and lawful interception equipments. These two cities are the top 2 biggest cities in India with large areas, dense population and dense buildings. The requirements from operator are very strict and various, Huawei passed all the test items in very short time.Huawei provided IN, CDMA infrastructure and terminals to PTCL in Pakistan. Five local CDMA networks will be distributed in 5 big cities - Islamabad, Lahore, Multan, Quetta and Peshawar, including 1 WIN/SMSC, 1 PDSN, 5 MSC/HLR, 5 BSC, 127 BTS, 305 TRX, BSS capacity is 213K subscribers, NSS capacity is 291k subscribers. Subscriber’s traffic is 0.05Erl/subscriber. In the second phase of PTCL CDMA network, Huawei got 90% NSS capacity, (SoftSwitch + WIN), NSS capacity is 1275K subscribers (including 400K capacity of CDMA450, 875K capacity of CDMA1900), in 9 areas, total contract is over USD80M. Huawei is the biggest supplier.As you know, roaming is very important for the interconnection of networks. In Belarus, the first International roaming of CDMA450 was carry out on Huawei-built BelCel network and another operator Delta Telecom in St. Petersburg Russia.Huawei deployed its CDMA1900 network for Starcomms in Lagos Nigeria. Lagos is one of the most populated cities in the world. Huawei has provided S444 configured single cabinet BTS to provide dense coverage.In Tibet, CDMA450 network is supplied by Huawei. As we know, the terrain is so crude and hard in Tibet, and very harsh climate there. The nomadic people live in very spread regions. Huawei CDMA450 showed excellent features of coverage and service quality. The system provides telephone service in rural area to offer the nomad a link with the whole socity. In some of the places, before they have CDMA450 system, the people had to walk 6 hours to reach the nearest telephone. The CDMA450 system provides not only telephone services but also great changes of everyday life to Tibetans.1.2 End-to-end solution of Huawei CDMA2000Huawei provides CDMA2000 End-to-End solutions including network infrastructure, service platform, user terminals (inc. handsets and terminals) and after-sales service. The solution may be mobile network or Wireless Local Loop (WLL) system. The total network is divided into radio access network, core switch network, and core packet network, service supporting layer, and operation & maintenance center.Huawei offers series of handsets and fixed wireless terminals in different bands and different types to meet the requirements form different customers.Huawei presents complete BTS family to different coverage requirements, and powerful BSC for 1X+DO network. Huawei radio access network can work in different frequency-bands of 450MHz/ 800MHz/ 1900MHz/ 2100MHz, in Huawei CDMA2000, 1X + DO mixed configuration is available, that means, in the same BTS, 1X + DO is supported at the same time, the same BSC supports 1X + DO, and the same OMC supports 1 X + DO.Matured and advanced SoftSwitch is adopted in Huawei CDMA system to replace traditional MSC to perform switching function, including call handling and control, routing,。
华为培训规范整理一,重大操作实施流程:1.现场需求2.方案提交3.内部授权4.客户授权5.方案实施6.业务测试7.重大操作成功知会(邮件短信)8.次日职守二,哪些是高危操作?1,设备割接入网2,设备扩容3,设备版本升级4,网络改造5,主备单板倒换6,更换单板7,数据导入,修改8,可能影响业务的操作三,开箱验货1,按包装箱装箱单查看件数是否相符,运达站点是否相符2,包装箱外观是否完好,运输时是否倒置3,当设备从温度低干燥的地方移动到温度高潮湿的地方时,要等待30分钟在开箱4,单板拆封时必须带防静电手套5,工程督导和客户必须同时在现场,验收完成后有客户在装箱单上签字,完成货物的移交6,工程督导需把签字后的装箱单在工程完工后移交文档管理员归档7,根据装箱单上的货物型号,件数,逐渐验收四,通信设备防雷基本原则:1,系统防雷原则2,概率防雷原则3,多级防雷原则五,工程完工后需要移交给客户资料?1,工程设计文件移交(数据规划,局点信息,数据配置脚本)2,备板,备件移交3,软件介质移交4,工程过程文件移交(经客户,华为确定的过程文件,进度计划等)六,督导工作流程:1,安装环境检查2,开工协调会3,分货,验货4,硬件安装5,软件调试6,初验7,割接8,网络监控9,工程移交七,高危操作前需要得到什么授权?1,技术授权2,客户授权八,重大升级流程?1,联络客户取得工程联络单,协调用户配合事宜2,升级方案提交公司获得技术授权3,提交升级方案和现场服务申请给客户4,提交变更电子流,并发布高危预警5,实施现场操作6,提交升级报告和现场服务总结给客户并使用户签字九,割接方案内容?1,概述:网络概况,操作内容,范围影响2,准备:时间、人员、资源需求、周边配合3,详细操作步骤4,制订风险及防范措施,倒回方案5,验证测试方案十一,现场培训有哪些内容1,培训册2,培训胶片3,培训总结十二,工程中,客户突然要求已安装的设备移到其他地方,该怎么办1,与客户沟通时注意礼貌,不卑不亢2,详细了解客户网络信息,如不必要,建议客户不要移动3,建议不生效时,需通过项目经理协调4,确认工程更改是否在合同范围内,不在时要收费十二,客户要求10:00—12:00开始重大操作,该怎么办?1.首先,建议用户调整到行业默许时间段,避免意外。
