《Arduino程序设计基础》示例程序本帖最后由奈何col 于 2014-1-21 23:15 编辑2.5.1.1 流水灯实验[mw_shl_code=cpp,true]/*OpenJumper LED Module流水灯效果*/void setup(){//初始化I/O口for(int i=2;i<8;i++)pinMode(i,OUTPUT);}void loop(){//从引脚2到引脚7，逐个点亮LED，等待1秒再熄灭LED for(int i=2;i<7;i++){digitalWrite(i,HIGH);delay(1000);digitalWrite(i,LOW);}//从引脚7到引脚2，逐个点亮LED，等待1秒再熄灭LED for(int i=7;i>2;i--){digitalWrite(i,HIGH);delay(1000);digitalWrite(i,LOW);}}[/mw_shl_code]2.5.1.2按键控制LED[mw_shl_code=cpp,true]/*OpenJumper Button Module*/int buttonPin = 2;int ledPin = 13;int buttonState = 0;void setup(){//初始化I/O口pinMode(buttonPin,INPUT_PULLUP); pinMode(ledPin,OUTPUT);}void loop(){buttonState = digitalRead(buttonPin);//按住按键时，点亮LED；放开按键后，熄灭LED。

if(buttonState==HIGH){digitalWrite(ledPin,LOW);else{digitalWrite(ledPin,HIGH);}}[/mw_shl_code]2.5.1.3 新的按键控制方式[mw_shl_code=cpp,true]/* OpenJumper Button Module按键控制LED*/int buttonPin = 2;int ledPin = 13;boolean ledState=false; // 记录LED状态boolean buttonState=true; // 记录按键状态void setup(){//初始化I/O口pinMode(buttonPin, INPUT_PULLUP); pinMode(ledPin,OUTPUT);}void loop(){//等待按键按下while(digitalRead(buttonPin)==HIGH){}//当按键按下时，点亮或熄灭LEDif(ledState==true){digitalWrite(ledPin,LOW);ledState=!ledState;}else{digitalWrite(ledPin,HIGH);ledState=!ledState;}delay(500);}[/mw_shl_code]2.5.2 项目：人体感应灯（数字传感器与继电器模块）[mw_shl_code=cpp,true]/*OpenJumper ExamplePyroelectric Infrared Sensor And Relay人体感应灯/*/int PIRpin=2;int RELAYpin=3;void setup() {Serial.begin(9600);pinMode(PIRpin,INPUT);pinMode(RELAYpin,OUTPUT);}void loop() {// 等待传感器检测到人while(!digitalRead(PIRpin)){}// 将灯打开10秒，然后关闭Serial.println('turn on');digitalWrite(RELAYpin,HIGH);delay(10000);digitalWrite(RELAYpin,LOW);Serial.println('turn off');}[/mw_shl_code]2.5.3.2 使用电位器控制呼吸灯的呼吸频率[mw_shl_code=cpp,true]/* OpenJumper LEDModule*/int ledPin = 9; //9号引脚控制LEDint pot=A0; //A0引脚读取电位器输出电压void setup(){}void loop(){//LED逐渐变亮for(int fadeValue = 0 ; fadeValue <= 255; fadeValue +=5) {analogWrite(ledPin, fadeValue);//读取电位器输出电压，除以5时为了缩短延时时间int time=analogRead(pot)/5;delay(time); //将time用于延时}//LED逐渐变暗for(int fadeValue = 255 ; fadeValue >= 0; fadeValue -=5) {analogWrite(ledPin, fadeValue);delay(analogRead(pot)/5); //读取电位器输出电压，并用于延时}}[/mw_shl_code]2.5.3.3 实验：通过光敏电阻检测环境光亮度[mw_shl_code=cpp,true]/*OpenJumper light sensor*/void setup(){// 初始化串口Serial.begin(9600);}void loop(){// 读出当前光线强度，并输出到串口显示int sensorValue = analogRead(A0);Serial.println(sensorValue);delay(1000);}[/mw_shl_code]2.5.4 项目：电子温度计[mw_shl_code=cpp,true]/*OpenJumper LM35 Module*/int LM35 = A0;void setup(){// 初始化串口通信Serial.begin(9600);}void loop(){// 读取传感器模拟值，并计算出当前温度float temp = (5.0 * analogRead(LM35) * 100.0) / 1024; // 将温度输出至串口显示Serial.print('temperature ' );Serial.print(temp); Serial.println('C');delay(1000);}[/mw_shl_code]2.6 与计算机交流——串口的使用[mw_shl_code=cpp,true]int counter=0; // 计数器void setup() {//初始化串口Serial.begin(9600);}void loop() {//每loop循环一次，计数器变量加1 counter = counter+1;// 输出变量Serial.print(counter);// 输出字符Serial.print(‘:’);// 输出字符串;Serial.println('Hellow World'); delay(1000);}[/mw_shl_code]。

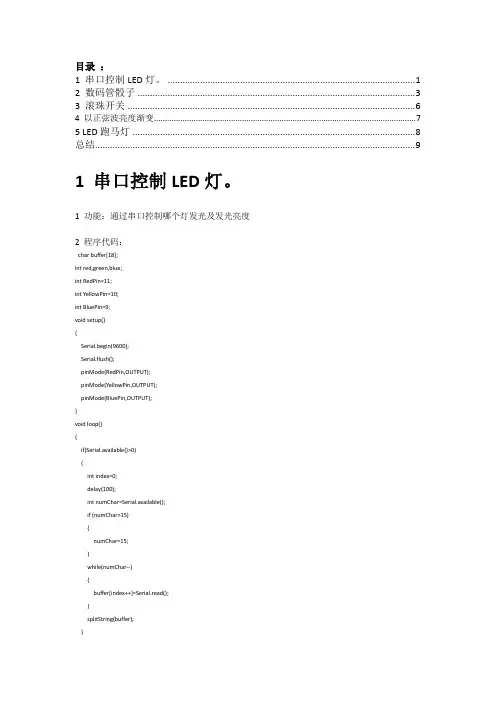

目录：1 串口控制LED灯。

(1)2 数码管骰子 (3)3 滚珠开关 (6)4 以正弦波亮度渐变 (7)5 LED跑马灯 (8)总结 (9)1 串口控制LED灯。

1 功能：通过串口控制哪个灯发光及发光亮度2 程序代码：char buffer[18];int red,green,blue;int RedPin=11;int YellowPin=10;int BluePin=9;void setup(){Serial.begin(9600);Serial.flush();pinMode(RedPin,OUTPUT);pinMode(YellowPin,OUTPUT);pinMode(BluePin,OUTPUT);}void loop(){if(Serial.available()>0){int index=0;delay(100);int numChar=Serial.available();if (numChar>15){numChar=15;}while(numChar--){buffer[index++]=Serial.read();}splitString(buffer);}void splitString(char* data){Serial.print("Data entered:"); Serial.println(data);char* parameter;parameter=strtok(data," ,"); while(parameter!=NULL){setLED(parameter);parameter=strtok(NULL," ,"); }for (int x=0;x<16;x++){buffer[x]='\0';}Serial.flush();}void setLED(char* data){if((data[0]=='r')||(data[0]=='R')) {int Ans=strtol(data+1,NULL,10);Ans=constrain(Ans,0,255);analogWrite(RedPin,Ans);Serial.print("Red is set to:");Serial.println(Ans);}if((data[0]=='y')||(data[0]=='Y')) {int Ans=strtol(data+1,NULL,10);Ans=constrain(Ans,0,255);analogWrite(YellowPin,Ans);Serial.print("Yellow is set to:");Serial.println(Ans);}if((data[0]=='b')||(data[0]=='B')) {int Ans=strtol(data+1,NULL,10);Ans=constrain(Ans,0,255);analogWrite(BluePin,Ans);Serial.print("Blue is set to:");Serial.println(Ans);}3 程序截图：设置: 黄灯亮度1，红灯亮度50，绿灯亮度100，输入：r1 b50 g100可以观察到。

Arduino教程Arduino LWZ 教程V1.0目录一、Arduino编程语言 (4)1、数据类型： (4)2、常量： (4)3、基本语句： (4)（1）if语句 (4)（2）if...else...语句 (5)（3）for语句 (5)（4）break和continue (6)（5）switch case语句 (6)（6）while语句和do...while语句 (7)（7）return语句 (8)（8）运算符 (8)（9）函数 (8)4、结构函数： (8)5、功能函数： (9)（1）数字I/O函数 (9)（2）模拟I/O函数 (9)（3）时间函数 (9)（4）数学函数 (10)（5）数据类型转换函数 (10)（6）三角函数 (10)（7）随机数函数 (10)（8）外部中断函数 (11)（9）中断使能函数 (11)（10）串口收发函数 (11)6、官方库文件： (11)二、Sabertooth电机驱动模块应用实例 (13)1、工作模式 (13)（1）Mode1: Analog Input (13)（2）Mode2:R/C Input (14)（3）Mode3:Simplified serial (14)（4）Mode4:Packetized serial (15)2、应用实例 (17)（1）硬件连接 (17)（2）小车停止函数 (18)（3）小车前进函数 (19)（4）小车后退函数 (19)（5）小车右转函数 (20)（6）小车左转函数 (21)（7）电子积木编程思路 (22)（8）PC软件的编程思路 (25)（1）硬件连接 (25)（2）电子积木运动和初始化函数 (25)（3）电子积木编程思路 (26)4、通过无线模块控制小车 (28)（1）无线通信模块 (28)（2）硬件连接 (28)（3）电子积木编程思路 (28)5、下载程序串口COM和无线数模串口COM2同时控制小车 (30)（1）硬件连接 (31)（2）电子积木编程思路 (31)三、TN901_TEST非接触测温模块应用实例 (34)1、TN901工作原理 (34)2、应用实例 (36)（1）硬件连接 (36)（2）读取温度函数 (36)（3）初始化函数 (38)（4）电子积木编程思路 (38)3、多个TN模块的应用实例 (39)（1）硬件连接 (39)（2）初始化函数 (39)（3）电子积木编程思想：共享函数 (40)（4）电子积木编程思路：独立函数 (42)四、气体传感器模块应用实例 (46)1、应用实例 (46)（1）硬件连接 (46)（2）电子积木编程思路 (46)2、多个气体传感器的应用实例 (47)（1）硬件连接 (47)（2）电子积木编程思路 (47)五、火焰传感器模块应用实例 (48)1、应用实例 (48)（1）硬件连接 (48)（2）电子积木编程思路 (49)2、多个火焰传感器的应用实例 (49)（1）硬件连接 (49)（2）电子积木编程思路 (50)六、DF-miniLTV3寻线模块应用实例 (50)1、DF-miniLTV3寻线工作原理 (50)2、DF-miniLTV3寻线在单黑线的应用实例 (51)（1）硬件连接 (52)（2）Sabertooth模块函数 (52)（3）初始化函数 (52)（4）电子积木编程思路 (52)（1）硬件连接 (54)（2）电子积木编程思路 (54)（2）PC软件的编程思路 (56)七、舵机模块应用实例 (56)1、舵机工作原理 (56)2、应用实例 (57)（1）硬件连接 (57)（2）电子积木编程思路 (57)3、非库形式的应用实例 (59)（1）硬件连接 (59)（2）双舵机驱动函数 (59)八、综合实例 (63)1、驱动2台舵机和电机的应用实例 (63)（1）硬件连接 (63)（2）电子积木编程思路 (64)2、测3个测温度、驱动电机的应用实例 (64)（1）硬件连接 (64)（2）电子积木编程思路 (64)3、测3个测温度、驱动2台舵机和电机的应用实例 (65)（1）硬件连接 (65)（2）电子积木编程思路 (65)4、测2个气体、2个火焰、3个测温度、驱动2台舵机和电机的应用实例 (65)（1）硬件连接 (65)（2）电子积木编程思路 (65)5、寻线、测2个气体、2个火焰、3个测温度、驱动2台舵机和电机的应用实例 (66)（1）硬件连接 (66)（2）电子积木编程思路 (66)一、Arduino编程语言Arduino语言是建立在C/C++基础上的。

Arduino 语法手册Arduino 的程序可以划分为三个主要部分：结构、变量（变量与常量）、函数。

结构部分一、结构1.1 setup()1.2 loop()二、结构控制2.1 if2.2 if...else2.3 for2.4 switch case2.5 while2.6 do... while2.7 break2.8 continue2.9 return2.10 goto三、扩展语法3.1 ;（分号）3.2 {}（花括号）3.3 //（单行注释）3.4 /* */（多行注释）3.5 #define3.6 #include四、算数运算符4.1 =（赋值运算符）4.2 +（加）4.3 -（减）4.4 *（乘）4.5 /（除）4.6 %（模）五、比较运算符5.1 ==（等于）5.2 !=（不等于）5.3 <（小于）5.4 >（大于）5.5 <=（小于等于）5.6 >=（大于等于）六、布尔运算符6.1 &&（与）6.2 ||（或）6.3 !（非）七、指针运算符7.1 * 取消引用运算符7.2 & 引用运算符八、位运算符8.1 & (bitwise and)8.2 | (bitwise or)8.3 ^ (bitwise xor)8.4 ~ (bitwise not)8.5 << (bitshift left)8.6 >> (bitshift right)九、复合运算符9.1 ++ (increment)9.2 -- (decrement)9.3 += (compound addition)9.4 -= (compound subtraction)9.5 *= (compound multiplication)9.6 /= (compound division)9.6 &= (compound bitwise and)9.8 |= (compound bitwise or)变量部分十、常量10.1 HIGH|LOW（引脚电压定义）10.2 INPUT|OUTPUT（数字引脚（Digital pins）定义）10.3 true | false（逻辑层定义）10.4 integer constants（整数常量）10.5 floating point constants（浮点常量）十一、数据类型11.1 void11.2 boolean（布尔）11.3 char（有号数据类型）11.4 unsigned char（无符号数据类型）11.5 byte（无符号数）11.6 int（整型）11.7 unsigned int（无符号整型）11.8 word11.9 long（长整数型）11.10 unsigned long(无符号长整数型)11.11 float（浮点型数）11.12 double（双精度浮点数）11.13 string（char array/字符串）11.14 String object（String类）11.15 array （数组）十二、数据类型转换12.1 char()12.2 byte()12.3 int()12.4 word()12.5 long()12.6 float()十三、变量作用域 & 修饰符13.1 variable scope（变量的作用域）13.2 static（静态变量）13.3 volatile13.4 const十四、辅助工具14.1 sizeof()函数部分十五、数字 I/O15.1 pinMode()15.2 digitalWrite()15.3 digitalRead()十六、模拟 I/O16.1 analogReference()16.2 analogRead()16.3 analogWrite() PWM十七、高级 I/O17.1 tone()17.2 noTone()17.3 shiftOut()17.4 shiftIn()17.5 pulseIn()十八、时间18.1 millis()18.2 micros()18.3 delay()18.4 delayMicroseconds() 十九、数学运算19.1 min()19.2 max()19.3 abs()19.4 constrain()19.5 map()19.6 pow()19.7 sqrt()19.8 ceil()19.9 exp()19.10 fabs()19.11 floor()19.12 fma()19.13 fmax()19.14 fmin()19.15 fmod()19.16 ldexp()19.17 log()19.18 log10()19.19 round()19.20 signbit()19.21 sq()19.22 square()19.23 trunc()二十、三角函数20.1 sin()20.2 cos()20.3 tan()20.4 acos()20.5 asin()20.6 atan()20.7 atan2()20.8 cosh()20.9 degrees()20.10 hypot()20.11 radians()20.12 sinh()20.13 tanh()二十一、随机数21.1 randomSeed()21.2 random()二十二、位操作22.1 lowByte()22.2 highByte()22.3 bitRead()22.4 bitWrite()22.5 bitSet()22.6 bitClear()22.7 bit()二十三、设置中断函数23.1 attachInterrupt()23.2 detachInterrupt()二十四、开关中断24.1 interrupts()（中断）24.2 noInterrupts()（禁止中断）二十五、通讯25.1 Serial25.1.1 if (Serial)25.1.2 Serial.available()25.1.3 Serial.begin()25.1.4 Serial.end()25.1.5 Serial.find()25.1.6 Serial.findUntil()25.1.7 Serial.flush()25.1.8 Serial.parseFloat()25.1.9 Serial.parseInt()25.1.10 Serial.peek()25.1.11 Serial.print()25.1.12 Serial.println()25.1.13 Serial.read()25.1.14 Serial.readBytes()25.1.15 Serial.readBytesUntil()25.1.16 Serial.setTimeout()25.1.17 Serial.write()25.1.18 Serial.SerialEvent()25.2 Stream二十六、USB（仅适用于 Leonardo 和 Due）26.1 Mouse（键盘）26.2 Keyboard（鼠标）结构部分一、结构1.1 setup()在Arduino中程序运行时将首先调用 setup() 函数。

Arduino语言编写（初学）学习Arduino就要从学习这些语句及基本函数开始，Arduino使用起来要比其他微处理器更易懂，与Basic Stamp有些相似，Arduino的编程语言更为简单和人性化，Arduino编程语言基于C语言，但其实用性要远高于C语言，主要由于它将一些常用语句组合函数化，例如：延时函数delay(1000)即为一秒。

在学语言之间，还要做的一个功课就是要明白程序的构架，这个也同样简单，大体可分为几个部分。

1、声明变量及接口名称（int val;int ledPin=13;）。

2、setup()——函数在程序开始时使用，可以初始化变量、接口模式、启用库等（例如：pinMode(ledPin,OUTUPT);）。

3、loop（）——在setup()函数之后，即初始化之后，loop() 让你的程序循环地被执行。

使用它来运转Arduino。

接下来就开始学习一下几个基本函数。

1、pinMode(接口名称,OUTPUT或INPUT)将——接口定义为输入或输出接口，用在setup()函数里。

2、digitalWrite(接口名称, HIGH或LOW)——将数字接口值至高或低。

3、digitalRead（接口名称）——读出数字接口的值。

4、analogWrite(接口名称, 数值)——给一个接口写入模拟值（PWM波）。

对于 ATmega168芯片的Arduino（包括Mini或BT），该函数可以工作于 3, 5, 6, 9, 10和 11号接口。

老的 ATmega8芯片的USB和 serial Arduino仅仅支持 9, 10和11号接口。

5、analogRead(接口名称)——从指定的模拟接口读取值，Arduino对该模拟值进行10-bit的数字转换，这个方法将输入的0-5电压值转换为 0到1023间的整数值。

6、delay()——延时一段时间，delay(1000)为一秒。

7、Serial.begin(波特率)——设置串行每秒传输数据的速率（波特率）。
