LDG_at100(at200)pro -2_中文说明书

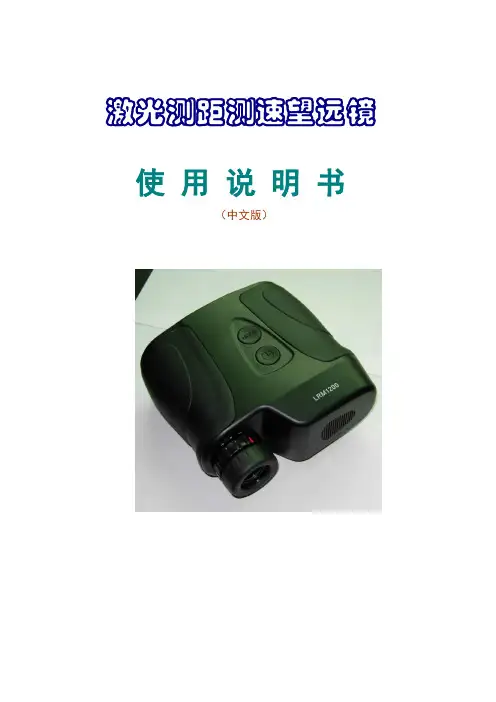

激光测距测速望远镜使用说明书（中文版）激光测距、测速望远镜使用操作指南一、产品用途AT系列激光测距、测速望远镜（以下简称测距、测速望远镜）是一种望远镜加激光测距和测速的便携式光电仪器，综合了望远镜、激光测距仪和激光测速仪的功能，主要表现在两个方面：1、在清晰地观察物体的同时，可测量固定和慢速运动物体在一定范围内的距离，并可储存记录。

具有测距精度高、测距时间短、距离显示直观、耗电省和自动断电等优点。

2、在清晰地观察快速运动物体的同时，可测出运动物体的速度，并可储存记录。

仪器的激光发射功率小，对人眼安全；不需要合作目标，可对任意目标测距；体积小，重量轻，便于携带。

机内使用一节9V电池供电，购买和更换均很方便。

利用“Over 100M”模式，在测量超过100M 的目标时，可消除近距离（100M以内）电线、树枝等小目标的影响。

测距、测速望远镜广泛适用于旅游观光，观看体育比赛、高尔夫球场、野外狩猎、野营登山、户外郊游等运动场所，是提高野外活动质量，测量目标距离和速度的好帮手。

二、测距、测速望远镜的外形外形如图1图1 测距、测速望远镜外形图1 --- 望远镜目镜（镜内显示距离和速度）2 --- 望远镜物镜3 --- 激光发射物镜4 --- 激光接收物镜5 --- 模式按钮（MODE ）6 --- 触发按钮（ACTION ）7 --- 电池仓712 4365三、测距、测速望远镜的主要技术指标和规格LRM 1000-2000M 备注测距范围20～1200M/2000M 均有1200M、1500M1800M、2000M等多钟规格测速范围0-300KM/H测量激光类型905nm 905纳米一级人眼安全激光望远镜物镜孔径25mm望远镜倍率8X望远镜视场8.13°望远镜出瞳直径 3.1mm视度调节范围± 6工作温度-20～50°C测距时间0.3～4 秒测距误差±1M(Y)±0.2%测速时间小于3秒测速误差±5 km/h三脚架接口1/4″×20使用电池6F22-9V方块电池电池欠压指示产品净重/毛重472g/703g外形尺寸121×127×58mm四、测距、测速望远镜镜内LCD显示图符说明图2 镜内LCD显示图符(从上左至下右分别是图符1～图符6)1、图符1～图符3为测距和测速的模式选择界面，分别是：a.图符1表示大于100m的测距模式,主要用于测量远距离目标。

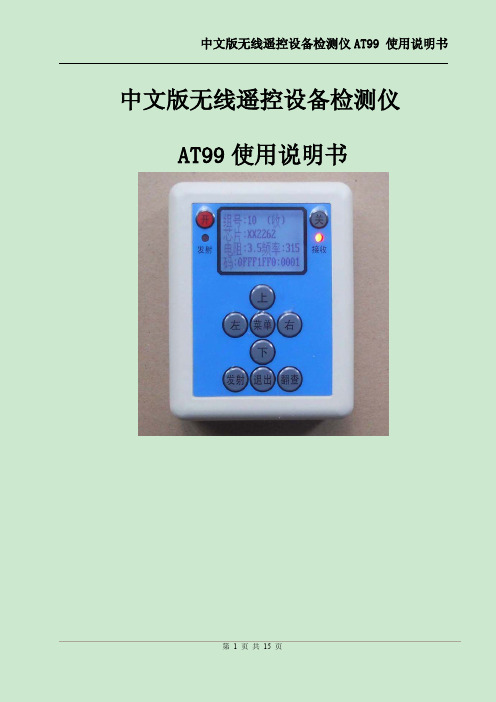

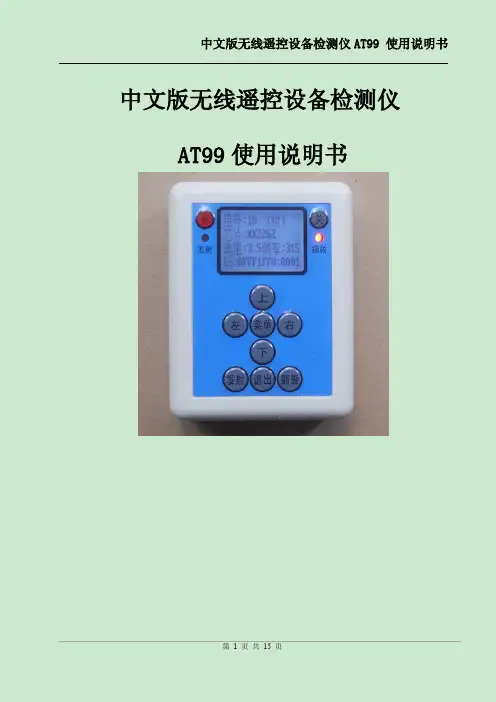

中文版无线遥控设备检测仪AT99使用说明书1、购买本产品前必读免责条款：使用本产品请注意不能影响他人无线通讯，使用本产品产生的所有后果由使用者承担。

销售商对此不予负责。

如果您对《免责条款》有任何异议，请不要购买或使用本产品。

您购买或使用本产品表示您已经仔细阅读并接受本页的所有内容。

2、产品简介:新一代的无线遥控设备检测仪AT99，采用中文显示，更直观，做到了见字明义，更方便用户的操作。

改用了机械式的按键，从而使得用户的操作更有手感。

可以随意编辑所支持芯片的类型，及相应芯片的所有参数。

可以保存编辑的参数。

可以锁定已收录的数据。

从而使得整机的体积，从而做到了，更方便携带。

为了达到更高的灵敏度，不惜成本，达到点用更小的空间，做到机器更小，采用了体积更小的高档接收模块。

为了达到更远的距离，不惜成本，采用大功率的发射模块。

为了达到更直观，显示更多的内容，更显专业的精神，采用白光的中文显示屏。

为了便整机更稳定，更耐用，更高档，更有手感，采用了出口环保型的机械式开关，不惜成本，开模定制了工业级的专业面板。

所以拥有了这台产品，就相当于拥有一台多功能的接收器及随意设定工作参数的万能遥控器及万能的接收机。

3、产品特点:1．应用的方向，可以用于无线遥控设备接收器、发射器的生产、调试和检测。

适用于使用固定码芯片PT2262及其兼容芯片和学习码芯片eV1527及其兼容芯片做为编码芯片的机／电车防盗器，安防产品的探测头及遥控器，电动卷闸门遥控器，电子地磅的遥控，智能家居系统遥控，小区出入道口的道闸机遥控的安装调试及编码地址的解译。

2．采用运算速度更高，容量更大的高速微处理器芯片，让整机系统达到更高性能。

3．采用了中文显示屏，用中文显示，更直观，做到了见字明义，更显高档，可以显示更多内容，且所有的功能全部通过菜单设置，所以操作上更直观更方便。

4．集合了315M及433M两种标准频率专业级接收模块,双频待机，自动无缝自动切换。

2020 年 01 月發佈Copyright © 2012 NetAlly所有產品名稱皆為其各自公司之商標。

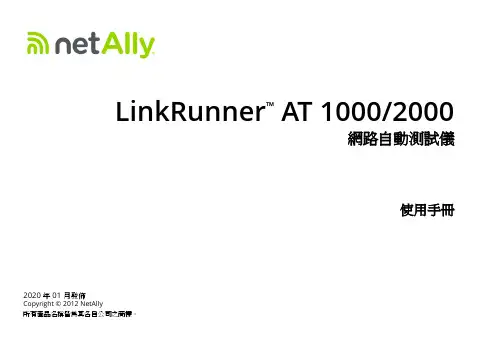

LinkRunner ™AT 1000/2000網路自動測試儀使用手冊法律通知使用本產品須遵守/terms-and-conditions提供的最終用戶許可協議，或者在發貨時隨產品一起提供，或者，如果適用，由NetAlly執行的法律協議（如果適用）和本產品的購買者。
