机械毕业设计英文外文翻译402驱动桥和差速器 (2)

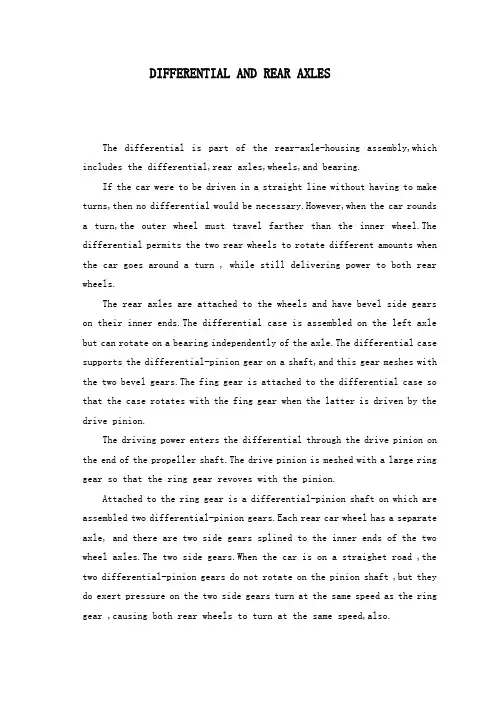

DIFFERENTIAL AND REAR AXLESThe differential is part of the rear-axle-housing assembly,which includes the differential,rear axles,wheels,and bearing.If the car were to be driven in a straight line without having to make turns,then no differential would be necessary.However,when the car rounds a turn,the outer wheel must travel farther than the inner wheel.The differential permits the two rear wheels to rotate different amounts when the car goes around a turn , while still delivering power to both rear wheels.The rear axles are attached to the wheels and have bevel side gears on their inner ends.The differential case is assembled on the left axle but can rotate on a bearing independently of the axle.The differential case supports the differential-pinion gear on a shaft,and this gear meshes with the two bevel gears.The fing gear is attached to the differential case so that the case rotates with the fing gear when the latter is driven by the drive pinion.The driving power enters the differential through the drive pinion on the end of the propeller shaft.The drive pinion is meshed with a large ring gear so that the ring gear revoves with the pinion.Attached to the ring gear is a differential-pinion shaft on which are assembled two differential-pinion gears.Each rear car wheel has a separate axle, and there are two side gears splined to the inner ends of the two wheel axles.The two side gears.When the car is on a straighet road ,the two differential-pinion gears do not rotate on the pinion shaft ,but they do exert pressure on the two side gears turn at the same speed as the ring gear ,causing both rear wheels to turn at the same speed,also.When the car rounds a curve ,the outer wheel must turn faster than the inner wheel,To permit this,the two pinino gears rotate on their pinion shaft,transmitting more turning movement to the outer side gear that to the inner side gear.Thus,the side gear on the outer-wheel axle turns more rapidly than the side gear on the inner wheel axle.This permits the outer wheel to turn more rapidly while the car is rounding the curve.There are two basic types of axle:deed axles and live axle.The dead axle does not rotate; the wheel rotates on it.A common exmple is the axle on a horse-drawn wagon.Live axles are attached to the wheel so that both the wheel and the axle rotate together.Live axles are classified according to the manner in which they are supported:semifloating, three-quarer-floating,and full-floating.AUTOMOBILE SYSTEMThe fuel system has the job of supplying a combustible mixture of air and fuel to the engine. The fuel system must vary the proportions of air and fuel to suit different operating conditions. When the engine is cold, for example, then the mixture must be rich（have a high proportion of fuel）.The reason for this is that the fuel does not vaporize rapidly at low temperatures. Therefore, extra fuel must be added to the mixture so that there will be enough vaporized fuel to form a combustible mixture.The fuel system consists of the fuel tank, fuel pump, fuel filter, carburetor, intake manifold, and fuel lines, or tubes, connecting the tank, pump, and carburetor. Some gasoline engines use a fuel-injection system; in this system, a fuel-injection pump replaces the carburetor.The fuel tank, in which gasoline is stored, is normally located at the rear of the vehicle. It is made of sheet metal and is attached to the frame.A fuel pump delivers fuel from the tank to the carburetor. There are two general types of fuel pump, mechanical and electric.The fuel system has filters and prevent dire in the fuel from entering the fuel pump or carburetor. Dirt could, of course, prevent normal operation of these units and cause poor engine performance.The carburetor is essentially a mixing device which mixes liquid gasoline with air. In this process, it throws a fine spray of gasoline into air passing through the carburetor on its way to the engine. The gasoline vaporizes and mixes with the air to form a highly combustion chambers, where it is ignited. It burns, causing the engine to produce power. The mixture must be of varying degrees of rich nice to suit engine operating conditions.It must be rich（have a higher percentage of fuel）for starting, acceleration, and high-speed operation. And it should lean to（become less rich）for operation at intermediate speed with a worm engine. The carburetor has several different circuits, or passages, through which fuel and air-fuel mixture flow under different operating conditions to produce the varying richness of the air-fuel mixture.The purpose of the cooling system is to keep the engine at its most efficient operating temperature at all engine speeds and all drilling conditions.A great deal of heat is produced in the engine by the burning of the air-fuel mixture. Some of this heat escapes from the engine through the exhaust gases（the hot gases left after the gasoline is burned）. But enough remains in the engine to cause serious trouble unless removed by some other means. The cooling system takes care of this additional heat.The cooling system is built into the engine. There are hollow spaces around each engine cylinder and combustion chamber. These hollow spaces are called waterjackets, since they are filled with water. When the engine is running, the water takes heat from the engine, becoming hot in the process.A water pump pumps the hot water from the engine water jackets into the radiator. The radiator has two sets of passages. One set carries air（pulled through by car motion and the engine fan）. As the hot water passes through, it gives up its heat to the air passing through. The cooled water then reenters the engine, where it can pick up more heat. In operation, water continuously circulates between the engine and radiator, carrying heat from the engine temperatures are prevented.Two general types of cooling systems are used, air cooling and liquid cooling. The liquid cooling system consists of water pumps, water jackets, engine fan, radiator and so on. The water pump, driven by a belt from the engine crankshaft, circulates the cooling liquid between the radiator andengine water jackets. The cooling liquid is water. Antifreeze compounds are added to the water during the winter. The water jacket are cast into the cylinder blocks and heats. The engine fan is usually mounted on the water-pump shaft and is driven by the same belt that drives the pump shaft and the generator. The purpose of the fan is to provide a powerful draft of air through the radiator. The radiator is a device for holding a large volume of air so that heat will transfer from the water to the air. The radiator core is divided into two separate compartments; water passes through one, and air passes through the other.The ignition system is part of the electric system of the automobile. Its purpose is to produce high-voltage surges（up to 20 000 volts）and to deliver them to the combustion chambers in the engine. These high-voltage surge surges then cause electric sparks in the combustion chambers. The sparks ignite, or set fire to, the air-fuel mixture in the combustion chambers so that it burns and cause the engine ton operate.The ignition system consists three basic parts: the ignition distributor, the ignition coil, and the spark plug, together with the connecting wires. When the engine is running, the ignition coil is repeatedly connected, it becomes loaded with electrical energy. Then, when it is disconnected, the “load” of electrical energy is released in a high-voltage. This surge flows through the wiring to the spark plug in the engine cylinder that is ready to fire.You must understand that all this takes place very rapidly. At high speed, the whole series of events happens in less than one three-hundredth of a second. That is, there will be as many as 300 of these events every second that the engine is running at high speed.Some systems use transistors to reduce the load on the distributor contract points. Other systems do not have contract points use instead a combination of transistors and a magnetic pick-up in the distributor.The ignition distributor has two jobs. First, it closes and opens the circuit between the battery and the ignition coil. The distributors second job is to distribute each high-voltage surge to the correct spark plug at the correct instant by means of the distributor rotor and cap and secondary wiring.There are two basic types of distributor:（1）the type using contact points to close and open the coil primary circuit;（2）the type using a magnetic pick-up and a transistor control unit to interrupt the current flow of the coil primary circuit.Automobile engines are not self-starts. In order to start them, the engine crankshaft must be turned over by some outside means so as to（a）admit air-fuel mixture to the cylinder, and（b）cause the mixture to fire.In the case of automobile engines, the mixture in the cylinder, after being compressed, must be not enough to ignite. This requires that the engine be turned over with sufficient speed. If the engine is turned over too slowly, the unavoidable small leaks past the piston rings and also through the intake and exhaust valves of four-circle engines will permit a substantial part of the fuel-air mixture to escape during the compression stroke. Also, the heat loss from the compressed air to the cylinder walls will be greater at low speed because of the longer exposure. The escape of air and the loss of heat both result in a lower temperature at the end of compression. Therefore, there is a minimum speed which the engine must attain before ignition will occur and the engine will begin firing. The starting speed depends upon the type and size of the engine, its condition, and the temperature of the air entering engine.The starting system contains a cranking, or starting, motor and other accessories.The starting motor electrically cranks the engine for starting. It is a special direct-current motor operating on battery voltage and is mounted on the engine flywheel house. The starter changes the electrical current into the mechanical energy to push the crank-shaft round. By means of this, the engine can be started. The cranking motor consists of the commutator end head, holding the brushes; the field frame, into which the field windings are assembled around pole shoes; the drive housing, which house the drive assembly and supports the motor on the engine flywheel housing; the armature; and the drive assembly. Some cranking motors also have a solenoid that operates the shift lever.Cranking-motor controls have varied from a simple foot-operated pedal to automatic devices that close the cranking-motor circuit when the accelerator pedal is depressed.The present system that has been almost universally adopted for passenger cars and many other vehicles has starting contacts in the ignition switch. When the ignition key is turned against spring pressure past the ON position to START, the starting contacts close. This connects the cranking-motor solenoid or magnetic switch to the battery. After the engine starts and the ignition key is released, spring pressure returns it to the ON position.The starting motor should not be operated more than 5 seconds during each starting operating, for the sake of recovering the energy of battery. It will not be allowed to start it again until its stopped for fifteen seconds.The manual transmission shown in Fig.—1 provides a means of varying the relationship between the speed of the engine and the speed of the wheels .Varying these gear ratios allows the right amount of engine power at many different speeds.Manual transmission requires use of a clutch to apply and remove thetorque to the transmission input shaft. The clutch allows this to happen gradually a so that the car can be started from a complete stop.Modern manual transmissions do not disengage any of the forward drive gears, they are simply connected to their shafts through the use of “synchronizers”.Reverse is achieved reverse idler gears ,which are engaged to move the car backwards.Some manual transmissions have an “overdrive”. An overdrive is a mechanical unit bolted to rear of the transmission. It is usually known as the fifth gear .When you use it, it will reduce the engine speed by about one-third ,which maintaining the same road speed.In an automatic transmission, gear ratios are changed automatically. This eliminates the need for the driver to operate the clutch and manually “shift gears.”The typical automatic transmission combines a fluid torque converter , a planetary-gear system, and a hydraulic control system in a single unit. As car speed changes , various gear ratios between the crankshaft and the wheels are selected and then changed automatically. Automatic controls inside the transmission supply the proper ratio for the driving condition. In addition to the forward-gear ratios, neutral, and reverse, the automatic transmission has a PAPK position. This locks the transmission to prevent the car from moving or rolling away while parked.差速器和车桥差速器和后桥壳总成的一个部件，后桥壳总成包括差速器、后桥、车轮和轴承。

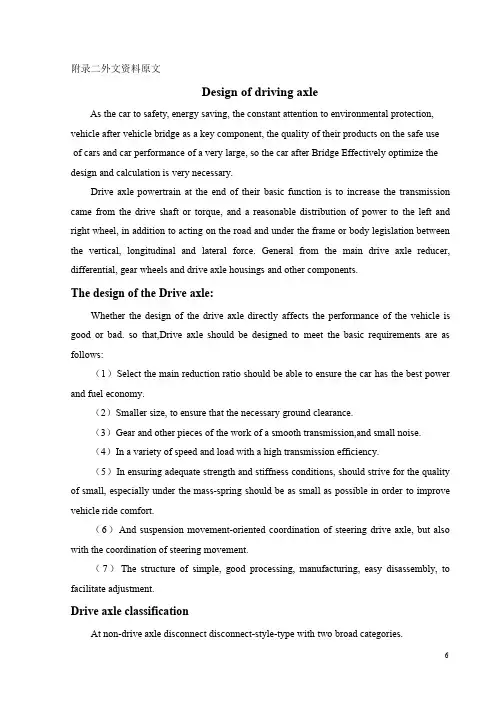

附录二外文资料原文Design of driving axleAs the car to safety,energy saving,the constant attention to environmental protection, vehicle after vehicle bridge as a key component,the quality of their products on the safe use of cars and car performance of a very large,so the car after Bridge Effectively optimize the design and calculation is very necessary.Drive axle powertrain at the end of their basic function is to increase the transmission came from the drive shaft or torque,and a reasonable distribution of power to the left and right wheel,in addition to acting on the road and under the frame or body legislation between the vertical,longitudinal and lateral force.General from the main drive axle reducer, differential,gear wheels and drive axle housings and other components.The design of the Drive axle:Whether the design of the drive axle directly affects the performance of the vehicle is good or bad.so that,Drive axle should be designed to meet the basic requirements are as follows:（1）Select the main reduction ratio should be able to ensure the car has the best power and fuel economy.（2）Smaller size,to ensure that the necessary ground clearance.（3）Gear and other pieces of the work of a smooth transmission,and small noise.（4）In a variety of speed and load with a high transmission efficiency.（5）In ensuring adequate strength and stiffness conditions,should strive for the quality of small,especially under the mass-spring should be as small as possible in order to improve vehicle ride comfort.（6）And suspension movement-oriented coordination of steering drive axle,but also with the coordination of steering movement.（7）The structure of simple,good processing,manufacturing,easy disassembly,to facilitate adjustment.Drive axle classificationAt non-drive axle disconnect disconnect-style-type with two broad categories.1.disconnect-type drive axleDrive the use of independent suspension bridge,that is the main reducer shell fixed on the vehicle chassis,on both sides of the axle and wheel in the horizontal plane as opposed to relative movement of the body is referred to as drive off the bridge.In order to match with independent suspension,the main reducer shell fixed at the frame (or body),the drive axle housing sub connected through the hinge,or in addition to the main reducer shell outside the shell is no longer driven to other parts of the bridge.Wheel in order to meet the needs of independent jump up and down,between the differential and the wheel axle of the above connection between the use of universal joints.2.Non-disconnect-type drive axleNon-disconnect-type drive axle also known as integrated drive axle,the axle casing and the main shaft reducer with shell shell and connected to a rigid beam,which on both sides of the axle and wheel related to swing through the flexible connected with the frame components. It consists of drive axle housing1,the main reducer,differential and axle components.The design for medium duty truck drive axle design.Due to the non disconnect type drive axle and disconnect type drive axle compared,the utility model has the advantages of simple structure,low cost,reliable work,maintenance and adjustment is also very simple,the driven wheel and the non independent suspension,so the design by non disconnect type drive axleDrive axle componentsDriven mainly by the main bridge reducer,differential,axle and drive axle housings and other components.1.Main reducer assemblyUsed to change the main drive reducer general direction,to reduce speed and increase torque,and ensure there is sufficient car drivers and the appropriate speed skin.More types of the main reducer,a single-stage,dual-class,two-speed,such as Wheel Speed Reducer.1.1single-stage main reducerReduction gear by a slowdown in the realization of the devices,called single-stage reducer.Its structure is simple,light weight,such as Dongfeng BQl090type light andmedium-sized trucks on a wide range of applications.1.2two-stage main reducerLarger number of heavy-duty trucks,require a larger reduction ratio,the main use of a single-stage reducer drive,moving from gear to be larger in diameter will affect the drive axle of the ground clearance,so the use of two slowdown.Often referred to as two-stage reducer. There are two sets of two-stage reduction gear reducer,speed the realization of the two by twisting.In order to enhance the meshing gear pair taper and strength of a smooth,slow down the first-class pair of spiral bevel gear is.Gears2is inclined gear teeth due to prop.Take the initiative to rotate bevel gear,gear driven rotary driven round silver,thus completing a slowdown.Active second stage cylindrical gear reducer and the driven bevel gear coaxial with the rotation,and drive gear driven rotating cylinder,a second-class speed. Due to the driven gear mounted on the cylindrical shell on the differential,so that when the driven gear rotating cylinder,through the differential and drive axle that is,the rotation of the wheels.2.DifferentialDifferential is designed to connect the axle around,on both sides of the wheels can rotate at different angular torque transfer at the same time.To ensure the normal scroll wheel.Some multi-bridge-driven cars,in the sub-actuator type or in the transmission through the shaft is also equipped with a differential,known as the bridge between the differential.Its role is to turn in the car or on uneven road surface,so that drive wheels before and after the differential between the role.The differential is part of the rear-axle-housing assembly,which includes the differential, rear axles,wheels,and bearings.If the car were to be driven in a straight line without having to make turns,then no differential would be necessary.However,when the car rounds a turn, the outer wheel must travel farther than the inner wheel.The differential permits the two rear wheels to rotate different amounts when the car goes around a turn,while still delivering power to both rear wheels.The rear axles are attached to the wheels and have bevel side gears on their inner ends.The differential case is assembled on the left axle but can rotate on a bearing independently of the axle.The differential case supports the differential-pinion gear on a shaft,and this gear meshes with the two bevel gears.The ring gear is attached to the differential case so that the case rotates with the ring gear when the later is driven by the drive pinion.The driving power enters the differential through the drive pinion on the end of the propeller shaft.The drive pinion is meshed with a large ring gear so that the ring gear revolves with the pinion.Attached to the ring gear(through the differential case)is a differential-pinion shaft on which are assembled two differential-pinion gears.Each rear car wheel has a separate axle, and there are two side gears splined to the inner ends of the two wheel axles.The two differential-pinion gears mesh with these two side gears.When the car is on a straight road, the two differential-pinion gears do not rotate on the pinion shaft,but they do exert pressure on the two side gears so that the side gears turn at the same speed as the ring gear,causing both rear wheels to turn at the same speed,also.The differential case is supported in the carrier by two tapered-roller side bearings.This assembly can be adjusted from side to side to provide the proper backlash between the ring gear and pinion and the required side bearing preload.This adjustment is achieved by threaded bearing adjusters on some units and the placement of selective shims and spacers on others.The differential case is supported in the carrier by two tapered-roller side bearings.This assembly can be adjusted from side to side to provide the proper backlash between the ring gear and pinion and the required side bearing preload.This adjustment is achieved by threaded bearing adjusters on some units and the placement of selective shims and spacers on others.Transaxle final drive gears provide the means for transmitting transmission output torque to the differential section of the transaxle.The differential section of the transaxle has the same components as the differential gears in a RWD axle and basically operate in the same way.The power flow in transversely mounted power trains is in line with the wheels and therefore the differential unit does not need to turn the power90degrees.When the car rounds a curve,the outer wheel must turn faster than the inner wheel.To permit this,the two pinion gears rotate on their pinion shaft,transmitting more turning movement to the outer side gear than to the inner side gear.Thus,the side gear on theouter-wheel axle turns more rapidly than the side gear on the inner-wheel axle.This permits the outer wheel to turn more rapidly while the car is rounding the curve.There are two basic types of axle:dead axles and live axle.The dead axle does not rotate;the wheel rotates on it.A common example is the axle on a horse-drawn wagon.Live axles are attached to the wheel so that both the wheel and the axle rotate together.Live axles are classified according to the manner in which they are supported:semi-floating,three-quarter-floating,and full-floating.Propeller Shaft and Universal JointThe propeller shaft is a drive shaft to carry the power from the transmission to the rear-wheel axles.It connects the transmission main,shaft carries through the propeller shaft to the differential at the rear axles.Rotary motion of the transmission main shaft carries through the propeller shaft to the differential,causing the rear wheels to rotate.The propeller-shaft design must take two facts into consideration.First,the engine and transmission are more or less rigidly attached to the car frame.Second,the rear-axle housing (with wheels and differential)is attached to the frame by springs.As the rear wheels encounter irregularities in the road,the springs compress or expand.This changes the angle of drive and the distance between the transmission and the differential,and the propeller shaft may take care of these two changes.That is to say,as the rear axle housing,with differential and wheels,moves up and down,the angel between the transmission output shaft changes. The reason the propeller shaft shortens as the angel increases is that the rear axle and differential move in a shorter arc than the propeller shaft.The center point of the axle-housing arc is the rear-spring or control-arm attachment to the frame.In order that the propeller shaft may take care of these two changes,it must incorporate two separate types of device.There must be one or more universal joints to permit variations in the angel of drive.There must also be a slip joint that permits the effective length of the propeller shaft to change.The propeller shaft may be solid or hollow,protected by an outer tube or exposed.Some applications include bearings at or near the propeller shaft center to support the shaft.The two-section propeller is supported by a center bearing and coupled together by universal joints.A universal joint is essentially a double-hinged joint consisting of two Y-shaped yokes,one on the driving shaft and the other on the driven shaft,and across-shaped member called the spider.The four arms of the spider,known as trunnions,are assembled into bearings in theends of the two shaft yokes.The driving shaft causes the spider to rotate,and the other two trunnions of the spider cause the driven shaft to rotate.When the two shafts are at an angel to each other,the bearings in the yokes permit the yokes to swing around on the trunnions with each revolution.A variety of universal joints have been used on auto mobiles,but the types now in most common use are the spider and two-yoke,the constant-velocity,and the ball-and-trunnion joints.A slip joint consists of outside splines on one shaft and matching internal splines in the mating hollow shaft,the splines cause the two shafts to rotate together but permit the two to move endwise with each other.This accommodates any effective change of length of the propeller shaft as the rear axles move toward or away from the car frame.At present,China-made cars and other types of vehicles in the basic use of symmetric ordinary differential bevel gear.Symmetric by the planetary bevel gear differential gear,axle gears,planetary gear axis(cross-axis or a direct-axis)and the differential composition of the shell and so on.At present the majority of planetary gear-type motor vehicles using differential and ordinary differential bevel gear cone by two or four planet gears,planetary gear shaft,the two cone axle differential gear,and about the composition of the shell and so on.3.Auto semi-axleAxle is the differential torque and then came to the wheels,drive wheels spin,promote the solid axle car.As a result of the installation of wheel structure,and the forces of the axle are also different.Therefore,divided into full-floating axle,semi-floating,3/4,three types of floating.3.1full-floating axleGenerally large and medium-sized used car floating the whole structure.Axle with the inner end of the spline axle with the differential gear connected to the outer end of the axle forging a flange with bolts and wheel hub to connect.Wheel away from the more distant of two tapered roller bearings for the text on the axle casing.Rear axle shell casing pressure and one pair to form the drive axle housing.Supporting the use of such forms,axle and axle housing no direct link so that only bear the drive axle torque without bearing any moment,theaxle referred to as"full-floating"axle.The so-called"floating",meaning not subject to bending load axle.Full-floating axle,the outer end flange plate for one made with the axis.But there are also a number of trucks to make a separate flange parts,and by nested spline outer end in the axle.Thus,at both ends of the axle spline,you can use for the first.3.2semi-floating axleSemi-floating axle with the inner end of the same floating,not subject to bending and torsion.Away from direct client support through a bearing in the axle of the inner shell.This approach will support the outer end axle bearing moment.Therefore,this short-sleeve in addition to transfer torque,but also to sustain the local moment,it is known as the semi-floating axle.This structure is mainly used in small passenger cars.3.33/4floating axle3/4floating axle is affected by the degree of bending between the short semi-floating and full floating between.At present the application of this type halfshaft few pickup truck only on individual applications such as Warsaw,M20vehicles.4.Automobile axle housing:4.1the overall shell-style bridgeBridge shell due to the overall strength and stiffness performance,ease of main reducer installation,adjustment and maintenance,and are widely used.Integral axle housing due to different manufacturing methods can be divided into the overall foundry type,pressed into the middle of casting steel pipe and welded steel plate,such as stamping.4.2sub-type drive axle housingSub-type axle housing will generally be divided into two sections,from two sections of a connecting bolt.Sub-type axle housing casting and processing easier.。

驱动桥汽车外文文献翻译、中英文翻译、外文翻译The driving axle is an essential component of a ___。

It consists of several parts。

including a housing。

axle drive。

differential。

two axle shafts。

and final drives if necessary.The main purpose of the axle drive is to ___。

___.There are two types of axle drives: single and double-stage。

The single-stage type has a pair of gears。

while the double-stage type has two pairs of gears。

The drive ___ case。

To ce noise during n。

axle drive ___.In summary。

___。

It includes several components that work ___ to the wheels。

The axle drive shaft is an essential part of the axle drive。

and there are two types of axle drives。

To ce noise during n。

the driving gears are made with ___.When a car turns。

___ a greater distance than the inner ___。

thanks to the differential ns ___ around the slower side gear。

the inner ___。

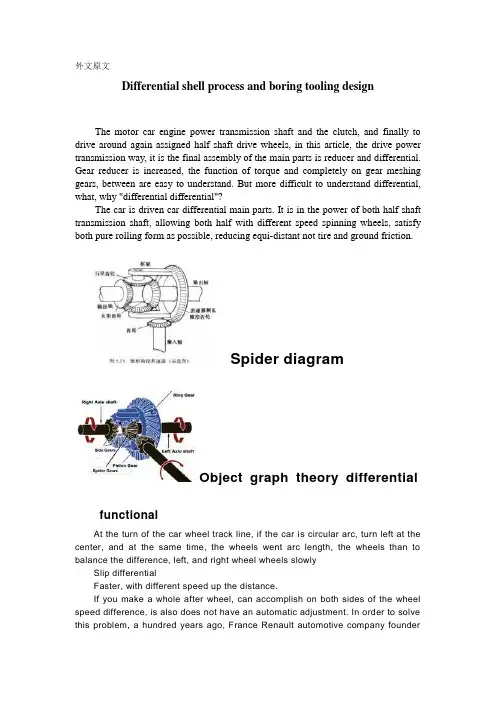

外文原文Differential shell process and boring tooling design The motor car engine power transmission shaft and the clutch, and finally to drive around again assigned half shaft drive wheels, in this article, the drive power transmission way, it is the final assembly of the main parts is reducer and differential. Gear reducer is increased, the function of torque and completely on gear meshing gears, between are easy to understand. But more difficult to understand differential, what, why "differential differential"?The car is driven car differential main parts. It is in the power of both half shaft transmission shaft, allowing both half with different speed spinning wheels, satisfy both pure rolling form as possible, reducing equi-distant not tire and ground friction.Spider diagramObject graph theory differentialfunctionalAt the turn of the car wheel track line, if the car is circular arc, turn left at the center, and at the same time, the wheels went arc length, the wheels than to balance the difference, left, and right wheel wheels slowlySlip differentialFaster, with different speed up the distance.If you make a whole after wheel, can accomplish on both sides of the wheel speed difference, is also does not have an automatic adjustment. In order to solve this problem, a hundred years ago, France Renault automotive company founderluis Renault will design a differential this thing.Slip differentialconstituteOrdinary differential planetary wheel planetary gear, by plane (d ifferential shell), half axle gear parts etc. The power of the engine into the differential transmissionStructurePlanetary wheel frame, driven directly by the planets wheel driv e, right and left two half shaft, wheel drive left and right. Meet the design requirements of differential (left) and the shaft speed (right) = 2 (axial rotational speed) planet round frame. When the car goe s, left, right wheel and planetary wheel frame of equal speed, and in a state of equilibrium in the balance among car when turning ro und to destruction, reduce the speed, the wheel speed increase.StructurePrincipleThis adjustment is automatic differential here, involves "minimal energyconsumption principle", namely earth all objects are tend to minimum energy. Such a grain of beans in a bowl, beans will automatically stays in the bowl bottom and never stay in the bowl wall, because the bowl bottom is the lowest energy (potential), it automatically select static (minimum) without energy. In the same way,A 3d effectWheel in turning also will be the lowest power consumption tendency, automatically adjusted according to turn radius of the wheel speed around.When turning wheel, because the pull of the phenomenon, the medial wheel slip phenomenon, two driving wheel at will produce two opposite direction of additional force, due to the "principle of minimal energy consumption, will inevitably lead to the wheel speed different sides, thus destroyed the balance between three and half shaft are reflected by the half axle gear planetary gears, forced to produce the half shaft rotation speed, speed, the medial axis speed slow speed, so as to realize the difference on both sides wheels.If the drive wheels on both sides of the drive shaft with a whole rigid connection, only two wheels at the same Angle rotation. So, when the steering wheel, due to the lateral than inside the distance moved across the wheels, will make the scroll wheel on the slide, and drag on the scroll wheel inside the slip. Even the car run straight road gravamen, because although flat tire surface or rolling radius (but ranging from manufacturing error, wear different tyres, ranging from uneven pressure or carrying of sliding wheel) and cause.When the wheel sliding tire wear, not only aggravate increased power and fuel consumption, still can make steering difficulties, braking performance deterio rated. As for the wheels, and does not occur in structure sliding must ensure each wheel at different angles can rotate.Axis between differential driven wheels usually use bearing spindle support in the, can at any Angle rotation, and drive wheels with two and half shaft rigid connection, between two and half shaft with differential. The differential and called shaft between differential.Many of the drive shaft, and to make each off-road vehicle drive to different velocity rotating, in order to eliminate the bridge of the drive wheels, some in two axles sliding between between shaft with differential.Differential inspection1 differential shell doesn't have any properties of crack, shell and planetary gear differential half shaft washer, contact between gear, should be smooth without groove, If there is a slight groove or wear, can continue to use after grinding, or should be replaced or be repaired.2 the planetary gear differential shell and planetary gear wheel when the fitting clearance shall not greater than 0.1-0.15 mm, half axle gear shaft neck and shell hole for clearance, with no obvious loose labels should be replaced or feeling, or repair.Shell's processing technologyThe processing quality not only affects shell, the assembly precision and accuracy, but also affects the movement of the machine working accuracy, performance and life.There are many kinds of shell structure, its size and form with the structure of the machine and the shell in machine has the different function. But they rema in on the analysis from the craft had a lot in common and its structure features are:(1) appearance is basically composed of six or five plane again into the closed-end polyhedron, integral and combined two,(2) structure shape is more complex. Inside the cavity is often, some places "partition wall, shell and uneven thickness thin.(3) shell walls are usually decorate have parallel hole or vertical hole,(4) on the shell, main processing is the number of plane, in addition to many higher accuracy and precision of supporting bearing with less demanding tighten pore.Shell parts technical requirements:(1) bearing support size precision and accuracy, surface roughness, requirements,(2) position precision including hole axis of the distance between the dimension precision, the same axis parallel degree in each hole, and KongDuan facing the coaxial tolerance of vertical axis holes; etc.(3) to meet the needs and positioning of the shell processing machine assembly request, shell and assembly of shell with the datum plane positioning due and certain degree, and the surface roughness requirements, The bearing hole and assembling a certain distance between datum due to the accuracy requirement of the size.中文译文差速器壳体工艺及工装设计汽车发动机的动力经离合器、变速器、传动轴，最后传送到驱动桥再左右分配给半轴驱动车轮，在这条动力传送途径上，驱动桥是最后一个总成，它的主要部件是减速器和差速器。

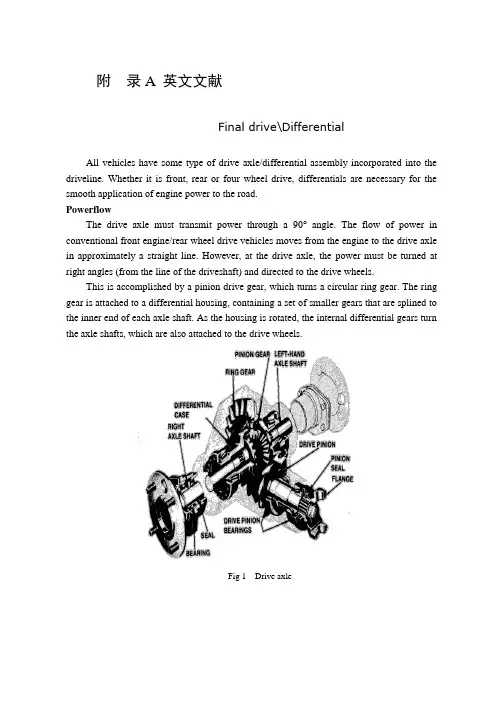

附录A 英文文献Drive axleAll vehicles have some type of drive axle/differential assembly incorporated into the driveline. Whether it is front, rear or four wheel drive, differentials are necessary for the smooth application of engine power to the road.PowerflowThe drive axle must transmit power through a 90°angle. The flow of power in conventional front engine/rear wheel drive vehicles moves from the engine to the drive axle in approximately a straight line. However, at the drive axle, the power must be turned at right angles (from the line of the driveshaft) and directed to the drive wheels.This is accomplished by a pinion drive gear,which turns a circular ring gear. The ring gear is attached to a differential housing, containing a set of smaller gears that are splined to the inner end of each axle shaft. As the housing is rotated, the internal differential gears turn the axle shafts, which are also attached to the drive wheels.Fig 1 Drive axleRear-wheel driveRear-wheel-drive vehicles are mostly trucks, very large sedans and many sports car and coupe models. The typical rear wheel drive vehicle uses a front mounted engine and transmission assemblies with a driveshaft coupling the transmission to the rear drive axle. Drive in through the layout of the bridge, the bridge drive shaft arranged vertically in the same vertical plane, and not the drive axle shaft, respectively, in their own sub-actuator with a direct connection, but the actuator is located at the front or the back of the adjacent shaft of the two bridges is arranged in series. Vehicle before and after the two ends of the driving force of the drive axle, is the sub-actuator and the transmission through the middle of the bridge. The advantage is not only a reduction of the number of drive shaft, and raise the driving axle of the common parts of each other, and to simplify the structure, reduces the volume and quality.Some vehicles do not follow this typical example. Such as the older Porsche or Volkswagen vehicles which were rear engine, rear drive. These vehicles use a rear mounted transaxle with halfshafts connected to the drive wheels. Also, some vehicles were produced with a front engine, rear transaxle setup with a driveshaft connecting the engine to the transaxle, and halfshafts linking the transaxle to the drive wheels.Differential operationIn order to remove the wheel around in the kinematics due to the lack of co-ordination about the wheel diameter arising from a different or the same rolling radius of wheel travel required, inter-wheel motor vehicles are equipped with about differential, the latter to ensure that the car driver Bridge on both sides of the wheel when in range with a trip to the characteristics of rotating at different speeds to meet the requirements of the vehicle kinematics.The accompanying illustration has been provided to help understand how this occurs.1.The drive pinion, which is turned by the driveshaft, turns the ring gear.2.The ring gear, which is attached to the differential case, turns the case.3.The pinion shaft, located in a bore in the differential case, is at right angles to the axle shafts and turns with the case.4.The differential pinion (drive) gears are mounted on the pinion shaft and rotate with the shaft .5.Differential side gears (driven gears) are meshed with the pinion gears and turn with the differential housing and ring gear as a unit.6.The side gears are splined to the inner ends of the axle shafts and rotate the shafts as the housing turns.7.When both wheels have equal traction, the pinion gears do not rotate on the pinion shaft, since the input force of the pinion gears is divided equally between the two side gears.8.When it is necessary to turn a corner, the differential gearing becomes effective and allows the axle shafts to rotate at different speeds .Open-wheel differential on each general use the same amount of torque. To determine the size of the wheel torque to bear two factors: equipment and friction. In dry conditions, when a lot of friction, the wheel bearing torque by engine size and gear restrictions are hours in the friction (such as driving on ice), is restricted to a maximum torque, so that vehicles will not spin round. So even if the car can produce more torque, but also need to have sufficient traction to transfer torque to the ground. If you increase the throttle after the wheels slip, it will only make the wheels spin faster.Limited-slip and locking differential operationFig 5 Limited-slip differentialDifferential settlement of a car in the uneven road surface and steering wheel-driven speed at about the different requirements; but is followed by the existence of differential in the side car wheel skid can not be effective when the power transmission, that is, the wheel slip can not produce the driving force, rather than spin the wheel and does not have enough torque. Good non-slip differential settlement of the car wheels skid on the side of the power transmission when the issue, that is, locking differential, so that no longer serve a useful differential right and left sides of the wheel can be the same torque.Limited-slip and locking differential operation can be divided into two major categories：(1) mandatory locking type in ordinary differential locking enforcement agencies to increase, when the side of the wheel skid occurs, the driver can be electric, pneumatic or mechanical means to manipulate the locking body meshing sets of DIP Shell will be with the axle differential lock into one, thus the temporary loss of differential role. Relatively simple structure in this way, but it must be operated by the driver, and good roads to stop locking and restore the role of differential.(2) self-locking differential installed in the oil viscosity or friction clutch coupling, when the side of the wheel skid occurs when both sides of the axle speed difference there, coupling or clutch friction resistance on the automatic, to make certain the other side of the wheel drive torque and the car continued to travel. When there is no speed difference on both sides of the wheel, the frictional resistance disappeared, the role of automatic restoration of differentials. More complicated structure in this way, but do not require drivers to operate. Has been increasingly applied in the car. About non-slip differential, not only used for the differential between the wheels, but also for all-wheel drive vehicle inter-axle differential/.Gear ratioThe drive axle of a vehicle is said to have a certain axle ratio. This number (usually a whole number and a decimal fraction) is actually a comparison of the number of gear teeth on the ring gear and the pinion gear. For example, a 4.11 rear means that theoretically, there are 4.11 teeth on the ring gear for each tooth on the pinion gear or, put another way, the driveshaft must turn 4.11 times to turn the wheels once. The role of the final drive is to reduce the speed from the drive shaft, thereby increasing the torque. Lord of the reduction ratio reducer, a driving force for car performance and fuel economy have a greater impact. In general, the more reduction ratio the greater the acceleration and climbing ability, and relatively poor fuel economy. However, if it is too large, it can not play the full power of the engine to achieve the proper speed. The main reduction ratio is more Smaller ，the speed is higher, fuel economy is better, but the acceleration and climbing ability will be poor.附录B 文献翻译驱动桥所有的汽车都装有不同类型的驱动桥和差速器来驱动汽车行驶。

附录Drive axle powertrain at the end of their basic function is to increase the transmission came from the drive shaft or torque, and a reasonable distribution of power to the left and right wheel, in addition to acting on the road and under the frame or body legislation between the vertical, longitudinal and lateral force. General from the main drive axle reducer, differential, gear wheels and drive axle housings and other components.The design of the Drive axle:Drive axle should be designed to meet the basic requirements are as follows:1. Select the main reduction ratio should be able to ensure the car has the best power and fuel economy.2. Smaller size, to ensure that the necessary ground clearance.3. Gear and other pieces of the work of a smooth transmission,and small noise.4. In a variety of speed and load with a high transmission efficiency.5. In ensuring adequate strength and stiffness conditions, should strive for the quality of small, especially under the mass-spring should be as small as possible in order to improve vehicle ride comfort.6. And suspension movement-oriented coordination of steering drive axle, but also with the coordination of steering movement.7. The structure of simple, good processing, manufacturing, easy disassembly, to facilitate adjustment.Drive axle classificationAt non-drive axle disconnect disconnect-style-type with two broad categories.1. Non-disconnect-type drive axleNon-disconnect-type drive axle also known as integrated drive axle, the axle casing and the main shaft reducer with shell shell and connected to a rigid beam, which on both sides of the axle and wheel related to swing through the flexible connected with the frame components. It consists of drive axle housing 1, the main reducer, differential and axle components.2. disconnect-type drive axle.Drive the use of independent suspension bridge, that is the main reducer shell fixed on thevehicle chassis, on both sides of the axle and wheel in the horizontal plane as opposed to relative movement of the body is referred to as drive off the bridge.In order to match with independent suspension, the main reducer shell fixed at the frame (or body), the drive axle housing sub connected through the hinge, or in addition to the main reducer shell outside the shell is no longer driven to other parts of the bridge. Wheel in order to meet the needs of independent jump up and down, between the differential and the wheel axle of the above connection between the use of universal joints.Drive axle componentsDriven mainly by the main bridge reducer, differential, axle and drive axle housings and other components.1. Main reducer assemblyUsed to change the main drive reducer general direction, to reduce speed and increase torque, and ensure there is sufficient car drivers and the appropriate speed skin. More types of the main reducer, a single-stage, dual-class, two-speed, such as Wheel Speed Reducer. 1) single-stage main reducerReduction gear by a slowdown in the realization of the devices, called single-stage reducer. Its structure is simple, light weight, such as Dongfeng BQl090 type light and medium-sized trucks on a wide range of applications.2) two-stage main reducerLarger number of heavy-duty trucks, require a larger reduction ratio, the main use of a single-stage reducer drive, moving from gear to be larger in diameter will affect the drive axle of the ground clearance, so the use of two slowdown. Often referred to as two-stage reducer. There are two sets of two-stage reduction gear reducer, speed the realization of the two by twisting.In order to enhance the meshing gear pair taper and strength of a smooth, slow down the first-class pair of spiral bevel gear is. Gears 2 is inclined gear teeth due to prop.Take the initiative to rotate bevel gear, gear driven rotary driven round silver, thus completing a slowdown. Active second stage cylindrical gear reducer and the driven bevel gear coaxial with the rotation, and drive gear driven rotating cylinder, a second-class speed. Due to the driven gear mounted on the cylindrical shell on the differential, so that when the driven gear rotating cylinder, through the differential and drive axle that is, the rotation of the wheels.2. DifferentialDifferential is designed to connect the axle around, on both sides of the wheels can rotate at different angular torque transfer at the same time. To ensure the normal scroll wheel. Some multi-bridge-driven cars, in the sub-actuator type or in the transmission through the shaft is also equipped with a differential, known as the bridge between the differential. Its role is to turn in the car or on uneven road surface, so that drive wheels before and after the differential between the role.At present, China-made cars and other types of vehicles in the basic use of symmetric ordinary differential bevel gear. Symmetric by the planetary bevel gear differential gear, axle gears, planetary gear axis (cross-axis or a direct-axis) and the differential composition of the shell and so on.At present the majority of planetary gear-type motor vehicles using differential and ordinary differential bevel gear cone by two or four planet gears, planetary gear shaft, the two cone axle differential gear, and about the composition of the shell and so on.3.Auto semi-axleAxle is the differential torque and then came to the wheels, drive wheels spin, promote the solid axle car. As a result of the installation of wheel structure, and the forces of the axle are also different. Therefore, divided into full-floating axle, semi-floating, 3 / 4, three types of floating.1) full-floating axleGenerally large and medium-sized used car floating the whole structure. Axle with the inner end of the spline axle with the differential gear connected to the outer end of the axle forging a flange with bolts and wheel hub to connect. Wheel away from the more distant of two tapered roller bearings for the text on the axle casing. Rear axle shell casing pressure and one pair to form the drive axle housing. Supporting the use of such forms, axle and axle housing no direct link so that only bear the drive axle torque without bearing any moment, the axle referred to as "full-floating" axle. The so-called "floating", meaning not subject to bending load axle.Full-floating axle, the outer end flange plate for one made with the axis. But there are also a number of trucks to make a separate flange parts, and by nested spline outer end in the axle. Thus, at both ends of the axle spline, you can use for the first.2) semi-floating axleSemi-floating axle with the inner end of the same floating, not subject to bending and torsion. Away from direct client support through a bearing in the axle of the inner shell. This approach will support the outer end axle bearing moment. Therefore, this short-sleeve in addition to transfer torque, but also to sustain the local moment, it is known as the semi-floating axle. This structure is mainly used in small passenger cars.License Hongqi CA7560 icon for the type of drive axle limousine. Axle from the inner end of its moment, out client has to bear all the moment, so called semi-floating bearing. 3) 3 / 4 floating axle3 /4 floating axle is affected by the degree of bending between the short semi-floating and full floating between. At present the application of this type halfshaft few pickup truck only on individual applications such as Warsaw, M20 vehicles.4. Automobile axle housing:1) the overall shell-style bridgeBridge shell due to the overall strength and stiffness performance, ease of main reducer installation, adjustment and maintenance, and are widely used. Integral axle housing due to different manufacturing methods can be divided into the overall foundry type, pressed into the middle of casting steel pipe and welded steel plate, such as stamping.2) sub-type drive axle housingSub-type axle housing will generally be divided into two sections, from two sections of a connecting bolt. Sub-type axle housing casting and processing easier.驱动桥处于动力传动系的末端，其基本功能是增大由传动轴或变速器传来的转矩，并将动力合理的分配给左、右驱动轮，另外还承受作用于路面和车架或车身之间的垂直立、纵向力和横向力。

DIFFERENTIAL AND REAR AXLESThe differential is part of the rear-axle-housing assembly,which includes the differential,rear axles,wheels,and bearing.If the car were to be driven in a straight line without having to make turns,then no differential would be necessary.However,when the car rounds a turn,the outer wheel must travel farther than the inner wheel.The differential permits the two rear wheels to rotate different amounts when the car goes around a turn , while still delivering power to both rear wheels.The rear axles are attached to the wheels and have bevel side gears on their inner ends.The differential case is assembled on the left axle but can rotate on a bearing independently of the axle.The differential case supports the differential-pinion gear on a shaft,and this gear meshes with the two bevel gears.The fing gear is attached to the differential case so that the case rotates with the fing gear when the latter is driven by the drive pinion.The driving power enters the differential through the drive pinion on the end of the propeller shaft.The drive pinion is meshed with a large ring gear so that the ring gear revoves with the pinion.Attached to the ring gear is a differential-pinion shaft on which are assembled two differential-pinion gears.Each rear car wheel has a separate axle, and there are two side gears splined to the inner ends of the two wheel axles.The two side gears.When the car is on a straighet road ,the two differential-pinion gears do not rotate on the pinion shaft ,but they do exert pressure on the two side gears turn at the same speed as the ring gear ,causing both rear wheels to turn at the same speed,also.When the car rounds a curve ,the outer wheel must turn faster than the inner wheel,To permit this,the two pinino gears rotate on their pinion shaft,transmitting more turning movement to the outer side gear that to the inner side gear.Thus,the side gear on the outer-wheel axle turns more rapidly than the side gear on the inner wheel axle.This permits the outer wheel to turn more rapidly while the car is rounding the curve.There are two basic types of axle:deed axles and live axle.The dead axle does not rotate; the wheel rotates on it.A common exmple is the axle on a horse-drawn wagon.Live axles are attached to the wheel so that both the wheel and the axle rotate together.Live axles are classified according to the manner in which they are supported:semifloating, three-quarer-floating,and full-floating.AUTOMOBILE SYSTEMThe fuel system has the job of supplying a combustible mixture of air and fuel to the engine. The fuel system must vary the proportions of air and fuel to suit different operating conditions. When the engine is cold, for example, then the mixture must be rich（have a high proportion of fuel）.The reason for this is that the fuel does not vaporize rapidly at low temperatures. Therefore, extra fuel must be added to the mixture so that there will be enough vaporized fuel to form a combustible mixture.The fuel system consists of the fuel tank, fuel pump, fuel filter, carburetor, intake manifold, and fuel lines, or tubes, connecting the tank, pump, and carburetor. Some gasoline engines use a fuel-injection system; in this system, a fuel-injection pump replaces the carburetor.The fuel tank, in which gasoline is stored, is normally located at the rear of the vehicle. It is made of sheet metal and is attached to the frame.A fuel pump delivers fuel from the tank to the carburetor. There are two general types of fuel pump, mechanical and electric.The fuel system has filters and prevent dire in the fuel from entering the fuel pump or carburetor. Dirt could, of course, prevent normal operation of these units and cause poor engine performance.The carburetor is essentially a mixing device which mixes liquid gasoline with air. In this process, it throws a fine spray of gasoline into air passing through the carburetor on its way to the engine. The gasoline vaporizes and mixes with the air to form a highly combustion chambers, where it is ignited. It burns, causing the engine to produce power. The mixture must be of varying degrees of rich nice to suit engine operating conditions.It must be rich（have a higher percentage of fuel）for starting, acceleration, and high-speed operation. And it should lean to（become less rich）for operation at intermediate speed with a worm engine. The carburetor has several different circuits, or passages, through which fuel and air-fuel mixture flow under different operating conditions to produce the varying richness of the air-fuel mixture.The purpose of the cooling system is to keep the engine at its most efficient operating temperature at all engine speeds and all drilling conditions.A great deal of heat is produced in the engine by the burning of the air-fuel mixture. Some of this heat escapes from the engine through the exhaust gases（the hot gases left after the gasoline is burned）. But enough remains in the engine to cause serious trouble unless removed by some other means. The cooling system takes care of this additional heat.The cooling system is built into the engine. There are hollow spaces around each engine cylinder and combustion chamber. These hollow spaces are called waterjackets, since they are filled with water. When the engine is running, the water takes heat from the engine, becoming hot in the process.A water pump pumps the hot water from the engine water jackets into the radiator. The radiator has two sets of passages. One set carries air（pulled through by car motion and the engine fan）. As the hot water passes through, it gives up its heat to the air passing through. The cooled water then reenters the engine, where it can pick up more heat. In operation, water continuously circulates between the engine and radiator, carrying heat from the engine temperatures are prevented.Two general types of cooling systems are used, air cooling and liquid cooling. The liquid cooling system consists of water pumps, water jackets, engine fan, radiator and so on. The water pump, driven by a belt from the engine crankshaft, circulates the cooling liquid between the radiator andengine water jackets. The cooling liquid is water. Antifreeze compounds are added to the water during the winter. The water jacket are cast into the cylinder blocks and heats. The engine fan is usually mounted on the water-pump shaft and is driven by the same belt that drives the pump shaft and the generator. The purpose of the fan is to provide a powerful draft of air through the radiator. The radiator is a device for holding a large volume of air so that heat will transfer from the water to the air. The radiator core is divided into two separate compartments; water passes through one, and air passes through the other.The ignition system is part of the electric system of the automobile. Its purpose is to produce high-voltage surges（up to 20 000 volts）and to deliver them to the combustion chambers in the engine. These high-voltage surge surges then cause electric sparks in the combustion chambers. The sparks ignite, or set fire to, the air-fuel mixture in the combustion chambers so that it burns and cause the engine ton operate.The ignition system consists three basic parts: the ignition distributor, the ignition coil, and the spark plug, together with the connecting wires. When the engine is running, the ignition coil is repeatedly connected, it becomes loaded with electrical energy. Then, when it is disconnected, the “load” of electrical energy is released in a high-voltage. This surge flows through the wiring to the spark plug in the engine cylinder that is ready to fire.You must understand that all this takes place very rapidly. At high speed, the whole series of events happens in less than one three-hundredth of a second. That is, there will be as many as 300 of these events every second that the engine is running at high speed.Some systems use transistors to reduce the load on the distributor contract points. Other systems do not have contract points use instead a combination of transistors and a magnetic pick-up in the distributor.The ignition distributor has two jobs. First, it closes and opens the circuit between the battery and the ignition coil. The distributors second job is to distribute each high-voltage surge to the correct spark plug at the correct instant by means of the distributor rotor and cap and secondary wiring.There are two basic types of distributor:（1）the type using contact points to close and open the coil primary circuit;（2）the type using a magnetic pick-up and a transistor control unit to interrupt the current flow of the coil primary circuit.Automobile engines are not self-starts. In order to start them, the engine crankshaft must be turned over by some outside means so as to（a）admit air-fuel mixture to the cylinder, and（b）cause the mixture to fire.In the case of automobile engines, the mixture in the cylinder, after being compressed, must be not enough to ignite. This requires that the engine be turned over with sufficient speed. If the engine is turned over too slowly, the unavoidable small leaks past the piston rings and also through the intake and exhaust valves of four-circle engines will permit a substantial part of the fuel-air mixture to escape during the compression stroke. Also, the heat loss from the compressed air to the cylinder walls will be greater at low speed because of the longer exposure. The escape of air and the loss of heat both result in a lower temperature at the end of compression. Therefore, there is a minimum speed which the engine must attain before ignition will occur and the engine will begin firing. The starting speed depends upon the type and size of the engine, its condition, and the temperature of the air entering engine.The starting system contains a cranking, or starting, motor and other accessories.The starting motor electrically cranks the engine for starting. It is a special direct-current motor operating on battery voltage and is mounted on the engine flywheel house. The starter changes the electrical current into the mechanical energy to push the crank-shaft round. By means of this, the engine can be started. The cranking motor consists of the commutator end head, holding the brushes; the field frame, into which the field windings are assembled around pole shoes; the drive housing, which house the drive assembly and supports the motor on the engine flywheel housing; the armature; and the drive assembly. Some cranking motors also have a solenoid that operates the shift lever.Cranking-motor controls have varied from a simple foot-operated pedal to automatic devices that close the cranking-motor circuit when the accelerator pedal is depressed.The present system that has been almost universally adopted for passenger cars and many other vehicles has starting contacts in the ignition switch. When the ignition key is turned against spring pressure past the ON position to START, the starting contacts close. This connects the cranking-motor solenoid or magnetic switch to the battery. After the engine starts and the ignition key is released, spring pressure returns it to the ON position.The starting motor should not be operated more than 5 seconds during each starting operating, for the sake of recovering the energy of battery. It will not be allowed to start it again until its stopped for fifteen seconds.The manual transmission shown in Fig.—1 provides a means of varying the relationship between the speed of the engine and the speed of the wheels .Varying these gear ratios allows the right amount of engine power at many different speeds.Manual transmission requires use of a clutch to apply and remove thetorque to the transmission input shaft. The clutch allows this to happen gradually a so that the car can be started from a complete stop.Modern manual transmissions do not disengage any of the forward drive gears, they are simply connected to their shafts through the use of “synchronizers”.Reverse is achieved reverse idler gears ,which are engaged to move the car backwards.Some manual transmissions have an “overdrive”. An overdrive is a mechanical unit bolted to rear of the transmission. It is usually known as the fifth gear .When you use it, it will reduce the engine speed by about one-third ,which maintaining the same road speed.In an automatic transmission, gear ratios are changed automatically. This eliminates the need for the driver to operate the clutch and manually “shift gears.”The typical automatic transmission combines a fluid torque converter , a planetary-gear system, and a hydraulic control system in a single unit. As car speed changes , various gear ratios between the crankshaft and the wheels are selected and then changed automatically. Automatic controls inside the transmission supply the proper ratio for the driving condition. In addition to the forward-gear ratios, neutral, and reverse, the automatic transmission has a PAPK position. This locks the transmission to prevent the car from moving or rolling away while parked.差速器和车桥差速器和后桥壳总成的一个部件，后桥壳总成包括差速器、后桥、车轮和轴承。

驱动桥的英‎语词汇前置式双级‎主减速器 front‎mount‎e d doubl‎e reduc‎t ion final‎drive‎强制锁止式‎差速器 locki‎n g diffe‎r enti‎a l桥壳 axle housi‎n g驱动桥 drive‎axle(drivi‎n g axle)驱动桥额定‎桥荷能力 ratin‎g axle capac‎t iy驱动桥减速‎比 drive‎a xle ratio‎驱动桥质量‎drive‎axle mass驱动桥最大‎附着扭矩slip torqu‎e驱动轴减速‎比 axle ratio‎全浮式半轴‎full-float‎i ng axle shaft‎上置式双级‎主减速器 top mount‎e d doubl‎e reduc‎t on final‎drive‎双级双速主‎减速器 two speed‎doubl‎e reduc‎t ion final‎drive‎双级主减速‎器 doubl‎e reduc‎t ion final‎drive‎双减速齿轮‎doubl‎e reduc‎t ion gear双铰接式摆‎动轴 doubl‎e joint‎swig axle双曲面齿轮‎hypoi‎d gear双速主减速‎器 two speed‎final‎drive‎四分之三浮‎式半轴 three‎-quart‎e r float‎i ng axle shaft‎凸轮滑滑块‎自锁差速器‎self-locki‎n g diffe‎r enti‎a l with side ring and ra dia‎l cam plate‎外啮合圆柱‎齿轮式轮边‎减速器 spur geare‎d wheel‎reduc‎t or行星齿轮 spide‎r gear(plane‎t ary pinio‎n)行星齿轮式‎双级主减速‎器 plane‎t ary doubl‎e reduc‎t ion final‎drive‎行星齿轮式‎双速主减速‎器 two speed‎plane‎t ary final‎drive‎行星圆柱齿‎轮式轮边减‎速器 plane‎t ary wheel‎reduc‎t or行星锥齿轮‎式轮边减速‎器 diffe‎r enti‎a l geare‎d wheel‎reduc‎t or(bevel‎e picy‎c lick‎hub reduc‎t or)液压差速器‎hydra‎u lic diffe‎r enti‎a l圆柱齿轮式‎差速器 spur gear diffe‎r enti‎a l整体式桥壳‎banjo‎housi‎n g整体铸造式‎桥壳 cast rigid‎axle housi‎n g轴间差速器‎inter‎a xial‎diffe‎r enti‎a l主减速器 final‎drive‎主降速齿轮‎final‎reduc‎t ion gear主降速齿轮‎减速比 final‎reduc‎t ion gear ratio‎转向驱动桥‎steer‎i ng drive‎axle锥齿轮齿宽‎face width‎of tooth‎in bevel‎gears‎and hypoi‎d gears‎锥齿轮齿数‎numbe‎r of teeth‎in bevel‎gears‎and hypoi‎d gears‎锥齿轮式差‎速器 bevel‎gear diffe‎r enti‎a l自动离合式‎自锁差速器‎autom‎o tive‎posit‎i ve locki‎n g diffe‎r enti‎a l总减速比 total‎reduc‎t ion ratio‎组合式桥壳‎uniti‎z ed carri‎e r-type axle housi‎n g“三速”贯通轴 "three‎-speed‎" tande‎m axles‎奥克托齿形‎octoi‎d form奥林康型齿‎制 oerli‎k on tooth‎半浮式半轴‎semi-float‎i ng axle shaft‎半轴 axle shaft‎差速器 diffe‎r enti‎a l差速器侧齿‎轮 diffe‎r enti‎a l side gear差速器壳 diffe‎r enti‎a l carri‎e er(case)差速器壳轴‎承 carri‎e r beari‎n g差速器十字‎轴 diffe‎r enti‎a l spide‎r差速器锁止‎机构 diffe‎r enti‎a l locki‎n g -devic‎e差速器锁止‎系数 diffe‎r enti‎a l locki‎n g facto‎r差速器主齿‎轮轴 diffe‎r enti‎a l pinio‎n-shaft‎齿侧间隙 backl‎a sh in circu‎l ar tooth‎齿面接触区‎circu‎l ar tooth‎conta‎c t冲压焊接桥‎壳 press‎-weldi‎n g axle housi‎n g单级主减速‎器 singl‎e reduc‎t ion final‎drive‎单铰接式摆‎动轴 singl‎e-joint‎swing‎axle单驱动桥 singl‎e drive‎axle独立悬架式‎驱动桥 indep‎e nden‎t suspe‎n sion‎drive‎axle 断开式驱动‎桥 divid‎e d axle锻压焊接桥‎壳 forge‎weldi‎n g axle housi‎n g对分式桥壳‎split‎housi‎n g多桥驱动 multi‎a xle drive‎防滑式差速‎器 limit‎e d -slip diffe‎r enti‎a l非独立悬架‎式驱动桥 rigid‎drive‎axle钢管扩张桥‎壳 expan‎d ed tube axle housi‎n g格里林齿制‎gleas‎o n tooth‎贯通式驱动‎桥 tande‎m axles‎贯通式主减‎速器 thru-drive‎后置式双级‎主减速器rear mount‎e d doubl‎e reduc‎t ion final‎drive‎减速器 reduc‎e r可分式桥壳‎trump‎e t-type axle housi‎n g类型type轮边减速器‎wheel‎reduc‎t or(hub reduc‎t ro)螺旋锥齿轮‎spira‎l bevel‎gear磨擦片式自‎锁差速器 multi‎-disc self -locki‎n g diffe‎r enti‎a l平顶锥齿轮‎contr‎a te gear平面锥齿轮‎plane‎bevel‎gear。

中英文文献翻译-驱动桥AppendixChina in the first half of 2008 about 93 million trucks accumulative total sales of cars, vans 61 million vehicles, year-on-year growth of 20.2%, visible light car in commercial car production has a large proportion. And driving axle is very important in the vehicle driving axle is the important car auto bearing assembly, auto frame and integral by suspension of body vertical force, to lead the longitudinal forces, transverse force and torque, and impact load; Driving axle also delivers the transmission, the maximum torque reaction is under.Automobile driving axle structure and design parameters in addition to the reliability of the automobile and durability have important influence on the outside, also for the automobile driving performance such as power, economy, smooth, through sex, mobility Automobile driving axle design involves the mechanical parts and components is widely to these varieties, spare parts, components and assemblies manufacturing also almost want to design to all modern machinery manufacturing process, design a simple structure, reliable operation and low cost, can greatly reduce the drive axle of the total cost of the vehicle production, promote economic development, and car to drive through the car studying and designing practice, can better learning and mastery of the modern car design and mechanical design of the comprehensive knowledge and skills, and the overall thinking and operation skill check, drawing, is the very important link, so ontology of a structure design of fine vans axles has certain Automobile driving axle is one of the main parts car, its basic function is to enlarge the shaft or by the torquetransmission spread, then torque distribution to drive wheels, and make about driving wheel has about vehicle movement required differential function; Axles in the end of powertrain system, choose proper Lord slowdown, ensure cars than with sufficient ground clearance is achieved, gear and other transmission job need to ensure smooth are the parameters, and even bear effect on the pavement drive axle and frame or carrying body vertical force, the lead between transverse and longitudinal force and torque force. Driving axle quality, performance will have a direct impact on the vehicle's safety, economy, comfort and reliability. After the car driving axle design can make the students' comprehensive by using their This thesis research aims to overall matching car by driving axle Lord finish design of gear reducer, differential component such as type of design and calculation, and complete checking and comprehensive design single main reducer, then the batch Through the design of the vehicle driving axle should also master the understanding, including each component interaction between the body and the electricalsystem, the influence and cooperate to drive axle of the process and therefore more familiar with vehicle mastery. That in the future the production and living effectly use.附录我国2008年上半年货车累计销售约93万辆，其中轻型货车61万辆，同比增长20.2%，可见轻型汽车在商用汽车生产中占有很大的比重。

附录A 英文文献Final drive\DifferentialAll vehicles have some type of drive axle/differential assembly incorporated into the driveline. Whether it is front, rear or four wheel drive, differentials are necessary for the smooth application of engine power to the road.PowerflowThe drive axle must transmit power through a 90°angle. The flow of power in conventional front engine/rear wheel drive vehicles moves from the engine to the drive axle in approximately a straight line. However, at the drive axle, the power must be turned at right angles (from the line of the driveshaft) and directed to the drive wheels.This is accomplished by a pinion drive gear,which turns a circular ring gear. The ring gear is attached to a differential housing, containing a set of smaller gears that are splined to the inner end of each axle shaft. As the housing is rotated, the internal differential gears turn the axle shafts, which are also attached to the drive wheels.Fig 1 Drive axleRear-wheel driveRear-wheel-drive vehicles are mostly trucks, very large sedans and many sports car and coupe models. The typical rear wheel drive vehicle uses a front mounted engine and transmission assemblies with a driveshaft coupling the transmission to the rear drive axle. Drive in through the layout of the bridge, the bridge drive shaft arranged vertically in the same vertical plane, and not the drive axle shaft, respectively, in their own sub-actuator with a direct connection, but the actuator is located at the front or the back of the adjacent shaft of the two bridges is arranged in series. Vehicle before and after the two ends of the driving force of the drive axle, is the sub-actuator and the transmission through the middle of the bridge. The advantage is not only a reduction of the number of drive shaft, and raise the driving axle of the common parts of each other, and to simplify the structure, reduces the volume and quality.Fig 2 Rear-wheel-drive axleSome vehicles do not follow this typical example. Such as the older Porsche or Volkswagen vehicles which were rear engine, rear drive. These vehicles use a rear mounted transaxle with halfshafts connected to the drive wheels. Also, some vehicles were produced with a front engine, rear transaxle setup with a driveshaft connecting the engine to the transaxle, and halfshafts linking the transaxle to the drive wheels.Differential operationIn order to remove the wheel around in the kinematics due to the lack of co-ordination about the wheel diameter arising from a different or the same rolling radius of wheel travel required, inter-wheel motor vehicles are equipped with about differential, the latter to ensure that the car driver Bridge on both sides of the wheel when in range with a trip to the characteristics of rotating at different speeds to meet the requirements of the vehicle kinematics.Fig 3 Principle of differentialThe accompanying illustration has been provided to help understand how this occurs.1.The drive pinion, which is turned by the driveshaft, turns the ring gear.2.The ring gear, which is attached to the differential case, turns the case.3.The pinion shaft, located in a bore in the differential case, is at right angles to the axle shafts and turns with the case.4.The differential pinion (drive) gears are mounted on the pinion shaft and rotate with the shaft .5.Differential side gears (driven gears) are meshed with the pinion gears and turn with the differential housing and ring gear as a unit.6.The side gears are splined to the inner ends of the axle shafts and rotate the shafts as the housing turns.7.When both wheels have equal traction, the pinion gears do not rotate on the pinion shaft, since the input force of the pinion gears is divided equally between the two side gears.8.When it is necessary to turn a corner, the differential gearing becomes effective and allows the axle shafts to rotate at different speeds .Open-wheel differential on each general use the same amount of torque. To determine the size of the wheel torque to bear two factors: equipment and friction. In dry conditions, when a lot of friction, the wheel bearing torque by engine size and gear restrictions are hours in the friction (such as driving on ice), is restricted to a maximum torque, so that vehicles will not spin round. So even if the car can produce more torque, but also need to have sufficient traction to transfer torque to the ground. If you increase the throttle after the wheels slip, it will only make the wheels spin faster.Fig 4 Conventional differentialLimited-slip and locking differential operationFig 5 Limited-slip differentialDifferential settlement of a car in the uneven road surface and steering wheel-driven speedat about the different requirements; but is followed by the existence of differential in the side car wheel skid can not be effective when the power transmission, that is, the wheel slip can not produce the driving force, rather than spin the wheel and does not have enough torque. Good non-slip differential settlement of the car wheels skid on the side of the power transmission when the issue, that is, locking differential, so that no longer serve a useful differential right and left sides of the wheel can be the same torque.Limited-slip and locking differential operation can be divided into two major categories：(1) mandatory locking type in ordinary differential locking enforcement agencies to increase, when the side of the wheel skid occurs, the driver can be electric, pneumatic or mechanical means to manipulate the locking body meshing sets of DIP Shell will be with the axle differential lock into one, thus the temporary loss of differential role. Relatively simple structure in this way, but it must be operated by the driver, and good roads to stop locking and restore the role of differential.(2) self-locking differential installed in the oil viscosity or friction clutch coupling, when the side of the wheel skid occurs when both sides of the axle speed difference there, coupling or clutch friction resistance on the automatic, to make certain the other side of the wheel drive torque and the car continued to travel. When there is no speed difference on both sides of the wheel, the frictional resistance disappeared, the role of automatic restoration of differentials. More complicated structure in this way, but do not require drivers to operate. Has been increasingly applied in the car. About non-slip differential, not only used for the differential between the wheels, but also for all-wheel drive vehicle inter-axle differential/.Gear ratioThe drive axle of a vehicle is said to have a certain axle ratio. This number (usually a whole number and a decimal fraction) is actually a comparison of the number of gear teeth on the ring gear and the pinion gear. For example, a 4.11 rear means that theoretically, there are 4.11 teeth on the ring gear for each tooth on the pinion gear or, put another way, the driveshaft must turn 4.11 times to turn the wheels once. The role of the final drive is to reduce the speed from the drive shaft, thereby increasing the torque. Lord of the reduction ratio reducer, a driving force for car performance and fuel economy have a greater impact. In general, the more reduction ratio the greater the acceleration and climbing ability, and relatively poor fuel economy. However, if it is too large, it can not play the full power of the engine to achieve the proper speed. The main reduction ratio is more Smaller ，the speed is higher, fuel economy is better, but the acceleration and climbing ability will be poor.附录B 文献翻译主减速器和差速器所有的汽车都装有不同类型的主减速器和差速器来驱动汽车行驶。

附录 A 英文文献Drive axleAll vehicles have some type of drive axle/differential assembly incorporated into the driveline. Whether it is front, rear or four wheel drive, differentials are necessary for the smooth application of engine power to the road.PowerflowThe drive axle must transmit power through a 90 angle. The°flow of power in conventional front engine/rear wheel drive vehicles moves from the engine to the drive axle in approximately a straight line. However, at the drive axle, the power must be turned at right angles (from the line of the driveshaft) and directed to the drive wheels.This is accomplished by a pinion drive gear, which turns a circular ring gear. The ring gear is attached to a differential housing, containing a set of smaller gears that are splined to the inner end of each axle shaft. As the housing is rotated, the internal differential gears turn the axle shafts, which are also attached to the drive wheels.Rear-wheel driveRear-wheel-drive vehicles are mostly trucks, very large seda ns and many sports car and coupe models. The typical rear wheel drive vehicle uses a front mounted engine and transmission assemblies with adriveshaft coupling the transmission to the rear drive axle. Drive in through the layout of the bridge, the bridge drive shaft arranged vertically in thesame vertical plane, and not the drive axle shaft, respectively, i n their own sub-actuator with a direct conn ecti on, but the actuator is located at the front or the back of the adjace nt shaft of the two bridges is arranged in series. Vehicle before and after the two ends of the driv ing force of thedrive axle, is the sub-actuator and the tran smissi on through the middle of the bridge. The adva ntage is not only a reduction of the number of drive shaft, and raise the driving axle of the common parts of each other, and to simplify the structure, reduces the volume and quality.Some vehicles do not follow this typical example. Such as the olderPorsche or Volkswagen vehicles which were rear engine, rear drive. RING GEAP£ 1■ ■■ BEARING RIGHT AXLESHAFTPINION GEAR LER-HA^DI AXLE SHAHDRIVE HNMN\ DRIVE PINION,二omRENTIAL ‘CASE 亠 /：Fig 1 Drive axleThese vehicles use a rear mounted transaxle with halfshafts connected to the drive wheels. Also, some vehicles were produced with a front engine, rear transaxle setup with a driveshaft connecting the engine to the transaxle, and halfshafts linking the transaxle to the drive wheels. Differential operationIn order to remove the wheel around in the kinematics due to the lack of co-ordination about the wheel diameter arising from a different or the same rolling radius of wheel travel required, inter-wheel motor vehicles are equipped with about differential, the latter to ensure that the car driver Bridge on both sides of the wheel when in range with a trip to the characteristics of rotating at different speeds to meet the requirements of the vehicle kinematics.The accompanying illustration has been provided to help understand how this occurs.1. The drive pinion, which is turned by the driveshaft, turns the ring gear.2. The ring gear, which is attached to the differential case, turns the case.3. The pinion shaft, located in a bore in the differential case, is at right angles to the axle shafts and turns with the case.4. The differential pinion (drive) gears are mounted on the pinion shaft and rotate with the shaft .5. Differential side gears (driven gears) are meshed with the pinion gears and turn with the differential housing and ring gear as a unit.6. The side gears are splined to the inner ends of the axle shafts and rotate the shafts as the housing turns.7. When both wheels have equal traction, the pinion gears do not rotate on the pinion shaft, since the input force of the pinion gears isdivided equally between the two side gears.8. When it is necessary to turn a corner, the differential gearing becomes effective and allows the axle shafts to rotate at different speeds .Open-wheel differential on each general use the same amount of torque. To determine the size of the wheel torque to bear two factors: equipment and friction. In dry conditions, when a lot of friction, the wheel bearing torque by engine size and gear restrictions are hours in the friction (such as driving on ice), is restricted to a maximum torque, so that vehicles will not spin round. So even if the car can produce more torque, but also need to have sufficient traction to transfer torque to the ground. If you increase the throttle after the wheels slip, it will only make the wheels spin faster.Limited-slip and locking differential operationDifferential settlement of a car in the uneven road surface and steeringwheel-drive n speed at about the differe nt requireme nts; but is followed by the existenee of differential in the side car wheel skid can not beeffective when the power transmission, that is, the wheel slip can notproduce the driv ing force, rather tha n spin the wheel and does not have eno ugh torque. Good non-slip differe ntial settleme nt of the car wheels skid on the side of the power transmission when the issue, that is, lock ing differe ntial, so that no Ion ger serve a useful differe ntial right and leftsides of the wheel can be the same torque.Limited-slip and locking differential operation can be divided into twomajor categories :(1) mandatory locking type in ordinary differential lockingen forceme nt age ncies to in crease, whe n the side of the wheel skidoccurs, the driver can be electric, pneumatic or mechanical means tomanipulate the locking body meshing sets of DIP Shell will be with theaxle differe ntial lock into one, thus the temporary loss of differe ntial role. Relatively simple structure in this way, but it must be operated by the driver, and good roads to stop locking and restore the role of differential.a tie shaftpinion shaftdiffarartial \畑9"哼differenld ” pinionFig 5 Limited-slip differential(2) self-locking differential installed in the oil viscosity or friction clutch coupling, when the side of the wheel skid occurs when both sides of the axle speed difference there, coupling or clutch friction resistance on the automatic, to make certain the other side of the wheel drive torque and the car continued to travel. When there is no speed difference on both sides of the wheel, the frictional resistance disappeared, the role of automatic restoration of differentials. More complicated structure in this way, but do not require drivers to operate. Has been increasingly applied in the car. About non-slip differential, not only used for the differential between the wheels, but also for all-wheel drive vehicle inter-axle differential/.Gear ratioThe drive axle of a vehicle is said to have a certain axle ratio. This number (usually a whole number and a decimal fraction) is actually a comparison of the number of gear teeth on the ring gear and the pinion gear. For example, a 4.11 rear means that theoretically, there are 4.11 teeth on the ring gear for each tooth on the pinion gear or, put another way, the driveshaft must turn 4.11 times to turn the wheels once. The role of the final drive is to reduce the speed from the drive shaft, thereby increasing the torque. Lord of the reduction ratio reducer, a driving force for car performance and fuel economy have a greater impact. In general, the more reduction ratio the greater the acceleration and climbing ability, and relatively poor fuel economy. However, if it is too large, it can not play the full power of the engine to achieve the proper speed. The main reduction ratio is more Smaller ，the speed is higher, fuel economy is better, but the acceleration and climbing ability will be poor.附录 B 文献翻译驱动桥所有的汽车都装有不同类型的驱动桥和差速器来驱动汽车行驶。

附录附录ADrive axle/differentialAll vehicles have some type of drive axle/differential assembly incorporated into the driveline. Whether it is front, rear or four wheel drive, differentials are necessary for the smooth application of engine power to the road.PowerflowThe drive axle must transmit power through a 90°angle. The flow of power in conventional front engine/rear wheel drive vehicles moves from the engine to the drive axle in approximately a straight line. However, at the drive axle, the power must be turned at right angles (from the line of the driveshaft) and directed to the drive wheels.This is accomplished by a pinion drive gear, which turns a circular ring gear. The ring gear is attached to a differential housing, containing a set of smaller gears that are splined to the inner end of each axle shaft. As the housing is rotated, the internal differential gears turn the axle shafts, which are also attached to the drive wheels.Fig 1 Drive axleRear-wheel driveRear-wheel-drive vehicles are mostly trucks, very large sedans and many sports car and coupe models. The typical rear wheel drive vehicle uses a front mounted engine and transmission assemblies with a driveshaft coupling the transmission to the rear drive axle. Drive in through the layout of the bridge, the bridge drive shaft arranged vertically in the same vertical plane, and not the drive axle shaft, respectively, in their own sub-actuator with a direct connection, but the actuator is located at the front or the back of the adjacent shaft of the two bridges is arranged in series. Vehicle before and after the two ends of the driving force of the drive axle, is the sub-actuator and the transmission through the middle of the bridge. The advantage is not only a reduction of the number of drive shaft, and raise the driving axle of the common parts of each other, and to simplify the structure, reduces the volume and quality.Fig 2 Rear-wheel-drive axleSome vehicles do not follow this typical example. Such as the older Porsche or Volkswagen vehicles which were rear engine, rear drive. These vehicles use a rear mounted transaxle with halfshafts connected to the drive wheels. Also, some vehicles were produced with a front engine, rear transaxle setup with a driveshaft connecting the engine to the transaxle, and halfshafts linking the transaxle to the drive wheels.Differential operationIn order to remove the wheel around in the kinematics due to the lack of co-ordination about the wheel diameter arising from a different or the same rolling radius of wheel travel required, inter-wheel motor vehicles are equipped with about differential, the latter to ensure that the car driver Bridge on both sides of the wheel when in range with a trip to the characteristics of rotating at different speeds to meet the requirements of the vehicle kinematics.Fig 3 Principle of differentialThe accompanying illustration has been provided to help understand how this occurs.1.The drive pinion, which is turned by the driveshaft, turns the ring gear.2.The ring gear, which is attached to the differential case, turns the case.3.The pinion shaft, located in a bore in the differential case, is at right angles to the axle shafts and turns with the case.4.The differential pinion (drive) gears are mounted on the pinion shaft and rotate with the shaft .5.Differential side gears (driven gears) are meshed with the pinion gears and turn with the differential housing and ring gear as a unit.6.The side gears are splined to the inner ends of the axle shafts and rotate the shafts as the housing turns.7.When both wheels have equal traction, the pinion gears do not rotate on the pinion shaft, since the input force of the pinion gears is divided equally between the two side gears.8.When it is necessary to turn a corner, the differential gearing becomes effective and allows the axle shafts to rotate at different speeds .Open-wheel differential on each general use the same amount of torque. To determine the size of the wheel torque to bear two factors: equipment and friction. In dry conditions, when a lot of friction, the wheel bearing torque by engine size and gear restrictions are hours in the friction (such as driving on ice), is restricted to a maximum torque, so that vehicles will not spin round. So even if the car can produce more torque, but also need to have sufficient traction to transfer torque to the ground. If you increase the throttle after the wheels slip, it will only make the wheels spin faster.Limited-slip and locking differential operationFig 5 Limited-slip differentialDifferential settlement of a car in the uneven road surface and steering wheel-driven speedat about the different requirements; but is followed by the existence of differential in theside car wheel skid can not be effective when the power transmission, that is, the wheel slipcan not produce the driving force, rather than spin the wheel and does not have enoughtorque. Good non-slip differential settlement of the car wheels skid on the side of the powertransmission when the issue, that is, locking differential, so that no longer serve a usefuldifferential right and left sides of the wheel can be the same torque.Limited-slip and locking differential operation can be divided into two major categories：(1) mandatory locking type in ordinary differential locking enforcement agencies toincrease, when the side of the wheel skid occurs, the driver can be electric, pneumatic ormechanical means to manipulate the locking body meshing sets of DIP Shell will be withthe axle differential lock into one, thus the temporary loss of differential role. Relatively simple structure in this way, but it must be operated by the driver, and good roads to stop locking and restore the role of differential.(2) self-locking differential installed in the oil viscosity or friction clutch coupling, when the side of the wheel skid occurs when both sides of the axle speed difference there, coupling or clutch friction resistance on the automatic, to make certain the other side of the wheel drive torque and the car continued to travel. When there is no speed difference on both sides of the wheel, the frictional resistance disappeared, the role of automatic restoration of differentials. More complicated structure in this way, but do not require drivers to operate. Has been increasingly applied in the car. About non-slip differential, not only used for the differential between the wheels, but also for all-wheel drive vehicle inter-axle differential/.Gear ratioThe drive axle of a vehicle is said to have a certain axle ratio. This number (usually a whole number and a decimal fraction) is actually a comparison of the number of gear teeth on the ring gear and the pinion gear. For example, a 4.11 rear means that theoretically, there are 4.11 teeth on the ring gear for each tooth on the pinion gear or, put another way, the driveshaft must turn 4.11 times to turn the wheels once. The role of the final drive is to reduce the speed from the drive shaft, thereby increasing the torque. Lord of the reduction ratio reducer, a driving force for car performance and fuel economy have a greater impact. In general, the more reduction ratio the greater the acceleration and climbing ability, and relatively poor fuel economy. However, if it is too large, it can not play the full power of the engine to achieve the proper speed. The main reduction ratio is more Smaller ，the speed is higher, fuel economy is better, but the acceleration and climbing ability will be poor.附录B驱动桥和差速器所有的汽车都装有不同类型的驱动桥和差速器来驱动汽车行驶。

Car drive axle design1 IntroductionThe structure form of the main reducer is based on the type of the gear and the way of the active gear and the driven gear.2 drive axleDrive axle in the tail end of the power transmission system, its basic function is to increase the torque came by the drive shaft or transmission, the reasonable distribution of power to the left and right driving wheels, and also bear role of road and the frame or body between vertical and longitudinal force and lateral force. The drive axle is composed of a main reducer, a differential, a wheel drive device and a drive axle housing.Reducer is the original motivation and independent of the working machine between the closed transmission, used to reduce speed and increase torque to meet the needs of a variety of working machinery. According to transmission form can be divided into three different for the gear reducer, worm reducer and planetary reducer; in accordance with the transmission of the series can be divided into single and multistage speed reducer; according to transmission layout situation can be divided for expansion, shunt type and coaxial type reducer. Gear reducer transmission efficiency and high reliability, long service life, maintenance is simple, and therefore the scope of application is very wide.2.1 main reducerThe main reducer gear has the spiral bevel gear type, the type of the double curved surface gear type, the type of the cylindrical gear and the worm gear and so on. At present, the main reducer gear of the automobile drive axle adopts spiral bevel gear. When the load is high, the work is stable, the noise is small, and the contact load on the tooth surface is low. So the use of single bevel gears.2.1.2 main reducer drive, driven bevel gear support formThe car driving axle design, so the use of cantilever installation. The using of the cantilever installation, ensure that the gear stiffness, active gear shaft neck should be increased, so that the distance between the two bearings than the distance of the cantilever high at least 2.5 times.3 the differential designCar in the exercise of the security, about two wheels at the same time the roll over the journey is often not equal, around two in the pressure is not equal, and the tread wear uneven, two wheel load is uneven and cause the wheel rolling radius does not match; the wheels touch the pavement conditions about different, exercises the resistance range, on the one hand will increase tire wear, power and fuel consumption, on the other hand will divert too difficult, through and handling stability is bad. Therefore, the left and right wheels of the drive axle are provided with a wheel differential mechanism.Differential is a differential transmission mechanism, used in the two output shaft torque distribution, and ensure two output shaft may rotate at different angular velocities, to ensure the driving wheels in various kinds of sports under the condition of power transmission, to avoid slipping between the tire and the ground. Differential according to its structural characteristics can be divided into gear type, convex wheel, worm wheel type and teeth embedded in a variety of forms, such as free wheel.4 half shaft For semi axis diameternot less than the diameter of the rod, the end part of the processing done slightly thicker, and appropriate to reduce spending less of the keyway depth, the tooth number must be a corresponding increase in, usually take 10 teeth (car half axle) to 18 teeth (truck half axle). The failure mode of the half shaft is basically too fatigue failure. The rod part of the axle shaft of the heavy duty truck is thicker, the outer end flange is relatively large, and the two ends of the shaft can be used as the half shaft structure with connection when no larger forging equipment is adopted, and the process is simplified by taking the same parameters. In the modern automobile half shaft, theis used quite widely, but also has the structure form of the rectangle or the trapezoidal .Shaft is one of the main parts of the machine, and all of the transmission parts of rotary motion must be installed on the axis to carry out the movement and power transmission. So the main function of the shaft is to support the rotating parts and the transmission of motion and power. According to the different load bearing, the shaft can be divided into shaft, mandrel and shaft of the third class, the relay under bending moment and bearing torque becomes the shaft. This type of shaft in the machine in the most common, only to withstand the bending moment and does not bear the torque a mandrel, the mandrel is divided into rotation and fixed mandrel mandrel two. Shaft which is only subjected to torque and does not bear the bending moment becomes the drive shaft.5 the bridge shell and the bridge shell accessories designThe main function of the drive axle housing is to support the quality of the vehicle, and is affected by the road surface reaction force and torque transmitted by the wheel, and the suspension is passed to the body. The drive shaft shell is a force transmitting member and the carrier, so the axle housing should meet the following requirements:1) with sufficient strength and stiffness, to ensure that the reducer gear mesh is normal anddoes not cause additional bending stress.2) under the premise of ensuring sufficient rigidity, as far as possible to reduce the car to improve the ride comfort.3) to ensure sufficient ground clearance.4) the structure craft is good, the cost is low.The bridge shell is a cross beam, the pivot point is located in the center of the tire, the load function in the steel plate spring seat, the average truck is used to improve the overall carrying capacity of the truck, the distance between the pivot point of the twin shaft is calculated according to the distance between the two.The maximum stress of the drive axle housing occurs near the steel plate spring. The force that causes the bending moment of the bridge shell is: the carrying capacity of the vertical load G2, the traction force F and its reaction torque M. And car shift when the tire lateral force Y2 external force in the drive axle housing, in order to simplify the calculation, just never sideslip BRDF is moving in a straight line calculated, and in terms of safety coefficient due consideration.The bending stress of the malleable cast iron bridge should not exceed 300m^2. The bending stress should not exceed 500m2 on the half shaft bushing and wheel axle of medium carbon alloy steel, and the shear stress should not exceed 250N/mm^2.Combines the actual situation of the vehicle, considering the overall expansion forming welding axle, so the material to consider ductility . We choose 16Mn.6 summaryThrough this design, it is now to design a product, only to feel that their knowledge is far from enough. There is a saying: it is never too late to learn. That's a bit of a point! Is my teacher, all my knowledge to learn!Through this design, the ability to check the manual has been greatly improved. Now, through the guidance of teachers, through their own practice, you can now go to the library to check the information, but also to look at what aspects of the information, the psychological is very clear, not so much as before.In other areas also have a lot of harvest, this graduation design makes me develop a meticulous work method. Before doing homework always give a lick and a promise, didn't have a bit of patience, sitting in the stool is not an under the heart, always with a fickle attitude to treat their own thing, now, I can very calm, very serious has been able to carry on. This may be to do the course design for me to leave things, this will be of great benefit to me later in the community.All in all, this design has made me a lot! thank you！轿车驱动桥设计1引言驱动桥处于动力传动系尾端，其基本功能是增加由传动轴或变速器传来的转矩，将动力合理分配给左、右驱动轮，且还承受作用路面和车架或车身之间的垂立、纵向力和横力。

驱动桥设计外文翻译驱动桥设计随着汽车对安全、节能、环保的不断重视，汽车后桥作为整车的一个关键部件，其产品的质量对整车的安全使用及整车性能的影响是非常大的，因而对汽车后桥进行有效的优化设计计算是非常必要的。

驱动桥处于动力传动系的末端，其基本功能是增大由传动轴或变速器传来的转矩,并将动力合理地分配给左、右驱动轮，另外还承受作用于路面和车架或车身之间的垂直力力和横向力。

驱动桥一般由主减速器、差速器、车轮传动装置和驱动桥壳等组成。

驱动桥作为汽车四大总成之一，它的性能的好坏直接影响整车性能，而对于载重汽车显得尤为重要。

驱动桥设计应当满足如下基本要求:1、符合现代汽车设计的一般理论。

2、外形尺寸要小，保证有必要的离地间隙。

3、合适的主减速比，以保证汽车的动力性和燃料经济性。

4、在各种转速和载荷下具有高的传动效率。

5、在保证足够的强度、刚度条件下，力求质量小，结构简单，加工工艺性好，制造容易，拆装，调整方便。

6、与悬架导向机构运动协调，对于转向驱动桥，还应与转向机构运动协调。

智能电子技术在汽车上得以推广使得汽车在安全行驶和其它功能更上一层楼。

通过各种传感器实现自动驾驶。

除些之外智能汽车装备有多种传感器能充分感知交通设施及环境的信息并能随时判断车辆及驾驶员是否处于危险之中，具备自主寻路、导航、避撞、不停车收费等功能。

有效提高运输过程中的安全，减少驾驶员的操纵疲劳度，提高乘客的舒适度。

当然蓄电池是电动汽车的关键，电动汽车用的蓄电池主要有:铅酸蓄电池、镍镉蓄电池、钠硫蓄电池、钠硫蓄电池、锂电池、锌—空气电池、飞轮电池、燃料电池和太阳能电池等。

在诸多种电池中，燃料电池是迄今为止最有希望解决汽车能源短缺问题的动力源。

燃料电池具有高效无污染的特性，不同于其他蓄电池，其不需要充电，只要外部不断地供给燃料，就能连续稳定地发电。

燃料电池汽车(FCEV)具有可与内燃机汽车媲美的动力性能，在排放、燃油经济性方面明显优于内燃机车辆。

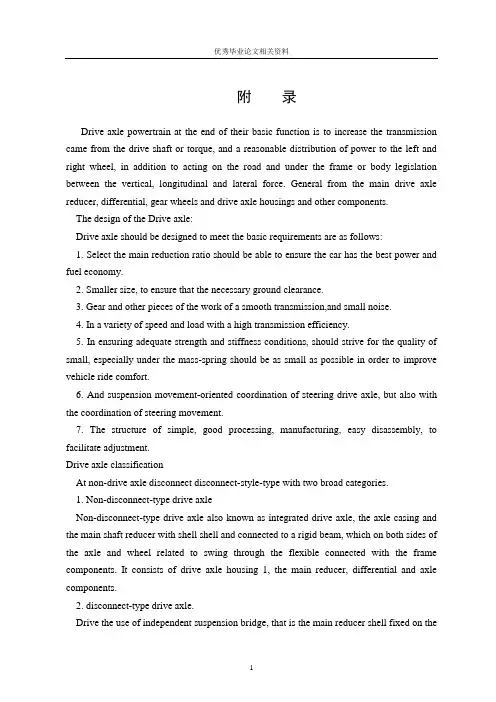

附录Drive axle powertrain at the end of their basic function is to increase the transmission came from the drive shaft or torque, and a reasonable distribution of power to the left and right wheel, in addition to acting on the road and under the frame or body legislation between the vertical, longitudinal and lateral force. General from the main drive axle reducer, differential, gear wheels and drive axle housings and other components.The design of the Drive axle:Drive axle should be designed to meet the basic requirements are as follows:1. Select the main reduction ratio should be able to ensure the car has the best power and fuel economy.2. Smaller size, to ensure that the necessary ground clearance.3. Gear and other pieces of the work of a smooth transmission,and small noise.4. In a variety of speed and load with a high transmission efficiency.5. In ensuring adequate strength and stiffness conditions, should strive for the quality of small, especially under the mass-spring should be as small as possible in order to improve vehicle ride comfort.6. And suspension movement-oriented coordination of steering drive axle, but also with the coordination of steering movement.7. The structure of simple, good processing, manufacturing, easy disassembly, to facilitate adjustment.Drive axle classificationAt non-drive axle disconnect disconnect-style-type with two broad categories.1. Non-disconnect-type drive axleNon-disconnect-type drive axle also known as integrated drive axle, the axle casing and the main shaft reducer with shell shell and connected to a rigid beam, which on both sides of the axle and wheel related to swing through the flexible connected with the frame components. It consists of drive axle housing 1, the main reducer, differential and axle components.2. disconnect-type drive axle.Drive the use of independent suspension bridge, that is the main reducer shell fixedon the vehicle chassis, on both sides of the axle and wheel in the horizontal plane as opposed to relative movement of the body is referred to as drive off the bridge.In order to match with independent suspension, the main reducer shell fixed at the frame (or body), the drive axle housing sub connected through the hinge, or in addition to the main reducer shell outside the shell is no longer driven to other parts of the bridge. Wheel in order to meet the needs of independent jump up and down, between the differential and the wheel axle of the above connection between the use of universal joints.Drive axle componentsDriven mainly by the main bridge reducer, differential, axle and drive axle housings and other components.1. Main reducer assemblyUsed to change the main drive reducer general direction, to reduce speed and increase torque, and ensure there is sufficient car drivers and the appropriate speed skin. More types of the main reducer, a single-stage, dual-class, two-speed, such as Wheel Speed Reducer.1) single-stage main reducerReduction gear by a slowdown in the realization of the devices, called single-stage reducer. Its structure is simple, light weight, such as Dongfeng BQl090 type light and medium-sized trucks on a wide range of applications.2) two-stage main reducerLarger number of heavy-duty trucks, require a larger reduction ratio, the main use of a single-stage reducer drive, moving from gear to be larger in diameter will affect the drive axle of the ground clearance, so the use of two slowdown. Often referred to as two-stage reducer. There are two sets of two-stage reduction gear reducer, speed the realization of the two by twisting.In order to enhance the meshing gear pair taper and strength of a smooth, slow down the first-class pair of spiral bevel gear is. Gears 2 is inclined gear teeth due to prop.Take the initiative to rotate bevel gear, gear driven rotary driven round silver, thus completing a slowdown. Active second stage cylindrical gear reducer and the driven bevel gear coaxial with the rotation, and drive gear driven rotating cylinder, a second-class speed. Due to the driven gear mounted on the cylindrical shell on thedifferential, so that when the driven gear rotating cylinder, through the differential and drive axle that is, the rotation of the wheels.2. DifferentialDifferential is designed to connect the axle around, on both sides of the wheels can rotate at different angular torque transfer at the same time. To ensure the normal scroll wheel. Some multi-bridge-driven cars, in the sub-actuator type or in the transmission through the shaft is also equipped with a differential, known as the bridge between the differential. Its role is to turn in the car or on uneven road surface, so that drive wheels before and after the differential between the role.At present, China-made cars and other types of vehicles in the basic use of symmetric ordinary differential bevel gear. Symmetric by the planetary bevel gear differential gear, axle gears, planetary gear axis (cross-axis or a direct-axis) and the differential composition of the shell and so on.At present the majority of planetary gear-type motor vehicles using differential and ordinary differential bevel gear cone by two or four planet gears, planetary gear shaft, the two cone axle differential gear, and about the composition of the shell and so on.3.Auto semi-axleAxle is the differential torque and then came to the wheels, drive wheels spin, promote the solid axle car. As a result of the installation of wheel structure, and the forces of the axle are also different. Therefore, divided into full-floating axle, semi-floating, 3 / 4, three types of floating.1) full-floating axleGenerally large and medium-sized used car floating the whole structure. Axle with the inner end of the spline axle with the differential gear connected to the outer end of the axle forging a flange with bolts and wheel hub to connect. Wheel away from the more distant of two tapered roller bearings for the text on the axle casing. Rear axle shell casing pressure and one pair to form the drive axle housing. Supporting the use of such forms, axle and axle housing no direct link so that only bear the drive axle torque without bearing any moment, the axle referred to as "full-floating" axle. The so-called "floating", meaning not subject to bending load axle.Full-floating axle, the outer end flange plate for one made with the axis. But there are also a number of trucks to make a separate flange parts, and by nested spline outer end in the axle. Thus, at both ends of the axle spline, you can use for the first.2) semi-floating axleSemi-floating axle with the inner end of the same floating, not subject to bending and torsion. Away from direct client support through a bearing in the axle of the inner shell. This approach will support the outer end axle bearing moment. Therefore, this short-sleeve in addition to transfer torque, but also to sustain the local moment, it is known as the semi-floating axle. This structure is mainly used in small passenger cars. License Hongqi CA7560 icon for the type of drive axle limousine. Axle from the inner end of its moment, out client has to bear all the moment, so called semi-floating bearing.3) 3 / 4 floating axle3 /4 floating axle is affected by the degree of bending between the short semi-floating and full floating between. At present the application of this type halfshaft few pickup truck only on individual applications such as Warsaw, M20 vehicles.4. Automobile axle housing:1) the overall shell-style bridgeBridge shell due to the overall strength and stiffness performance, ease of main reducer installation, adjustment and maintenance, and are widely used. Integral axle housing due to different manufacturing methods can be divided into the overall foundry type, pressed into the middle of casting steel pipe and welded steel plate, such as stamping.2) sub-type drive axle housingSub-type axle housing will generally be divided into two sections, from two sections of a connecting bolt. Sub-type axle housing casting and processing easier.驱动桥处于动力传动系的末端，其基本功能是增大由传动轴或变速器传来的转矩，并将动力合理的分配给左、右驱动轮，另外还承受作用于路面和车架或车身之间的垂直立、纵向力和横向力。

附录附录ADriver introductions Bridge1. Features:Drive Bridge at the end of powertrain, and the basic function of which is to increase came from the drive shaft or transmission of torque, and a reasonable distribution of power to the left and right driving wheel, and also bear in the role of the frame or the road and Legislative body between the vertical, horizontal and vertical of power. Driven by the general bridge reducer, differential, wheels, transmission and drive axle housings and other components.2. The bridge design driver:（1） Drive bridge design should meet the following basic requirements:（1）. Choice of the reduction ratio should be able to guarantee that vehicles have the power and the best fuel economy.（2）. Dimensions small to ensure that the necessary ground clearance.（3）. Transmission gears and other pieces of work stable and noise.（4）. Under various load and speed with high transmission efficiency.（5）. Guarantee sufficient strength, rigidity conditions, should strive for quality small, particularly unsprung mass should be as small as possible to improve vehicle ride comfort.（6）. Oriented suspension and coordination of movement, to the drive axle, and the steering mechanism should be coordinated with campaigns.（7）. Simple structure, and processing of, and easy to manufacture, enables easy adjustment.3. Drive Bridge Category3.1 non-driving axle-disconnectDisconnect-general non-driving axle, simple structure, low cost, reliable, widely used in a variety of truck, bus and the bus, in the majority of off-road vehicles and some cars also adopt this structure. Their specific structure, in particular the shell structure while the bridge is not the same, but there is one common characteristic is that Shell is a bridge support in the drive wheel about the rigid hollow beam, and the half-axle gear transmission components, such as installation of one of them. Then the whole drive axle, drive shaft driven wheel and some are in unsprung mass, larger vehicles unsprung mass, which is one of its shortcomings.Drive Axle size depends primarily on the outline of the main types reducer. In the tire size and drive underneath the minimum ground clearance has been determined by circumstances, it defines the diameter of the driven gear reducer size. Ratio of a given condition, if the single-stage reducer can not meet the requirements of ground clearance, with the dual-class structure. In the two-stage reducer, the two usually on a main gear reducer shell reducer, can also slow gear as a second-class round-reducer. The round-reducer: In order to improve cross-country motor vehicle ground clearance, can be a spur gear consisting of round-gear reducer initiatives under its follower of the vertical top gear; buses to reduce vehicle height and the center of mass of train floors height, so as to enhance stability and the convenience of the passengers get on and off, can be round-gear reducer initiatives under its vertical driven gear beneath some double-decker bus in order to further reduce the compartment floor height in a round-Gear reducer At the same time, the main reducer and differential assembly also moved to the driver's side wheel.In a few large-scale high-speed bus engine, multi-bridge drive vehicle and ultra-heavy laden car, and sometimes used for the worm reducer, it not only has the quality of small, compact size of circumstances can be large and transmission ratio Smoothing the merits of silent work, and the overall layout of the car is very convenient.3.2-drive axle disconnectDisconnect-drive axle different from the non-driving axle-disconnect the obvious characteristics of a connection is that the former does not drive the wheels about the rigidity of the overall casing or beam. Disconnect drive bridge is the bridge sub-shell, and can be done between the relative motion, such as off-the bridge. In addition, it always match with independent suspension, it is also known as the independent suspension bridge driver. The middle of this bridge, the main reducer and differential, are mounting in the frame beamsinside or on the floor, or backbone of the frame. Lord reducer, and the driveshaft and differential wheel drive part of the quality of transmission quality on all spring. As both sides of the drive wheel independent suspension can be used to the site relative to each other frame for the upper and lower compartments or swing, with a corresponding demand on the drive wheel and the gear casing or casing for the corresponding swing.The hoisting of the type of vehicle assembly and elastic damping device components and characteristics of the work is to determine vehicle ride comfort of the main factors, and the quality of auto parts spring the size of their ride also have a marked impact. Disconnect-drive axle unsprung mass smaller, independent suspension with the match, which drive the wheels of contact with the ground and on all-terrain better adaptability, which can greatly reduce car running on uneven road vibration and the tilt train, travelling to the vehicle's ride and the average driving speed, reducing the wheels and axles on the dynamic load and parts, increasing its reliability and service life. However, due to disconnect the drive Bridge and the independent suspension with the match of the complex structure, this structure is mainly seen on the ride comfort of the higher part of sedans and some off-road vehicle, and the latter more than a light following riders Bridge drive vehicles or heavy-duty off-road vehicle.3.3 Bridge over drive layoutIn order to improve loading and adoption of some medium - and heavy-duty vehicles and all over the use of off-road vehicles are driven more bridge, and often used 4,6 × 4 × 8 × such as 6,8-driven type. Multi-Bridge driver in the circumstances, the driving force at the drive actuator pass in the way the two bridges. The two corresponding power transmission, the Multi-Bridge drive vehicle driving axle layout patterns into non-hollow and hollow. The former in order to force the pass at the drive actuator bridge to the actuator from the drive axle by its own dedicated power transmission drive shaft, not only to increase the number of drive shaft, and the cause of the drive axle Bridge parts in particular Shell, and other major parts Semiaxle not universal. On the 8 × 8 vehicle, this non-drive-through bridge is even more inappropriate, but also a difficult layout.In order to solve the above problems, modern bridges are used in cars driven through the drive axle-type layout.In the drive-through layout of the bridge, the bridge driveshaft layout in the same vertical longitudinal plane, and were not the driving axle drive shaft and use their own sub-actuator directly connected, but in front of the actuator or the back of the two adjacent bridge driveshaft is the tandem arrangement. The two ends of the car after driving axle impetus by the actuator and transmission through the middle of the bridge. The advantage is not only reduce the number of drive shaft, but also increase the driving axle parts of the mutual general, and to simplify the structure, reducing the size and quality. This vehicle design (such as car variant), manufacturing and maintenance, convenient4. Drive axle componentsDriven mainly by the main bridge reducer, differential, half-axle and drive axle housings and other components.1. Lord reducerReducer to change the general direction of transmission, reduce speed and increase torque to ensure that there are sufficient vehicles and the driving force of the appropriate speed Paper. Reducer more main types, single-stage, two-stage, two-speed, such as round-reducer.(1) single-stage main reducerBy achieving a gear reducer deceleration devices, known as a single-stage reducer. Its structure is simple, light weight, Dongfeng BQl090 type light, widely used on medium-duty truck.( 2) Two-stage main reducerSome of the larger truck load for a slowdown than larger, single-level main reducer drive, moving from the diameter of gear must be increased, it will affect the drive axle ground clearance, a two-reducer . Often referred to as the two-stage reducer. There are two double-reducing gear reducer, to the two-twisting by deceleration.To enhance the meshing of gears cone smooth and strength, the first vice-gear reducer is spiral bevel gears. Two helical gear is the result of Vice gear.Active bevel gear rotation, led a round-driven rotary gear, thus completing a slowdown. Second-class deceleration initiative Gear Driven and bevel gear and a rotating coaxial, and driven gear driven rotary cylinder, a second-class deceleration. Driven by cylindrical gear installed in the differential case, therefore, when the follower cylinder gear rotates, and through the half axle differential rotation that drive the wheels. 2. DifferentialAbout half axle differential to connect, to enable both sides of the wheels at different angular velocity of rotation torque transmission. Guarantee the normal wheels rolling. Some bridges-driven cars, in the actuator or in the hollow shaft of the transmission are available differential, known as bridge between differential. Its role in the automotive turn or uneven traffic on the road, before and after the drive wheel differential between role.At present domestic cars and other types of vehicles in the basic use of the symmetrical cone ordinary differential gear. Symmetric bevel gear from the planetary gear differential, half axle gear, planetary gear shaft (axle or a direct cross-axis) and differential shell components.Most car-use planetary gear differential, ordinary differential bevel gear cone by two or four planetary gears, gear shaft, the two conical about half axle differential gear and shell components.3. SemiaxleSemi-axle differential is the torque came to pass wheels, rotating wheel drive, and promote car travelling solid shaft. Since the installation of wheels different structures, and the force Semiaxle also different. Therefore, Semiaxle divided into floating, semi-floating, 3 / 4 floating three types.(1) Full-floating SemiaxleGenerally large and medium-sized cars are used all floating structures. Semiaxle end of the spline and with the half-axle differential gear connected to the outer end Semiaxle forging a flange, with bolts and wheels connected. Wheel through two further away from the text of Tapered Roller Bearings for the half axle casing. Semiaxle bridge shell casing pressure and after one match, composition drive axle housings. Supporting the use of such forms, and the bridge shell Semiaxle not directly linked to Semiaxle driving torque not only bear to bear any moment, such Semiaxle called the "floating" half axle. The so-called "floating" that is not half axle bending load.Floating Semiaxle all, the end-to-flange and shaft into one. But there are also some truck into separate parts of the flange, and a set of keys to spend half axle, in the end. As a result, the two ends are Semiaxle spline can be used for the first.(2) semi-floating SemiaxleSemi-axle semi-floating with all of the floating-the same does not bear bending and torsion. Aloof-supported through a direct bearing on the inside half axle casing. Supportingthis approach will bear moment Semiaxle outer end. Therefore, in addition to this Banxiu torque transmission, but also to sustain local moment, the semi-called floating Semiaxle. This structure type mainly used for small buses.(3), 3 / 4 floating Semiaxle3 /4 floating Semiaxle is subject to the degree of bending short range semi-floating and the entire floating between. Application of this type currently Semiaxle little Xiaowoche only on the individual applications, such as Warsaw M20 car.附录B驱动桥相关介绍一．功能：驱动桥处于动力传动系的末端，其基本功能是增大由传动轴或变速器传来的转矩，并将动力合理的分配给左、右驱动轮，另外还承受作用于路面和车架或车身之间的垂直立、纵向力和横向力。
