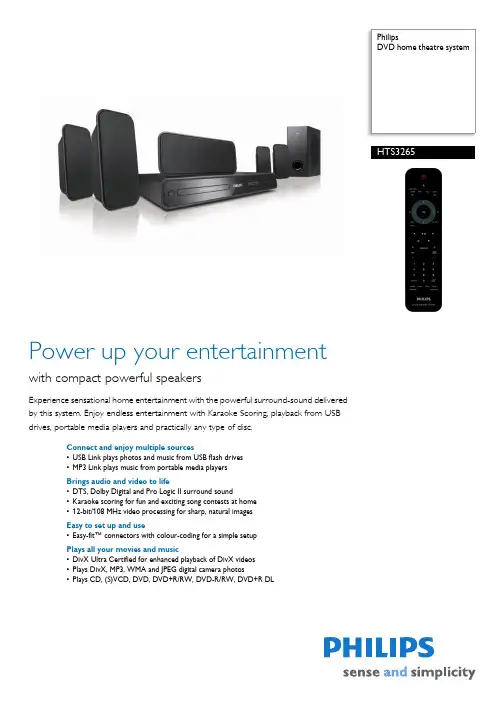

PhilipsDVD home theatre systemHTS3265Power up your entertainmentwith compact powerful speakersExperience sensational home entertainment with the powerful surround-sound delivered by this system. Enjoy endless entertainment with Karaoke Scoring, playback from USB drives, portable media players and practically any type of disc.Connect and enjoy multiple sources•USB Link plays photos and music from USB flash drives •MP3 Link plays music from portable media players Brings audio and video to life•DTS, Dolby Digital and Pro Logic II surround sound•Karaoke scoring for fun and exciting song contests at home •12-bit/108 MHz video processing for sharp, natural images Easy to set up and use•Easy-fit™ connectors with colour-coding for a simple setup Plays all your movies and music•DivX Ultra Certified for enhanced playback of DivX videos •Plays DivX, MP3, WMA and JPEG digital camera photos•Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW, DVD+R DLHighlightsUSB LinkThe Universal Serial Bus or USB is a protocolstandard that is conveniently used to link PCs,peripherals and consumer electronicequipment. With USB Link, all you have to dois plug in your USB device, select the photo ormusic, and play away.DTS, DolbyDigital, ProLogic IIA built-in DTS and Dolby Digital decodereliminates the need for an external decoder byprocessing all six channels of audio informationto provide a surround sound experience andan astoundingly natural sense of ambience anddynamic realism. Dolby Pro Logic II providesfive channels of surround processing from anystereo source.DivX Ultra CertifiedWith DivX support, you can enjoy DivXencoded videos in the comfort of your livingroom. The DivX media format is an MPEG4-based video compression technology thatenables you to save large files such as movies,trailers and music videos on media, e.g. CD-R/RW and DVD recordable discs. DivX Ultracombines DivX playback with great featuresincluding integrated subtitles, multiple audiolanguages, multiple tracks and menus into oneconvenient file format.Karaoke scoringAdd a dash of fun to your Karaoke sessionswith Karaoke Scoring. Allow yourperformance to be judged for furtherimprovement, or for friendly competitions.Karaoke Scoring automatically rates yoursinging and gives you a humorous picture thatis tied to how well you did. The fun never ends.12-bit/108 MHz video DAC12-bit Video DAC is a superior Digital-to-Analogue Converter that preserves everydetail of the authentic picture quality. It showssubtle shades and smoother graduation ofcolours, resulting in a more vibrant and naturalpicture. The limitations of the standard 10-bitDAC become particularly apparent when it isused with large screens and projectors.Easy-fit™ connectorsColour-coded connectors provide a simpleand user-friendly solution for connecting thespeakers and subwoofer to the centre unit ofthe home entertainment system simply byplugging the connectors into the matchingcoloured interface at the rear of the centreunit.Plays it allPlay virtually any media format you want -whether it is DivX, MP3, WMA or JPEG.Experience the unbeatable convenience ofgreat playability, and the luxury of sharingmedia files on your TV or home theatre system- in the comfort of your living room.Plays it allPlay virtually any disc you want - whether theyare CDs, (S)VCDs, DVDs, DVD+R, DVD-R,DVD+RW, DVD-RW or DVD+R DL.Experience unbeatable flexibility and theconvenience of playing all your discs on theone device.SpecificationsPicture/Display•D/A converter: 12bit, 108MHz•Picture enhancement: Progressive ScanSound•Total Output Power: 600 W•Output power (RMS): 4x75W, 2x150W•D/A converter: 24-bit, 192 kHz•Frequency response: 180-14000 Hz•Signal to noise ratio: > 60 dB•Sound System: Dolby Digital, Dolby Prologic II, DTS, Stereo•Equalizer settings: Action, Classic, Concert, Drama, Gaming, Lounge, Rock, Sports •Sound Enhancement: Class "D" Digital Amplifier, Night ModeVideo Playback•Compression formats: MPEG1, MPEG2, DivX 3.11, DivX 4.x, DivX 5.x, DivX 6.0, DivX Ultra •Playback Media: DVD-Video, DVD+R/+RW, DVD-R/-RW, Video CD/SVCD, CD-R/CD-RW •Video disc playback system: NTSC, PALAudio Playback•Compression format: MP3, WMA•Playback Media: CD-R/RW, USB flash drive, CD •MP3 bit rates: 32-256 kbps and VBRStill Picture Playback•Picture compression format: JPEG•Playback Media: DVD+R/+RW, DVD-R/-RW, CD-R/RW, USB flash drive•Picture enhancement: Rotate, Zoom, Slideshow with music playbackTuner/reception/transmission•Tuner Bands: FM•No. of preset Audio Channels: 40 Connectivity•Rear Connections: Component Video output, Composite video (CVBS) output, AUX in, FM Antenna, Easy-Fit speaker connectors•Front/Side connections: Microphone input 3.5 mm jack, MP3 Line-in, USBPower•Power supply: 120/230 VAC, 50/60 Hz •Standby power consumption: < 1 W•Power consumption: 100 W Loudspeakers•Satellite speaker drivers: 3" full-range woofer •Satellite speaker impedance: 4 ohm •Satellite speaker freq range: 150-20,000 Hz •Centre Speaker: Magnetically shielded •Centre speaker drivers: 3" full-range woofer •Centre speaker impedance: 8 ohm•Centre freq range: 150-20,000 Hz •Subwoofer driver: 6.5" high-efficiency woofer •Subwoofer type: Passive•Subwoofer impedance: 8 ohm•Subwoofer freq range: 45-150 Hz Accessories•Included Accessories: Remote Control, 2 x AAA Batteries, CVBS video cable, FM antenna, Quick start guide, User manual, World Wide Warranty leaflet, Power cordDimensions•Set dimensions(W x H x D): 360 x 58 x 332 mm •Set weight: 2.8 kg•Surround Speaker dimensions (W x H x D): 103 x 203 x 71 mm•Surround Speaker Weight: 0.656 kg•Center speaker dimensions (W x H x D):244 x 105 x 74 mm•Centre Speaker Weight: 0.78 kg •Subwoofer dimensions (W x H x D):163 x 363 x 369 mm•Subwoofer Weight: 4.865 kg•Packaging dimensions (W x H x D):446 x 417 x 378 mm•Weight incl. Packaging: 13 kgOuter Box•Gross weight: 13.605 kg•Outer carton(L x W x H): 45.8 x 45 x 43 cm •Net weight: 11.645 kg•Tare weight: 1.96 kg•EAN: 87 12581 43743 5•Number of consumer packages: 1 Packaging dimensions•Packaging dimensions (W x H x D):45.8 x 43 x 45 cm•Gross weight: 13.605 kg•Net weight: 11.645 kg•Tare weight: 1.96 kg•EAN: 87 12581 43743 5•Number of products included: 1•Packaging type: BoxProduct dimensions•Cable length: 0 cm•Product dimensions (W x H x D): 0 x 0 x 0 cm •Weight:0 kgIssue date 2009-05-23 Version: 2.0.512 NC: 8670 000 41619 EAN: 87 12581 43743 5© 2009 Koninklijke Philips Electronics N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. 。

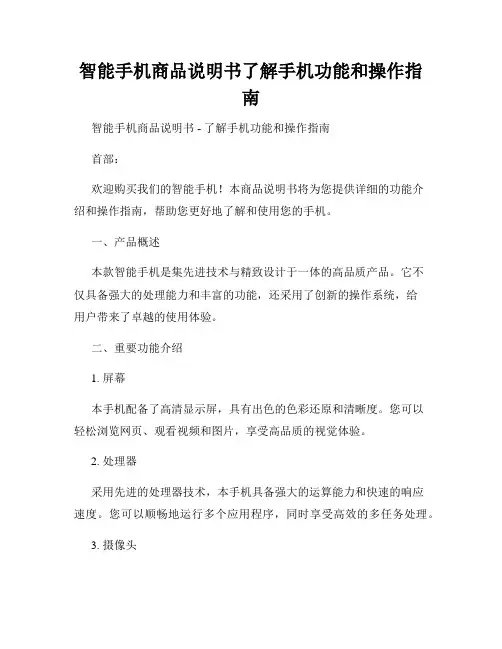

智能手机商品说明书了解手机功能和操作指南智能手机商品说明书 - 了解手机功能和操作指南首部：欢迎购买我们的智能手机！本商品说明书将为您提供详细的功能介绍和操作指南，帮助您更好地了解和使用您的手机。

一、产品概述本款智能手机是集先进技术与精致设计于一体的高品质产品。

它不仅具备强大的处理能力和丰富的功能，还采用了创新的操作系统，给用户带来了卓越的使用体验。

二、重要功能介绍1. 屏幕本手机配备了高清显示屏，具有出色的色彩还原和清晰度。

您可以轻松浏览网页、观看视频和图片，享受高品质的视觉体验。

2. 处理器采用先进的处理器技术，本手机具备强大的运算能力和快速的响应速度。

您可以顺畅地运行多个应用程序，同时享受高效的多任务处理。

3. 摄像头配备高像素的摄像头，本手机能够拍摄出色的照片和视频。

您还可以利用各种拍摄模式和特效，记录美好瞬间并与朋友分享。

4. 存储空间手机内置大容量存储空间，您可以轻松存储大量的照片、音乐和视频。

此外，您还可以通过扩展存储卡来满足更大容量的需求。

5. 电池续航本手机配备高容量的电池，能够满足您一天的正常使用需求。

同时，节能优化的操作系统也将最大限度延长手机的续航时间。

6. 网络连接支持多种网络连接方式，包括4G网络和Wi-Fi，让您随时随地畅快地浏览网页、观看流媒体内容和下载应用程序。

三、操作指南1. 开机与关机按住电源按钮，手机将自动开机。

要关机，也可以按住电源按钮并选择“关机”。

2. 解锁手机按下电源按钮，手机屏幕将亮起并显示解锁界面。

您可以使用密码、图案或指纹等方式解锁手机，保护您的个人信息安全。

3. 主屏幕手机开机后，您将看到主屏幕。

在主屏幕上，您可以查看时间、日期和天气信息，还可以轻松访问常用应用程序和设置项。

4. 应用程序通过点击主屏幕上的应用图标或者滑动屏幕，您可以打开和使用各种应用程序。

在应用程序中，您可以进行通话、发送短信、浏览网页、播放音乐等操作。

5. 通知中心从屏幕顶部向下滑动，即可打开通知中心。

29使用基本功能在传输音乐文件到手机或存储卡后，1.在功能表模式下，点击音乐播放器。

2.选择一个音乐目录 → 音乐文件。

3.用下列虚拟按键控制播放：浏览网页学会访问以及对收藏网页标记书签。

浏览网页1.在待机模式下，按下[]登陆服务提供商的主页。

2.在屏幕上点击操作浏览网页或使用按键：按键功能暂停播放开始播放调节音量高或低返回上一个文件；快退浏览文件（点住）跳到下一个文件；快进浏览文件（点住）按键功能导航键向上或向下滚动到一个网页选择一个项目后退返回到先前的网页选项访问浏览器的选项列表使用高级功能学会如何执行高级操作并使用手机附加功能。

使用高级通话功能了解手机附加通话功能。

查看和拨打未接电话手机会在显示屏上显示未接电话。

要拨打未接电话号码，1.点击通话或查看。

2.滚动到欲拨打的未接电话。

3.按下[]拨打。

呼叫最近已拨电话1.在待机模式下，按下[]进入通话记录。

2.滚动到所需电话号码并按下[]拨打。

3031使用高级功能通话的同时拨打另一个电话如果网络支持该项功能，可以在通话时拨打另外一个号码：1.按下[]将第一个通话保持。

2.输入第二个号码，并按下[]。

3.按下[]切换这两个电话。

4.要结束当前通话，按下[]。

应答第二个来电如果网络支持该项功能，可以在通话中接听另外一个来电：1.按下[]接听第二个电话。

第一个电话自动保持。

2.点击[]切换这两个电话。

多方通话（电话会议）1.呼叫多方通话中欲添加的第一方。

2.连接到第一方后，呼叫第二方。

3.第一方自动保持通话。

4.连接到第二方后，点击选项 → 电话会议。

5.重复上述步骤添加更多通话方（如有必要）。

6.要结束多方通话，按下[]。

呼叫国际长途1.在待机模式下，点击[0]并选择国际通话代码。

2.输入要拨打的完整号码（国家代码、区号和电话号码），然后按下[]拨打。

最多可添加5个通话方（能否实现此功能随网络服务提供商而异）。

使用高级功能利用联系人拨打电话可以使用存储的联系人条目直接拨打号码。

KT204-S矿用本安型手机
技
术
资
料
浙江国友工程技术有限公司
2017年01月
KT204-S矿用本安型手机使用说明书警示：
★安装、使用产品前，请阅读使用说明书。

★本安产品不得与其他未经许可的设备连接！
★严禁在井下开盖安装及维护！
★维修时不得改变本安电路的元器件、规格型号和参数！
★严禁在井下充电！
注意事项：
1 严禁使用厂家配备以外的电池！
2 严禁自行修理或拆卸电池！
3 安装、调试必须由专业人员进行！
1用途及适用范围
KT204-S矿用本安型手机（以下简称手机）为矿用无线手机设备,该产品的配套设备是KT204-F2 矿用隔爆兼本安型基站（以下简称基站）。

基站采用WIFI与TCP/IP技术相结合，在煤矿井下实现了无线数据的高速传输，可以实现井下手机之间的通信。

2
f）环境噪声：不大于65dB。

2.4.2手机能承受的最恶劣的贮运条件：
a）温度：－40℃～＋60℃
b）平均相对湿度：≤95%（+25℃）
c）机械环境：振动加速度20m/s2，冲击加速度500m/s2。

2.5外形尺寸及重量
手机外形见图1所示。

3
e）电池最大短路电流：2.8A；
f) 电池连续通话时间：≥2h。

3.3无线传输参数
a）工作信道：1、6、11信道；
b）无线工作频率：（2400～2483）MHz；
c）发射场强：（-40～-15）dBm/m；。

KT105A-S(A) WiFi矿用本安型手机使用说明书济南蓝动激光技术有限公司Copyright 2010, Jinan Landong Laser Technology Co., Ltd.ALL RIGHTS RESERVED目录1. 前言 (2)2. 警告和注意事项 (2)3. 概述 (2)4. 设备工作条件 (2)5. 物理特性 (3)6. 手机示意图 (3)7. 使用说明 (3)7.1常用功能说明 (3)7.2菜单结构 (4)7.2.1 信息 (4)7.2.2 电话本 (4)7.2.3 呼叫记录 (5)7.2.4 网络设置 (5)7.2.4.1 AP 配置 (5)7.2.4.2 信号协议 (6)7.2.4.3 Internet协议 (7)7.2.4.4 高级设置 (8)7.2.4.5 搜索网络 (8)7.2.5 设置 (8)7.2.5.1 手机设置 (8)7.2.5.2 对讲功能 (9)7.2.5.3 一键报警功能 (9)7.2.5.4 脱网通信功能 (9)7.2.5.5 AdHoc工作模式 (9)8. 包装、运输和贮存 (9)9. 保养与维护 (9)10. 疑难解答 (10)1.前言KT105A-S(A)本安型手机（以下简称手机），属于煤矿用防爆通信设备,为了使您能够正确使用该设备，充分发挥设备的功能，请在使用前认真阅读本说明书，充分理解有关事项，尤其是说明书中用黑体字标示“警告”、“注意”的部分。

在使用过程中，请正确理解该设备的工作性能，严格按照操作规程进行。

本说明书由济南蓝动激光技术有限公司修订发布，内容解释权归济南蓝动激光技术有限公司。

济南蓝动激光技术有限公司保留对本说明书进行修改和编辑的权力，我们将把与使用相关的修订内容及时通知用户。

2.警告和注意事项★使用前必须认真阅读本说明书！★本安产品不得与其他未经许可的设备连接！★严禁使用厂家配备以外的电池！★维修时不得改变本安电路的元器件、规格型号和参数！★严禁自行修理或拆卸电池！★安装、调试必须由专业人员进行！★在矿山、矿井等工作场合使用，严禁井下进行开盖安装、维护、充电！3.概述KT105A-S(A)本安型手机携带方便，操作简单，与普通民用手机操作方法相似。

一、KT105A-S(A) WIFI手机基本性能如下:◎额定工作电压：DC3.7V；◎工作电流：不大于330mA；◎防护等级：GB4208-93 IP54；◎防爆型式：本质安全型；◎防爆标志：6小时(视网络情况而定)；◎待机时间：90小时使用环境:◎无强烈振动和直接漏水、淋水处.◎环境湿度: 0℃-40℃◎相对湿度: 不大于95％(25℃).◎用于含有甲烷和煤尘等爆炸混合物的矿井中.工业应用：◎工作信道： 1--11信道◎数据传输速率： 54Mbit/s◎发射场强： -40dBm---- -10dB◎接收灵敏度：≤-80dB/m无线通讯指标：◎支持分组对讲；◎支持一键求救◎支持点对点通信◎工业安全设计,抗腐蚀、抗火、抗震手机功能:◎来电、状态概要显示；◎呼叫等待，呼叫保持；◎短信息功能: 实现点对点的短信互发、转发；◎名片夹功能；最近通话查看；◎铃声功能：可选铃声，内置振动；◎实现拨打不通的情况下转接到话务员；◎支持漫游切换；◎双麦克风设计，支持工业用耳机。

◎支持免提◎支持脱网通讯，在没有IP-PBX的情况下终端对终端的语音通讯二、定向天线A产品名称：LD-2400B60D18产品类别：板状天线技术参数:频率范围 MHz 2400-2483带宽 MHz 83增益 dBi 18水平面波瓣宽度° 60°垂直面波瓣宽度° 15°前后比dB ≥25电压驻波比≤1.5输入阻抗Ω 50极化方式垂直最大功率W 100接收型号Ｎ座天线尺寸mm 1200*180*80重量kg 6支撑杆直径mm φ50-75B产品名称：LD24-15B产品类别：30°-15dBi平板定向天线技术参数:频率范围 2400-2483(MHz)输入阻抗 50(Ω)驻波比系数VSWR <1.5增益Gain 15(dBi)半功率波束(3dB)HPBW 30°H-plane 30°E-plane 前后比F/B >25(dB)功率容量 200(W)极化方式垂直极化接口 N-K闪电保护直接接地抗风 200(km/h)长/宽/厚 216×190×45(mm)重量 1.5(Kg)三、FHG-7矿用本安型光纤接线盒基本性能如下：◎防护等级：GB4208-93 IP54；◎防爆型式：本质安全型；◎防爆标志：ExibⅠ；◎安标证号：MAF090205使用环境:◎无强烈振动和直接漏水、淋雨处。

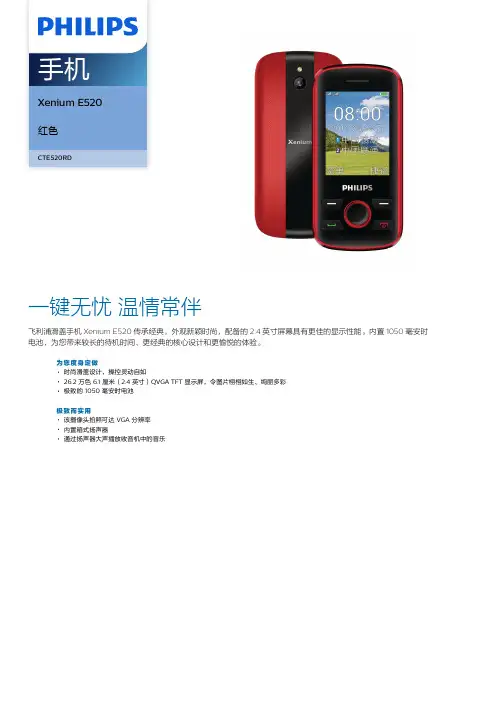

Xenium E520红色CTE520RD一键无忧温情常伴飞利浦滑盖手机 Xenium E520 传承经典，外观新颖时尚，配备的 2.4 英寸屏幕具有更佳的显示性能。

内置 1050 毫安时电池，为您带来较长的待机时间、更经典的核心设计和更愉悦的体验。

为您度身定做时尚滑盖设计，操控灵动自如26.2 万色 6.1 厘米（2.4 英寸）QVGA TFT 显示屏，令图片栩栩如生、绚丽多彩极致的 1050 毫安时电池极致而实用该摄像头拍照可达 VGA 分辨率内置箱式扬声器通过扬声器大声播放收音机中的音乐手机CTE520RD/93规格尺寸形状因数: 直板手机尺寸: 112 毫米 * 53.7 毫米 * 15.3 毫米手机重量: 112.2 克天线: 集成式网络功能信息收发: 连锁短信（加长短信）, SMS CB（小区广播）, SMS（短消息服务）, 短信群发语音编解码器: FR/EFR/AMR/HRQual Band (850-900-1800-1900)图片/显示主屏技术: TFT主屏分辨率: 240x320 像素屏幕对角线尺寸（英寸）: 2.4 英寸主屏颜色: 26.2 万色声音铃声: MP3 铃声, 64 和弦音频播放音频支持格式: MP3, Midi, AMR 音频录制录制您自己的声音存储介质存储卡类型: Micro SD存储卡最大容量: 16 GB内存管理: 存储器状态多媒体应用记忆卡接口: SD 卡插槽连接串行连接: USB-MicroUSB 数据线便利性按钮和控制: 4 向导航键和输入通话管理: 通话计数器, 通话计时, 紧急电话, 麦克风静音, 未接电话, 已接来电, 呼叫前转, 通话保持, 呼叫等待*时钟/版本: 数字易于使用: 双 SIM 卡, 免提模式, 键盘锁, 软键, 振动提示, 图形用户界面游戏和应用程序: 闹钟, 计算器, 日历可用语言：界面: 简体中文, 简体中文多媒体: FM 收音机个性化/自定义: 墙纸, 铃声文本输入: 字符计数器, 智能预测输入振铃功率电池类型: 锂离子电池容量: 1050 毫安时附件标准包装包括: 电池, 充电器, 用户手册, USB 数据线环保规格无铅焊接产品包装材料: 箱体用户手册：再造纸静态照片播放图像压缩格式: BMP, JPEG, GIF, PNG音频捕捉语音录制: AMR* 此便携式手机充电器适用于输出电压为 5V 和输出电流高达1000mA 的 USB 供电的设备。

警告：1）使用前应阅读本说明书，严格按说明书中方法进行安装和操作。

2）严禁与未经联检的设备连接，否则将影响产品的本安性能。

3）检修时不得修改本安电路及关联电路中元器件的型号、规格及电气参数。

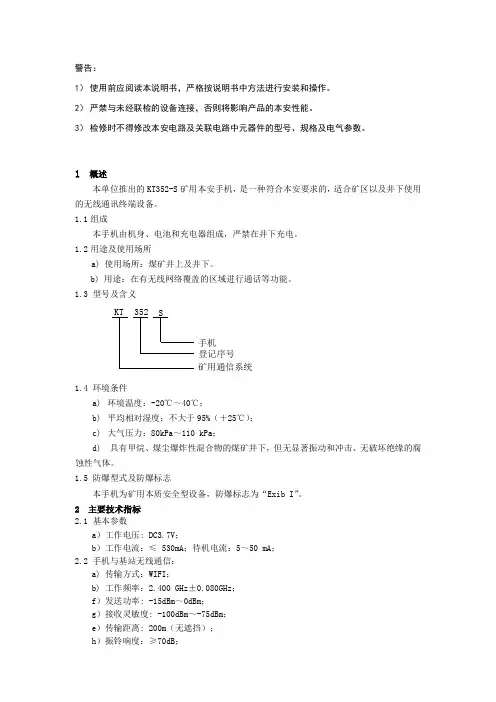

1 概述本单位推出的KT352-S矿用本安手机，是一种符合本安要求的，适合矿区以及井下使用的无线通讯终端设备。

1.1组成本手机由机身、电池和充电器组成，严禁在井下充电。

1.2用途及使用场所a) 使用场所：煤矿井上及井下。

b) 用途：在有无线网络覆盖的区域进行通话等功能。

1.3 型号及含义KT352S手机登记序号矿用通信系统1.4 环境条件a)环境温度：-20℃～40℃；b)平均相对湿度：不大于95%（＋25℃）；c)大气压力：80kPa～110 kPa；d)具有甲烷、煤尘爆炸性混合物的煤矿井下，但无显著振动和冲击、无破坏绝缘的腐蚀性气体。

1.5 防爆型式及防爆标志本手机为矿用本质安全型设备，防爆标志为“Exib I”。

2 主要技术指标2.1 基本参数a）工作电压: DC3.7V；b）工作电流：≤ 530mA；待机电流：5～50 mA；2.2 手机与基站无线通信：a) 传输方式：WIFI；b) 工作频率：2.400 GHz±0.080GHz；f）发送功率: -15dBm～0dBm；g）接收灵敏度: -100dBm～-75dBm；e）传输距离: 200m（无遮挡）；h）振铃响度：≥70dB；i）通话时长：通话时间不小于6小时，待机时间不小于80个小时；2.3本安参数Uo：DC4.2V，Io：2.0A3、基本功能●手机应具有来电提示功能。

●手机应具有呼叫控制功能。

●手机应具有电源管理功能：包括电量指示、充电指示、欠压提示及自动关机功能。

4 、使用前须知4.1检查打开包装盒后，请检查以下组件。

如果缺少所述物品中的任何一件，或者使用说明书出现缺页等严重影响阅读的情况，请与出售本手机的经销商联系。

●KT352-S矿用本安型手机〔 1 个，含电池〕●充电器（1 个）●中文使用说明书（1 本）●合格证4.2 手机规格尺寸119mm(L)*53mm(W)*23.6mm(H)重量约400g电源 DC 4.2V 1200mAh 锰酸锂电池充电时间 6小时待机时间 80小时待机时间是指手机在不通话、不移动情况下的持续开机工作时间，与具体网络情况有关。
