ATV61变频器通用参数设置步骤ATV61变频器操作面板按键布置为：本机集成面板：通过按键操作可以设置、调整并保存参数，下面举例说明：假设需要设置SET菜单中的ACC参数，在rdY状态（显示rdY）下，按“上（下）箭头”按键找到SET菜单（显示SEt）；按“ENT”按键进入，按“上（下）箭头”按键找到ACC参数（显示ACC）；按“ENT”按键进入ACC参数的设置，显示“15.0”（出厂设置或之前被设置过的值）；按“上（下）箭头”按键修改数值，将其改为想要设置的值（比如需要改为26.0）；按“ENT”按键，保存修改过的参数值，屏幕闪烁一次表示保存成功；按“ESC”按键退回到ACC参数（显示ACC）；按“ESC”按键退回到SET菜单（显示SEt）；按“ESC”按键退回到准备状态（显示rdY）。
参数设置完毕，如下流程图所示。
其他参数的设置可参照这个流程。
具体可设置的参数内容和设置方法请参阅产品ATV61用户手册。
对于常规应用，变频器设置步骤一般为：1、宏配置2、设置电机铭牌数据3、电机自整定（自学习）4、设置保护类参数5、根据控制要求定义逻辑端子6、根据工艺或负载要求设置通用参数7、试运行，根据运行情况调整变频器控制参数下面对上述步骤进行详细讲解。
1、宏配置：针对不同负载的控制要求，施耐德变频器预先定义了宏配置，定义了I/O端子的初始功能。
ATV61出厂宏配置为“泵和风机”，I/O配置如下：更改宏配置，可在“1.1简单启动菜单”下修改。
如有需要，也可以单独重新配置端子定义，此时的宏配置为用户定制宏。
2、设置电机铭牌数据在“1.1简单设置”或“1.4电机控制”菜单中设置有关电机的名牌数据：额定电压、额定频率、额定电流、额定转速、功率因数等。
3、电机自整定（自学习）设置好电机铭牌数据后，可以对电机进行自整定（自学习）。
具体操作为：进入“1.1简单设置” 或“1.4电机控制”菜单，进入自整定（tUn）参数，选中“请求自整定（YES）”，按“ENT”按键，变频器自动对电机进行自整定。
ATV61变频器参数设置变频器需调试时需要设置的参数有：调试电机参数（电压、频率、转速），变频器预置速度频率给定，变频器继电器R1、R2定义。
一、调试步骤：1.语言选择：变频器上电在后在（5语言选择）里面选择相应的语言，如下图2、访问等级选择：按ESC键返回主菜单，在（2访问等级）里选择相应权限，如下图3、在（1变频器菜单）1.1简单启动菜单中进行相应的设置2/3线控制根据图纸原理选择2线控制宏设置选择相应的宏（根据上图，调试时选择的是标准启/停）（标准启/停）宏已经将下列参数定义为：R1变频器无故障R2未分配Ll1正向Ll2故障复位Ll3未设置Ll4未设置Ll5未设置注：上述图纸中未用到的参数没列出4、（1.8故障管理）设置：Ll2未设置注：原理图中Ll2为反向，而（标准启/停）宏已经将Ll2定义为故障复位，这就需要在1.8故障管理中将Ll2定义为未设置5、（1.5输入输出）设置：Ll1正向Ll2反向Ll32个预置速度（在1.7应用功能里面设置）Ll44个预置速度（在1.7应用功能里面设置）Ll58个预置速度（在1.7应用功能里面设置）R2运行R1故障6. 在（1.7应用功能）中进行预置速度设置：2个预置速度Ll34个预置速度Ll48个预置速度Ll5预置速度10HZ(Ll1/Ll2)预置速度210HZ(Ll1/Ll2、Ll3)预置速度315HZ(Ll1/Ll2、Ll4)预置速度420HZ(Ll1/Ll2、Ll4、Ll3)预置速度525HZ(Ll1/Ll2、Ll5)预置速度630HZ(Ll1/Ll2、Ll5、Ll3)预置速度735HZ(Ll1/Ll2、Ll5、Ll4)预置速度850HZ(Ll1/Ll2、Ll5、Ll4、Ll3) 7．在（1.4电机控制）里对调试电机进行参数设置：标准电机频率50/60HZ选择50HZ电机额定功率调试电机铭牌上额定功率电机额定电压380V电机额定电流调试电机铭牌上额定电流电机额定频率调试电机铭牌上给出的额定频率电机额定转速试电机铭牌上给出的额定速度。
ATV61F变频器设置
ATV61F变频器设置
——A01 设置——电机频率
——AL2设置——最⼩值——4MA
变频器菜单——输⼊/输出设置——R1 设置——继电器R1分配——变频器故障
——R2 设置——继电器R2分配——变频器运⾏
——R3 设置——继电器R3分配——参数2有效
给定通道——AL1给定（⾯板启动时）
——AL2给定（后台启动时）
给定1 —→AI2；
控制通道切换——通道1有效（设为此时代表由⾯板启动）
变频器菜单——命令——通道2有效（设为此时端⼦启动即后台启动有效）
命令通道1设置——端⼦排
命令通道2设置——端⼦排
I/O→R3分配→远程命令；
电机参数→最⼤频率→50Hz；
远程与本地切换按F4，REM远程，LOC本地；
注：如需本柜⾯板启动，应把“控制通道切换”设置为“通道1有效”同时“给定通道”设置为“AL1给定”
如需后台启动，应把“控制通道切换”设置为“通道2有效”同时“给定通道”设置为“AL2给定”
参数拷贝操作
如需把变频器A设置的参数拷贝到变频器B，⾸先在变频器A 中找到“打开/另存为”——另存为——⽂件夹1——确定上传，把数据传到控制器，然后把此控制器取下放在B变频器上，“打开/另存为”——打开——⽂件夹1——下载——全部——确定下载，这样就完成了两台变频器设置参数的拷贝。
ATV61变频器参数设置步骤以下是设置ATV61变频器参数的步骤。
请按照以下步骤进行设置：1. 关闭ATV61变频器: 首先，确保ATV61变频器处于关闭状态。
关闭ATV61变频器: 首先，确保ATV61变频器处于关闭状态。
2. 连接通信线路: 使用适当的通信线路将ATV61变频器与计算机连接。
确保连接线路的质量和稳定性。
连接通信线路: 使用适当的通信线路将ATV61变频器与计算机连接。
确保连接线路的质量和稳定性。
3. 打开ATV61变频器: 将ATV61变频器打开，并确保它已经启动。
打开ATV61变频器: 将ATV61变频器打开，并确保它已经启动。
4. 进入参数设置界面: 在计算机上打开适当的软件，并通过通信线路进入ATV61变频器的参数设置界面。
进入参数设置界面: 在计算机上打开适当的软件，并通过通信线路进入ATV61变频器的参数设置界面。
5. 选择参数设置选项: 在参数设置界面中，浏览可用的参数设置选项，并根据需求选择相应的选项。
选择参数设置选项: 在参数设置界面中，浏览可用的参数设置选项，并根据需求选择相应的选项。
6. 设置参数数值: 选择特定参数选项后，输入适当的数值以进行参数设置。
确保输入的数值与实际应用要求相匹配。
设置参数数值: 选择特定参数选项后，输入适当的数值以进行参数设置。
确保输入的数值与实际应用要求相匹配。
7. 保存参数设置: 在完成参数设置后，确保保存所做的更改。
一般来说，参数设置界面会提供保存选项。
点击保存选项以保存参数设置。
保存参数设置: 在完成参数设置后，确保保存所做的更改。
一般来说，参数设置界面会提供保存选项。
点击保存选项以保存参数设置。
8. 测试参数设置: 在完成参数设置并保存参数后，进行一系列测试以确保参数设置的正确性和有效性。
测试过程可以包括模拟工作环境和监测输出结果等。
测试参数设置: 在完成参数设置并保存参数后，进行一系列测试以确保参数设置的正确性和有效性。
变频器调试参数设置访问等级;标准权限语言：中文Chinese变频器菜单1.1简单起动2/3线控制：3线控制宏设置：泵和风机用户定制宏：YES标准电机频率：50HZ IEC电机额定功率：90KW电机额定电压：380V电机额定电流：163.0A电机额定频率：55.0HZ电机额定速度：1481rpm最大输出频率：55.0HZ电机热保护电流：185.0A(一般为额定电流，最大1.2Ia) 加速时间：200.0S减速时间：200.0S减速频率：0.0HZ高速频率：55.0HZ1.2监视参数基本不设置，为出厂设置1.3设置斜坡增量：0.1S加速时间：200.0S(默认30S)减速时间：200.0S低速频率：0.0HZ高速频率：55.0HZ电机热保护电流：185.0A自动直流注入电流1：150.5A自动直流注入时间1：0.5S自动直流注入电流2：107.5A自动直流注入时间2：0.0S变频器开关频率：2.5KHZ电流限幅1：258.0A电机预磁设置：不预磁低速运行超时：0.0S电机电流阈值：215.0A最低电流阈值：0.0A低力矩门限：+50%高力矩门限：+100%电机频率阀值：55.0HZ最低频率阀值：0.0HZ频率阈值2：55.0HZ第二频率阀值：0.0HZ自由停机门限：0.0HZ电机热阈值：100%最高给定频率阀值：55.0HZ最低给定频率阀值：0.0HZ 1.4.电机控制电机控制类型：2点压频比其他默认1.5输入输出设置2/3线控制：3线控制反转：未分配LI1设置: 运行LI1 0--1 延时：30msLI2设置：正转LI2 0—1 延时：0msLI4设置：切至给定2LI4 0—1 延时：0msLI5 设置：故障复位LI5 0—1 延时：0msAI1设置：分配给：给定2通道AI1类型：10V电压AI1最小值：0.0VAI1最大值：10.0VAI1过滤器：0.00SAI2设置：分配给：给定1通道AI2类型：电流AI2最小值：4.0MAAI2最大值：20.0MAAI2过滤器：0.00SR1设置：继电器R1分配：变频器运行继电器R1延时：0ms继电器保持条件：1继电器R1保持时间：0msR4设置：变频器故障继电器R4延时：0ms继电器保持条件：1继电器R4保持时间：0msAO1设置：AO1分配:电机频率AO1类型:电流AO1最小输出值：4.0MAAO1最大输出值：20.0MAAO3设置：AO3分配:电机电流AO31类型:电流AO3最小输出值：4.0MAAO3最大输出值：20.0MA 报警信号组等未设置1.6命令给定1通道：AI2给定反向禁止：YES停止按钮优先：YES组合模式：组合通道给定2切换：LI4给定2通道：AI1给定1.7应用功能给定切换给定1B切换：通道1有效给定1B通道：未设置停车设置：斜坡停车自动直流注入：自动直流注入：有自动直流注入电流1：150.5A自动直流注入时间1：0.5S自动直流注入电流2：107.5A自动直流注入时间2：0.0S1.8故障管理故障复位：LI5飞车起动：飞车起动：YES灵敏度：0.6%电机热保护：自冷电机电机过载故障管理：自由停车电机缺相：是输入电压缺相:自由停车变频器过热：自由停车100% 欠压故障：欠压管理：故障R1开电网电压：480Vac欠压故障电压：255V欠压故障延时：0.2S欠压保护设置：无斜坡停车可能通讯故障管理：自由停车制动单元保护：自由停车自整定故障：自由停车风阀故障管理：自由停车斜坡除数：4ATV71/61变频器的电机控制类型2点压频比和5点压频比的区别是什么？变频器的V/F控制类型有两种：2点压频比（UF2）和5点压频比（UF5）。

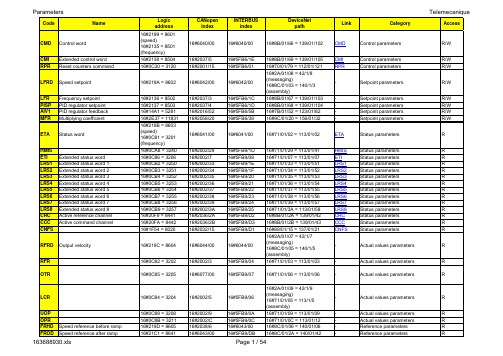

变频器ATV61参数设置表
注意事项：1.变频器“加速时间”与“减速时间”应根据功率和负载类型（负载惯量）正确设定，如较大功率水泵、风机加速时间“ACC”可设定为20s或30s；较大功率水泵减速时间“DEC”可设定为20s。
电机功率加大时，如果加速时间设置过短，变频器容易报过流故障。
2.对于风机，“停车类型”可设定为“自由停机”，在不要求正反转的应用中，保留“斜坡停机”这一默认设置也可以。
如果要求制动停机，则应设定为“直流注入”停机，需配制动电阻器（可能还需要制动单元，与变频器功率有关），并参考编程手册进一步设定相关参数。
3.如需对ATV61做更多的优化设置，可参考《ATV61编程手册》，该手册可从施耐德网站下载。
第1页共1页。
