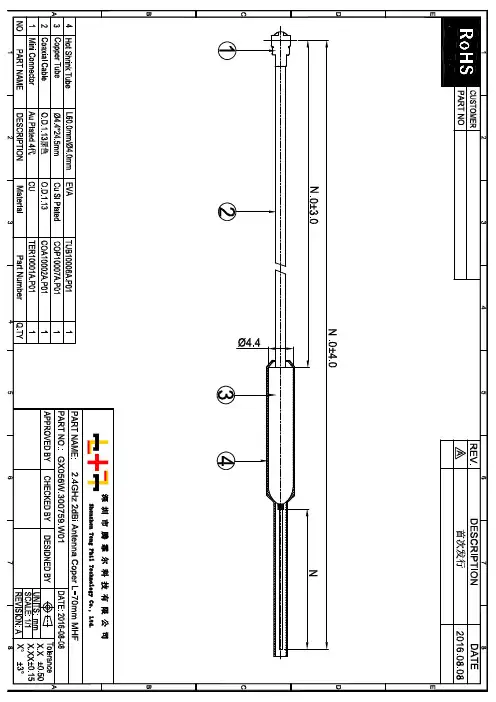

天线规格书

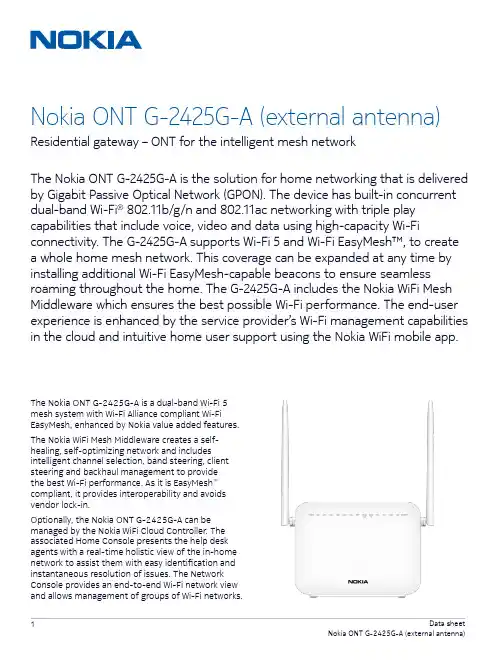

The Nokia ONT G-2425G-A is a dual-band Wi-Fi 5 mesh system with Wi-Fi Alliance compliant Wi-Fi EasyMesh, enhanced by Nokia value added features.The Nokia WiFi Mesh Middleware creates a self-healing, self-optimizing network and includes intelligent channel selection, band steering, client steering and backhaul management to provide the best Wi-Fi performance. As it is EasyMesh ™ compliant, it provides interoperability and avoids vendor lock-in.Optionally, the Nokia ONT G-2425G-A can be managed by the Nokia WiFi Cloud Controller. The associated Home Console presents the help desk agents with a real-time holistic view of the in-home network to assist them with easy identification and instantaneous resolution of issues. The Network Console provides an end-to-end Wi-Fi network view and allows management of groups of Wi-Fi networks.Nokia ONT G-2425G-A (external antenna)Residential gateway – ONT for the intelligent mesh networkThe Nokia ONT G-2425G-A is the solution for home networking that is delivered by Gigabit Passive Optical Network (GPON). The device has built-in concurrent dual-band Wi-Fi ® 802.11b/g/n and 802.11ac networking with triple play capabilities that include voice, video and data using high-capacity Wi-Ficonnectivity. The G-2425G-A supports Wi-Fi 5 and Wi-Fi EasyMesh™, to create a whole home mesh network. This coverage can be expanded at any time by installing additional Wi-Fi EasyMesh-capable beacons to ensure seamless roaming throughout the home. The G-2425G-A includes the Nokia WiFi Mesh Middleware which ensures the best possible Wi-Fi performance. The end-user experience is enhanced by the service provider’s Wi-Fi management capabilitiesin the cloud and intuitive home user support using the Nokia WiFi mobile app.This Nokia indoor ONT is designed to deliver triple play services (voice, video and data) to residential subscribers. Voice services are provided through two plain old telephone service (POTS) ports withan integrated analog telephone adapter (ATA)that converts voice traffic into Session Initiation Protocol (SIP). Connectivity to an existing public switched telephone network (PSTN) Class 5 switchis supported through SIP with direct interoperability of a variety of soft switches. Ethernet connectivity is available on four Gigabit Ethernet (GigE) ports, all of which have the ability to burst up to a full gigabit dynamically. Service providers can deliver video using IP packets (IPTV).Relying on dual-band Wi-Fi allows for support ofthe widest range of customer products. The IEEE 802.11ac standard enables gigabit speeds on many newer devices, while the widely supported 802.11b/g/n standard can simultaneously connect to legacy devices.Features• Four RJ-45 10/100/1000 Ethernet ports• Two POTS ports for carrier-grade voice services • Dual-band concurrent Wi-Fi: 2.4GHz and 5GHz • Wireless IEEE 802.11b/g/n: 2.4GHz• Wireless IEEE 802.11ac: 5GHz• Network Address Translation (NAT) and firewall • Voice interworking function from the analog POTS lines to the voice over IP (VoIP) and Ethernet layers • Two USB 2.0 host ports• Optics support received signal strength indication (RSSI)• Supports virtual private network (VPN) passthrough for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IPSec• Port forwarding and demilitarized zone (DMZ)/ dynamic domain name system (DDNS)Benefits• EasyMesh enhanced by Nokia value added features • Integrates the ONT and wireless access pointfunctions to allow for one less device in the home • Delivers connectivity to Ethernet devices within the home• Supports full triple play services, including voice, video and data• Allows service-per-port configurations• Supports IP video distribution• Supports easy-to-use USB 2.0 connections for external disk drives and home network attached storage (NAS)• Delivers voice services using VoIP• Delivers video services efficiently with multicasting or unicasting• Facilitates network management using Nokia 5520 AMS• Flexible video delivery options of Ethernet or wireless to set-top boxes (STBs) Technical specifications Physical• Height: 131 mm (5.1 in)–Excluding antenna of 170 mm (6.7 in)• Width: 170 mm (6.7 in)• Depth: 30 mm (1.2 in)• Weight: 0.42 kg (0.92 lb)Installation• Desk mountable• Wall mountable with bracketOperating environment• Temperature: -5°C to 45°C (23°F to 113°F)• Relative humidity: 10% to 90%Power requirements• Local powering with 12 V input (feed uses external AC/DC adapter)• Dying gasp support• Power consumption: <24 WGPON uplinks• Wavelength: 1490 nm downstream, 1310 nm upstream• Line rate: 2.488 Gb/s downstream, 1.244 Gb/s upstream• GPON Encapsulation Method (GEM) mode support for IP/Ethernet service traffic• ITU-T G.984.3-compliant dynamic bandwidth reporting• ITU-T G.984.3-compliant Advanced Encryption Standard (AES) in downstream• ITU-T G.984.3-compliant forward error correction (FEC)• ITU-T G.988 Appendix 1 and Appendix 2 ONT Management Control Interface (OMCI)• Remote software image download• BOSA On Board (BOB) type laser, SC/APC connectorEthernet interfaces• 10/100/1000Base-T interface with RJ-45 connectors• Wi-Fi Protected Access (WPA) support, including pre-shared key (WPA-PSK) and WPA2• Forwarding• Ethernet port auto-negotiation or manual configuration with medium dependent interface/ medium dependent interface crossover(MDI/MDIX)• Virtual switch based on IEEE 802.1q virtual LAN (VLAN)• VLAN tagging/de-tagging per Ethernet port and marking/remarking of IEEE 802.1p • IP type of service/differentiated services code point (ToS/DSCP) to IEEE 802.1p mapping for untagged frames• Class of service (CoS) based on VLAN ID, IEEE 802.1p bit• Internet Group Management Protocol (IGMP)v2/v3 snoopingPOTS interfaces• Two FXS ports for VoIP service with RJ-11 connectors• Multiple codecs: ITU-T G.711, ITU-T G.729• SIP (RFC 3261)• ITU-T G.168 echo cancellation• Services: caller ID, call waiting, call hold, 3-way call, call transfer, message waiting indication• 3 ringer equivalence numbers (RENs) per line • Dual-tone multi-frequency (DTMF) dialing• Balanced sinusoidal ring signal, 55 V root mean square (RMS)WLAN interfaces• 2x2 MIMO on 802.11b/g/n• 2x2 MIMO on 802.11ac• 5 dBi external antenna• WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES• Media access control (MAC) filtersUSB interface• Two USB 2.0 interfacesResidential gateways• IPv4 and IPv6• Point-to-Point Protocol over Ethernet (PPPoE) and IP over Ethernet (IPoE)• NAT, DMZ and firewall• Dynamic Host Configuration Protocol (DHCP) and domain name system (DNS) proxy• IGMP proxy• Supports TR-069About NokiaWe create the technology to connect the world. Only Nokia offers a comprehensive portfolio of network equipment, software, services and licensing opportunities across the globe. With our commitment to innovation, driven by the award-winning Nokia Bell Labs, we are a leader in the development and deployment of 5G networks.Our communications service provider customers support more than 6.4 billion subscriptions with our radio networks, and our enterprise customers have deployed over 1,300 industrial networks worldwide. Adhering to the highest ethical standards, we transform how people live, work and communicate. For our latest updates, please visit us online and follow us on Twitter @nokia.Nokia operates a policy of ongoing development and has made all reasonable efforts to ensure that the content of this document is adequate and free of material errors and omissions. Nokia assumes no responsibility for any inaccuracies in this document and reserves the right to change, modify, transfer, or otherwise revise this publication without notice.Nokia is a registered trademark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or trade names of their respective owners.© 2020 NokiaNokia Oyj Karaportti 3FI-02610 Espoo, Finland LEDs• Power • Link • Auth • LAN (1~4)• TEL (1~2)• VoIP• Wi-Fi Protected Setup (WPS) 2.4GHz/5GHz • WLAN 2.4GHz/5GHz • USB • InternetSafety and electromagnetic interference (EMI)• Protection of over voltage/currentRegulatory compliances• CE Mark • FCC Mark。

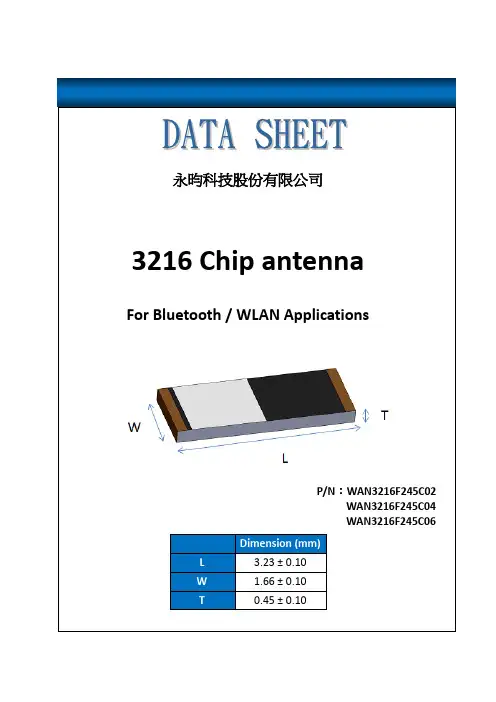

1.Electrical SpecificationRemark : Bandwidth & Peak Gain was measured under evaluation board of page2 Part Number InformationWAN 3216 F 245 C 0X(X=2,4,6)A B C D E F2.Recommended PCB Pattern◆Evaluation Board Dimension◆Suggested Matching Circuit永昀科技股份有限公司WinWave Electronic Co., Ltd.9F-2, No.82, Sec. 3, Beisin Rd., Sindian District, New Taipei City 23143, Taiwan(R.O.C.)Electronic Co., Ltd.W IN W AVELayout Dimensions in Clearance area ( Size=4.40*5.0mm)Circuit3.Measurement ResultsReturn LossRadiation PatternChamber Coordinate SystemYZ4. Reliability and Test Condictions1. No visible mechanical damage1. No visible mechanical damage5. Soldering and MountingMildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference incoefficients of expansion between solder, chip and substrate. Theterminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools.Recommended temperature profiles for re-flow soldering in Figure 1.Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must beemployed the following precautions are recommended.‧Preheat circuit and products to 150℃‧Never contact the ceramic with the iron tip‧Use a 20 watt soldering iron with tip diameter of 1.0mm‧280℃ tip temperature (max)‧1.0mm tip diameter (max)‧Limit soldering time to 3 sec.6. Packaging Information◆Tape Specification:◆Reel Specification: (7’’, Φ180 mm)7. Storage and Transportation Information◆Storage ConditionsTo maintain the solderability of terminal electrodes:1. Temperature and humidity conditions: -10~ 40℃ and 30~70% RH.2. Recommended products should be used within 6 months from the timeof delivery.3. The packaging material should be kept where no chlorine or sulfurexists in the air.◆Transportation Conditions1. Products should be handled with care to avoid damage orcontamination from perspiration and skin oils.2. The use of tweezers or vacuum pick up is strongly recommended forindividual components.3. Bulk handling should ensure that abrasion and mechanical shock areminimized.8. Revision Table。

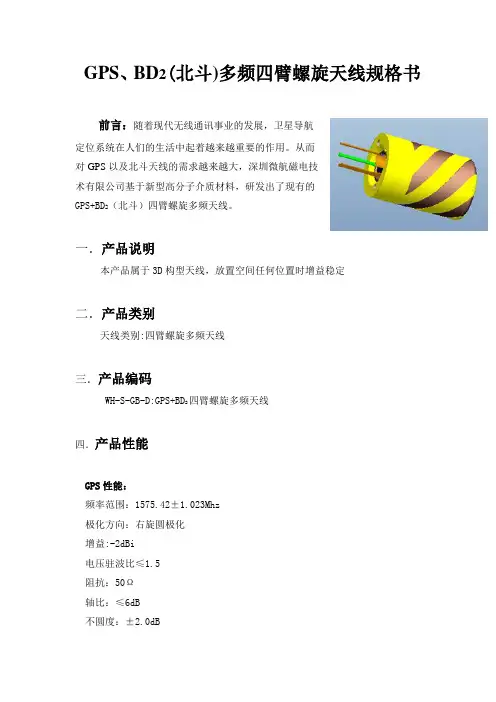

GPS、BD2(北斗)多频四臂螺旋天线规格书
前言：随着现代无线通讯事业的发展，卫星导航
定位系统在人们的生活中起着越来越重要的作用。

从而
对GPS以及北斗天线的需求越来越大，深圳微航磁电技
术有限公司基于新型高分子介质材料，研发出了现有的
GPS+BD2（北斗）四臂螺旋多频天线。

一．产品说明
本产品属于3D构型天线，放置空间任何位置时增益稳定
二．产品类别
天线类别:四臂螺旋多频天线
三．产品编码
WH-S-GB-D:GPS+BD2四臂螺旋多频天线
四．产品性能
GPS性能：
频率范围：1575.42±1.023Mhz
极化方向：右旋圆极化
增益:-2dBi
电压驻波比≤1.5
阻抗：50Ω
轴比：≤6dB
不圆度：±2.0dB
BD2性能：
频率范围：1561.42±3.58Mhz
极化方向：右旋圆极化
增益:-2dBi
电压驻波比≤1.5
阻抗：50Ω
轴比：≤6dB
不圆度：±2.0dB
五．产品性能指标
增益
电压驻波比
Marker1:1575.42Mhz（1.8） Marker2:1561.098Mhz（1.3）
阻抗：50Ω
Marker1:1575.42Mhz
五．产品外形尺寸六.焊接方式
七．引脚方式。

产品规格书Product Specification产品名称： 天线产品型号： K H-5G-SMAJ-131MM 规格描述：5G ，SMA-J ，胶棒版 本 ： A01日 期 ： 2020/07/17客户承认Customer Approve:制 作drawing 审 核check 批 准approved 陈星 向金保贺俊驹客户确认/日期1.工程图纸Product Drawing深圳市金航标电子有限公司2.产品规格Product Specification射 频 性能 参 数频率范围（MHZ ）824-960/1710-2680/ 3400-3600/4800-4900电压驻波比 ≤3.0 增益（dBi ） 3.0 辐射方式 全向 极化方式 垂直极化 输入阻抗(Ω) 50 最大功率（W ）10机 械 性 能 参 数接口形式 SMA-J 天线长宽（MM ）171*19.5环 境 参 数工作温度 -30℃~60℃ 工作湿度40~85%3.S11测试数据4.增益和效率测试数据5.可靠性试验报告项目测试条件规格储存环境在没有指定的情况下测试温度、湿度、气压如下：1.温度为-40℃～+85℃2.相对湿度为45%-85%3.气压为86kpa-106kpa电气机械性能正常高低温试验在70℃与-40℃之间进行5次循环，然后在正常条件下1-2H，检查外观质量。

尺寸应满足规定并应满足满足于机械、电气性能耐恒定湿热试验相对湿度95±3%，试验温度：40℃.持续2H作用后，试品取出后5min之内测定电气性能，试品在正常条件下1-2H，检查外观质量尺寸应满足规定并应满足满足于机械、电气性能振动试验振频范围10-55HZ，位移幅值：0.35MM，加速度幅值：50.0M/S，扫频循环次数：30次电气机械性能正常跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常测试设备及原理1.测试设备：网络分析仪Network Analyzers :Agilent 8753D 5071B综合测试仪Communications Test Set: Agilent E5515C3D暗室测试系统 3D Chamber Test System：2.测试原理：。

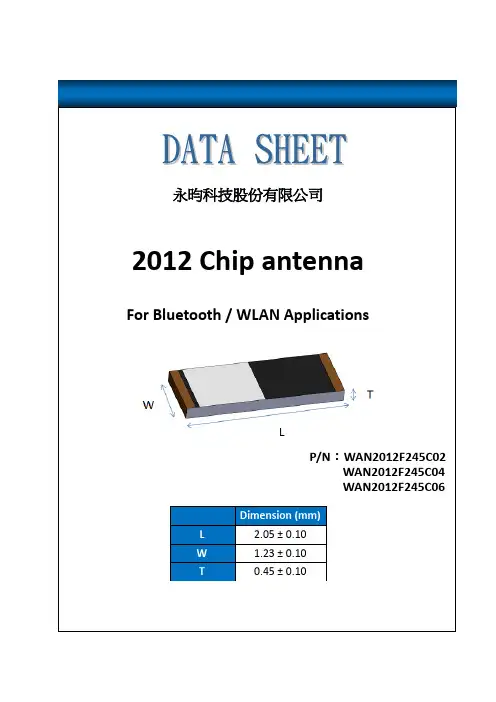

1.Electrical SpecificationRemark : Bandwidth & Peak Gain was measured under evaluation board of page2Part Number InformationWAN 2012 F 245 C 0X(X=2,4,6)A B C D E F2.Recommended PCB Pattern◆Evaluation Board Dimension◆Layout Dimensions in Clearance area ( Size=3.0*5.0mm)永昀科技股份有限公司WinWave Electronic Co., Ltd.9F-2, No.82, Sec. 3, Beisin Rd., Sindian District, New Taipei City 23143, Taiwan(R.O.C.)Electronic Co., Ltd.W IN W AVEFootPrint (Unit : mm)◆Suggested Matching Circuit◆Tuning component : 0.6pF永昀科技股份有限公司WinWave Electronic Co., Ltd.9F-2, No.82, Sec. 3, Beisin Rd., Sindian District, New Taipei City 23143, Taiwan(R.O.C.)Electronic Co., Ltd.W IN W AVE3. Measurement ResultsReturn LossRadiation PatternChamber Coordinate SystemY4. Reliability and Test Condictions1. No visible mechanical damage1. No visible mechanical damage5. Soldering and MountingMildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference incoefficients of expansion between solder, chip and substrate. Theterminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools.Recommended temperature profiles for re-flow soldering in Figure 1.Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must beemployed the following precautions are recommended.‧Preheat circuit and products to 150℃‧Never contact the ceramic with the iron tip‧Use a 20 watt soldering iron with tip diameter of 1.0mm‧280℃ tip temperature (max)‧1.0mm tip diameter (max)‧Limit soldering time to 3 sec.6. Packaging Information◆Tape Specification:◆Reel Specification: (7’’, Φ180 mm)7. Storage and Transportation Information◆Storage ConditionsTo maintain the solderability of terminal electrodes:1. Temperature and humidity conditions: -10~ 40℃ and 30~70% RH.2. Recommended products should be used within 6 months from the timeof delivery.3. The packaging material should be kept where no chlorine or sulfurexists in the air.◆Transportation Conditions1. Products should be handled with care to avoid damage orcontamination from perspiration and skin oils.2. The use of tweezers or vacuum pick up is strongly recommended forindividual components.3. Bulk handling should ensure that abrasion and mechanical shock areminimized.8. Revision Table。

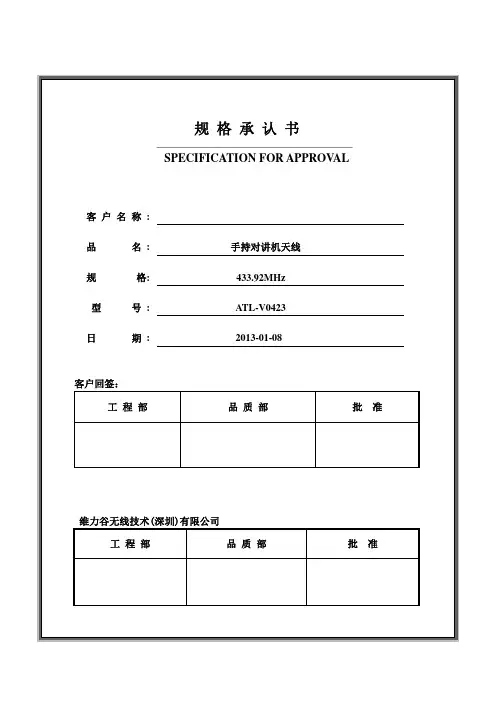

规格承认书_______________________________________________SPECIFICATION FOR APPROV AL客户名称:品名:手持对讲机天线规格: 433.92MHz型号:ATL-V0423日期:2013-01-08客户回签：工程部品质部批准维力谷无线技术(深圳)有限公司工程部品质部批准SPECIFICATION电气性能指标（Electrical specifications）频率范围Resonate Frequency 433.92MHZ阻抗Resonate Impedance 50 ohm Nominal(Depend onavail ground plane) 方向图Radiation pattern全向（Omni direction）极化方式Polarization垂直极化（Vertical）驻波比VSWR/50 Ohms 1.5 or less绝缘电阻 Insulation resistance 500 M ohm DC 500V机械特性 Mechanical characteristics天线尺寸 dimension of antenna ￠13(mm)*129(mm)天线重量 Weight of antenna13g (大约)天线接头 SMA-M天线管与接头螺纹之间的夹紧力如下：（The strength of fixing between sleeve and stud shall withstand the following stresses）垂直方向 Vertical Direction 2.0kgs圆周旋转方向 Rotating Direction 2.0kgs一般特性 General Characteristics存储温度 Storage Temperature -30 ℃ to 80℃工作温度 Operating Temperature -30 ℃ to 60℃每月定期检查天线的机械和电气功能如下：Mechanical and electrical functions after the antenna being Tested by a regular mount device under the following conditions:位移Displacement 轴向上+/-5°(+/-5° of the axisOriginal position)耐久性 Duration1000 cycles/minutes时间Time 5 minutes抗冲击性 shock Resistance 在跌落试验完成之后机械性能和电气性能不变（satisfy theelectrical and mechanicalcharacteristics after drop downwith 100g upon rubber block）工程图纸：产品实物照片：测试参数：1、RETURN LOSS2.V.S.W.R:3.SMITH CHART:。

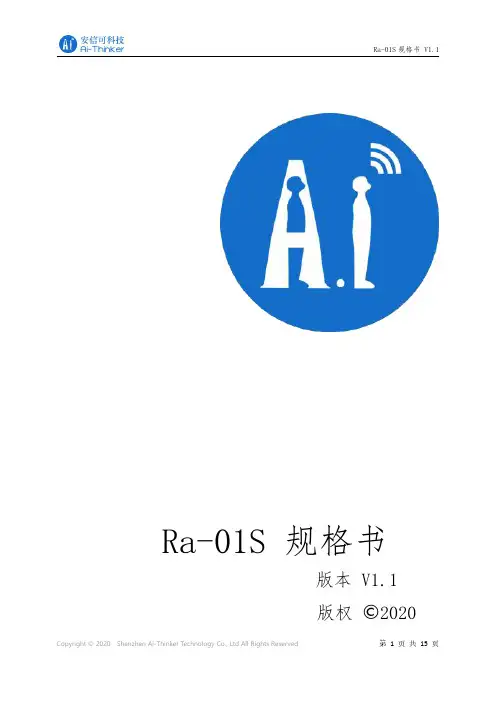

Ra-01S规格书版本V1.1版权©2020免责申明和版权公告本文中的信息，包括供参考的URL地址，如有变更，恕不另行通知。

文档“按现状”提供，不负任何担保责任，包括对适销性、适用于特定用途或非侵权性的任何担保，和任何提案、规格或样品在他处提到的任何担保。

本文档不负任何责任，包括使用本文档内信息产生的侵犯任何专利权行为的责任。

本文档在此未以禁止反言或其他方式授予任何知识产权使用许可，不管是明示许可还是暗示许可。

文中所得测试数据均为安信可实验室测试所得，实际结果可能略有差异。

文中提到的所有商标名称、商标和注册商标均属其各自所有者的财产，特此声明。

最终解释权归深圳市安信可科技有限公司所有。

注意由于产品版本升级或其他原因，本手册内容有可能变更。

深圳市安信可科技有限公司保留在没有任何通知或者提示的情况下对本手册的内容进行修改的权利。

本手册仅作为使用指导，深圳市安信可科技有限公司尽全力在本手册中提供准确的信息，但是深圳市安信可科技有限公司并不确保手册内容完全没有错误，本手册中的所有陈述、信息和建议也不构成任何明示或暗示的担保。

文件制定/修订/废止履历表版本日期制定/修订内容制定核准V1.02020.8.12首版徐V1.12020.8.19更新部分参数徐目录一、产品概述 (5)二、电气参数 (6)三、外观尺寸 (8)四、管脚定义 (10)五、原理图 (11)六、设计指导 (12)七、回流焊曲线图 (14)八、包装信息 (15)九、联系我们 (15)一、产品概述安信可LoRa系列模块（Ra-01S）由安信可科技设计开发。

该模组用于超长距离扩频通信，其射频芯片SX1268主要采用LoRa™远程调制解调器，用于超长距离扩频通信，抗干扰性强，能够最大限度降低电流消耗。

借助SEMTECH的LoRa™专利调制技术，SX1268具有超过-148dBm的高灵敏度，+22dBm的功率输出，传输距离远，可靠性高。

同时，相对传统调制技术，LoRa™调制技术在抗阻塞和选择方面也具有明显优势，解决了传统设计方案无法同时兼顾距离、抗干扰和功耗的问题。

TX4G-FPC-8121天线规格书4G/LTE FPC内置天线IPEX-Ⅰ代接口第一章产品简介TX4G-FPC-8121是一款4G/LTE频段的FPC内置天线，天线尺寸81mm×21mm，IPEX-Ⅰ代接口，适用于各种4G/LTE频段的终端设备（手机、无线网卡、路由器）、无线通讯模块等，天线体积小,性能可靠，内置于模块安装使用，信号稳定。

第二章规格参数电气参数4G/LTE频率范围698-960MHz;1710-2700MHz天线增益5dBi电压驻波比≤1.5极化方向线极化辐射方向全向输入阻抗50Ω功率容量2W其他参数产品尺寸81mm×21mm整体重量1g馈线材质RF1.13馈线长度109mm天线材质FPC接口方式IPEX-Ⅰ代接口工作温度-30℃～+75℃储存温度-30℃～+75℃第三章天线特性电压驻波比（VSWR）史密斯圆图(Smith chart)第四章常见问题●天线频率必须和无线设备频率匹配，否则通信效果不佳；●通信频率越低，波长越长，绕射性能越好；●当存在直线通信障碍时，通信距离会相应的衰减；●请注意天线辐射方向，天线安装方向不正确导致传输距离近；●地面吸收无线电波，靠近地面测试效果较差，建议提高高度；●海水具有极强的吸收无线电波能力，故海边测试效果不佳；●天线附近有金属物体或置于金属壳内，信号衰减会非常严重；●天线与通信设备阻抗匹配程度差会导致通信效果差。

公司全称NAME成都致哲科技有限公司公司电话NUMBER************官方网址WEBSITE 商务合作BUSINESS****************技术支持SUPPORT******************批量采购BATCH马小姐176****0813徐先生135****3087公司地址ADDRESS四川省成都市高新西区西区大道199号模具工业园B5淘宝企业店SAMPLING https:///天猫旗舰店SAMPLING https:///。
