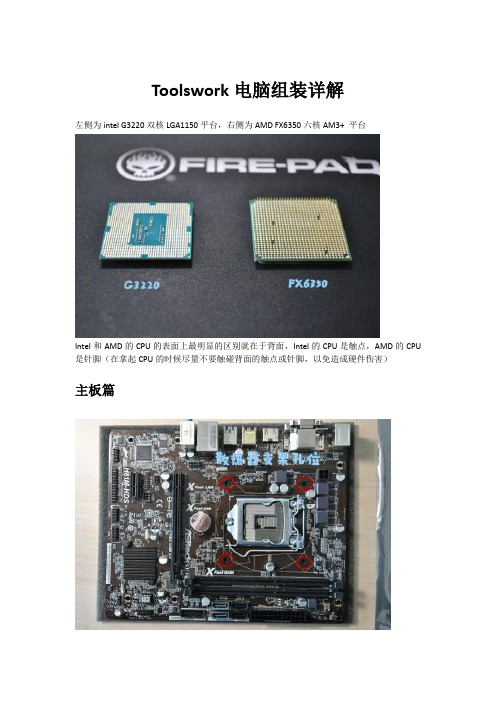

Toolswork电脑组装详解左侧为intel G3220双核LGA1150平台，右侧为AMD FX6350六核AM3+ 平台Intel和AMD的CPU的表面上最明显的区别就在于背面，Intel的CPU是触点，AMD的CPU 是针脚（在拿起CPU的时候尽量不要触碰背面的触点或针脚，以免造成硬件伤害）主板篇样板为华擎H81主板，LGA1150平台。
M-ATX小板。
不带CPU散热器支架，但预留了安装孔。
华硕970主板AMD AM3+平台，标准ATX大板，自带CPU散热器支架。
两款不同平台的主板最主要的区别在于CPU插槽个散热器支架的部分。
Intel平台的主板CPU插槽是针脚。
AMD平台的主板CPU插槽是针孔。
首先是Intel平台。
打开CPU压片之后将CPU放入主板的CPU插槽，这里只要注意一点就是主板和CPU上都有相应的防呆缺口，缺口对齐之后把CPU放在插槽上就可以了。
动作千万要轻一点，避免不小心发主板上的CPU针脚弄歪了。
放好CPU之后将压片扣紧，注意压片是靠左边这个大帽螺丝卡住的，所以一定要先把压片的缺口插在螺丝帽下面之后再扣紧。
由于Intel平台的主板是没有自带CPU散热支架的，所以我们要自己安装支架。
购买散热器是支架与散热器是配套的。
我们这次使用的散热器是兼容LGA775平台和LGA1150平台的。
因为我们选用的G3220CPU 是属于LGA1150平台的，所以把塑料钉调整到支架上标记着1150 的位置。
将散热器支架对准主板上预留的安装孔位把四颗塑料钉按紧。
散热器附带四颗塑料楔子，把这四颗楔子插入散热器的四颗塑料钉里。
按紧之后会听到“咔”的一声。
散热器支架就安装完成了~楔子将散热器支架的塑料钉撑开，这样就散热器支架就牢固的卡在主板上不会脱落下来CPU需要硅脂才能与散热器配合使用，有的散热器买回来就会在底座上自带散热硅脂。
如果散热器没有自带硅脂的话就需要我们自己涂抹一些。
需要注意的地方是散热硅脂绝不是越多越好，只要薄薄一层涂抹均匀就可以了。
