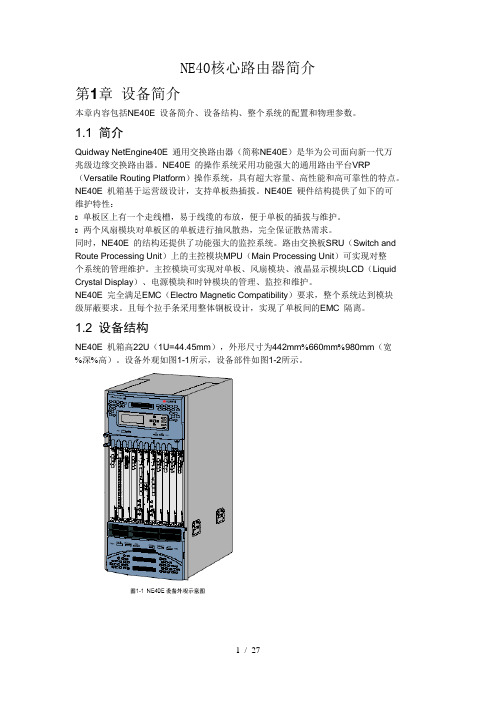

NE40E核心路由器产品简介

Product OverviewHuawei ® NetEngine40E Universal Service Router (NE40E) Series routers are high-end network products developed by Huawei. The NE40E Series routers are usually deployed at core nodes on enterprise wide area networks (WANs), access nodes on large-scale enterprise networks, interconnection and aggregation nodes on campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks. The NE20E, NE40E, and NE5000E can work together to provide a complete hierarchical IP network solution.The NE40E Series includes the NE40E-X3, NE40E-X8, NE40E-X16, NE40E-X3A, NE40E-X8A and NE40E-X16A, as shown in Figure 1.Figure 1Huawei NE40E Series routers (Front)NE40E-X3 (DC)NE40E-X3 (AC)NE40E-X8NE40E-X16NE40E-X16A NE40E-X8ANE40E-X3A(DC)NE40E-X3A(AC)Figure 2Huawei NE40E Series routers (Back)NE40E-X3 (DC)NE40E-X3 (AC)NE40E-X8NE40E-X16NE40E-X16ANE40E-X8ANE40E-X3A(AC)NE40E-X3A(DC)The NE40E Series routers run on the Versatile Routing Platform (VRP ®) operating system and useHuawei-developed NP chips and hardware-based forwarding and non-blocking switching technologies. Based on distributed hardware forwarding, non-blocking switching technologies, distributed Clos architecture, and industry-leading 2T bps platform, the NE40E Series routers have the following features:●Support for 1T routing line cards in each slot, with excellent compatibility with currently used line cards toprotect carriers' investments to the largest extent.●Line speed forwarding capabilities, industry-leading reliability, excellent scalability, a well-designedquality of service (QoS) mechanism, and strong service processing capabilities.●Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual privatenetwork (L2VPN), L3VPN, multicast, multicast VPN (MVPN), and Multiprotocol Label Switching - Traffic Engineering (MPLS-TE).●Various service features, such as IP Security (IPSec), Network Address Translation (NAT), and NetStream.●Support for IPv6 and smooth transition from IPv4 to IPv6.The NE40E can be flexibly deployed at the edge or core of IP or MPLS networks, simplifying network structure. With its ability to provide an extensive range of services and reliable service quality, the NE40E is driving IP and MPLS bearer networks to develop greater broadband capacity and to become more secure, more intelligent, and more service-oriented.Product FeaturesTable 1 lists the features of the Huawei NE40E Series Routers. Table 1.Features of Huawei NE40E Series RoutersProduct SpecificationsTable 2 lists the specifications of Huawei NE40E Series Routers. Table 2.Specifications of Huawei NE40E Series Routers1. In the physical dimensions shown in the table, the width (W) does not include the rack-mounting ears.2. Temperature and humidity are measured at 1.5 m (4.92 ft.) above the floor and 0.4 m (1.31 ft.) in front of the cabinet. Thereshould be no protection board on the front or back of the cabinet.3. "Short-term" refers to continuous working time that does not exceed 96 hours and accumulated working time per yearthat does not exceed 15 days. If the working time exceeds either of these values, it is considered "nominal" or "long-term".4.The bundle values in "Weight (full configuration)" include the weight of the interface boards in full configuration.Ordering InformationTo place an order, visit the UniSTAR SCT Workspace.Basic Hardware ConfigurationsTable 3.NE40E-X16A Basic Configuration BundleTable 4.NE40E-X8A Basic Configuration BundleTable 5.NE40E-X3A Basic Configuration BundleTable 6.NE40E-X16 Basic Configuration BundleTable 7.NE40E-X8 Basic Configuration BundleTable 8.NE40E-X3 Basic Configuration BundleTable 9.NE40E-X16A/X8A/X16/X8 PowersTable 10.NE40E-X3A/X3 PowersTable 11.CF/SDRAM/Other ComponentsService Interface BoardsTable 12.NE40E Series 50G Flexible Card Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 13.NE40E Series 50G Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 14.NE40E Series 120G Flexible Card Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 15.NE40E Series 120G Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 16.NE40E Series 200G Flexible Card Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 17.NE40E Series 200G Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 18.NE40E Series 240G Flexible Card Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 19.NE40E Series 240G Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 20.NE40E Series 480G Flexible Card Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 21.NE40E Series 480G Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 22.NE40E Series 1T Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Table 23.NE40E Series 2T Integrated Line Processing Units ("●" indicates "support", and "-" indicates "not support")Versatile Service BoardsTable 24.NE40E Series Service Process Units ("●" indicates "support", and "-" indicates "not support")Software ConfigurationTable 25.Software LicenseDocumentsTable 26.Documents for NE40EOptical/Electrical Transceivers Table 27.100G Optical TransceiverTable 28.50G Optical TransceiverTable 29.40G Optical TransceiverTable 30.FE/GE/10GE Optical TransceiverTable 31.622M SFP/eSFP Optical TransceiverTable 32.155M SFP/eSFP Optical TransceiverTable 33.GE CWDM Optical TransceiverTable 34.10GE CWDM Optical TransceiverPower Distribution BoxesTable 35.High-power distribution boxesBreakoutTable 36.100G QSFP28 Breakout BoxesTelescopic SlidesTable 37.Telescopic SidesSoftware Upgrade PathsVisit Software Upgrade Paths to get VRP software release version or patches.For More InformationFor more information about the Huawei NE40E Series Routers, visit or contact us in the following ways:●Global service hotline: /en/service-hotline●Logging into the Huawei Enterprise technical support web: /enterprise/●Sendinganemailtothecustomerservicemailbox:********************Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademark Notice, HUAWEIandare trademarks or registered trademarks of Huawei Technologies Co., Ltd.Other trademarks, product, service and company names mentioned are the property of their respective owners.General DisclaimerThe information in this document may contain predictive statementsincluding, without limitation, statements regarding the future financial and operating results, future product portfolio, new technology, etc. There are a number of factors that could cause actual results and developments to differ materially from those expressed or implied in the predictivestatements. Therefore, such information is provided for reference purpose only and constitutes neither an offer nor an acceptance. Huawei may change the information at any time without notice.HUAWEI TECHNOLOGIES CO.,LTD.Huawei Industrial BaseBantian, LonggangShenzhen 518129, P.R. ChinaTel: +86-755-28780808。

NE40E系列路由器参数报价分析张磊目录系列路由器简介 (3)产品结构分析 (4)3.单板介绍 (4)单板分类 (4)SRU 板和LPU 板的外观部件 (6)板间关系 (6)接口种类及在单板上的分布 (6)4.路由交换板（SRU）简介 (8)SRU路由交换板外观及描述 (8)功能简介 (9)作为系统控制和管理核心，可以实现以下功能： (10)系统交换网的组成部分 (10)系统时钟单元 (10)交换同步时钟单元 (11)系统维护单元 (11)5.交换网板SFU (11)SFU 面板的外观 (11).功能简介 (12)6.线路处理板LPU (12)LPU板外观 (12)功能简介 (13)LPU 模块主要功能 (13)FAD 模块 (13)LPU 板种类 (14)7.产品型号对比 (14)系列路由器简介NE40E是华为公司的新一代面向万兆级边缘交换路由器，主要应用在企业广域网核心节点、大型企业接入节点、园区互联&汇聚节点以及其他各种大型IDC网络的边缘位置。

NE40E的机箱基于运营级设计，支持单板热插拔，NE40E基于最新的可扩展2T平台，每槽位最大提供1T路由线卡，兼容现网线卡，最大限度保护客户的投资。

NE40E具有强大的汇聚接入能力，凭借丰富的特性支持，可以灵活部署L2VPN、L3VPN、组播、组播VPN、MPLS TE、QoS等，实现用户业务的可靠承载；支持丰富的增值业务特性，如GRE隧道、IPSec安全隧道、NetStream等；同时，NE40E 全面支持IPv6，可以实现IPv4到IPv6的平滑过渡。

因此，NE40E可以灵活应用在IP/MPLS网络的边缘、核心，可以简化网络结构，提供丰富的业务类型和可靠的服务质量，是IP/MPLS承载网向宽带化、安全化、业务化、智能化发展的重要源动力。

NE40E系列主要包括NE40E-X16、NE40E-X8、NE40E-X3三种类型，适应不同规模的组网需求产品结构分析NE40E为一体化机箱设计，主要部件如表2-1所示：表2-13.单板介绍单板分类NE40E支持的单板及单板描述如表3-1所示：表3-1SRU 板和LPU 板的外观部件如图3-1所示。

Quidway® NetEngine 40E通用业务路由器Quidway® NetEngine 40E通用业务路由器（以下简称NE40E）是华为公司推出的NE系列增强型高端网络产品，主要应用在IP骨干网、IP城域网以及其他各种大型IP网络的边缘位置，可提供线速10G接口，与NE5000E、NE80E系列核心路由器产品配合组网，形成结构完整、层次清晰的IP网络解决方案。

NE40E基于分布式的硬件转发和无阻塞交换技术，具备电信级可靠性、线速转发性能、完善的QoS机制、丰富的业务处理能力、优异的扩展能力，尤其是NE40E在具备核心路由器强大IP业务处理能力的同时，融合了三层以太交换能力，具有丰富的IP边缘业务特性，包括以太网交换处理、PE、隧道和流队列等，可实现IPv4向IPv6的平滑过渡，承载IP运营级业务，是IP骨干网和IP城域网向宽带化、安全化、业务化、智能化发展的重要源动力。

产品特点♦分布式第五代路由器NE40E作为新型第五代路由器，采用了业界领先的高性能网络处理器技术，有机地结合了软件的灵活性和硬件的高性能，既提供10G接口线速转发能力，又具备快速良好的业务升级和扩展能力，最大限度地保护用户投资，加速IP网络向宽带化、安全化、业务化、智能化方向发展。

♦业务丰富NE40E提供高品质QoS，实现智能业务感知、先进的队列调度算法、拥塞控制算法，精确保证不同业务的带宽、时延和抖动，满足不同用户、不同业务等级的服务质量要求。

NE40E基于分布式硬件处理，具备高性能的网络业务能力，胜任高性能P/PE应用，提供高品质、安全和全面的MPLS VPN解决方案；提供高性能组播能力，满足IPTV等业务需求。

提供高密度低速链路接入、隧道处理、以太网交换处理等边缘业务特性，满足IP网络边缘设备的业务需求。

NE40E支持灵活QinQ功能，提供VLAN批发功能，在满足业务发展需求的同时，极大的简化配置复杂度，便于业务规划和开展。

NE40E 全业务路由器产品彩页Huawei Technologies Co., Ltd.NE40E 全业务路由器产品彩页产品概述NetEngine40E 系列全业务路由器（以下简称 NE40E ）是华为公司推出的高端网络产品，主要应用在企业广域网核心节点、大型企业接入节点、园区互联&汇聚节点以及其他各种大型IDC 网络的边缘位置，与NE5000E 骨干路由器、NE20E 汇聚路由器产品配合组网，形成结构完整、层次清晰的IP 网络解决方案。

NE40E 采用华为自研Solar 系列NP 芯片，基于CLOS 分布式多级交换架构，采用分布式的硬件转发和无阻塞交换技术，具有良好的线速转发性能，优异的扩展能力，完善的QoS 机制和强大的业务处理能力。

NE40E 基于最新的可扩展2T 平台，每槽位最大提供1T 路由线卡，兼容现网线卡，最大限度保护客户的投资。

NE40E 具有强大的汇聚接入能力，凭借丰富的特性支持，可以灵活部署L2VPN 、L3VPN 、组播、组播VPN 、MPLS TE 、QoS 等，实现用户业务的可靠承载；支持丰富的增值业务特性，如GRE 隧道、IPSec 安全隧道NetStream 等；同时，NE40E 全面支持IPv6，可以实现IPv4到IPv6的平滑过渡。

因此，NE40E 可以灵活应用在IP/MPLS 网络的边缘、核心，可以简化网络结构，提供丰富的业务类型和可靠的服务质量，是IP/MPLS 承载网向宽带化、安全化、业务化、智能化发展的重要源动力。

外观NE40E 系列主要包括NE40E-X16A/X16, NE40E-X8A/X8,NE40E-X3/X3A 适应不同规模的网络组网需求。

NE40E X16A NE40E-X16NE40E-X8ANE40E-X8NE40E-X3ANE40E-X3产品特点领先的2T 平台NE40E系列节能减排机框基于2T平台，每槽位最大可以平滑扩容到2Tbps带宽，实现大容量业务承载，满足未来带宽增长需求。

Quidway® NetEngine 40E全业务路由器OC-3c/STM-1 POS光接口板概述NE40E全业务路由器提供高密度的OC-3c/STM-1 POS光接口板，可用于NE40E与SDH 传输设备或其他设备互连，提供155M的传输通道。

目前在运营商、行业网、大中型企业等组网中有着非常广泛的应用。

CR52-8xPOS/STM1-SFPOC-3c/STM-1 POS光接口主要实现数据流的POS帧封装（或拆封装），POS帧的SDH/SONET映射（或解映射），并对外提供速率为155Mbit/s的光接口，同时提供环回、环境监测、信息查询等功能。

OC-3c/STM-1 POS光接口板采用可热插拔的SFP光模块，速率可达155Mbps，可根据组网需求选择不同传输距离的光模块。

规格NE40E提供两种OC-3c/STM-1 POS光接口板：CR52-8xPOS/STM1-SFP和CR52-4xPOS/STM1-SFP。

模块名称接口类型描述8端口155M POS SFP光接口板，根据传输CR52-8xPOS/STM1-SFP LC距离的不同可选择不同的SFP光模块。

模块名称接口类型描述4端口155M POS SFP光接口板，根据传输CR52-4xPOS/STM1-SFP LC距离的不同可选择不同的SFP光模块。

NE40E提供以下4种155M POS SFP光模块：接口速率155M bit/s传输距离2km 15km 40km 80km 中心波长1310nm 1310nm 1310nm 1550nm 最小-19.0dBm -15.0dBm -5.0dBm -5.0dBm发送光功率最大-14.0dBm -8.0dBm 0dBm 0dBm 接收灵敏度-30.0dBm -31.0dBm -37.0dBm -37.0dBm过载光功率-14.0dBm -8.0dBm -10.0dBm -10.0dBm光纤类型多模单模单模单模。
