美国FLUKE专家型便携式电能质量分析仪（图示）概述EVERETT,Wash.－福禄克公司(Fluke Corporation)是手持式电气测试和测量技术领域的全球领先者，目前推出了Fluke 1760三相电能质量记录仪。

该记录仪的原型是LEM Topas 2000电能质量分析仪(福禄克公司在2005年收购了莱姆仪器) 。

Fluke1760完全符合IEC61000-4-30A级标准，专门针对中、低压电网中的公共事业和工业配电系统的高级测试和分析而设计。

FLuke1760为用户提供了自定义门限、算法和测量选项的灵活性，可用于高级分析和生成报告。

该仪器提供了按照EN50160标准对电能质量进行统计分析的功能，可测量大量的各种参数，包括RMS值、闪变、电压骤降、电压骤升、三相电压不平衡、高达50次的电流和电压谐波、间谐波、THD、控制信号、无功功率、瞬变和功率因数。

该仪器还具有GPS时间同步功能，用户可以将数据与事件或其它数据集进行准确关联，并且利用其10MHz、6000Vpk波形捕获能力，可以提供事件的详细信息。

该仪器具有一个2GB的内置存储器，可以在长时间周期内同时详细记录许多电能参数，并且内置电池可在断电时提供长达40分钟的工作时间。

利用集成式网口，即使在记录的同时亦可将数据直接传输计算机。

随Fluke1760仪器提供PQ Analyze软件，可以进行详细的电能质量分析和生成报告。

在线模式下，软件可以远程设置仪器，实时检查仪器的实际设置，以及下载数据。

能够以趋势图的形式观察数据，查找问题根源，或者以各种形式的统计摘要进行显示。

为了快速、方便地进行设置，在将电流和电压头插头连接到仪器时，Fluke1760可自动检测、配置，并为其提供电源。

该款仪器的外壳是完全绝缘的，并且没有旋转部件，即使在最为恶劣的环境下也能可靠工作。

Fluke1760三相电能质量记录仪在LEM Topas 2000的基础上做了以下改进* 行业中最高的安全等级：600V CAT IV/1000V CAT Ⅲ* 包括标记功能在内的A级一致性* 上限/下限超标功能，符合最新的电能质量标准* 自动感测电压和电流传感器，为用户提供了灵活性，可以手动设置，亦可采用节约时间的自动设置方式* 电压和电流传感器“关闭”模式，避免不使用的通道记录噪声* 用Excel报告生成符合EN50160标准的报表* 直流耦合，可测量电池* 屏蔽的柔性传感器，降低了来自环境中高频电场的干扰* 改善了PQ记录特点详细的干扰分析－进行告诉即时分析，发现设备故障的根源，以便事后补救和预测性维护。

Fluke DSP4000/4300产品操作,DSP4000系列产品说明，操作步骤一、福禄克DSP4000系列产品使用步骤：1、充电：将福禄克DSP系列产品主机、辅机分别用变压器充电，直至电池显示灯转为绿色；2、自校准：取校准模块(上有“DSP—4000CALMODULE”字样)，用校准模块将主机及辅机连接好。

打开辅机电源，辅机自检后，“PASS”灯亮后熄灭，显示辅机正常。

将旋钮开关转到任何模式即可打开主机电源，显示主机、辅机软件、硬件和测试标准的版本(辅机信息只有当辅机开机并和主机连接时才显示)，自测后显示操作界面，将旋扭转至“SPECIALFUNCTIONS”档位，用“↑↓”箭头选择第七项“SELFCALIBRATION”后(如选错用“EXIT”退出重复)，按“ENTER”键和“TEST”键开始自校准，显示“SELFCALIBRATIONCOMPLETE”说明自校准成功完成。

3、设置参数：操作：将旋钮转至“SET UP”档位，在第一个黑块处按“ENTER”进入测试标准和电缆类型选择，常用的是“TIA CA T5ECHANNEL”(超五类通道标准，使用通道适配器)；“TIA CAT 6CHANNEL”(六类通道标准，使用通道适配器)，“TIACAT 6 PERMLINK”(六类永久链路测试标准，使用永久链路适配器)，其他不常用，用“↑↓”和“PAGE UP(3号按键)、PAGEDOWN(4号按键)”选择你所需的标准，按“ENTER”确认，回到主菜单。

①.新机第一次使用需要修改，以后不需更改的参数。

1.“REPORTIDENTIFICATION”(报告标识，键入公司名称、操作员姓名、用户名称，这些将出现在储存的自动测试报告中)：按“ENTER”进入后，需要输入一些你们公司的资料,只支持拼音输入，比如“SHENZHENWEIXIN"。

2. “AUTO Increment”(自动递增，会使电缆标识的最后一个字符在每一次保存测试时递增)：一般不用更改)。

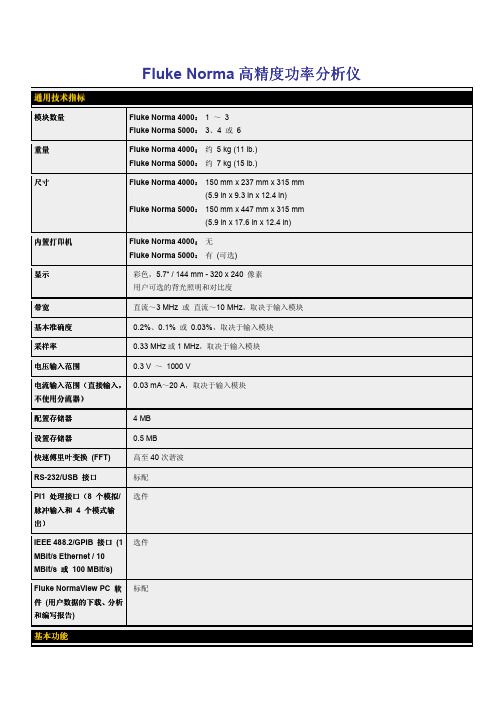

Fluke Norma 高精度功率分析仪 通用技术指标模块数量 Fluke Norma 4000：1 ～ 3Fluke Norma 5000：3、4 或 6重量 Fluke Norma 4000：约 5 kg (11 lb.)Fluke Norma 5000：约 7 kg (15 lb.)尺寸 Fluke Norma 4000：150 mm x 237 mm x 315 mm(5.9 in x 9.3 in x 12.4 in)Fluke Norma 5000：150 mm x 447 mm x 315 mm(5.9 in x 17.6 in x 12.4 in)内置打印机 Fluke Norma 4000：无Fluke Norma 5000：有 (可选)显示 彩色，5.7“ / 144 mm - 320 x 240 像素用户可选的背光照明和对比度带宽直流～3 MHz 或 直流～10 MHz ，取决于输入模块 基本准确度0.2%、0.1% 或 0.03%，取决于输入模块 采样率0.33 MHz 或1 MHz ，取决于输入模块 电压输入范围 0.3 V ～ 1000 V电流输入范围电流输入范围（（直接输入直接输入，，不使用分流器不使用分流器））0.03 mA ～20 A ，取决于输入模块配置存储器4 MB 设置存储器0.5 MB 快速傅里叶变换 (FFT)高至40次谐波 RS-232/USB 接口标配 PI1 处理接口处理接口（（8 个模拟/脉冲输入和 4 个模式输出）选件IEEE 488.2/GPIB 接口 (1 MBit/s Ethernet / 10MBit/s 或 100 MBit/s)选件Fluke NormaView PC 软件 (用户数据的下载用户数据的下载、、分析和编写报告) 标配基本功能快速傅里叶变换 (FFT) 计算谐波并以图形标识。

最多可同时显示3个谐波频谱。

被测值：每相 U 、I 和 P 。

Fluke DSP-4000(Fluke DSP4000)系列数字式电缆测试仪认证测试工程验收概述•3种型号可供选择：FLUKE 4300、4000PL以及FLUKE 4000•使用世界上最坚固耐用的电缆测试仪，可以对电缆和光缆进行测试、认证以及文档备案。

利用高速数字处理技术进行快速的测试。

•出众的诊断功能使故障排除更加快速简便•全新 PM06!测试头是第一个可以测试 Cat 6 是否符合标准以及互用性的中性、屏蔽插头•新的永久链路适配器可获得更多的“通过”结果，消除错误的“失败”结果•功能强大的光缆测试适配器可执行双光缆、双波长的光缆认证•使用LinkWare™ 电缆管理软件可以方便地对电缆和光缆进行管理和文档备案•支持中国国家标产品功能卓越的性能、速度以及准确性，这就是福禄克网络公司备受赞誉的Fluke DSP-4000(Fluke DSP4000)系列数字式电缆分析仪——含最新的Fluke DSP-4300(Fluke DSP 4300)Fluke DSP-4000(Fluke DSP4000)系列数字式电缆分析仪能够快速准确地测试高性能的超5类,6类电缆链路及光纤链路。

有了高级的数字平台，无论对一条链路重复测试多少次，Fluke DSP-4000(Fluke DSP4000)系列数字式电缆分析仪都可保证测试的准确性。

频率可达350MHZ的高带宽测试能力、高级的诊断功能及详尽的测试报告，Fluke DSP-4000(Fluke DSP4000)系列数字式电缆分析仪可提供给您一套完整的测试、验证电缆和光缆并进行文档备案的方案。

同其它FLUKE网络测试仪一样，Fluke DSP-4000(Fluke DSP4000)系列数字式电缆分析仪坚固耐用，可经受的起网络安装环境中的摔碰及其它灾难。

新的模块成为6类线测试中的突破新的Fluke DSP-4300(Fluke DSP4300)可对高速铜缆及光纤网络提供最全面的测试、验证解决方案。
