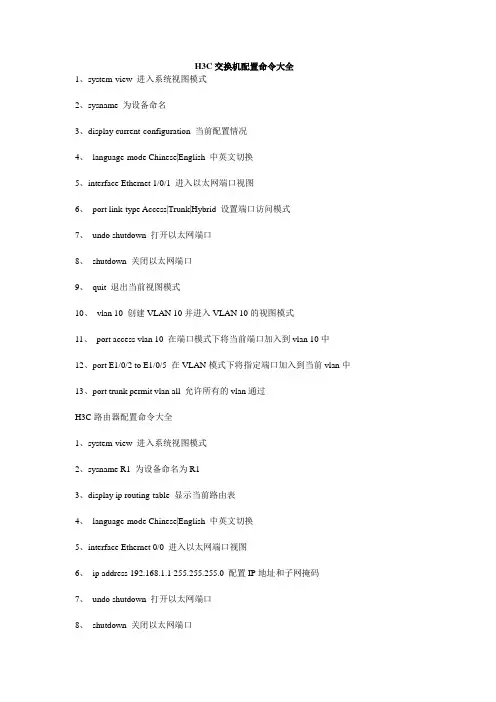

欢迎阅读H3C交换机配置命令大全
1、system-view 进入系统视图模式
2、sysname 为设备命名
3、display current-configuration 当前配置情况
4、language-mode Chinese|English 中英文切换
5、interface Ethernet 1/0/1 进入以太网端口视图
6、port link-type Access|Trunk|Hybrid 设置端口访问模式
7、undo shutdown 打开以太网端口
8、shutdown 关闭以太网端口
9、quit 退出当前视图模式
10、vlan 10 创建VLAN 10并进入VLAN 10的视图模式
11、port access vlan 10 在端口模式下将当前端口加入到vlan 10中
12、port E1/0/2 to E1/0/5 在VLAN模式下将指定端口加入到当前vlan中
13、port trunk permit vlan all 允许所有的vlan通过
H3C路由器配置命令大全华为交换机常用配置实例
H3C交换机路由器telnet和console口登录配置
2009年11月09日星期一 10:00
级别说明
Level 名称
命令
参观
ping、tracert、telnet
1
监控
display、debugging
2
配置
所有配置命令(管理级的命令除外)
3
管理
文件系统命令、FTP命令、TFTP命令、XMODEM命令
telnet仅用密码登录,管理员权限
[Router]user-interface vty 0 4[Router-ui-vty0-4]user privilege level 3[Router-ui-vty0-4]set authentication password simple abc
telnet仅用密码登录,非管理员权限
[Router]super password level 3 simple super
[Router]user-interface vty 0 4[Router-ui-vty0-4]user privilege level 1[Router-ui-vty0-4]set authentication password simple abc
telnet使用路由器上配置的用户名密码登录,管理员权限
[Router]local-user admin password simple admin[Router]local-user admin service-type telnet[Router]local-user admin level 3
[Router]user-interface vty 0 4[Router-ui-vty0-4]authentication-mode local
telnet使用路由器上配置的用户名密码登录,非管理员权限
[Router]super password level 3 simple super
[Router]local-user manage password simple manage[Router]local-user manage service-type telnet[Router]local-user manage level 2 [Router]user-interface vty 0 4[Router-ui-vty0-4]authentication-mode local
对console口设置密码,登录后使用管理员权限
[Router]user-interface con 0[Router-ui-console0]user privilege level 3[Router-ui-console0]set authentication password simple abc
对console口设置密码,登录后使用非管理员权限
[Router]super password level 3 simple super
[Router]user-interface con 0[Router-ui-console0]user privilege level 1[Router-ui-console0]set authentication password simple abc
对console口设置用户名和密码,登录后使用管理员权限
[Router]local-user admin password simple admin[Router]local-user admin service-type terminal[Router]local-user admin level 3
[Router]user-interface con 0[Router-ui-console0]authentication-mode local
对console口设置用户名和密码,登录后使用非管理员权限
[Router]super password level 3 simple super
[Router]local-user manage password simple manage[Router]local-user
manage service-type terminal[Router]local-user manage level 2 [Router]user-interface con 0[Router-ui-console0]authentication-mode local
simple 是明文显示,cipher 是加密显示
路由器不设置telnet登录配置时,用户无法通过telnet登录到路由器上[Router-ui-vty0-4]acl 2000 inbound可以通过acl的规则只允许符合条件的用户远程登录路由器
