u 一流的博世CCTV 设备和UL 防盗面板集成u 确保连续操作的最高恢复能力u借助报警优先级和可选的用户组分发功能，出色地处理报警u 先进的智能视频分析(IVA)和取证搜索u通过RTSP 、HTTP 、JPEG 、ONVIF Profile S 支持第三方摄像机Bosch Video Management System 是一款独特的企业级IP 视频安防解决方案，可以跨任何 IP 网络提供无缝的数字视频、音频及数据管理。

它提供了最好的 VMS 来与博世CCTV 设备配套，以便充分利用博世摄像机和录像解决方案的独特功能。

另外，它还提供了用于集成其他系统和制造商的接口和标准。

系统带有独特的嵌入式恢复能力。

即使管理服务器和录像服务器同时发生故障，系统也可保持操作和运行。

先进的智能视频分析和无与伦比的录像技术（可利用单台服务器管理多达 2000 台摄像机）可显著降低总拥有成本。

Bosch Video Management System 提供非常灵活的系统设计：•专业版：单站点系统1 到 2000 台即装即用型摄像机。

只有此系统支持 BIS-BVMS 连接。

•Enterprise System ：支持跨不同时区的地铁、机场和其他大型工业设施的多站点需求。

支持跨不同法人实体的可控监控。

每个用户组可以在 10 个子系统中监控多达 10,000 台摄像机，从而总共可以监控200,000 台摄像机。

每个用户组有多达 30 个子系统，每个子系统的摄像机不到100 台，可允许每个操作员同时访问多达 30 台Management Server 计算机。

Bosch Video Management System 安装在 Microsoft Windows 操作系统上。

我们推荐使用 Bosch 工作站和服务器。

它们经过了全面的测试和优化，非常适合运行 Bosch Video Management System 。

除博世 ST 标准销售条款和条件外，博世软件维护协议(Bosch Software Maintenance Agreement) 是保持您的VMS 始终最新的最佳选择。

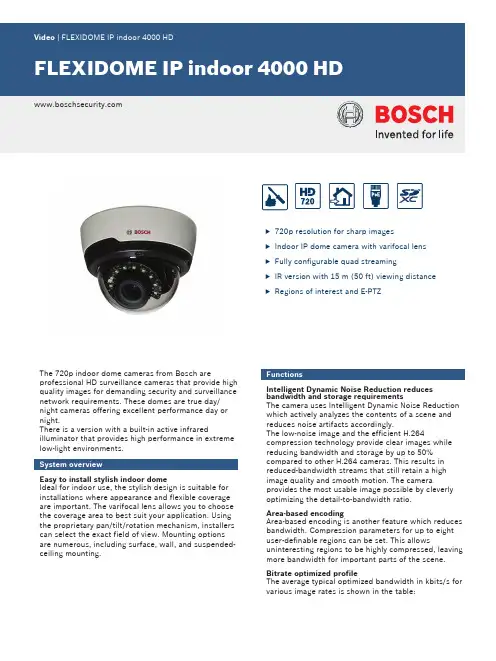

u720p resolution for sharp imagesu Indoor IP dome camera with varifocal lensu Fully configurable quad streamingu IR version with 15 m (50 ft) viewing distanceu Regions of interest and E-PTZThe 720p indoor dome cameras from Bosch areprofessional HD surveillance cameras that provide highquality images for demanding security and surveillancenetwork requirements. These domes are true day/night cameras offering excellent performance day ornight.There is a version with a built-in active infraredilluminator that provides high performance in extremelow-light environments.System overviewEasy to install stylish indoor domeIdeal for indoor use, the stylish design is suitable forinstallations where appearance and flexible coverageare important. The varifocal lens allows you to choosethe coverage area to best suit your application. Usingthe proprietary pan/tilt/rotation mechanism, installerscan select the exact field of view. Mounting optionsare numerous, including surface, wall, and suspended-ceiling mounting.FunctionsIntelligent Dynamic Noise Reduction reducesbandwidth and storage requirementsThe camera uses Intelligent Dynamic Noise Reductionwhich actively analyzes the contents of a scene andreduces noise artifacts accordingly.The low-noise image and the efficient H.264compression technology provide clear images whilereducing bandwidth and storage by up to 50%compared to other H.264 cameras. This results inreduced-bandwidth streams that still retain a highimage quality and smooth motion. The cameraprovides the most usable image possible by cleverlyoptimizing the detail-to-bandwidth ratio.Area-based encodingArea-based encoding is another feature which reducesbandwidth. Compression parameters for up to eightuser-definable regions can be set. This allowsuninteresting regions to be highly compressed, leavingmore bandwidth for important parts of the scene.Bitrate optimized profileThe average typical optimized bandwidth in kbits/s forvarious image rates is shown in the table:Multiple streamsThe innovative multi-streaming feature delivers various H.264 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems.Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream.The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.Regions of interest and E-PTZRegions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.Built-in microphone, two-way audio and audio alarm The camera has a built-in microphone to allow operators to listen in on the monitored area. Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Audio detection can be used to generate an alarm if needed.If required by local laws, the microphone can be permanently blocked via a secure license key. Tamper and motion detectionA wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.Storage managementRecording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.Edge recordingThe MicroSD card slot supports up to 2 TB of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or — if microSD card recording is used — extends the effective life of the storage medium.Cloud-based servicesThe camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts.Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.Easy installationPower for the camera can be supplied via a Power-over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source.The camera can also be supplied with power from+12 VDC power supplies.For trouble-free network cabling, the camera supports Auto-MDIX which allows the use of straight or cross-over cables.True day/night switchingThe camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.Hybrid modeAn analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high resolution HD video streaming and an analog video output via an SMB connector. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.Access securityPassword protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license. Complete viewing softwareThere are many ways to access the camera’s features: using a web browser, with the Bosch Video Management System, with the free-of-chargeBosch Video Client or Video Security Client, with the video security mobile app, or via third-party software. Video security AppThe Bosch video security mobile App has been developed to enable Anywhere access to HD surveillance images allowing you to view live images from any location. The App is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. It’s like taking your control room with you.This App, together with the separately available Bosch transcoder, will allow you to fully utilize our dynamictranscoding features so you can play back images even over low-bandwidth connections.System integrationThe camera conforms to the ONVIF Profile S specification. Compliance with this standard guarantees interoperability between network video products regardless of manufacturer.Third-party integrators can easily access the internal feature set of the camera for integration into large projects. Visit the Bosch Integration Partner Program (IPP) website () for more information.HD standardsComplies with the SMPTE 296M-2001 Standard in:–Resolution: 1280x720–Scan: Progressive–Color representation: complies with ITU-R BT.709–Aspect ratio: 16:9–Frame rate: 25 and 30 frames/sDimensions mm (inch)•Camera•Screw kit•Installation documentation Technical specificationsSensitivity – (3200K, reflectivity 89%, F1.5, 30IRE)Ordering informationFLEXIDOME IP indoor 4000 HDProfessional IP dome camera for HD indoor surveillance. Varifocal 3.3 to 10 mm f1.5 lens; IDNR; day/night; H.264 quad-streaming; cloud services; motion/tamper/audio detection; microphone; 720p Order number NIN-41012-V3FLEXIDOME IP indoor 4000 IRProfessional IP dome camera for HD indoor surveillance. Varifocal 3.3 to 10 mm f1.5 lens; IDNR; day/night; H.264 quad-streaming; cloud services; motion/tamper/audio detection; microphone; 720p; infraredOrder number NII-41012-V3AccessoriesNDA-LWMT-DOME Dome Wall MountSturdy wall L-shaped bracket for dome cameras Order number NDA-LWMT-DOMENDA-ADTVEZ-DOME Dome Adapter BracketAdapter bracket (used together with appropriate wall or pipe mount, or surface mount box)Order number NDA-ADTVEZ-DOMEVEZ-A2-WW Wall MountWall mount (Ø145/149 mm) for dome cameras (use together with appropriate dome adapter bracket); whiteOrder number VEZ-A2-WWVEZ-A2-PW Pipe MountPendant pipe mount (Ø145/149 mm) for dome cameras (use together with appropriate dome adapter bracket); whiteOrder number VEZ-A2-PWLTC 9213/01 Pole Mount AdapterFlexible pole mount adapter for camera mounts (use together with the appropriate wall mount bracket). Max. 9 kg (20 lb); 3 to 15 inch diameter pole; stainless steel strapsOrder number LTC 9213/01NDA-FMT-DOME In-ceiling mountIn-ceiling flush mounting kit for dome cameras(Ø157 mm)Order number NDA-FMT-DOMENDA-ADT4S-MINDOME 4S Surface Mount BoxSurface mount box (Ø145 mm / Ø5.71 in) for domecameras (use together with the appropriate domeadapter bracket).Order number NDA-ADT4S-MINDOMEMonitor/DVR Cable SMB 0.3M0.3 m (1 ft) analog cable, SMB (female) to BNC(female) to connect camera to coaxial cableOrder number NBN-MCSMB-03MMonitor/DVR Cable SMB 3.0M3 m (9 ft) analog cable, SMB (female) to BNC (male)to connect camera to monitor or DVROrder number NBN-MCSMB-30MNPD-5001-POE Midspan PoE InjectorPower-over-Ethernet midspan injector for use with PoEenabled cameras; 15.4 W, 1-portOrder number NPD-5001-POENPD-5004-POE Midspan PoE InjectorPower-over-Ethernet midspan injectors for use withPoE enabled cameras; 15.4 W, 4-portsOrder number NPD-5004-POERepresented by:North America:Europe, Middle East, Africa:Asia-Pacific:China:Latin America and Caribbean:Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180***********************.com Bosch Security Systems B.V.P.O. Box 800025617 BA Eindhoven, The NetherlandsPhone: + 31 40 2577 284Fax: +31 40 2577 330******************************Robert Bosch (SEA) Pte Ltd, SecuritySystems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699*****************************Bosch (Shanghai) Security Systems Ltd.203 Building, No. 333 Fuquan RoadNorth IBPChangning District, Shanghai200335 ChinaPhone +86 21 22181111Fax: +86 21 22182398Robert Bosch Ltda Security Systems DivisionVia Anhanguera, Km 98CEP 13065-900Campinas, Sao Paulo, BrazilPhone: +55 19 2103 2860Fax: +55 19 2103 2862*****************************© Bosch Security Systems 2016 | Data subject to change without notice 188****7691|en,V8,30.May2016。

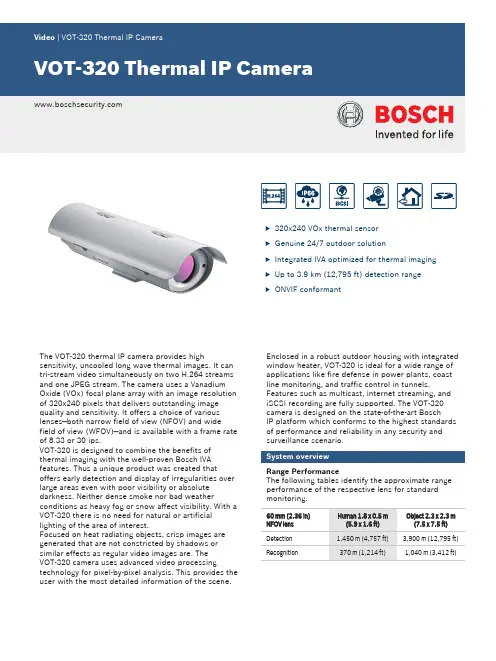

u 320x240 VOx thermal sensor u Genuine 24/7 outdoor solutionu Integrated IVA optimized for thermal imaging u Up to 3.9 km (12,795 ft) detection range uONVIF conformantThe VOT‑320 thermal IP camera provides highsensitivity, uncooled long wave thermal images. It can tri-stream video simultaneously on two H.264 streams and one JPEG stream. The camera uses a Vanadium Oxide (VOx) focal plane array with an image resolution of 320x240 pixels that delivers outstanding image quality and sensitivity. It offers a choice of various lenses—both narrow field of view (NFOV) and widefield of view (WFOV)—and is available with a frame rate of 8.33 or 30 ips.VOT‑320 is designed to combine the benefits of thermal imaging with the well-proven Bosch IVA features. Thus a unique product was created thatoffers early detection and display of irregularities over large areas even with poor visibility or absolute darkness. Neither dense smoke nor bad weatherconditions as heavy fog or snow affect visibility. With a VOT‑320 there is no need for natural or artificial lighting of the area of interest.Focused on heat radiating objects, crisp images are generated that are not constricted by shadows or similar effects as regular video images are. The VOT‑320 camera uses advanced video processingtechnology for pixel-by-pixel analysis. This provides the user with the most detailed information of the scene.Enclosed in a robust outdoor housing with integrated window heater, VOT‑320 is ideal for a wide range of applications like fire defense in power plants, coast line monitoring, and traffic control in tunnels.Features such as multicast, internet streaming, and iSCSI recording are fully supported. The VOT‑320camera is designed on the state-of-the-art BoschIP platform which conforms to the highest standards of performance and reliability in any security and surveillance scenario.System overviewRange PerformanceThe following tables identify the approximate range performance of the respective lens for standard monitoring.Field of ViewVOT‑320 cameras are available with a choice of various lenses to match different demands. Three of them offer a wide field of view (WFOV), one a narrow field of view (NFOV).before the O-ring groove becomes visible.revolution after the lens first engages the lens flange. FunctionsOutstanding Image QualityWith its 320x240 VOx sensor, the VOT‑320 IP camera delivers outstanding image quality. The Bosch designed digital video processing system optimally handles the thermal image format without compromise. Temperature differences of 50 mK or less are made visible. Video processing features include multiple automatic, dynamic image optimization algorithms, as well as polarity control (white hot/black hot). Automatic flat-field correction (FFC) updates correction coefficients of the camera, resulting in a more uniform array output.Efficient Bandwidth and Storage ManagementThe cameras use H.264 compression, bandwidth throttling, and multicast capabilities to manage bandwidth and storage requirements efficiently, while delivering high image quality and resolution. Bosch's innovative tri-streaming feature enables VOT‑320IP cameras to generate two independent H.264 streams and one JPEG stream simultaneously. This allows the streaming of one high-resolution H.264 stream for live viewing and recording, and a second lower resolution H.264 stream for constrained-bandwidth networks. The JPEG images can be simultaneously streamed to another device. The JPEG video stream also provides easy integration with third-party JPEG compatible video management systems.Recording OptionsVOT‑320 cameras offer unparalleled recording options. Attached to the network, they can use iSCSI targets directly. The iSCSI storage target support enables the cameras to function as a conventional DVR, while streaming high-performance live video across the network. The VOT‑320 cameras also provide the user with a local storage option within the camera.Users can record the streams independently on different media. Thus video can be recorded centrally on iSCSI drives managed by VRM Video Recording Manager and redundantly on the local SD card. If necessary (for example, in case of a network failure), VRM can fill the gap in the central recording using Automatic Network Replenishment (ANR).When used with a SD card, the camera is a complete, self-contained surveillance system without the need for additional equipment.ONVIF ConformanceThe camera conforms to the ONVIF (Open Network Video Interface Forum) specification which guarantees interoperability between network video products regardless of manufacturer. ONVIF conformant devices are able to exchange live video, audio, metadata and control information. They are automatically discovered and connected to network applications such as video management systems.Unsurpassed FlexibilityThere are many ways to access the camera’s video: on a PC using a web browser, with the Bosch Video Management System, or with the supplied Bosch Video Client.Bosch Video Client Surveillance SoftwareThe bundled Bosch Video Client PC surveillance software offers a user-friendly interface to support easy installation and configuration. A wizard allows the configuration of multiple cameras simultaneously using an auto detection device. Multiple cameras can be monitored in one screen and video clips on the SD card can be archived and searched in a single application.Bosch Video Client supports up to 16 cameras without licensing and can be expanded to up to 64 cameras by adding 8- or 16‑channel licenses.Easy UpgradeRemotely upgrade the camera whenever new firmware becomes available. This ensures up-to-date products, thus protecting investment with little effort.Access SecurityVarious security levels are available for accessing the network, the camera, and the data channels. As well as password protection with three levels, 802.1x authentication using a RADIUS is supported. To secure Web browser access use HTTPS with a SSL certificate stored in the camera. For total data protection, the video and audio communication channels can be independently AES encrypted with 128‑bit keys by installing the optional Encryption Site License. Typical Applications•Airports, ports, and rail infrastructure•Traffic monitoring (air, land and sea)•Border control•Homeland security•Perimeters surveillanceSafetyElectromagnetic CompatibilityImmunityEmissionEnvironmentInstallation/configuration notesDimensionsOrdering Chart1V: Video camera69: 9 mm (0.35 in) lens 2O: Outdoor13: 13 mm (0.51 in) lens 3T: Thermal19: 19 mm (0.75 in) lens 4320x240 resolution60: 60 mm (2.36 in) lens 5V: Variant7L: 8.33 HzH: 30 Hz* Subject to export limitations (UTIC-list) InterfacesParts includedQuantity Components1VOT‑320 thermal IP camera 1focusing tool for WFOV lenses 1allen key 5terminal blocks 10screws3tamper resistant torx screws 1torx wrench 4cable glands 3nuts 3plugs1shielded RJ45 plug 2washers 2lock washers1Quick Installation Guide1mini DVD-ROM with Bosch Video Client, manuals, software and tools1pre-installed IVA Intelligent Video AnalysisTechnical specificationsOrdering informationVOT-320-V 9LRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 9 mm (0.35 in) lens; 8.33 ips Order number VOT-320V009L VOT-320-V 13LRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 13 mm (0.51 in) lens; 8.33 ips Order number VOT-320V013LVOT-320-V 19LRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 19 mm (0.75 in) lens; 8.33 ips Order number VOT-310V019LVOT-320-V 60LRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 60 mm (2.36 in) lens; 8.33 ips Order number VOT-320V060LVOT-320-V 9HRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 9 mm (0.35 in) lens; 30 ips Subject to export regulations (UTIC-list)Order number VOT-320V009HVOT-320-V 13HRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 13 mm (0.51 in) lens; 30 ips Subject to export regulations (UTIC-list)Order number VOT-320V013HVOT-320-V 19HRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 19 mm (0.75 in) lens; 30 ips Subject to export regulations (UTIC-list)Order number VOT-320V019HVOT-320-V 60HRobust thermal IP camera. IP66; IVA; H.264 tri-streaming; web interface; cloud services; 320x240; motion detect; fixed 60 mm (2.36 in) lens; 30 ips Subject to export regulations (UTIC-list)Order number VOT-320V060HAccessoriesLTC 9215/00 MountWall mount for UHO outdoor housing – 18 cm (7°in.), cable feed-throughOrder number LTC9215/00LTC 9215/00S MountShort wall mount for UHO outdoor housing - 30cm (12°in>), cable feed-throughOrder number LTC9215/00SLTC 9219/01 J-MountFeed-through J‑ mount for LTC/HSG 948x, HSG9583 and UHI/UHO housingsOrder number LTC9219/01UPA-2450-60 Power Supply, 120 V, 60 HzIndoor power supply for camera. 120 VAC, 60 Hz In;24 VAC, 50 VA OutOrder number UPA-2450-60UPA-2450-50 Power Supply, 220 V, 50 HzIndoor power supply for camera. 220 VAC, 50 Hz In;24 VAC, 50 VA OutOrder number UPA-2450-50VG4-A-PSU1 120 VAC Power Supply UnitPower supply with transformer, 120 VAC input, for anAUTODOME or MIC7000 Series PTZ camera. White,aluminum enclosure with cover, rated IP66 and IK 08.100 W output. Optional trim skirt (sold separately).Order number VG4-A-PSU1VG4-A-PSU2 230 VAC Power Supply UnitPower supply with transformer, 230 VAC input, for anAUTODOME or MIC7000 Series PTZ camera. White,aluminum enclosure with cover, rated IP66 and IK 08.100 W output. Optional trim skirt (sold separately).Order number VG4-A-PSU2Software OptionsVideo Client 8-camera licenseAdd-on license for Video Client, 8 IP camerasOrder number BVC-ESIP08AVideo Client 16-camera licenseAdd-on license for Video Client, 16 IP camerasOrder number BVC-ESIP16ARepresented by:Americas:Europe, Middle East, Africa:Asia-Pacific:China:America Latina:Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180***********************.com Bosch Security Systems B.V.P.O. Box 800025617 BA Eindhoven, The NetherlandsPhone: + 31 40 2577 284Fax: +31 40 2577 330******************************Robert Bosch (SEA) Pte Ltd, SecuritySystems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699*****************************Bosch (Shanghai) Security Systems Ltd.203 Building, No. 333 Fuquan RoadNorth IBPChangning District, Shanghai200335 ChinaPhone +86 21 22181111Fax: +86 21 22182398Robert Bosch Ltda Security Systems DivisionVia Anhanguera, Km 98CEP 13065-900Campinas, Sao Paulo, BrazilPhone: +55 19 2103 2860Fax: +55 19 2103 2862*****************************© Bosch Security Systems 2015 | Data subject to change without notice 1559334283 | en, V6, 03. Apr 2015。

作为第四代博世智能视频分析系统，IVA 4.0 是一款不可多得的保安辅助系统，可在室内或室外应用场合实现可靠的视频移动探测。

IVA 4.0 是最新的智能视频分析技术，不仅能够可靠地探测、跟踪和分析移动物体，同时还能防止图像中的虚假源体意外触发报警。

IVA 4.0 是许可选件，已全面集成至 Dinion IP、Extreme IP、Flexidome IP 和 AutoDome IP 摄像机，以及 VIP X1600 和VideoJet X 编码器系列。

IVA 4.0 摄像机和编码器中内置的功能不仅可以探测闲置的和已移除的物体，而且还可以探测徘徊、多条警戒线跨越和物体轨迹。

IVA 4.0 支持头部探测作为新功能。

博世也首次支持视频监控场景中物体的光流探测。

灵活配置的探测过滤器和先进的跟踪功能显著提高了可靠性并降低操作人员的工作量。

IVA 4.0 附带了新的增强型校准工具，可在几分钟内校准摄像机。

基本功能卓越的移动探测IVA 4.0 采用改进的算法，可以智能地适应不断变化的、苛刻的光照和环境条件，如雨、雪、云和风中飘动的树叶等。

博世内部研发团队致力于研发的背景认知算法可使 IVA 达到一个全新的智能水平。

这一增强的功能与用于生成摄像机覆盖/遮挡、遮蔽、散焦和移位报警的内置破坏探测功能相结合，进一步提升了探测能力。

图像稳定技术即使在视频源不稳定（例如安装在立杆上的摄像机或简单的振动）时，也可确保准确地探测。

可以选择下列任务：•探测进入、离开或处于某一区域（探测区域）内的物体•探测在相关时间在某一半径的区域内徘徊的物体•探测指定时间范围内的闲置物体•探测指定时间范围内的已移除物体•探测通过特定场景的物体的轨迹/路线，并用跟踪线显示出来•探测跨越多条警戒线的情况（以逻辑顺序排列的一至三条警戒线）•探测指定时间范围内的条件变化属性，例如大小、速度、方向和纵横比（例如东西落下）•在可配置的区域内探测头部•探测不断移动物体的流动•探测朝着物体流移动的物体•专家模式下的报警任务管理器可以按逻辑顺序组合任务过滤器通过简单的配置，IVA 4.0 可以选择图像的敏感区域、触发报警的最小物体大小和移动方向。

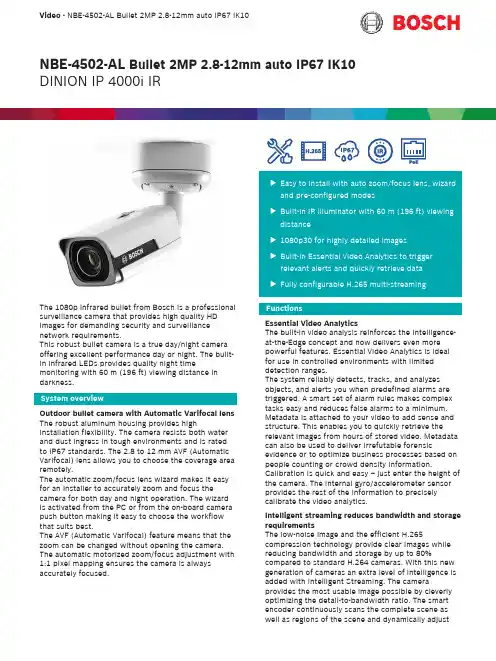

Video - NBE-4502-AL Bullet 2MP 2.8-12mm auto IP67 IK10NBE-4502-AL Bullet 2MP 2.8-12mm auto IP67 IK10DINION IP 4000i IRu Easy to install with auto zoom/focus lens, wizardand pre-configured modesu Built-in IR illuminator with 60 m (196 ft) viewingdistanceu1080p30 for highly detailed imagesu Built-in Essential Video Analytics to triggerrelevant alerts and quickly retrieve datau Fully configurable H.265 multi-streamingThe 1080p infrared bullet from Bosch is a professionalsurveillance camera that provides high quality HDimages for demanding security and surveillancenetwork requirements.This robust bullet camera is a true day/night cameraoffering excellent performance day or night. The built-in infrared LEDs provides quality night timemonitoring with 60 m (196 ft) viewing distance indarkness.System overviewOutdoor bullet camera with Automatic Varifocal lensThe robust aluminum housing provides highinstallation flexibility. The camera resists both waterand dust ingress in tough environments and is ratedto IP67 standards. The 2.8 to 12 mm AVF (AutomaticVarifocal) lens allows you to choose the coverage arearemotely.The automatic zoom/focus lens wizard makes it easyfor an installer to accurately zoom and focus thecamera for both day and night operation. The wizardis activated from the PC or from the on-board camerapush button making it easy to choose the workflowthat suits best.The AVF (Automatic Varifocal) feature means that thezoom can be changed without opening the camera.The automatic motorized zoom/focus adjustment with1:1 pixel mapping ensures the camera is alwaysaccurately focused.FunctionsEssential Video AnalyticsThe built-in video analysis reinforces the Intelligence-at-the-Edge concept and now delivers even morepowerful features. Essential Video Analytics is idealfor use in controlled environments with limiteddetection ranges.The system reliably detects, tracks, and analyzesobjects, and alerts you when predefined alarms aretriggered. A smart set of alarm rules makes complextasks easy and reduces false alarms to a minimum.Metadata is attached to your video to add sense andstructure. This enables you to quickly retrieve therelevant images from hours of stored video. Metadatacan also be used to deliver irrefutable forensicevidence or to optimize business processes based onpeople counting or crowd density information.Calibration is quick and easy – just enter the height ofthe camera. The internal gyro/accelerometer sensorprovides the rest of the information to preciselycalibrate the video analytics.Intelligent streaming reduces bandwidth and storagerequirementsThe low-noise image and the efficient H.265compression technology provide clear images whilereducing bandwidth and storage by up to 80%compared to standard H.264 cameras. With this newgeneration of cameras an extra level of intelligence isadded with Intelligent Streaming. The cameraprovides the most usable image possible by cleverlyoptimizing the detail-to-bandwidth ratio. The smartencoder continuously scans the complete scene aswell as regions of the scene and dynamically adjustcompression based on relevant information like movement. Together with Intelligent Dynamic Noise Reduction, which actively analyzes the contents of a scene and reduces noise artifacts accordingly, bitrates are reduced by up to 80%. Because noise is reduced at the source during image capture, the lower bitrate does not compromise image quality. This results in substantially lower storage costs and network strain and still retain a high image quality and smooth motion.Bitrate optimized profileThe average typical optimized bitrate in kbits/s for various frame rates when in H.265 mode is shown in the table:Multiple streamsThe multi-streaming feature delivers various H.264 or H.265 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems.The camera can run multiple independent streams that allows to set a different resolution and frame rate on the first and second stream. The user can also choose to use a copy of the first stream.The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.Regions of interest and E-PTZRegions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.Two-way audio and audio alarmTwo-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Audio detection can be used to generate an alarm if needed.Tamper and motion detectionA wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.Storage managementRecording management can be controlled by the Bosch Video Recording Manager(Video Recording Manager) or the camera can use iSCSI targets directly without any recording software. Edge recordingThe MicroSD card slot supports up to 2 TB of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or — if microSD card recording is used — extends the effective life of the storage medium.Cloud-based servicesThe camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts.Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.Easy installationPower for the camera can be supplied via a Power-over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source.The camera can also be supplied with power from24 VAC or +12 VDC SELV class 2 power supplies.For trouble-free network cabling, the camera supports Auto-MDIX which allows the use of straight or cross-over cables.True day/night switchingThe camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.Hybrid modeAn analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high resolution HD video streaming and an analog video output via a BNC connector. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.DORI coverageDORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:2MP Camera with 2.8 mm - 12 mm lensData securitySpecial measures have been put in place to ensure the highest level of security for device access and data transport. The three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS and firmware updates can also be protected with authenticated secure uploads.The on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support, guarantee superior protection from malicious attacks. The802.1x network authentication with EAP/TLS, supports TLS 1.2 with updated cipher suites including AES 256 encryption.The advanced certificate handling offers:•Self-signed unique certificates automatically created when required•Client and server certificates for authentication •Client certificates for proof of authenticity •Certificates with encrypted private keysComplete viewing softwareThere are many ways to access the camera’s features: using a web browser, with the BVMS, with the free-of-charge Bosch Video Client or Video Security Client, with the video security mobile app, or via third-party software.System integrationThe camera conforms to the ONVIF Profile S, ONVIF Profile G , and ONVIF Profile M specifications. This guarantees interoperability between network video products regardless of manufacturer.Third-party integrators can easily access the internal feature set of the camera for integration into large projects. Visit the Bosch Integration Partner Program (IPP) website () for more information.Regulatory informationHD standardsComplies with the SMPTE 274M-2008 Standard in:•Resolution: 1920x1080•Scan: Progressive•Color representation: complies with ITU-R BT.709•Aspect ratio: 16:9•Frame rate: 25 and 30 frames/sComplies with the SMPTE 296M-2001 Standard in:•Resolution: 1280x720•Scan: Progressive•Color representation: complies with ITU-R BT.709•Aspect ratio: 16:9•Frame rate: 25 and 30 frames/sInstallation/configuration notesParts included Technical specificationsOrdering informationNBE-4502-AL Bullet 2MP 2.8-12mm auto IP67 IK10Robust IP bullet camera with infrared illumination foroutdoor HD surveillance with H.265 and Essential VideoAnalytics.Order number NBE-4502-AL | F.01U.328.212AccessoriesLTC 9213/01 Pole mount adapter forLTC9210,9212,9215Flexible pole mount adapter for camera mounts (usetogether with the appropriate wall mount bracket). Max.9 kg (20 lb); 3 to 15 inch diameter pole; stainless steelstrapsOrder number LTC 9213/01 | F.01U.009.291VDA-CMT-PTZDOME Corner mount adapterCorner (270°) mount adapter for use with theappropriate wall mountOrder number VDA-CMT-PTZDOME | F.01U.288.068VDA-POMT-PTZDOME Pole mount adapterPole mount adapter for use with the appropriate wallmount for indoor and outdoor applications.Order number VDA-POMT-PTZDOME | F.01U.288.069NPD-5001-POE Midspan, 15W, single port, AC inPower-over-Ethernet midspan injector for use with PoEenabled cameras; 15.4 W, 1-portWeight: 200 g (0.44 lb)Order number NPD-5001-POE | F.01U.305.288NPD-5004-POE Midspan, 4 port x 15W, AC inPower-over-Ethernet midspan injector for use with PoEenabled cameras; 15.4 W, 4-portsWeight: 620 g (1.4 lb)Order number NPD-5004-POE | F.01U.305.289Represented by:Europe, Middle East, Africa:Germany:North America:Asia-Pacific:Bosch Security Systems B.V.P.O. Box 800025600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284/xc/en/contact/ Bosch Sicherheitssysteme GmbHRobert-Bosch-Ring 585630 GrasbrunnTel.: +49 (0)89 6290 0Fax:+49 (0)89 6290 1020****************************Bosch Security Systems, LLC130 Perinton ParkwayFairport, New York, 14450, USAPhone: +1 800 289 0096Fax: +1 585 223 9180*******************.comRobert Bosch (SEA) Pte Ltd, Security Systems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699/xc/en/contact/Data subject to change without notice | 202301251225 | V19 | January 25, 2023© Bosch Security Systems 2023。
