IBM5110阵列卡操作手册

IBM服务器_RAID配置和系统安装IBM服务器RAID配置和系统安装将服务器的连接线连接好，等服务器自检完成后开机。

会出现如图界面：按Ctrl+H键进入RAID卡信息界面：选择Start进入RAID配置界面我这里是用了四块硬盘（选择：Configuration Wizard）下面是三个选择（Clear Configuration清晰的配置）、（NewC onfiguration新的配置）、（Add C onfiguration添加配置）。

我们在这里选择默认的选择Add C onfiguration点击NEXT进行下一步。

这里有两个选择：（manual Configuration手动配置）（automaticconfiguration自动配置），我这里选择的是manual Configuration 手动配置点击NEXT进行下一步。

把Drives区里的硬盘按住Ctrl键用鼠标全部选择上，点击(Add To Array添加到数组)添加到Drives Grooups区内如图：点击NEXT进行下一步。

选择阵列卡的模式，点击Add to SPAN，添加到Span内如图：点击NEXT进行下一步。

这里是RAID模式的选择RAID 0 、RAID 1、RAID 5，我怎里选择的是RAID 5。

点击(Accept接受)点击NEXT进行下一步。

这里选择Yes完成之后会出现这个界面，注意这是一个虚拟驱动器，直接点击Next就可以，点击NEXT进行下一步。

点击Yes，保存这个配置点击Yes完成后会出现以下几个选择：（fast initialize快速初始化）、（slow initialize缓慢的初始化）、（check consistency检查一致性）、（properties内容任意）、（set boot drive (current=NCNE) 设置启动驱动）这里我选择的是：fast initialize快速初始化，点击Go。

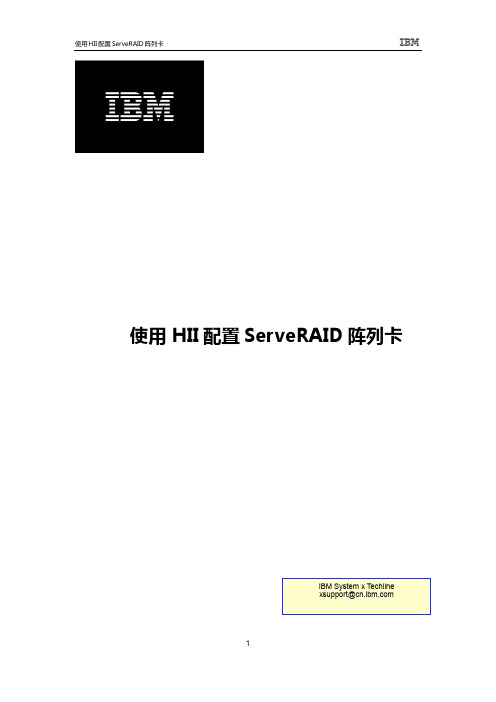

使用HII配置ServeRAID阵列卡目录一. 启动HII(Human Interface Infrastructure)配置程序 (2)二. 配置RAID0/RAID1/RAID5 (3)三. 配置RAID10 (6)四. 添加热备份盘HotSpare (11)五. 设置硬盘为Unconfigured Good状态 (15)六. 导入外部阵列信息（Foreign） (17)七. 如何在一个RAID中创建多个Virtual Drive（逻辑盘） (18)八. 向RAID5中添加新硬盘 (23)九. 设置阵列卡缓存工作模式 (27)一. 启动HII(Human Interface Infrastructure)配置程序1. 在开机自检时按F1进入UEFI配置界面2. 选择System Settings->Storage3. 选择阵列卡按回车4. 进入HII配置程序二. 配置RAID0/RAID1/RAID51. 在主菜单中选择Configuration Management->Create Virtual Drive2. 选择需要配置的阵列级别3. 在Drive Selection Criteria中选择硬盘类型，如果服务器上都是同一类型的硬盘将只有唯一的选择。

注：此界面中的其他选项都是根据阵列卡的预设固定的，无法自行选择，如果需要自定义更多选项请选择“Create Virtual Drive - Advanced”4. 选择最后的Save Configuration5. 用空格选中Confirm后，选Yes确定6. 选择OK完成创建RAID。

7. 在主菜单的Virtual Drive Management中可以查看刚配置阵列的状态，下图中可以看到是一个1858GB 的RAID5，状态是Optimal(正常状态)三. 配置RAID101. 在主菜单中选择Configuration Management->Create Virtual Drive - Advancd2. Select RAID Level选择RAID103. 在Span 1中选择Select Drives4. 选择2块硬盘，用空格键选中相应硬盘后的选择框，完成后选择Apply Changes5. Span 1配置完成后，选择Add More Spans添加Span 26. 添加Span 2后选择Select Drives配置硬盘7. 选择2块硬盘后Apply Changes8. 创建Span 2后，可以看到有阵列中有2个Span9. 选择最下面的Save Configuration10. 用空格选中Confirm后，选Yes确定11. 选择OK完成创建RAID。

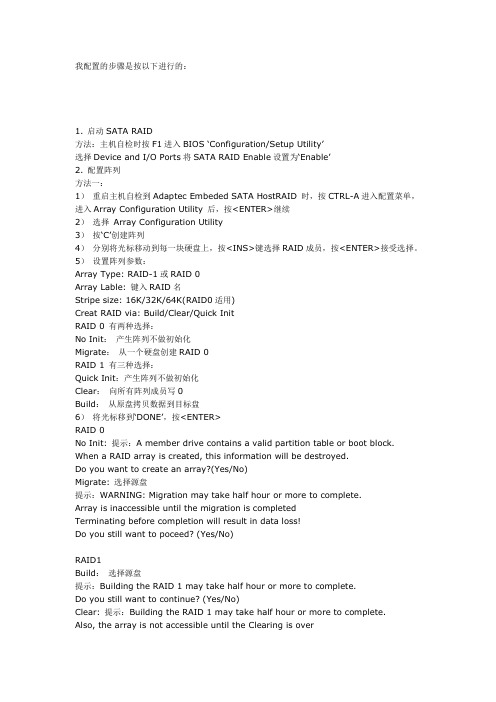

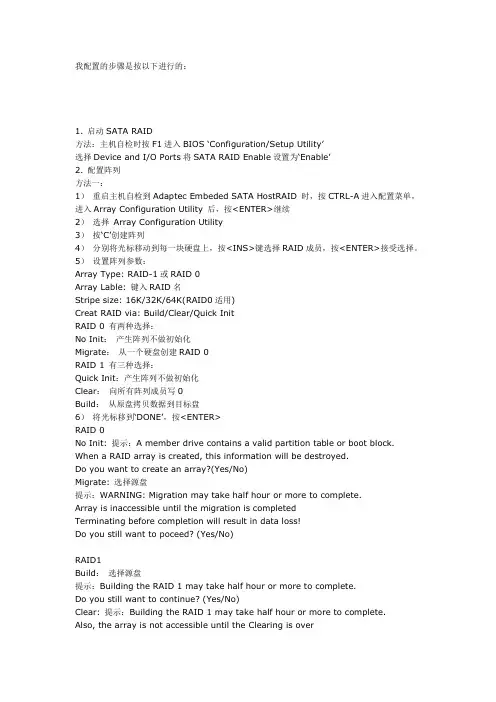

我配置的步骤是按以下进行的：1. 启动SATA RAID方法：主机自检时按F1进入BIOS ‘Configuration/Setup Utility’选择Device and I/O Ports将SATA RAID Enable设置为‘Enable’2. 配置阵列方法一：1）重启主机自检到Adaptec Embeded SATA HostRAID 时，按CTRL-A进入配置菜单，进入Array Configuration Utility 后，按<ENTER>继续2）选择Array Configuration Utility3）按‘C’创建阵列4）分别将光标移动到每一块硬盘上，按<INS>键选择RAID成员，按<ENTER>接受选择。

5）设置阵列参数：Array Type: RAID-1或RAID 0Array Lable: 键入RAID名Stripe size: 16K/32K/64K(RAID0适用)Creat RAID via: Build/Clear/Quick InitRAID 0 有两种选择：No Init：产生阵列不做初始化Migrate：从一个硬盘创建RAID 0RAID 1 有三种选择：Quick Init：产生阵列不做初始化Clear：向所有阵列成员写0Build：从原盘拷贝数据到目标盘6）将光标移到‘DONE’，按<ENTER>RAID 0No Init: 提示：A member drive contains a valid partition table or boot block. When a RAID array is created, this information will be destroyed.Do you want to create an array?(Yes/No)Migrate: 选择源盘提示：WARNING: Migration may take half hour or more to complete.Array is inaccessible until the migration is completedTerminating before completion will result in data loss!Do you still want to poceed? (Yes/No)RAID1Build：选择源盘提示：Building the RAID 1 may take half hour or more to complete.Do you still want to continue? (Yes/No)Clear: 提示：Building the RAID 1 may take half hour or more to complete.Also, the array is not accessible until the Clearing is overDo you still want to continue? (Yes/No)Quick Init: 提示：Creating a RAID 1 using Quick Init may require you to runa VERIFY W/FIX using OS utility to make drives consistent.按任意键继续提示：A member drive contains a valid partition table or boot block.When a RAID array is created, this information will be destroyed.Do you want to create an array?(Yes/No)7）完成后按若干ESC退出设置配置最后100%完成了！解决方法:RAID1或RAID5发生一块硬盘故障时，请参考如下步骤恢复阵列。

ServeRaid MR 5000 阵列卡WebBIOS配置一．启动WebBIOS启动WebBIOS有两种方法1.配置有ServeRaid MR 5000阵列卡的服务器，在开机自检的过程中会有CTRL+H的提示。

按下CTRL+H组合键后会出现阵列卡配置界面2.开机按F1进入UEFI配置界面选择System Settings->Adapters and UEFI Drivers，可以看到配置的阵列卡，按回车选中后，按1进入WebBIOS1.在WebBIOS中选择配置向导Configuration Wizard2.选择New Configuration，选择后会清除现有阵列卡上的所有阵列信息；如果此时阵列卡上已经配置了其他阵列，此处请选择Add Configuration。

选择Yes确定3.选择手动配置Manual Configuration4.选择要配置在阵列中的硬盘，按Add to Array从左边的Drivers中选到右边的Driver Groups中，配置RAID1需要2块硬盘，配置RAID5至少需要3块硬盘。

5.选好硬盘后，选择Accept DG后点击Next6.在左侧的ArrayWithFreeSpace中选中刚刚做好的Disk Groups按Add toSPAN添加到右侧的span中，然后选择Next7.Virtual Disk配置界面，选好Virtual Disk参数后，点选Accept接受配置，最后选择Next。

·RAID Level中可以选择要配置的RAID级别；·右侧的Possible RAID Level中显示可能的RAID级别的磁盘容量，比如示例中三个73G的硬盘配置raid0容量约为200G，而如果配置RAID5容量约为134G；·Select size选项中可以修改Virtual Disk的容量，通常这个值设定为该磁盘组RAID级别的最大容量。

ibm服务器操作手册标题：IBM服务器操作手册一、前言本手册旨在为用户提供有关IBM服务器的基本操作指南，包括服务器的安装、配置、管理和维护等。

请在使用前仔细阅读并理解这些信息。

二、服务器安装1. 位置选择：选择一个通风良好、避免阳光直射且远离磁场的地方放置服务器。

2. 安装硬件：按照包装盒内的安装指南将服务器组件逐一安装到位。

3. 连接电源和网络：连接服务器电源线和网线，并确保其稳定。

三、服务器配置1. 开机与初始化：打开服务器电源，根据屏幕提示进行系统初始化设置。

2. 系统安装：插入操作系统安装盘，按照提示进行操作系统的安装。

3. 配置网络：在网络设置中，输入您的IP地址、子网掩码、默认网关和DNS 服务器等信息。

四、服务器管理1. 系统监控：通过系统自带的监控工具或第三方软件，定期检查服务器的运行状态，如CPU使用率、内存使用情况、磁盘空间等。

2. 数据备份：定期对重要数据进行备份，以防数据丢失。

3. 软件更新：定期检查并安装最新的系统和应用软件补丁，以提高系统的安全性和稳定性。

五、服务器维护1. 清洁保养：定期清理服务器内部和外部的灰尘，保持服务器的良好散热。

2. 故障排查：当服务器出现故障时，可以通过查看系统日志、使用诊断工具等方式进行故障排查。

3. 技术支持：如果您无法解决服务器的问题，可以联系IBM的技术支持获取帮助。

六、注意事项1. 在进行任何操作之前，请确保服务器已关闭并断开电源。

2. 不要随意更改服务器的设置，除非您完全理解其可能带来的影响。

3. 请定期备份您的数据，以防意外数据丢失。

七、结语感谢您选择IBM服务器，我们希望本手册能帮助您更好地理解和使用我们的产品。

如有任何疑问或建议，欢迎随时与我们联系。

版权信息：版权所有© IBM公司。

未经许可，不得复制或传播本手册的全部或部分内容。

IBM服务器如何做RAID阵列
阵列要求：硬盘至少2块
一，首先，起动机器自检CPU 内存硬盘等硬件是否正常（如果不认请正确检查）二，如果硬件一切正常，那现在我们就开始做阵列
当服务器检测到如图一时，按‘CTRL+C'进入阵列主菜单
如图二，'主菜单' 上下键选择'RAID PROPERTIES' 'ENTER'进入
如图三进入阵列主选项将选项移到'ARRAY DISK'栏下(查看硬盘是否全认）当'ARRAY DISK'栏下为'NO'时选择加减号将'NO'转为'YES'
方法如下：
1‘使用加减号将'NO'转'YES' 按'F3'如·下图
注意：当有余阵列时，会提示按'DELETE'键做阵列如图四
做好后，'ARRAY DISK'栏下均为'YES'如图五按'ESC'返回图六图六，选择' SA VE CHANGES, EXIT NENU'确定保存如图七
图七
图八，按'ESC'返回到图八选择'DISCARD CHANGES,EXIT NENU'重启及可。

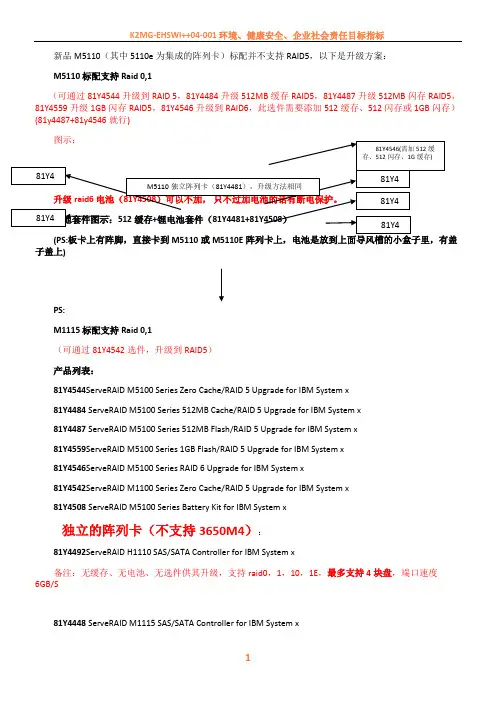

新品M5110（其中5110e为集成的阵列卡）标配并不支持RAID5，以下是升级方案：M5110 标配支持Raid 0,1（可通过81Y4544升级到RAID 5，81Y4484升级512MB缓存RAID5，81Y4487升级512MB闪存RAID5，81Y4559升级1GB闪存RAID5，81Y4546升级到RAID6，此选件需要添加512缓存、512闪存或1GB闪存）(81y4487+81y4546就行)(PS:板卡上有阵脚，直接卡到M5110或M5110E阵列卡上，电池是放到上面导风槽的小盒子里，有盖子盖上)PS:M1115 标配支持Raid 0,1（可通过81Y4542选件，升级到RAID5）产品列表：81Y4544ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade for IBM System x81Y4484 ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade for IBM System x81Y4487 ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade for IBM System x81Y4559ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade for IBM System x81Y4546ServeRAID M5100 Series RAID 6 Upgrade for IBM System x81Y4542ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade for IBM System x81Y4508 ServeRAID M5100 Series Battery Kit for IBM System x独立的阵列卡（不支持3650M4）：81Y4492ServeRAID H1110 SAS/SATA Controller for IBM System x备注：无缓存、无电池、无选件供其升级，支持raid0，1，10，1E，最多支持4块盘，端口速度6GB/S81Y4448 ServeRAID M1115 SAS/SATA Controller for IBM System x备注：无缓存、无电池、可选license的方式升级无缓存、无电池的raid5,该选件号为81Y4542，它只是1个许可证，激活一下就可以，非硬件。

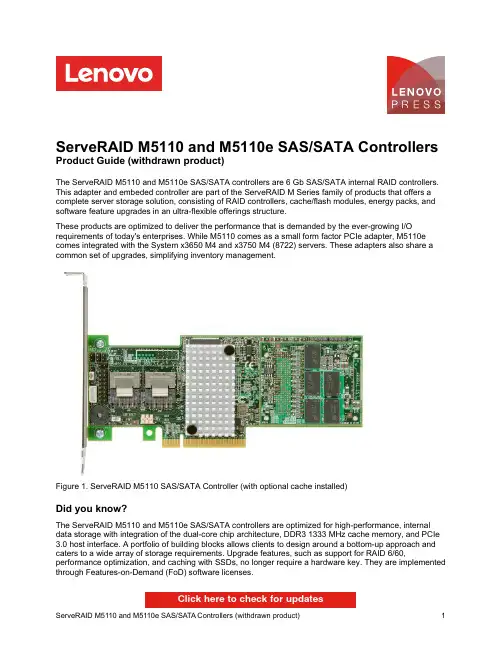

ServeRAID M5110 and M5110e SAS/SATA Controllers Product Guide (withdrawn product)The ServeRAID M5110 and M5110e SAS/SATA controllers are 6 Gb SAS/SATA internal RAID controllers. This adapter and embeded controller are part of the ServeRAID M Series family of products that offers a complete server storage solution, consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure.These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. While M5110 comes as a small form factor PCIe adapter, M5110e comes integrated with the System x3650 M4 and x3750 M4 (8722) servers. These adapters also share a common set of upgrades, simplifying inventory management.Figure 1. ServeRAID M5110 SAS/SATA Controller (with optional cache installed)Did you know?The ServeRAID M5110 and M5110e SAS/SATA controllers are optimized for high-performance, internal data storage with integration of the dual-core chip architecture, DDR3 1333 MHz cache memory, and PCIe 3.0 host interface. A portfolio of building blocks allows clients to design around a bottom-up approach and caters to a wide array of storage requirements. Upgrade features, such as support for RAID 6/60, performance optimization, and caching with SSDs, no longer require a hardware key. They are implemented through Features-on-Demand (FoD) software licenses.Click here to check for updatesFigure 2. Flash-backed cache module, power module, and power cableFeature upgrade matrixThe ServeRAID M5110 and M5110e provide support for RAID 0, 1, and 10 as standard capabilities. Additional functional upgrades optionally are available to expand the standard capabilities. Some upgrades do not depend on other upgrades and can be applied to "out-of-the-box" controllers (we call them primary upgrades). Certain upgrades cannot be applied to "out-of-the-box" controllers and require that other upgrades are enabled before applying these upgrades (we call them secondary upgrades). There are two types of available upgrades: hardware (HW) and Feature on Demand (FoD). Hardware upgrades contain physical parts (for example, cache module or battery). FoD upgrades are software licenses. The following table lists the available primary upgrades, their capabilities, and types.Table 2. ServeRAID M5110 and M5110e primary upgrades and their featuresFeature RAID5, 50SED512 MBDDR3cache1 GBDDR3cache2 GBDDR3cacheFlash-backedcacheOption description PartnumberTypeServeRAID M5100 Series ZeroCache/RAID 5 Upgrade81Y4544FoD Yes Yes No No No NoServeRAID M5100 Series 512MBCache/RAID 5 Upgrade81Y4484HW Yes Yes Yes No No NoServeRAID M5100 Series 512MBFlash/RAID 5 Upgrade81Y4487HW Yes Yes Yes No No YesServeRAID M5100 Series 1GBFlash/RAID 5 Upgrade81Y4559HW Yes Yes No Yes No YesServeRAID M5100 Series 2GBFlash/RAID 5 Upgrade47C8670HW Yes Yes No No Yes YesThe following table shows the secondary upgrades, their capabilities, types, and dependencies. The primary feature upgrades, on which the secondary upgrades depend, are listed in their respective columns. "Required" means that the primary upgrade listed in the column must be enabled before enabling the secondary feature listed in that particular row.Table 3. ServeRAID M5110 and M5110e secondary upgrades, their features, and dependenciesPrimaryfeature upgrades Secondaryfeature upgradesOptiondescriptionZeroCache/RAID 5512 MBCache/RAID 5512 MBFlash/RAID 51 GBFlash/RAID 52 GBFlash/RAID 5 Part number81Y454481Y448481Y448781Y455947C8670 Upgrade type FoD HW HW HW HWFeature Optiondescription PartnumberTypeBattery-backedcacheBattery Kit81Y4508HW No support Required No support No support No supportRAID 6, 60RAID 6 Upgrade81Y4546FoD No support Required Required Required Required FastPath SSD PerformanceAccelerator90Y4273FoD No support Required Required Required RequiredCacheCade SSD CachingEnabler90Y4318FoD No support Required Required Required RequiredServer supportThe following tables list the servers that support the M5110 and M5110e.Support for System x and dense servers with Xeon E5/E7 v4 and E3 v5 processors Table 4. Support for System x and dense servers with Xeon E5/E7 v4 and E3 v5 processorsPart number DescriptionOnboard ServeRAID M5110e SAS/SATA Controller N N N N N N N 81Y4481ServeRAID M5110 SAS/SATA ControllerN N N N N N N 81Y4544ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade N N N N N N N 81Y4484ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade N N N N N N N 81Y4487ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade N N N N N N N 81Y4559ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade N N N N N N N 47C8670ServeRAID M5100 Series 2GB Flash/RAID 5 Upgrade N N N N N N N 81Y4508ServeRAID M5100 Series Battery Kit N N N N N N N 81Y4546ServeRAID M5100 Series RAID 6 Upgrade N N N N N N N 90Y4273ServeRAID M5100 Series SSD Performance Key N N N N N N N 90Y4318ServeRAID M5100 Series SSD Caching EnablerNNNNNNN x 3250 M 6 (3943)x 3250 M 6 (3633)x 3550 M 5 (8869)x 3650 M 5 (8871)x 3850 X 6/x 3950 X 6 (6241, E 7 v 4)n x 360 M 5 (5465, E 5-2600 v 4)s d 350 (5493)Support for System x and dense servers with Intel Xeon v3 processors Table 5. Support for servers with Intel Xeon v3 processorsPart number DescriptionOnboard ServeRAID M5110e SAS/SATA Controller N N N N N N N 81Y4481ServeRAID M5110 SAS/SATA ControllerY Y N N N N N 81Y4544ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade Y Y N N N N N 81Y4484ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade Y Y N N N N N 81Y4487ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade Y Y N N N N N 81Y4559ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade Y Y N N N N N 47C8670ServeRAID M5100 Series 2GB Flash/RAID 5 Upgrade N N N N N N N 81Y4508ServeRAID M5100 Series Battery Kit Y Y N N N N N 81Y4546ServeRAID M5100 Series RAID 6 Upgrade Y Y N N N N N 90Y4273ServeRAID M5100 Series SSD Performance Key Y Y N N N N N 90Y4318ServeRAID M5100 Series SSD Caching EnablerYYNNNNN x 3100 M 5 (5457)x 3250 M 5 (5458)x 3500 M 5 (5464)x 3550 M 5 (5463)x 3650 M 5 (5462)x 3850 X 6/x 3950 X 6 (6241, E 7 v 3)n x 360 M 5 (5465)Table 7. 1.8-inch SSDsXeon v2Xeon v3Part number Description1.8-inch hot-swap SSDs - 6 Gb SATA - Enterprise Mainstream (3-5 DWPD)00AJ335120GB SATA 1.8" MLC Enterprise Value SSD N N N Y N N N 00AJ340240GB SATA 1.8" MLC Enterprise Value SSD N N N Y N N N 00AJ345480GB SATA 1.8" MLC Enterprise Value SSD N N N Y N N N 00AJ350800GB SATA 1.8" MLC Enterprise Value SSDNNNYNNNx 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)Xeon v2Xeon v3Part number Description2.5-inch hot-swap HDDs - 6 Gb SAS 10K90Y8877300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD Y Y N Y N Y Y 90Y8872600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD Y Y N Y N Y Y 81Y9650900GB 10K 6Gbps SAS 2.5" SFF HS HDD Y Y N Y N Y Y 00AD075 1.2TB 10K 6Gbps SAS 2.5" G2HS HDD Y Y N Y N Y N 00NA441 1.8TB 10K 6Gbps SAS 2.5" G2HS 512e HDD N Y N Y N N Y 2.5-inch hot-swap HDDs - 6 Gb SAS 15K81Y9670300GB 15K 6Gbps SAS 2.5" G2HS HDD Y Y N Y N Y Y 00AJ300600GB 15K 6Gbps SAS 2.5" G2HS HDD Y Y N Y N N Y 2.5-inch hot-swap HDDs - 6 Gb NL SAS90Y8953500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD Y Y N Y N Y Y 81Y96901TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD Y Y N Y N Y Y 2.5-inch hot-swap HDDs - 6 Gb NL SATA81Y9726500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD Y Y N Y N Y Y 81Y97301TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD Y Y N Y N Y Y 2.5-inch hot-swap SED HDDs - 6 Gb SAS 10K90Y8913300GB 10K 6Gbps SAS 2.5" SFF G2HS SED Y Y N Y N N N 90Y8908600GB 10K 6Gbps SAS 2.5" SFF G2HS SEDNYNYNYYx 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)Xeon v2Xeon v3Part number Description2.5-inch hot-swap SSDs - 6 Gb SAS - Enterprise Performance (10+ DWPD)49Y6129200GB SAS 2.5" MLC HS Enterprise SSD Y Y N Y N Y N 49Y6134400GB SAS 2.5" MLC HS Enterprise SSD Y Y N Y N Y N 49Y6139800GB SAS 2.5" MLC HS Enterprise SSD Y Y N Y N Y N 49Y6195 1.6TB SAS 2.5" MLC HS Enterprise SSD N Y N N N N N 2.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Mainstream (3-5 DWPD)00AJ355120GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y Y 00AJ360240GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y Y 00AJ365480GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y Y 00AJ370800GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y Y 2.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Entry (<3 DWPD)00AJ000S3500 120GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y N 00AJ005S3500 240GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y N 00AJ010S3500 480GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y N 00AJ015S3500 800GB SATA 2.5" MLC HS Enterprise Value SSD Y Y N Y N Y N 00YC365120GB Enterprise Entry SATA HS 2.5" SSD N Y N Y N N Y 00YC370240GB Enterprise Entry SATA HS 2.5" SSD N Y N Y N N Y 00YC375480GB Enterprise Entry SATA HS 2.5" SSD N Y N Y N N Y 00YC380960GB Enterprise Entry SATA HS 2.5" SSDNYNYNNYx 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)Xeon v2Xeon v3Part number Description3.5-inch hot-swap HDDs - 6 Gb NL SAS90Y85722TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD Y Y Y Y Y N N 49Y62104TB 7.2K 6Gbps NL SAS 3.5" G2HS HDD N Y Y N Y N N 00ML2136TB 7.2K 6Gbps NL SAS 3.5" G2HS 512e HDD Y Y Y Y Y Y Y 3.5-inch hot-swap HDDs - 6 Gb NL SATA81Y9786500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD Y Y Y Y Y Y Y 81Y97901TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD Y Y Y Y Y Y Y 81Y97942TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD Y Y Y Y Y Y Y 00FN1132TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD Y Y Y Y Y Y Y 00FN1736TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDDYYYYYYYx 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)Xeon v2Xeon v3Part number Description3.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Performance (10+ DWPD)00YC340Intel S3710 400GB Enterprise Performance SATA HS 3.5" SSD N N N N N Y Y 00YC345Intel S3710 800GB Enterprise Performance SATA HS 3.5" SSD N N N N N Y Y 3.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Mainstream (3-5 DWPD)00AJ435120GB SATA 3.5" MLC HS Enterprise Value SSD N N Y N Y N N 00AJ445480GB SATA 3.5" MLC HS Enterprise Value SSD N N N N Y N N 3.5-inch hot-swap SSDs - 6 Gb SATA - Enterprise Entry (<3 DWPD)00WG770Intel S3510 120GB Enterprise Entry SATA HS 3.5" SSD N N N N N Y N 00WG775Intel S3510 240GB Enterprise Entry SATA HS 3.5" SSD N N N N N Y N 00WG780Intel S3510 480GB Enterprise Entry SATA HS 3.5" SSD N N N N N Y N 00YC420960GB Enterprise Entry SATA HS 3.5" SSDNNNNYY YTable 12. 3.5-inch simple-swap 6 Gb SAS/SATA HDDsXeon v2Xeon v3Part number Description3.5-inch simple-swap HDDs - 6 Gb NL SATA81Y9802500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD Y Y Y Y N Y Y 81Y98061TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD Y Y Y Y N Y Y 81Y98102TB 7.2K 6Gbps NL SATA 3.5" G2SS HDDYYYYNYYSee ServerProven for the latest information about the System x servers and drives support:/us/en/serverproven/xseries/controllers/matrix.shtmlOperating system supportx 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)x 3500 M 4 (7383, E 5-2600 v 2)x 3550 M 4 (7914, E 5-2600 v 2)x 3630 M 4 (7158, E 5-2400 v 2)x 3650 M 4 (7915, E 5-2600 v 2)x 3650 M 4 B D (5466)x 3100 M 5 (5457)x 3250 M 5 (5458)TrademarksLenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web athttps:///us/en/legal/copytrade/.The following terms are trademarks of Lenovo in the United States, other countries, or both:Lenovo®ServeRAIDServerProven®System x®The following terms are trademarks of other companies:Intel® and Xeon® are trademarks of Intel Corporation or its subsidiaries.Linux® is the trademark of Linus Torvalds in the U.S. and other countries.Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.Other company, product, or service names may be trademarks or service marks of others.。

使用WebBIOS CU（Ctrl+H）配置ServeRAID MR SAS/SATA Controller (注：本文仅适用于ServeRAID MR RAID controller MR-10x系列)一启动WebBIOS 配置工具界面 (2)二 WebBIOS CU主界面选项介绍 (4)三创建阵列配置信息 (11)1. 使用配置向导（Configuration Wizard） (11)2. 选择配置方式 (12)3. 使用自动配置模式（Auto Configuration：Without Redundancy） (15)4. 使用自动配置模式（Auto Configuration：With Redundancy） (18)5. 使用自定义配置（Custom Configuration），配置RAID0，1，5，6等 (21)6. 使用自定义配置（Custom Configuration），配置RAID10， 50，60等 (29)四添加或删除HotSpare (35)1. 创建Dedicated Hotspare (37)2. 创建Global Hotspare (39)3. 删除Hotspare硬盘 (41)五关于Rebulid操作示例 (43)1. 硬盘显示OFFLINE (43)2. 硬盘显示Missing from DGx (48)六删除已有Virtual Disk (51)七关于Physical Disk的一些操作 (54)1. 物理硬盘 UNCONF BAD (54)2. 新加物理硬盘已有其他RAID信息（Import操作） (56)注：如果是新机器，没有做过任何配置，并且只配置RAID而无其他操作，请直接参考“三创建阵列配置信息”中的“5. 使用自定义配置（Custom Configuration），配置RAID0，1，5，6等”或“6. 使用自定义配置（Custom Configuration），配置RAID10， 50，60等”一启动WebBIOS 配置工具界面1. 添加有ServeRAID MR RAID controller MR-10x控制器的服务器开机自检时，会有<CTRL>+<H>的提示（类似于）：此时，请按下组合键<CTRL>+<H>。
