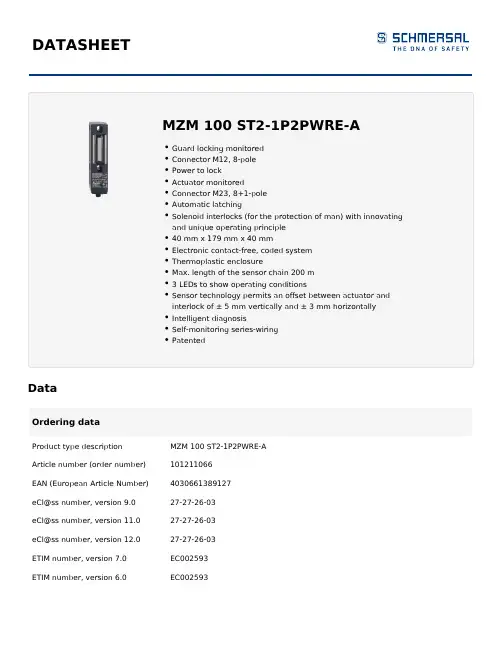

DATASHEETDataOrdering dataProduct type description MZM 100 ST2-1P2PWRE-A Article number (order number)101211066EAN (European Article Number)4030661389127eCl@ss number, version 9.027-27-26-03eCl@ss number, version 11.027-27-26-03eCl@ss number, version 12.027-27-26-03ETIM number, version 7.0EC002593ETIM number, version 6.0EC002593Approvals - StandardsCertificates TÜVcULusEACGeneral dataStandards EN 60947-5-3EN ISO 13849-1EN ISO 14119IEC 61508Coding Universal codingLowCoding level according to ISO14119Working principle inductiveEnclosure material Glass-fibre, reinforced thermoplastic Gross weight700 gTime to readiness, maximum4,000 msReaction time, maximum150 msDuration of risk, maximum150 msGeneral data - FeaturesPower to lock YesSolenoid interlock monitored YesLatching YesShort circuit detection YesCross-circuit detection YesSeries-wiring YesSafety functions YesIntegral system diagnostics, status YesNumber of safety contacts2Number of series-wiring of sensors31Safety classificationStandards EN ISO 13849-1IEC 61508Safety classification - Interlocking functionPerformance Level, up to eCategory4PFH value 3.54 x 10⁻⁹ /h3Safety Integrity Level (SIL),suitable for applications inMission time20 Year(s)Mechanical dataMechanical life, minimum1,000,000 OperationsNote (Mechanical life)Actuating speedOperations for door weights ≤ 5 kg Holding force, typically750 NHolding force, guaranteed500 NLatching force, minimum30 NLatching force, maximum100 NMechanical data - Connection techniqueType of connection Connector M12, 8-poleMechanical data - DimensionsLength of sensor40 mmWidth of sensor40 mmHeight of sensor179 mmAmbient conditionsDegree of protection IP65IP67Ambient temperature, minimum-25 °CAmbient temperature, maximum+55 °CStorage and transport-25 °Ctemperature, minimum+70 °CStorage and transporttemperature, maximumRelative humidity, minimum30 %Relative humidity, maximum95 %Note (Relative humidity)non-condensingnon-icingResistance to vibration to EN10 … 150 Hz, amplitude 0.35 mm 60068-2-6Restistance to shock30 g / 11 msProtection class IIIAmbient conditions - Insulation values32 VDCRated insulation voltage Ui0.8 kVRated impulse withstand voltage UimpOvervoltage category IIIDegree of pollution to VDE 01003Electrical dataOperating voltage, minimum20.4 VDCOperating voltage, maximum26.4 VDC600 mANo-load supply current, maximum IOperating current1,000 mA50 mARequired rated short-circuit100 Acurrent to EN 60947-5-1Note Cable length and cable section alter the voltage drop depending on the outputcurrentSwitching frequency, maximum 1 HzElectrical data - Magnet controlSwitching thresholds-3 V … 5 V (Low)15 V … 30 V (High)Classification ZVEI CB24I, Sink C0Classification ZVEI CB24I, Source C1C2C3Electrical data - Safety digital inputsSwitching thresholds−3 V … 5 V (Low)15 V … 30 V (High)Classification ZVEI CB24I, Sink C1Classification ZVEI CB24I, Source C1C2C3Electrical data - Safety digital outputsRated operating current (safety250 mAoutputs), maximum 1 VVoltage drop UdLeakage current I0.5 mArVoltage, Utilisation category DC-1324 VDCCurrent, Utilisation category DC-130.25 AClassification ZVEI CB24I, Source C1Classification ZVEI CB24I, Sink C1Electrical data - Diagnostic outputsVoltage drop Ud, maximum 2 V Voltage, Utilisation category DC-1324 VDC Current, Utilisation category DC-130.05 AStatus indicationNote (LED switching conditions display)Operating condition: LED green Error / functional defect: LED red Supply voltage UB: LED greenPin assignmentPIN 1A1 Supply voltage UBPIN 2X1 Safety input 1PIN 3A2 GNDPIN 4Y1 Safety output 1PIN 5OUT Diagnostic outputPIN 6X2 Safety input 2PIN 7Y2 Safety output 2PIN 8IN Solenoid controlScope of deliveryScope of delivery Actuators must be ordered separately.AccessoryRecommendation (actuator)MZM 100-B1.1NoteNote (General)As long as the actuating unit is applied to the solenoid interlock, the unlockedsafety guard can be relocked. In this case, the safety outputs are re-enabled, sothat the safety guard must not be opened.Ordering codeProduct type description:MZM 100(1)(2)(3)(4)(5)(1)without Solenoid interlock monitoredB Actuator monitored(2)ST2Connector plug M12, 8-poleST Connector plug M23, 8+1-pole(3)1P2P 1 p-type diagnostic output and 2 p-type safety outputs(only in connection with "Solenoid interlock monitored") 1P2PW serial diagnostic output and 2 p-type safety outputs(4)without electrically adjustable latching force 30 … 100 N(5)PicturesProduct picture (catalogue individual photo)dpi| 22.1 kB | .png | 74.083 x 100.189 mm - 210 x 284 px - 72 dpiDimensional drawing basic component| 20.7 kB | .swf || 5.2 kB | .png | 74.083 x 50.8 mm - 210 x 144 px - 72 dpi| 160.8 kB | .jpg | 352.778 x 242.358 mm - 1000 x 687 px - 72dpiDimensional drawing miscellaneous| 12.9 kB | .swf || 290.8 kB | .jpg | 352.425 x 362.656 mm - 999 x 1028 px - 72dpiWiring example| 37.0 kB | .cdr || 86.9 kB | .jpg | 352.778 x 161.572 mm - 1000 x 458 px - 72 dpiContact arrangement| 139.8 kB | .jpg | 352.778 x 380.647 mm - 1000 x 1079 px - 72dpiSchmersal, Inc., 15 Skyline Drive, Hawthorne, NY 10532The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.Generated on: 6/28/2022, 2:44 AM。

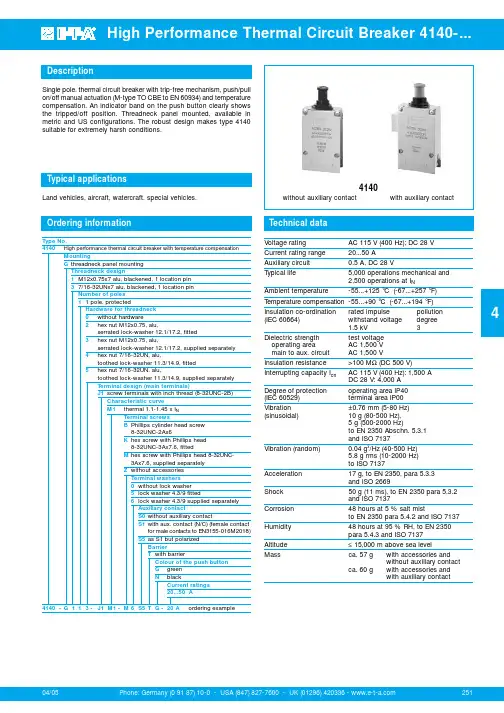

Phone: Germany (0 91 87) 10-0 - USA (847) 827-7600 - UK (01296) 420336 - 04/052514DescriptionTypical applicationsTechnical dataSingle pole, thermal circuit breaker with trip-free mechanism, push/pull on/off manual actuation (M-type TO CBE to EN 60934) and temperature compensation. An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, available in metric and US configurations. The robust design makes type 4140suitable for extremely harsh conditions.Land vehicles, aircraft, watercraft, special vehicles.4140without auxiliary contact with auxiliary contactVoltage ratingAC 115 V (400 Hz); DC 28 V Current rating range 20...50 AAuxiliary circuit 0.5 A, DC 28 VTypical life5,000 operations mechanical and 2,500 operations at I NAmbient temperature -55...+125 °C (-67...+257°F) T emperature compensation -55...+90 °C (-67...+194 °F)Insulation co-ordination rated impulse pollution (IEC 60664) withstand voltage degree1.5 kV 3Dielectric strength test voltage operating area AC 1,500 V main to aux. circuit AC 1,500 V Insulation resistance >100 M Ω(DC 500 V)Interrupting capacity I cnAC 115 V (400 Hz): 1,500 A DC 28 V: 4,000 ADegree of protection operating area IP40 (IEC 60529)terminal area IP00Vibration ±0.76 mm (5-80 Hz) (sinusoidal) 10 g (80-500 Hz),5 g (500-2000 Hz)to EN 2350 Abschn. 5.3.1and ISO 7137Vibration (random) 0.04 g 2/Hz (40-500 Hz)5.8 g rms (10-2000 Hz)to ISO 7137Acceleration 17 g, to EN 2350, para 5.3.3and ISO 2669Shock 50 g (11 ms), to EN 2350 para 5.3.2and ISO 7137Corrosion 48 hours at 5 % salt mistto EN 2350 para 5.4.2 and ISO 7137Humidity 48 hours at 95 % RH, to EN 2350para 5.4.3 and ISO 7137Altitude ≤15,000 m above sea level Massca. 57 gwith accessories andwithout auxiliary contactca. 60 g with accessories andwith auxiliary contactOrdering informationType No.4140High performance thermal circuit breaker with temperature compensationMountingG threadneck panel mounting Threadneck design1M12x0.75x7 alu, blackened, 1 location pin 37/16-32UNx7 alu, blackened, 1 location pin Number of poles 1 1 pole, protectedHardware for threadneck 0without hardware2hex nut M12x0.75, alu,serrated lock-washer 12.1/17.2, fitted 3hex nut M12x0.75, alu,serrated lock-washer 12.1/17.2, supplied separately 4hex nut 7/16-32UN, alu,toothed lock-washer 11.3/14.9, fitted 5hex nut 7/16-32UN, alu,toothed lock-washer 11.3/14.9, supplied separately Terminal design (main terminals)J1screw terminals with inch thread (8-32UNC-2B)Characteristic curveM1thermal 1.1-1.45 x I NTerminal screwsB Phillips cylinder head screw 8-32UNC-2Ax6K hex screw with Phillips head 8-32UNC-3Ax7.6, fittedM hex screw with Phillips head 8-32UNC-3Ax7.6, supplied separately Z without accessories Terminal washers 0without lock washer 5lock washer 4.3/9 fitted6lock washer 4.3/9 supplied separately Auxiliary contactS0without auxiliary contactS1with aux. contact (N/C) (female contactfor male contacts to EN3155-016M2018)S5as S1 but polarizedBarrierT with barrierColour of the push button G green N blackCurrent ratings 20...50 A 4140 -G 11 3 -J1 M1 -M 6S5T G -20 Aordering example。
