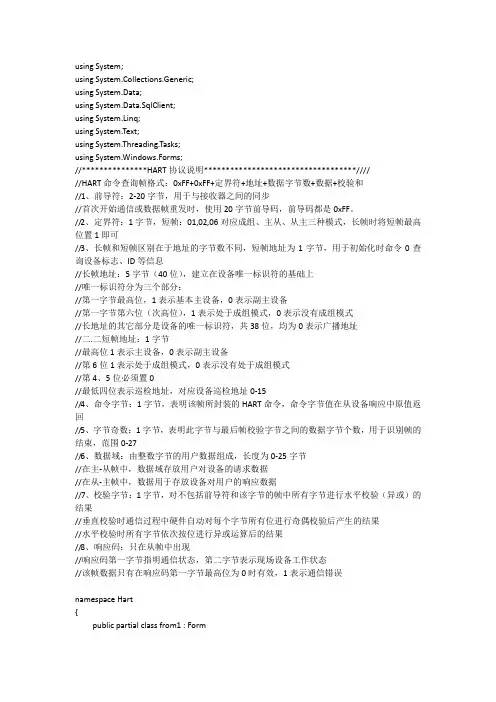

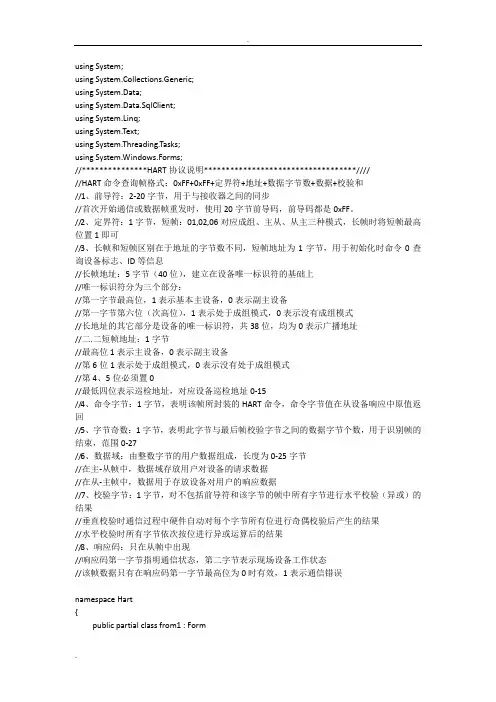

using System;using System.Collections.Generic;using System.Data;using System.Data.SqlClient;using System.Linq;using System.Text;using System.Threading.Tasks;using System.Windows.Forms;//***************HART协议说明***********************************//////HART命令查询帧格式：0xFF+0xFF+定界符+地址+数据字节数+数据+校验和//1、前导符：2-20字节，用于与接收器之间的同步//首次开始通信或数据帧重发时，使用20字节前导码，前导码都是0xFF。
//2、定界符：1字节，短帧：01,02,06对应成组、主从、从主三种模式，长帧时将短帧最高位置1即可//3、长帧和短帧区别在于地址的字节数不同，短帧地址为1字节，用于初始化时命令0查询设备标志、ID等信息//长帧地址：5字节（40位），建立在设备唯一标识符的基础上//唯一标识符分为三个部分：//第一字节最高位，1表示基本主设备，0表示副主设备//第一字节第六位（次高位），1表示处于成组模式，0表示没有成组模式//长地址的其它部分是设备的唯一标识符，共38位，均为0表示广播地址//二.二短帧地址：1字节//最高位1表示主设备，0表示副主设备//第6位1表示处于成组模式，0表示没有处于成组模式//第4、5位必须置0//最低四位表示巡检地址，对应设备巡检地址0-15//4、命令字节：1字节，表明该帧所封装的HART命令，命令字节值在从设备响应中原值返回//5、字节奇数：1字节，表明此字节与最后帧校验字节之间的数据字节个数，用于识别帧的结束，范围0-27//6、数据域：由整数字节的用户数据组成，长度为0-25字节//在主-从帧中，数据域存放用户对设备的请求数据//在从-主帧中，数据用于存放设备对用户的响应数据//7、校验字节：1字节，对不包括前导符和该字节的帧中所有字节进行水平校验（异或）的结果//垂直校验时通信过程中硬件自动对每个字节所有位进行奇偶校验后产生的结果//水平校验时所有字节依次按位进行异或运算后的结果//8、响应码：只在从帧中出现//响应码第一字节指明通信状态，第二字节表示现场设备工作状态//该帧数据只有在响应码第一字节最高位为0时有效，1表示通信错误namespace Hart{public partial class from1 : Form{//HART对应串口初始化Private SerialPort serial_hart = new SerialPort();Private void portInit(){serial_hart.PortName = hart[0]["port"].ToString();serial_hart.BaudRate = Convert.ToInt32(hart[0]["baudrate"]);serial_hart.ReceivedBytesThreshold = 1;serial_hart.Parity = Parity.Odd;try{serial_hart.Open();int n = serial_hart.BytesToRead; //串口缓存区待读取数据个数byte[] buffirstclear = new byte[n];serial_hart.Read(buffirstclear, 0, n);//将串口缓存区之前的数据清理掉，防止过量非预期数据进入解析环节buffirstclear = new byte[1]; //释放变量空间}catch (Exception ex){if (ex.ToString() != ex1){ex1 = ex.ToString();MessageBox.Show(ex.Message);}}}#region 设备信息private int manufacID = 18; //制造商IDprivate int devType = 8; //制造商设备类型private int sfVersion = 1; //软件版本号private int hwVersion = 0; //硬件版本号private int[] devID = new int[3]; //设备IDprivate int cmdVersion = 5; //通用命令文档版本号private int devIDResult = 0; //设备ID计算结果#endregion#region 主变量(PV)private int PVUnitCd = 0; //主变量代码private float PVValue = 0; //主变量private float PVCurrent = 0; //主变量电流private float PVPercentRange = 0; //主变量量程百分比private int PVSensNum = 0; //主变量传感器编号private int PVSensUnitCd = 0; //传感器极限、最小精度单位代码private float PVUpSensLmt = 0; //传感器上限private float PVLowSensLmt = 0; //传感器下限private float PVMiniSpan = 0; //主变量最小精度private int PVAlarmSelCd = 0; //主变量报警选择代码private int PVTransFuncCd = 0; //主变量传递功能代码private int PVRangeUnitCd = 0; //主变量上下量程单位代码private float PVUpRangeValue = 0; //主变量上限值private float PVLowRangValue = 0;//主变量下限值private float PVDampValue = 0; //主变量阻尼值，单位秒private int WriteProtectCd = 251; //写保护代码private int PLDCd = 18; //商标发行商代码，18-ABB公司#endregion#region 第二...第四变量private int SecVUnitCd = 0; //第二变量代码private float SecVValue = 0; //第二变量值private int ThirdVUnitCd = 0; //第三变量代码private float ThirdVValue = 0; //第三变量值private int ForthVUnitCd = 0; //第四变量代码private float ForthVValue = 0; //第四变量值#endregion#region 标签、描述符、日期（日月年）private string hartTag = ""; //标签private string hartDspt = ""; //描述private string hartDate = ""; //日期#endregion#region 通用命令帧头private byte[] cmdHead = new byte[14]; //帧头包含导引符、定界符、地址private int cmdHeadInitFlag = 0; //帧头初始化标志#endregion#region 常量表、动态变量表public DataTable hartConstant = new DataTable();public DataTable hartDynamic = new DataTable();#endregionprivate int IDHartConstant = 0; //常量表IDprivate int IDHartDynamic = 0; //动态变量表IDprivate string errorstr = ""; //错误信息字符串private string hartMsg = ""; //读设备消息返回结果public string[] HartParaShow = new string[6];private int FinalAssembleNum = 0; //最终装配号private int[] hartGetCmdOk = new int[9]; //9个通用查询命令，查询成功后对应单元数置1#region 常量表初始化private void HartConstantInit()hartConstant.Columns.Add("ID", typeof(int));hartConstant.Columns.Add("Time", typeof(string));hartConstant.Columns.Add("制造商ID", typeof(int));hartConstant.Columns.Add("制造商设备类型", typeof(int));hartConstant.Columns.Add("通用命令文档版本号", typeof(int));hartConstant.Columns.Add("设备软件版本号", typeof(int));hartConstant.Columns.Add("设备硬件版本号", typeof(int));hartConstant.Columns.Add("设备ID号", typeof(int));hartConstant.Columns.Add("设备消息", typeof(string));hartConstant.Columns.Add("标签Tag", typeof(string));hartConstant.Columns.Add("描述符", typeof(string));hartConstant.Columns.Add("日期", typeof(string));hartConstant.Columns.Add("传感器序列号", typeof(int));hartConstant.Columns.Add("传感器上下限单位代码", typeof(int));hartConstant.Columns.Add("传感器上限", typeof(float));hartConstant.Columns.Add("传感器下限", typeof(float));hartConstant.Columns.Add("主变量最小精度", typeof(float));hartConstant.Columns.Add("报警选择代码", typeof(int));hartConstant.Columns.Add("传递功能代码", typeof(int));hartConstant.Columns.Add("上下量程值代码", typeof(int));hartConstant.Columns.Add("主变量上限值", typeof(float));hartConstant.Columns.Add("主变量下限值", typeof(float));hartConstant.Columns.Add("主变量阻尼值", typeof(float));hartConstant.Columns.Add("写保护代码", typeof(int));hartConstant.Columns.Add("最终装配号", typeof(int));}#endregion#region 动态变量表初始化private void HartDynamicInit(){hartDynamic.Columns.Add("ID", typeof(int));hartDynamic.Columns.Add("Time", typeof(string));hartDynamic.Columns.Add("设备ID号", typeof(int));hartDynamic.Columns.Add("主变量单位代码", typeof(int));hartDynamic.Columns.Add("主变量值", typeof(float));hartDynamic.Columns.Add("主变量电流", typeof(float));hartDynamic.Columns.Add("主变量量程百分比", typeof(float));hartDynamic.Columns.Add("第二变量单位代码", typeof(int));hartDynamic.Columns.Add("第二变量值", typeof(int));hartDynamic.Columns.Add("第三变量单位代码", typeof(int));hartDynamic.Columns.Add("第三变量值", typeof(int));hartDynamic.Columns.Add("第四变量单位代码", typeof(int));hartDynamic.Columns.Add("第四变量值", typeof(int));#endregion#region 发送命令0（读标识码）查询请求private void hartSendCmd0() //发送命令0（读标识码）查询请求{if (hartopenflag == 1){byte[] cmd = new byte[13];for (int i = 0; i < 8; i++){cmd[i] = 0xff; //第一次通信前导符为20个0xFF}cmd[8] = 0x02; //短帧，主从模式cmd[9] = 0x80; //主设备cmd[10] = 0x00; //命令0cmd[11] = 0x00; //数据长度0cmd[12] = Convert.ToByte( cmd[8] ^ cmd[9] ^ cmd[10] ^ cmd[11]); //水平校验serial_hart.Write(cmd, 0, 13);}}#endregion#region 发送无请求数据的长帧通用方法private void hartLongFrameCmdsend(byte cmdn) //发送无请求数据的长帧通用方法{byte[] cmd = new byte[17];if (cmdHeadInitFlag == 1) //获取到设备信息后{for (int i = 0; i < 14; i++){cmd[i] = cmdHead[i]; //帧头赋值}cmd[14] = 1; //命令1cmd[15] = cmdn; //无请求数据cmd[16] = cmd[8];for (int i = 9; i < 16; i++){cmd[16] = Convert.ToByte(cmd[16] ^ cmd[i]); //校验和}serial_hart.Write(cmd, 0, 17); //发送请求}}#endregion#region 无请求数据的长地址查询private void hartSendCmd1() //发送通用命令1(读主变量)查询请求{hartLongFrameCmdsend(1);}private void hartSendCmd2() //发送通用命令2(读主变量电流值和百分比)查询请求{hartLongFrameCmdsend(2);}private void hartSendCmd3() //发送通用命令3(读动态变量和主变量电流)查询请求{hartLongFrameCmdsend(3);}private void hartSendCmd12() //发送通用命令12(读消息)查询请求{hartLongFrameCmdsend(12);}private void hartSendCmd13() //发送通用命令13(读标签Tag)查询请求{hartLongFrameCmdsend(13);}private void hartSendCmd14() //发送通用命令14(读主变量传感器信息)查询请求{hartLongFrameCmdsend(14);}private void hartSendCmd15() //发送通用命令15(读主变量输出信息)查询请求{hartLongFrameCmdsend(15);}private void hartSendCmd16() //发送通用命令16(读最终装配号)查询请求{hartLongFrameCmdsend(16);}private void hartSendCmd48() //发送常用命令48(读附加器件状态)查询请求{hartLongFrameCmdsend(48);}#endregion#region 命令0返回值解析（标识码）private void hartGetCmd0() //获取命令0设备返回的数据并解析{//预期接收到设备返回的数据为：//FF FF FF FF FF FF FF FF 06 80 00 0E 00 00 FE 12 08 08 05 00 01 00或01 00 00 设备ID高字节设备ID低字节int n = serial_hart.BytesToRead;int begin = 0;byte[] buf;if (n >24){buf = new byte[n];serial_hart.Read(buf, 0, n);for (int i = 0; i < 9; i++){if ((buf[i] == 0x06) & (buf[i + 1] == 0x80) & (buf[i + 2] == 0x0) &(buf[i + 3] == 12)){begin = i;if ((buf[i + 4] == 0) & (buf[i + 5] == 0)){manufacID = buf[i + 7];devType = buf[i + 8];cmdVersion = buf[i + 10];sfVersion = buf[i + 12];hwVersion = buf[i + 13];devID[0] = buf[i + 15];devID[1] = buf[i + 16];devID[2] = buf[i + 17];devIDResult = devID[1] * 256 + devID[2];hartGetCmdOk[0] = 1; //返回值接收成功标志置1cmdHeadInit(); //初始化命令帧头}else{errorstr = "数据长度有误！";pictureBox_Normal.Image = Properties.Resources.异常;label_Right.Text = "异常";label_Hint.Text = "Hart通用命令0" + errorstr;hartSendCmd0(); //未能获取到设备信息则重新发送请求}}}}}#endregion#region 数据解析查找帧头相关变量private int headbegin = 0; //分界符位置private int headFindFlag = 0; //找到分解符标志#endregion#region 判断返回值是否正确，并找到帧头（分界符位置）//判断帧头（定界符）位置private void findFrameHead(byte[] buf1, byte cmdn,byte datanum){for (int i = 0; i < 10; i++){if ((buf1[i] == 0x86) & (buf1[i + 1] == cmdHead[9]) &(buf1[i + 2] == cmdHead[10]) & (buf1[i + 3] == cmdHead[11]) &(buf1[i + 4] == cmdHead[12]) & (buf1[i + 5] == cmdHead[13]) &(buf1[i + 6] == cmdn) & (buf1[i + 7] == datanum)){if ((buf1[i + 8] == 0) & (buf1[i + 9] == 0)){headbegin = i;headFindFlag = 1;}if ((buf1[i + 8] == 0) & (buf1[i + 9] == 5)){errorstr = "命令" + cmdn.ToString() + "返回结果异常，字节数不对！！";pictureBox_Normal.Image = Properties.Resources.异常;label_Right.Text = "异常";label_Hint.Text = errorstr;}}}}#endregion#region 查询命令通用帧头设置private void cmdHeadInit() //初始化命令帧头,只有在获取到设备信息后才会有此标志为1{for (int i = 0; i < 8; i++){cmdHead[i] = 0xff;}cmdHead[8] = 0x82;cmdHead[9] = Convert.ToByte( manufacID);cmdHead[9] |=0x80;cmdHead[10] = Convert.ToByte(devType);for (int i = 0; i < 3; i++){cmdHead[i + 11] = Convert.ToByte(devID[i]);}cmdHeadInitFlag = 1;}#endregion#region 命令1返回值解析（主变量PV）//命令1返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x01 0x05 00 00 #0 #1...#4// ///////*********前导符*****///定界符//**************地址********//命令//数据长度//状态//主变量单位代码//主变量private void hartGetCmd1(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 1;byte datanum = 5;if (n > 18){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){PVUnitCd = buf[headbegin + 10];PVValue = BitConverter.ToSingle(buf, headbegin + 11);hartGetCmdOk[1] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd1();}}}#endregion#region 命令2返回值解析（主变量电流值和百分比）//命令2返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x02 0x18 00 00 #0..#3 #4...#7// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//主变量电流//主变量量程百分比private void hartGetCmd2(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 2;byte datanum = 8;if (n > 18){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){PVCurrent = BitConverter.ToSingle(buf, headbegin + 10);PVPercentRange = BitConverter.ToSingle(buf, headbegin + 14);hartGetCmdOk[2] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd2();}}}#endregion#region 命令3返回值解析（主变量电流和动态变量）//命令3返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x03 0x18 00 00 #0..#3 #4// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//主变量电流//主变量单位代码// #5...#8 #9 #10...#13 #14 #15...#18 #19 #20...#23//主变量值*第二变量代码*第二变量值*第三变量代码*第三变量值*第四变量代码*第四变量值private void hartGetCmd3(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 3;byte datanum = 24;if (n >34 ){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){PVCurrent = BitConverter.ToSingle(buf, headbegin + 10);PVUnitCd = buf[headbegin + 14];PVValue = BitConverter.ToSingle(buf, headbegin + 15);SecVUnitCd = buf[headbegin + 19];SecVValue = BitConverter.ToSingle(buf, headbegin + 20);ThirdVUnitCd = buf[headbegin + 24];ThirdVValue = BitConverter.ToSingle(buf, headbegin + 25);ForthVUnitCd = buf[headbegin + 29];ForthVValue = BitConverter.ToSingle(buf, headbegin + 30);hartGetCmdOk[3] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd3();}}}#endregion#region 命令12返回值解析（设备消息）//该命令用于读取设备消息// //预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x0C 0x18 00 00 #0..#23// ////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//设备消息（ASCII）private void hartGetCmd12(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 12;byte datanum ;if (n > 18){buf = new byte[n];serial_hart.Read(buf, 0, n);datanum = Convert.ToByte(n-18); //是24还是实际字符串长度不确定findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){StringBuilder strb = new StringBuilder();for (int i = 0; i < datanum; i++){strb.Append((char)buf[headbegin + 10 + i]);}hartMsg = strb.ToString();hartGetCmdOk[4] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd12();}}}#endregion#region 命令13返回值解析（标签描述）//命令3返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x0D 0x18 00 00 #0..#5 #6...#17// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//设备的Tag//描述符// #18...#20// 日期：日月年private void hartGetCmd13(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 13;byte datanum=21;if (n >31){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){StringBuilder strb = new StringBuilder();for (int i = 0; i < 6; i++){strb.Append((char)buf[headbegin + 10 + i]);}hartTag = strb.ToString();strb.Clear();for (int i = 6; i < 18; i++){strb.Append((char)buf[headbegin + 10 + i]);}hartDspt = strb.ToString();hartDate = buf[headbegin + 20].ToString() + "年" +buf[headbegin + 19].ToString() + "月" +buf[headbegin + 18].ToString() + "日";hartGetCmdOk[5] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd13();}}}#endregion#region 命令14返回值解析（主变量传感器信息）//命令14返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x0E 0x10 00 00 #0..#2 #3// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//传感器序列号//单位代码// #4...#7 #8...#11 #12...#15// 传感器上限*传感器下限*主变量最小精度private void hartGetCmd14(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 14;byte datanum = 16;if (n > 26){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){PVSensNum = (buf[headbegin + 10] << 16) & 0xff0000 + (buf[headbegin + 11] << 8) & 0xff00 + buf[headbegin + 12];PVSensUnitCd = buf[headbegin + 13];PVUpSensLmt = BitConverter.ToSingle(buf, headbegin + 14);PVLowSensLmt = BitConverter.ToSingle(buf, headbegin + 18);PVMiniSpan = BitConverter.ToSingle(buf, headbegin + 22);hartGetCmdOk[6] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd14();}}}#endregion#region 命令15返回值解析（主变量输出信息）//命令15返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x0F 0x10 00 00 #0 #1// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//报警选择代码//传递功能代码// #2 #3...#6 #7...#10 #11..#14 #15 #16// 上下量程单位代码*主变量上限*主变量下限*阻尼值**写保护代码*发行商代码/*private int PVAlarmSelCd = 0; //主变量报警选择代码private int PVTransFuncCd = 0; //主变量传递功能代码private int PVRangeUnitCd = 0; //主变量上下量程单位代码private float PVUpRangeValue = 0; //主变量上限值private float PVLowRangValue = 0;//主变量下限值private float PVDampValue = 0; //主变量阻尼值，单位秒private int WriteProtectCd = 251; //写保护代码private int PLDCd = 18; //商标发行商代码，18-ABB公司*/private void hartGetCmd15(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 15;byte datanum = 17;if (n > 27){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){PVAlarmSelCd = buf[headbegin + 10];PVTransFuncCd = buf[headbegin + 11];PVRangeUnitCd = buf[headbegin + 12];PVUpRangeValue = BitConverter.ToSingle(buf, headbegin + 13);PVLowRangValue = BitConverter.ToSingle(buf, headbegin + 17);PVDampValue = BitConverter.ToSingle(buf, headbegin + 21);WriteProtectCd = buf[headbegin + 25];PLDCd = buf[headbegin + 26];hartGetCmdOk[7] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd15();}}}#endregion#region 命令16返回值解析（最终装配号）//命令15返回值解析//预期返回值为：FF FF FF FF FF FF FF FF 86 #add1 #add2 #add3 #add4 #add5 0x0F 0x10 00 00 #0 #1// ///////*******8个前导符*****///定界符//*********5字节地址********//命令//数据长度//状态//报警选择代码//传递功能代码// #2 #3...#6 #7...#10 #11..#14 #15 #16// 上下量程单位代码*主变量上限*主变量下限*阻尼值**写保护代码*发行商代码private void hartGetCmd16(){int n = serial_hart.BytesToRead;byte[] buf;byte cmdn = 16;byte datanum = 3;if (n > 27){buf = new byte[n];serial_hart.Read(buf, 0, n);findFrameHead(buf, cmdn, datanum);if (headFindFlag == 1){FinalAssembleNum = buf[headbegin + 10] * 65536 + buf[headbegin + 11]* 256 + buf[headbegin + 12];hartGetCmdOk[8] = 1;headFindFlag = 0;headbegin = 0;}else{hartSendCmd16();}}}#endregionprivate void hartSaveConstantTable() //常量存入常量表{DataRow hartc = hartConstant.NewRow();hartc["ID"] = IDHartConstant;hartc["Time"] = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.fff");hartc["制造商ID"] = manufacID;hartc["制造商设备类型"] = devType;hartc["通用命令文档版本号"] = cmdVersion;hartc["设备软件版本号"] = sfVersion;hartc["设备硬件版本号"] = hwVersion;hartc["设备ID号"] = devID;hartc["设备消息"] = hartMsg;hartc["标签Tag"] = hartTag;hartc["描述符"] = hartDspt;hartc["日期"] = hartDate;hartc["传感器序列号"] = PVSensNum;hartc["传感器上下限单位代码"] = PVSensUnitCd;hartc["传感器上限"] = PVUpSensLmt;hartc["传感器下限"] = PVLowSensLmt;hartc["主变量最小精度"] = PVMiniSpan;hartc["报警选择代码"] = PVAlarmSelCd;hartc["传递功能代码"] = PVTransFuncCd;hartc["上下量程值代码"] = PVRangeUnitCd;hartc["主变量上限值"] = PVUpRangeValue;hartc["主变量下限值"] = PVLowRangValue;hartc["主变量阻尼值"] = PVDampValue;hartc["写保护代码"] = WriteProtectCd;hartc["最终装配号"] = PLDCd;hartConstant.Rows.Add(hartc);}private void strHartCSet(StringBuilder str) //字符串赋值{str.Append("ID,");str.Append("Time,");str.Append("制造商ID,");str.Append("制造商设备类型,");str.Append("通用命令文档版本号,");str.Append("设备软件版本号,");str.Append("设备硬件版本号,");str.Append("设备ID号,");str.Append("设备消息,");str.Append("标签Tag,");str.Append("描述符,");str.Append("日期,");str.Append("传感器序列号,");str.Append("传感器上下限单位代码,");str.Append("传感器上限,");str.Append("传感器下限,");str.Append("主变量最小精度,");str.Append("报警选择代码,");str.Append("传递功能代码,");str.Append("上下量程值代码,");str.Append("主变量上限值,");str.Append("主变量下限值,");str.Append("主变量阻尼值,");str.Append("写保护代码,");str.Append("最终装配号");}public int[] hartViewItemSct = new int[6];/* private string[] hartConstItem = { "ID", "Time", "制造商ID", "制造商设备类型", "通用命令文档版本号","设备软件版本号", "", "", "", "","", "", "", "", "","", "", "", "", "","", "", "", "", "",};*/private void strHartDSet(StringBuilder str){str.Append("ID,");str.Append("Time,");str.Append("设备ID号,");str.Append("主变量单位代码,");str.Append("主变量值,");str.Append("主变量电流,");str.Append("主变量量程百分比,");str.Append("第二变量单位代码,");str.Append("第二变量值,");str.Append("第三变量单位代码,");str.Append("第三变量值,");str.Append("第四变量单位代码,");str.Append("第四变量值");}private void hartSaveConstantDb() //常量存入数据库{if (hartConstant.Rows.Count > 0){StringBuilder strHartC = new StringBuilder();strHartCSet(strHartC); //字符串赋值string saveStr = strHartC.ToString();int m = hartConstant.Rows.Count - 1;SqlCommand com = new SqlCommand(String.Format("insert into HartConstant('{0}')Values({1},'{2}',{3},{4},{5},{6},{7},{8},'{9}','{10}','{11}','{12}',{13},{14},{15},{16},{17},{18},{19},{20},{21},{22} ,{23},{24},{25})", saveStr, hartConstant.Rows[m]["ID"], hartConstant.Rows[m]["Time"], hartConstant.Rows[m]["制造商ID"],hartConstant.Rows[m]["制造商设备类型"], hartConstant.Rows[m]["通用命令文档版本号"],hartConstant.Rows[m]["设备软件版本号"], hartConstant.Rows[m]["设备硬件版本号"], hartConstant.Rows[m]["设备ID号"],hartConstant.Rows[m]["设备消息"], hartConstant.Rows[m]["标签Tag"],hartConstant.Rows[m]["描述符"], hartConstant.Rows[m]["日期"],hartConstant.Rows[m]["传感器序列号"], hartConstant.Rows[m]["传感器上下限单位代码"],hartConstant.Rows[m]["传感器上限"], hartConstant.Rows[m]["传感器下限"],hartConstant.Rows[m]["主变量最小精度"], hartConstant.Rows[m]["报警选择代码"],hartConstant.Rows[m]["传递功能代码"], hartConstant.Rows[m]["上下量程值代码"],hartConstant.Rows[m]["主变量上限值"], hartConstant.Rows[m]["主变量下限值"],hartConstant.Rows[m]["主变量阻尼值"], hartConstant.Rows[m]["写保护代码"],hartConstant.Rows[m]["最终装配号"]), dbcon);try{com.ExecuteNonQuery();}catch (Exception ex){MessageBox.Show(ex.Message);}}}private void hartSaveDynamicTable() //动态变量存入动态变量表{DataRow hartd = hartDynamic.NewRow();hartd["ID"] = IDHartDynamic;hartd["Time"] = DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.fff");hartd["设备ID号"] = devID;hartd["主变量单位代码"] = PVUnitCd;hartd["主变量值"] = PVValue;hartd["主变量电流"] = PVCurrent;hartd["主变量量程百分比"] = PVPercentRange;hartd["第二变量单位代码"] = SecVUnitCd;hartd["第二变量值"] = SecVValue;hartd["第三变量单位代码"] = ThirdVUnitCd;hartd["第三变量值"] = ThirdVValue;hartd["第四变量单位代码"] = ForthVUnitCd;hartd["第四变量值"] = ForthVValue;hartDynamic.Rows.Add(hartd);}private void hartSaveDynamicDb() //动态变量存入数据看{if (hartDynamic.Rows.Count > 0){StringBuilder strHartD = new StringBuilder();strHartDSet(strHartD); //字符串赋值string saveStr = strHartD.ToString();int m = hartDynamic.Rows.Count - 1;SqlCommand com = new SqlCommand(String.Format("insert into HartDynamic('{0}')Values ({1},'{2}',{3},{4},{5},{6},{7},{8},{9},{10},{11},{12},{13})", saveStr, hartDynamic.Rows[m]["ID"], hartDynamic.Rows[m]["Time"], hartDynamic.Rows[m]["设备ID号"],hartDynamic.Rows[m]["主变单位代码"], hartDynamic.Rows[m]["主变量值"],hartDynamic.Rows[m]["主变量电流"], hartDynamic.Rows[m]["主变量量程百分比"],hartDynamic.Rows[m]["第二变量单位代码"], hartDynamic.Rows[m]["第二变量值"],hartDynamic.Rows[m]["第三变量单位代码"], hartDynamic.Rows[m]["第三变量值"],hartDynamic.Rows[m]["第四变量单位代码"], hartDynamic.Rows[m]["第四变量值"]), dbcon);try{com.ExecuteNonQuery();}catch (Exception ex){MessageBox.Show(ex.Message);}}}#region 存储常量（数据库、数据表）private void hartSaveConstant(){if (dbcon_flag == 1){if (dbconOpenNow == 0){dbconOpen();}string sqlquery = "select top 1 ID from HartConstant order by ID desc";try{SqlDataAdapter sda = new SqlDataAdapter(sqlquery, dbcon);DataSet ds = new DataSet();sda.Fill(ds);//把查询结果填充在ds里if (ds.Tables[0].Rows.Count == 1){IDHartConstant = Convert.ToInt32(ds.Tables[0].Rows[0][0]) + 1;}elseIDHartConstant = 0;}catch (Exception ex){MessageBox.Show(ex.Message);}hartSaveConstantTable();hartSaveConstantDb();if (dbconOpenNow == 1){dbconClose();}}else{if (hartConstant.Rows.Count > 0){IDHartConstant = Convert.ToInt32(hartConstant.Rows[hartConstant.Rows.Count - 1]["ID"]) + 1;}else{IDHartConstant = 0;}hartSaveConstantTable();}}#endregion#region 存储动态变量（数据库、数据表）private void hartSaveDynamic(){if (dbcon_flag == 1){if (dbconOpenNow == 0){dbconOpen();}string sqlquery = "select top 1 ID from HartDynamic order by ID desc";try{SqlDataAdapter sda = new SqlDataAdapter(sqlquery, dbcon);DataSet ds = new DataSet();sda.Fill(ds);//把查询结果填充在ds里if (ds.Tables[0].Rows.Count == 1){IDHartDynamic = Convert.ToInt32(ds.Tables[0].Rows[0][0]) + 1;}elseIDHartDynamic = 0;}catch (Exception ex){MessageBox.Show(ex.Message);}hartSaveDynamicTable();hartSaveDynamicDb();if (dbconOpenNow == 1){dbconClose();}}else{if (hartDynamic.Rows.Count > 0){IDHartDynamic = Convert.ToInt32(hartDynamic.Rows[hartDynamic.Rows.Count - 1]["ID"]) + 1;}else{IDHartDynamic = 0;}hartSaveDynamicTable();}}#endregionprivate int hartNum = 0; //HART收发计数器，偶数发查询命令，奇数解析设备返回数据private int hartCmdNum = 0; //控制HART发送解析具体命令private int hartInitFlag = 0; //Hart设备初始化标识private int hartWorkFlag = 0; //Hart设备工作标识private int hartSleepFlag = 0; //Hart设备暂停查询标识（两分钟查询一次变量）private int hartSleepNum = 0; //Hart设备休眠时间private int hartInitOkFlag = 0; //初始化完成标识，用于更新主界面常量相关的参数显示#region HART设备初始化，主要是查询设备标识及常量信息//HART初始化private void hartInit(){if ((hartNum % 2) == 0){#region 发送初始化需要的查询指令switch (hartCmdNum){case 0:hartSendCmd0();hartNum++;hartInitOkFlag = 0;break;case 12:。

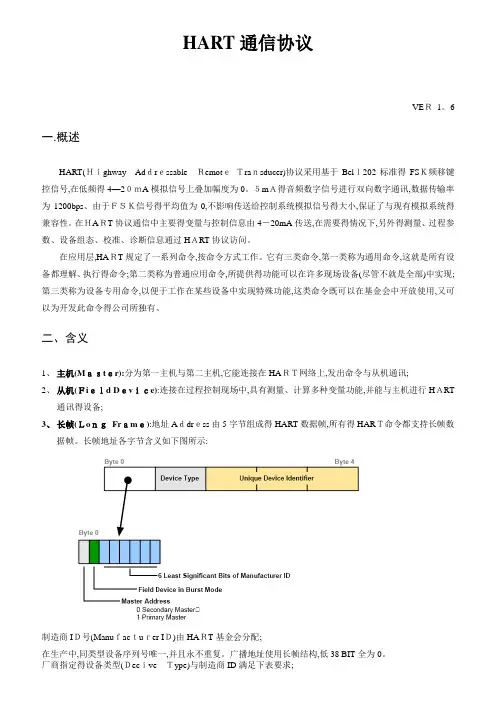

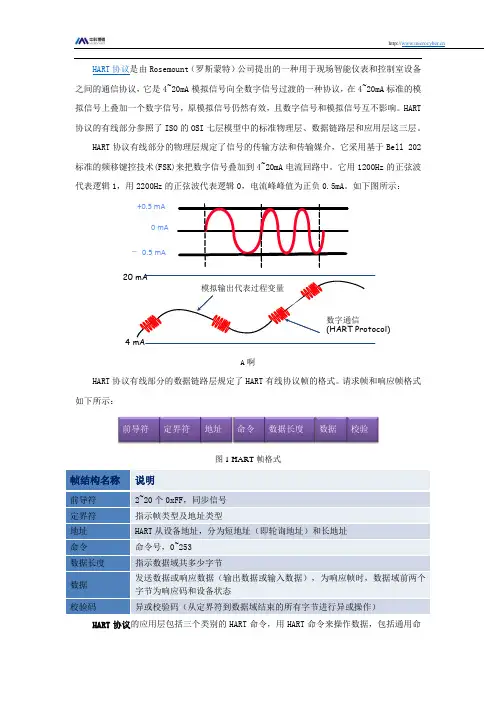

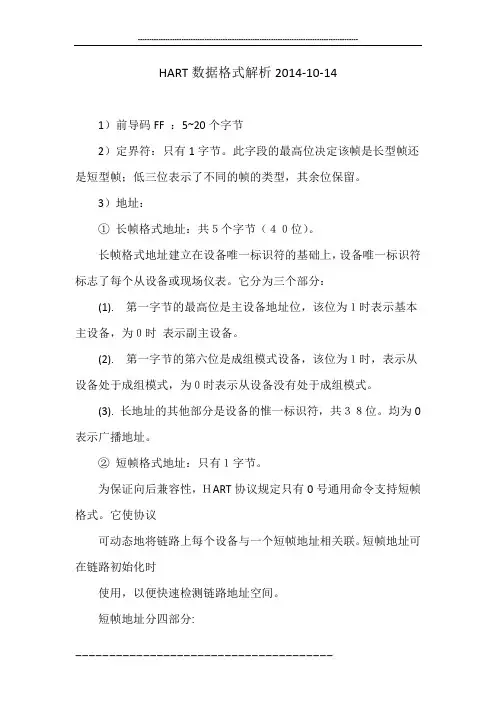

![HART通信协议V7(C9,C33,C132)[详细]](https://img.taocdn.com/s1/m/0f278f726137ee06eff918d8.png)
